Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Cable Tools > Conveyor 900 Cable Pusher: Efficient and Reliable Cable - Handling Equipment
Conveyor 900 Cable Pusher: Efficient and Reliable Cable - Handling Equipment
US$ 2100 - 2200
MOQ: 1 Piece
Key Specifications
Get Latest Price
Type:
Other, Cable Pusher
Certification:
CE, ISO
Feature:
Moistureproof, Insulation
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai/tianjin/yiwu/qingdao/shenzhen
Delivery Detail:
1 days
Related Products
-
Cable Pusher 900 High Speed Conveyor | ChangYun TechnologyUS$ 2200 - 2300MOQ: 1 Piece -
The 900 Cable Pusher is a High-performance Professional Equipment Specifically Designed for Challenging Power Cable Laying Projects.US$ 2100 - 2200MOQ: 1 Piece
-
Changyun Tank Tracked Vehicle – Remote-Controlled, 1t Load & Stepless SpeedUS$ 2200 - 2300MOQ: 1 Combo
-
Changyun Tank 900 Reinforced Crawler Cable ConveyorUS$ 4000 - 4100MOQ: 1 Combo
-
Changyun Reinforced Conveyor 900 Cable Conveyor – 8000N Pull & Stepless SpeedUS$ 2100 - 2200MOQ: 1 Combo
Type
Other, Cable Pusher
Certification
CE, ISO
Feature
Moistureproof, Insulation
Condition
New
Customized
Customized
Color
Fruit green
Weight
210 kg
Power type
Electric
Transport Package
Wooden box packaging
Specification
10605cm*57cm*53cm
Trademark
ChangYun Technology
Origin
China

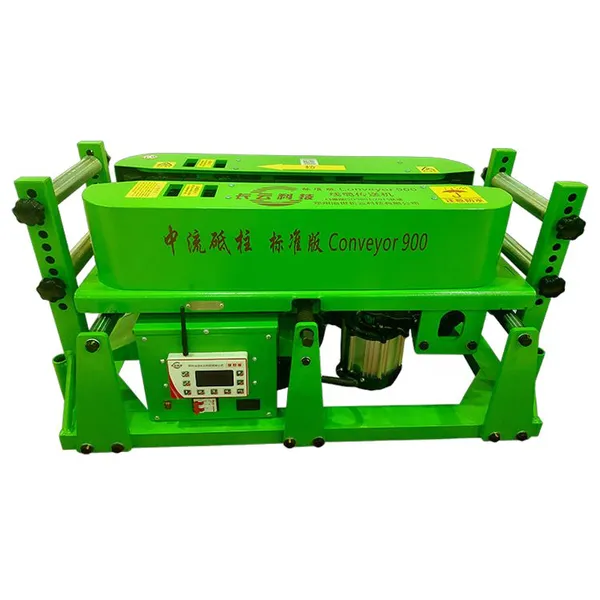

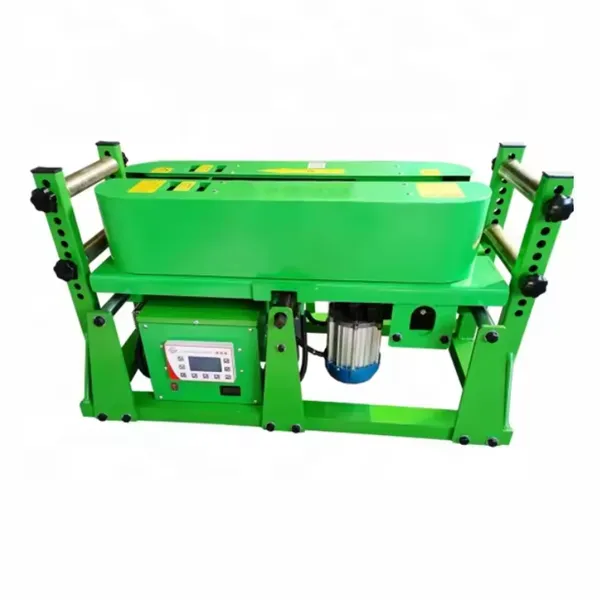

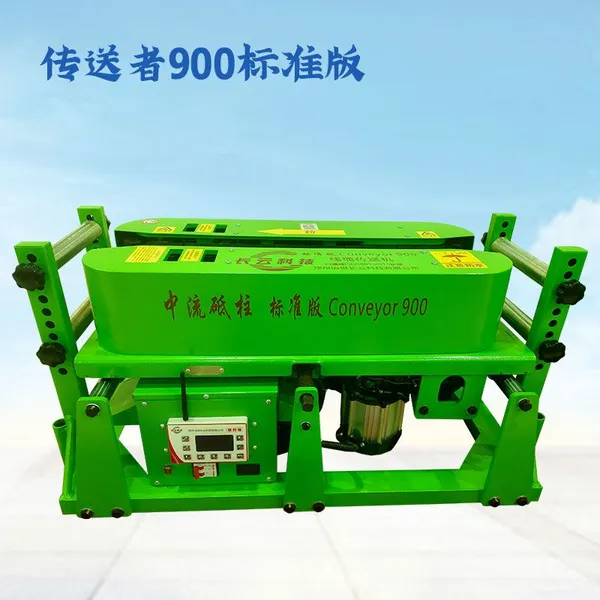

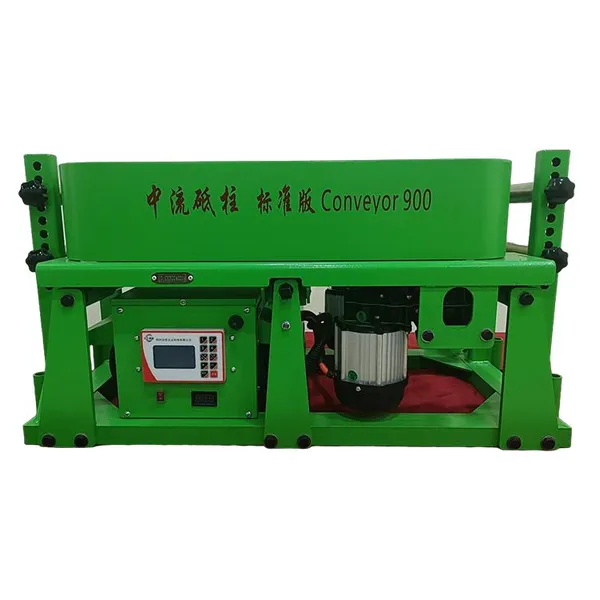

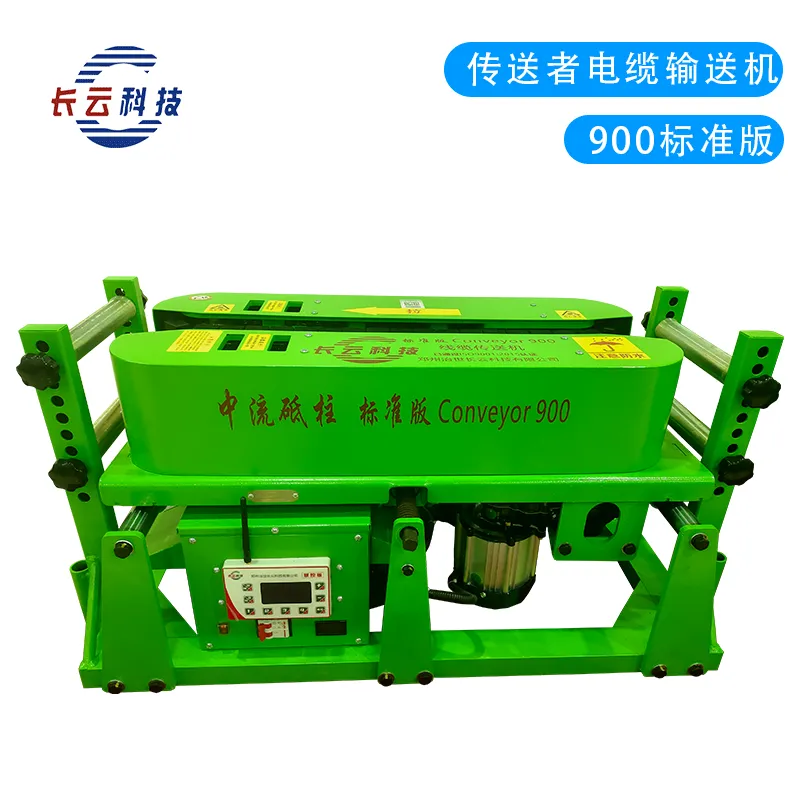

Conveyor 900 Cable Conveyor: Efficient and Reliable Cable - Handling Equipment
-
•
Motor and Traction Force: Equipped with a dual - pure copper core motor, it offers a maximum conveying traction force of 6000N. This strong pulling power ensures smooth transportation of cables, even in challenging conditions. -
•
Speed Regulation: It features 4 - gear positions plus stepless speed regulation. The conveying speed can be adjusted within the range of 4 - 26m/min, with the optimal speed being 10 - 16m/min in 2nd and 3rd gears. The speed can be freely controlled within this range, allowing for flexible adaptation to different working scenarios. -
•
Power Supply: The standard power supply is AC380V, and AC220V is available for customization, providing convenience for different power environments.
-
•
Multiple Control Methods: It can be controlled through both the control panel and remote control, enabling operators to manage the equipment from a distance. This not only improves work efficiency but also enhances work safety. -
•
Multi - unit Linkage: All series are equipped with a linkage control module, which allows multiple units to be linked and controlled together. This is especially useful for large - scale cable laying projects, reducing the need for more operators.
-
•
Wear - resistant Components: With high - quality wear - resistant rubber blocks and thickened wear - resistant conveyor cables, it ensures long - term stable operation and reduces maintenance costs. -
•
Compact and Portable: The overall design is compact, with a net weight of 210kg and dimensions of 106.4X57X53cm, making it easy to transport and move around at the job site.
