Product Description and Instruction Manual:
Product Overview:
The CY-8 Conveyor Cable Conveyor is a powerful and reliable machine designed for conveying cables with high tension. Equipped with a double pure copper core motor, it delivers a maximum conveying tension of 6000N. The machine operates at a fast transfer speed of 19.2m/min, ensuring efficient performance. With button control for easy operation, it is suitable for a wide range of industrial applications.

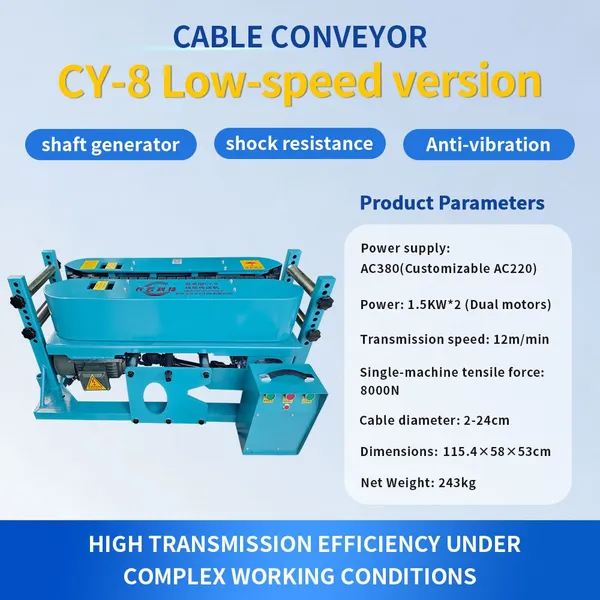

Technical Specifications:
Type: CY-8
Electricity Source: AC380V (Standard), AC220V (Customizable)
Speed Adjustment: Constant speed
Control Mode: Switching control
Power: 1500W × 2
Transfer Speed: 19.2m/min
Maximum Tension: 6000N
Cable Diameter Range: 2~24cm
Overall Dimensions: 115.4×58×53cm
Weight: 243kg (Clean and Heavy)
Key Features:
High Tension: Maximum conveying tension of 6000N for demanding applications.
Stable Operation: Low noise and stable performance during operation.

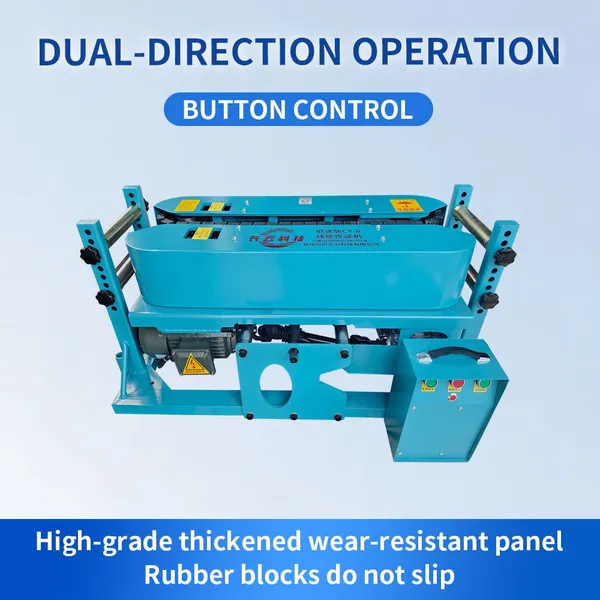

Button Control: Easy-to-use switching control for forward and reverse rotation.
Durable Construction: High-quality wear-resistant rubber block and thicken wear-resistant, non-slip shaft transmission.
High Transmission Efficiency: Anti-impact and anti-vibration design for reliable performance.
Operating Instructions:
Setup:
Place the conveyor on a stable and level surface.

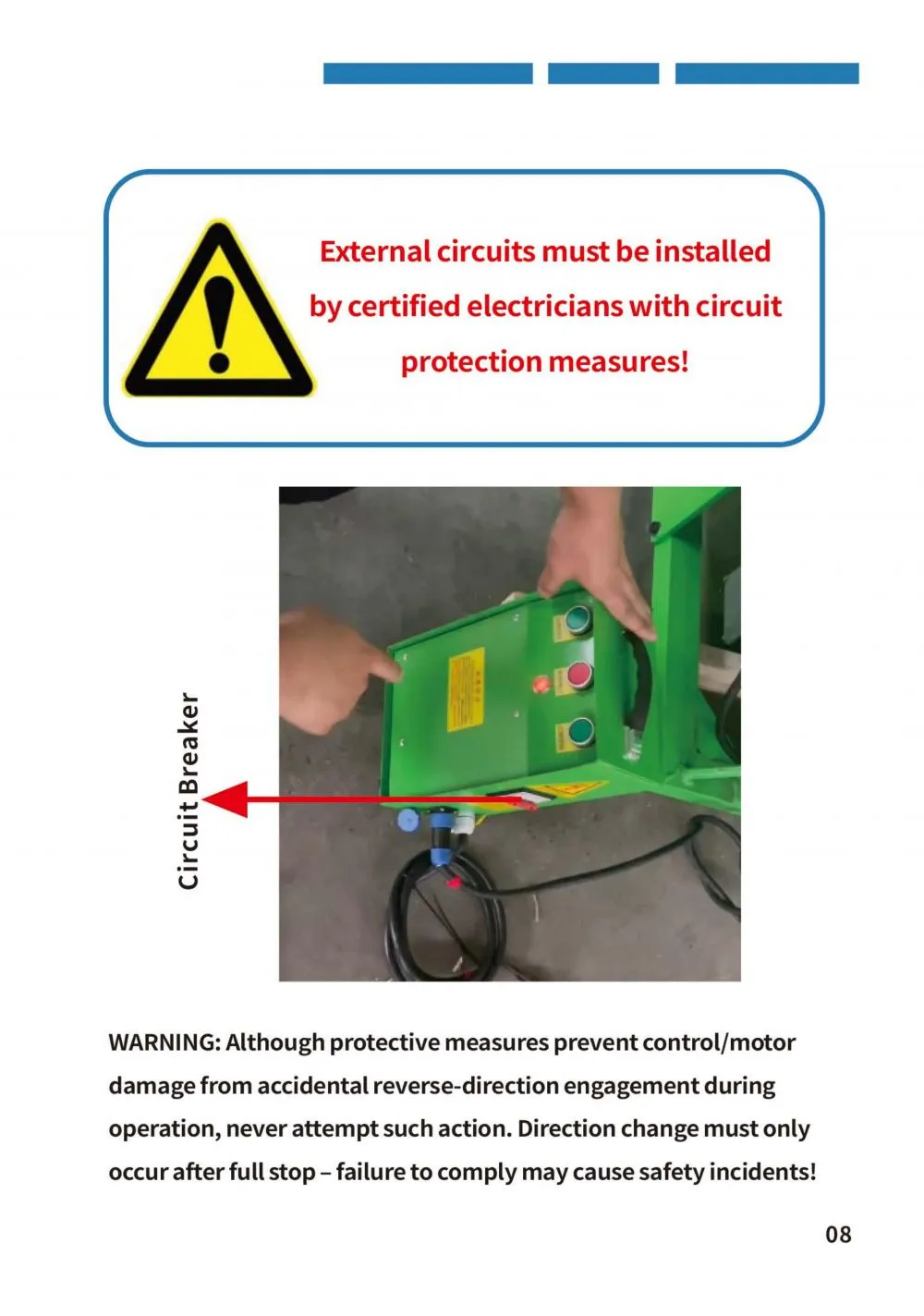

Connect the power supply according to the voltage requirement (AC380V standard or AC220V customizable).
Ensure the cable to be conveyed is within the diameter range of 2~24cm.
Operation:
Press the start button to initiate the conveyor.
Use the switching control to select forward or reverse rotation as needed.
Feed the cable into the conveyor, ensuring it is properly aligned and within the specified tension limits.
Monitoring:
Continuously monitor the conveying process to ensure smooth operation.
Check for any unusual noises or vibrations that may indicate a problem.
Shutdown:
Press the stop button to halt the conveyor.
Disconnect the power supply.
Remove any remaining cable and clean the machine.
Safety Precautions:
Always wear appropriate personal protective equipment (PPE) during operation.
Ensure the cable diameter and tension are within the specified limits to prevent equipment damage.
Keep hands and loose clothing away from moving parts.
Regularly inspect the machine for wear and tear, and perform maintenance as needed.
Maintenance Guidelines:
Regularly check and replace the wear-resistant rubber blocks if worn.
Clean the machine after each use to prevent the accumulation of debris.
Inspect the power cables and connections for any signs of damage or wear.
Store the conveyor in a dry, protected area when not in use.
