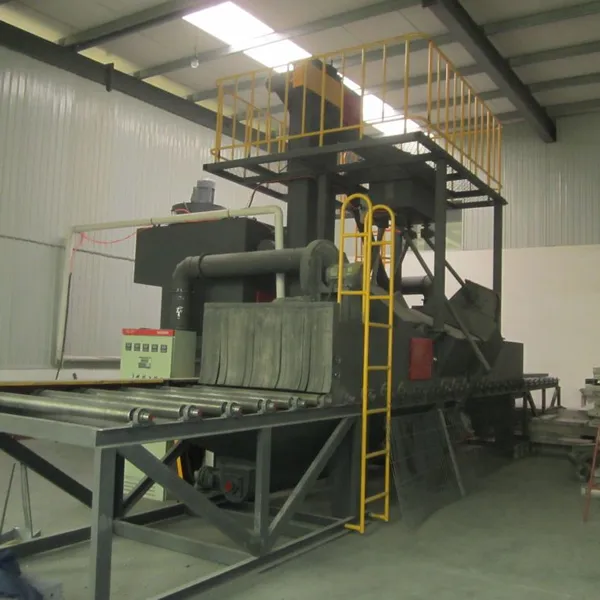

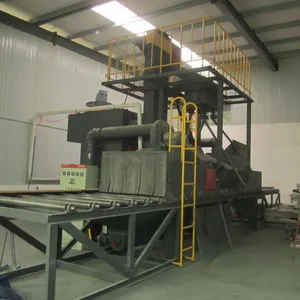

Help CenterThe Second-hand Roller Through Shot Blasting Machine is Easy to Operate, Cost-effective, and Includes Debugging
Product Spotlights
Related Products
-
Roller Through Shot Blasting Machine for Large-scale Steel Structure Rust Removal, Efficient and Energy-savingUS$ 20000MOQ: 1 Barrel -
Roller Through Shot Blasting Machine for Large-scale Steel Structure Rust Removal, Efficient and Energy-savingUS$ 19000 - 20000MOQ: 1 Barrel
-
Steel Structure Shot Blasting Machine Roller Through Type Shot Blasting Machine Automatic Cleaning H-type Shot Blasting Cleaning EquipmentUS$ 20000MOQ: 1 Barrel
-
Roller Through Shot Blasting Machine H-beam Steel Plate Steel Structure Shot Blasting MachineUS$ 20000MOQ: 1 Barrel
-
Roller Type Shot Blasting Machine With Variable Frequency Speed Regulation H-shaped Steel Structure Steel Plate and Steel PipeUS$ 20000MOQ: 1 Barrel
Roller through shot blasting machine is an industrial equipment used for surface treatment of metal materials. It uses high-speed projectile to remove oxide scale, rust layer, and dirt on the surface of workpieces, and is suitable for continuous cleaning operations of metal materials such as steel plates, steel pipes,steel sections.
core functionality
Surface treatment: Rust removal, scale removal, and pretreatment are achieved through projectile impact, and the surface roughness can be adjusted.
Continuous operation: The workpiece is automatically transported in and out of the cleaning room by the roller conveyor system, achieving full process automation.
How to choose a roller through rust removal machine?
How to choose a roller through rust removal machine? 3 key points to avoid stepping on pits
Nowadays, many factories are using roller conveyor rust removal machines to treat rust on the surface of workpieces. However, if the equipment is not selected correctly, not only will the rust removal effect be poor, but it may also damage the workpiece 😣
I worked with a hardware processing factory before, and the boss spent a lot of money to buy a rust removal machine. However, after using it for six months, he found scratches on the surface of the workpiece and often blocked the material. Finally, he realized that he had not selected the right model!
1、 Select machine type based on workpiece type
Rust removal machines with different structures suitable for different workpieces
-Plate type: Choose models with horizontal roller conveyors and throwing heads (such as steel plate passing type), with throwing heads distributed in the top, bottom, left, and right directions, 360 ° no dead corners for rust removal
-Pipe/round rod type: Choose models with rotating roller conveyors, where the workpiece rotates while moving forward to avoid incomplete local processing
-Complex parts: Customized models with flipping mechanisms, such as castings, forgings, and other irregular workpieces that require flipping angle processing
2、 Pay attention to rust removal efficiency and environmental friendliness
-Efficiency depends on the power of the throwing head: generally choose 11-22kW throwing head, throwing speed ≥ 80m/s, higher processing efficiency
-Environmentally friendly dust removal system: Models with pulse dust collectors can collect over 95% of dust and avoid workshop pollution (according to data from XX Machinery Association, equipment with dust removal is more likely to pass environmental impact assessments)
3、 Budget and maintenance costs
-Basic model: suitable for small workpieces (below 100kg), priced at about 50000 to 100000 yuan, with simple daily maintenance
-Customized version: For large workpieces (over 2000kg), a reserve of 150000 to 300000 yuan is required, and maintenance costs include replacement of vulnerable parts (such as throwing blades and wear-resistant plates)
Avoiding pitfalls reminder
1. Don't just look at the price, some low-priced equipment has insufficient head density and requires major repairs after 3 months of rust removal
2. Test the workpiece passing speed in advance. If it is too fast, it will cause rust leakage, and if it is too slow, it will affect production capacity
3. Prioritize manufacturers that support on-site installation and debugging to solve alignment, deviation, and other issues on-site
summary
Three considerations should be taken when selecting a roller conveyor type rust removal machine:
Check the type of workpiece
Consider efficiency requirements
Consider long-term maintenance.
Yancheng Ruigang Machinery Co., Ltd. suggests providing workpiece samples to the manufacturer for testing first, and then selecting based on the test report to avoid wasting money~
