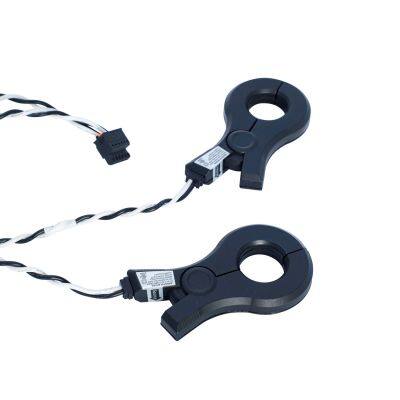

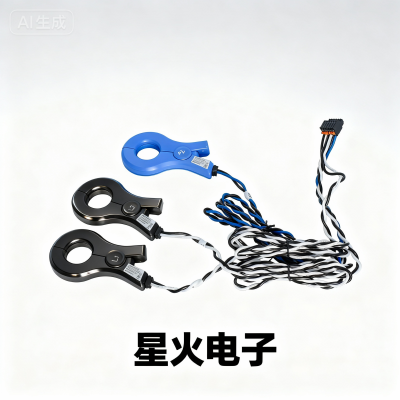

Clamp on Flexible Current Transformer Split Core 40mA/0.333V Output For Home Energy Monitoring
US$ 8 - 10
MOQ: 5 Pieces
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
5 days
Related Products
-
CE Split Core Current Transformer Customized 250A Clamp on Cable MA/mV OutputUS$ 10 - 12MOQ: 5 Pieces -
Current Probe Clamp on Flexible Current Transformer 40mA/0.333V Output For Home Energy MonitoringUS$ 8 - 10MOQ: 5 Pieces
-
UL Split Core Current Transformer 250A Clamp on Cable MA/mV OutputUS$ 10 - 12MOQ: 5 Pieces
-
UL2808 List Slim Clip on Current Transformer 200A 0.333V For Smart Energy MonitoringUS$ 10 - 18MOQ: 1 Piece
-
High Frequency Rogowski Coil Power Quality Monitoring 1000A/0.333VUS$ 10 - 90MOQ: 1 Piece
Phase
Single
Product Description

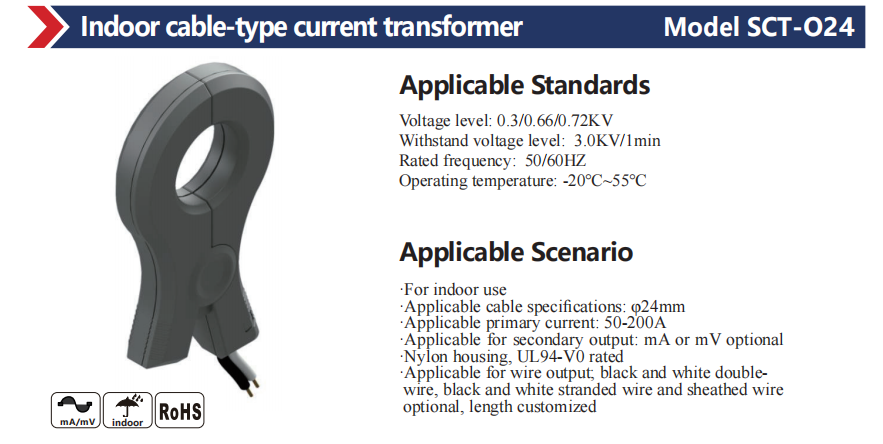

Clamp on current transformer ManufacturerSlim clip on Current Transformer Split-Core XH- SCT-S2424φmm Opening With 50 To 300 Amp Rating
Description:

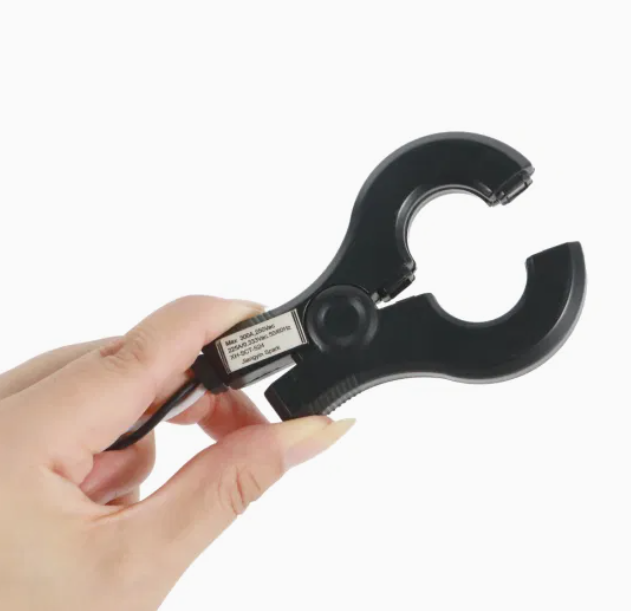

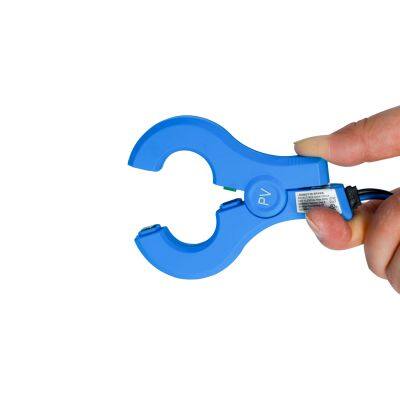

Jiangyin Spark XH-SCT-S24 Clamp on current senses AC current from 50 to 300 Amps passing through the center conductor.Clamp on CTs are Clamp and split core design ,can make installation with single hand .designed for fast and easy installation.The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation.This method permits a safer,easy and portable current measurement.
Smart Grid Application Features
Load Center
Three Phase Balance Control
In-Factory Display In-Home Display
Inverters for Solar & Wind Turbine Systems
Power Measurement Device For PLC

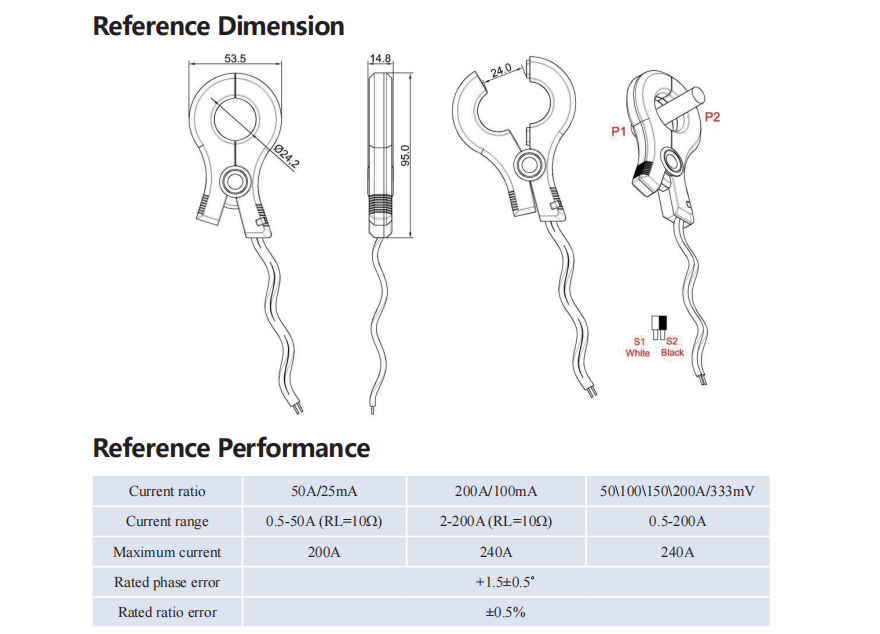

| MECHANICAL | |||
| Type | Split core, clamp design | ||
| Average Window Diameter | 24 | mm | |
|
Lead Wire |
Type | Twisted pair | MTW,UL105 |
| Length | customized | ft/m | |
| Gauge | 20 | AWG | |
| Weight | 190 | g | |
| ENVIRONMENTAL | |||
| Operating Temperature Range | -40 to 60 | °C | |
| Operating Humidity | 5% to 90% relative humidity | ||
| IP Rating | 30 (NEMA 1) | ||
