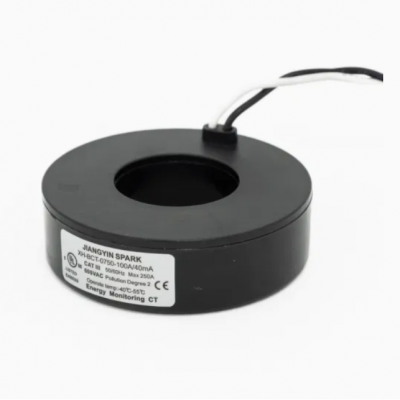

Instrucment Solid Core Current Transformer 200A/0.333V Indoor Cable-type
US$ 4 - 9
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Brand Name:
Jiangyin Spark
Place of Origin:
China
Model Number:
XH-BCT-1000
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
UL2808 Bct-1250 Solid Core Current Transformer Closed Loop 600AUS$ 2.9 - 9MOQ: 5 Pieces -
Bct-0750 Toroidal Solid Core Current Transformer 333mV OutputUS$ 2.9 - 9MOQ: 5 Pieces
-
UL2808 Bct-1250 Solid Core Current Transformer 333mV Output Current SensorUS$ 2.9 - 10MOQ: 5 Pieces
-
UL2808 Bct-1250 Solid Core Current Sensor 100A/40mA 0.2 Accuracy ClassUS$ 2.9 - 10MOQ: 5 Pieces
-
High Precision Solid Core Current Transformer mA or 0-5V OutputUS$ 2.9 - 10MOQ: 5 Pieces
Brand Name
Jiangyin Spark
Place of Origin
China
Model Number
XH-BCT-1000
Usage
Instrument
Phase
Single
Coil Number
Other
Coil Structure
Other
Product Description
Jiangyin Spark XH-BCT Series of Solid Core Current Transformer design for better accuracy for 0.333V output .5 standard models for your choice. Measure current from 5Amp to 600 Amp.Solid core CTs are more accurately , small in size, and very cheap .If mA sendary output ,accuracy can be 0.1%
Specifications:
1. Rated input current from 5A to 600A
2. 0.333V AC or other mA ,mV output at rated current
3. Accuracy ±0.5% or 0.1%
4.Insulation Voltage:5400V, CATIII 600V or CATIV 250V
5.Accuracy at 10% to 130% of rated current
6.Rated Frequency:50HZ or 60HZ;
7.RoHS Compliant
8.Operating Temperature:-40ºC to +55ºC
9.Flame resistance:UL94-V0;
10.Tensile force value: 9.08 kg(89N) for 1 minutes;
Specifications:
1. Rated input current from 5A to 600A
2. 0.333V AC or other mA ,mV output at rated current
3. Accuracy ±0.5% or 0.1%
4.Insulation Voltage:5400V, CATIII 600V or CATIV 250V
5.Accuracy at 10% to 130% of rated current
6.Rated Frequency:50HZ or 60HZ;
7.RoHS Compliant
8.Operating Temperature:-40ºC to +55ºC
9.Flame resistance:UL94-V0;
10.Tensile force value: 9.08 kg(89N) for 1 minutes;
| Model | I.D. | Rated Amps | Output | Outside Diameter | Height |
| XH-BCT-0300 | 0.39 in. 0.76 cm | 1A to 50 | mA or 0-5V output | 1.70 in. 4.32 cm | 0.75 in. 1.91 cm |
| XH-BCT-0500 | 0.50 in. 1.27 cm | 5A to 150A | mA or 0-5V output | 1.90 in. 4.83 cm | 0.75 in. 1.91 cm |
| XH-BCT-0750 | 0.75 in. 1.91 cm | 10A to 250A | mA or 0-5V output | 2.10 in. 5.33 cm | 0.75 in. 1.91 cm |
| XH-BCT-1000 | 1.00 in. 2.54 cm | 50A to 400A | mA or 0-5V output | 2.40 in. 6.10 cm | 0.80 in. 2.03 cm |

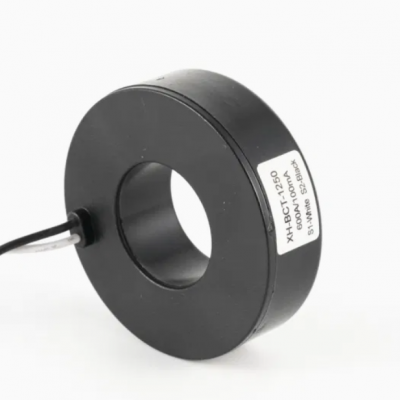

| XH-BCT-1250 | 1.25 in. 3.18 cm | 50A to 600A | Ma or 0-5V output | 2.70 in. 6.86 cm | 0.80 in. 2.03 cm |
