UL2808 List Slim Clip on Current Transformer 200A 0.333V For Smart Energy Monitoring
US$ 10 - 18
MOQ: 1 Piece
Key Specifications
Get Latest Price
Type:
Current Transformer
Application:
Electronic, Instrument
Usage:
Measurement
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
5 days
Related Products
-
Clamp on Flexible Current Transformer Split Core 40mA/0.333V Output For Home Energy MonitoringUS$ 8 - 10MOQ: 5 Pieces -
CE Split Core Current Transformer Customized 250A Clamp on Cable MA/mV OutputUS$ 10 - 12MOQ: 5 Pieces
-
Current Probe Clamp on Flexible Current Transformer 40mA/0.333V Output For Home Energy MonitoringUS$ 8 - 10MOQ: 5 Pieces
-
UL Split Core Current Transformer 250A Clamp on Cable MA/mV OutputUS$ 10 - 12MOQ: 5 Pieces
-
CE Home Energy Monitoring Flexible Rogowski Coil 2000A/0.333V Current TransformerUS$ 10 - 90MOQ: 1 Piece
Type
Current Transformer
Application
Electronic, Instrument
Usage
Measurement
Phase
Single
Installation
Active Type
Operation Condition
Indoor
Winding Form
Single Layer & Tightly Wound Type
Insulating Medium
Epoxy Resin
Transport Package
Cartons
Specification
Piece
Trademark
Elecspark
Origin
China
XH-SCT-S24 Split Core Current Transformer Clamp CTs 200A 0.33V
SPECIFICATIONS:
1,Rated Voltage:0.66KV
2,Insulation Voltage:5KV
3,Rated Frequency:50HZ or 60HZ
4,Operating Temperature:-15ºC to 60ºC
5,Flame resistance:UL94-V0
6,Certificates:CE,UL2808
SPECIFICATIONS:
1,Rated Voltage:0.66KV
2,Insulation Voltage:5KV
3,Rated Frequency:50HZ or 60HZ
4,Operating Temperature:-15ºC to 60ºC
5,Flame resistance:UL94-V0
6,Certificates:CE,UL2808
| Model | Input(A) | Max current(A) | Output |
| XH-SCT-S24 | 0.2-250AAC | 300AAC | mA/0.333VAC/0-5VAC |
| Accuracy (1% - 100% of rated current) | ±0.5 | % | |
| CT Phase Angle (5% - 120% of rated current) | 0.5 (Ultracrystalline) / 1.5± 0.5(Silicon iron) | Degrees | |
| Nominal Line Frequency | 60 / 50 | Hz | |
| Current Rating | 225 | A | |
| Output Voltage | 0 - 333 | mVac | |
| Overvoltage | AC 5000V/0.3mA/60S (50HZ/60HZ) | Vac | |
| Maximum Continuous Amps | 300 | A | |

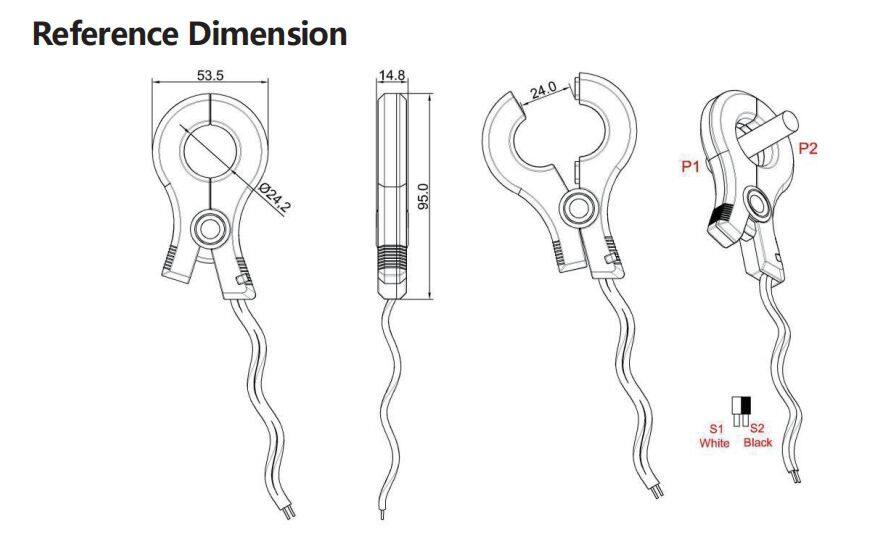

| MECHANICAL | |||
| Type | Split core, clamp design | ||
| Average Window Diameter | 24 | mm | |
|
Lead Wire |
Type | Twisted pair | MTW,UL105 |
| Length | 17 / 5.2 | ft/m | |
| Gauge | 20 | AWG | |
| Weight | 190 | g | |
| ENVIRONMENTAL | |||
| Operating Temperature Range | -40 to 60 | °C | |
| Operating Humidity | 5% to 90% relative humidity | ||
| IP Rating | 30 (NEMA 1) | ||
