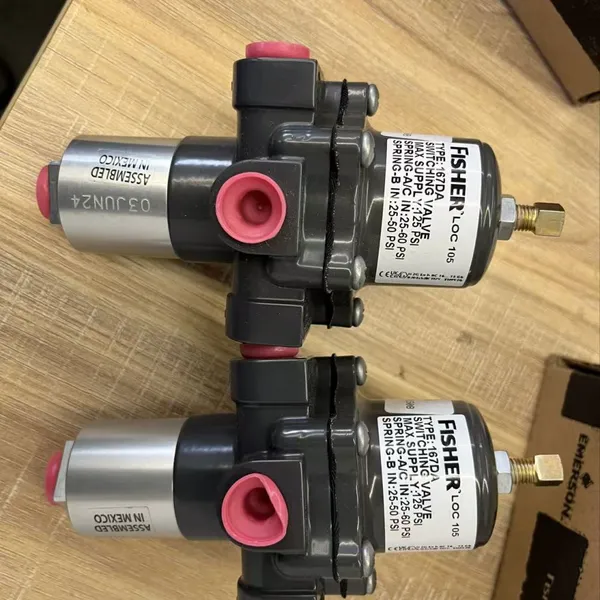

The 167D series switching valves are used to provide reduced stable vaporizing liquid pressure to the actuator-type controller and other pneumatic instruments. The 167D and 167DS type valves are two-way switching valves. The 167DA and 167DAS type valves are three-way switching valves.
Optional structures 167D and 167DS: Two-way switching valve
167DA and 167DAS: Three-way switching valve
Valve body size and port connection method: Port A and C: 1/4 or 1/2 NPT
Exhaust and pressure control connection (port D) and port B: 1/4 NPT
Maximum inlet pressure (valve body rated value): 400 psig / 27.6 bar
Temperature range applicable: Standard bolts: -20 to 180°F / -29 to 82°C
Stainless steel bolts: -40 to 180°F / -40 to 82°C
FKM decorative parts: 0 to 300°F / -18 to 149°C
Pressure tapping method: Internal pressure tapping
Approximate weight: 167D type and 167DA type: 1.2 lb / 0.5 kg
167DS type and 167DAS type: 2.8 lb / 1 kg
