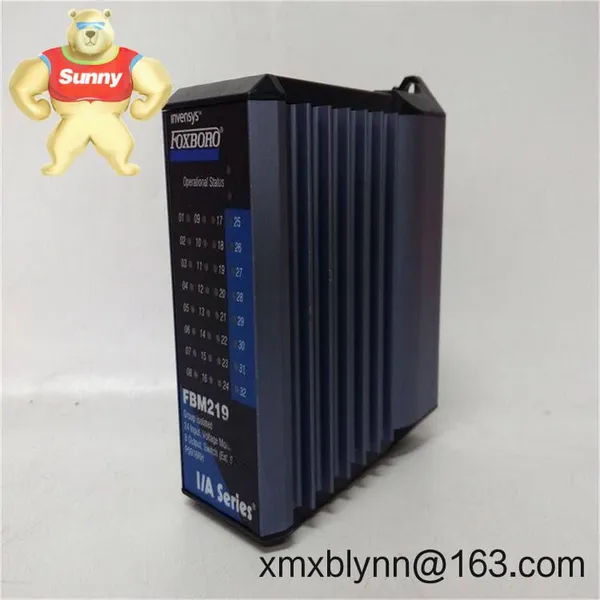

Help CenterFoxboro FBM219 (P0916RH) Discrete Input/Output Interface Module – Compact Digital I/O for I/A Series DCS
Related Products
-
Foxboro FBM223 P0917HD Digital I/O Module – Reliable 24 VDC Discrete Signal Interface for I/A Series SystemsUS$ 2216.00MOQ: 1 Blade -
FOXBORO FBM227 (P0927AC) Control System Module – 200 Series I/A Field I/O for Demanding PlantsUS$ 2560.00MOQ: 1 Blade
-
Foxboro FBM232 (P0926GW) Ethernet Communication Module – Reliable Dual-port Ethernet Interface for Foxboro 200 Series I/OUS$ 2560.00MOQ: 1 Blade
-
Foxboro FBM241 P0914TG – 8‑Channel Voltage Monitoring Module for I/A Series SystemsUS$ 2560.00MOQ: 1 Blade
-
Foxboro FBM240 P0917GZ Fieldbus Module – Reliable FOUNDATION Fieldbus H1 Integration for I/A Series SystemsUS$ 2560.00MOQ: 1 Blade
Warranty: 365 days
Delivery time: In-stock usually ships in 1 week; no more than one month at the latest
Payment terms: 50% advance payment; full payment before delivery
Express options: FedEx, UPS, DHL
Mixed discrete I/O in one module: Reduces module count and simplifies spare parts, especially in small cabinets.
24 VDC-level digital signals: Suited for typical plant instrumentation—status contacts, pushbuttons, relays, and solenoids.
System-to-field isolation: Helps cut down on ground loops and improves noise immunity in electrically noisy areas.
Redundant architecture friendly: Works within the I/A Series redundant Module Fieldbus so you can design for high availability.
Hot-swappable: You can replace the module under power through the carrier—minimal process interruption when procedures are followed.
Front-face LEDs: Quick visual check of module health and channel activity, which saves troubleshooting time.
Standard 200 Series footprint: Fits existing baseplates and termination assemblies, so retrofit work is straightforward.
| Brand / Model | Foxboro FBM219 (P0916RH) |
| Product Type | Discrete (digital) Input/Output Interface Module, 200 Series FBM |
| HS Code (suggested) | 8537.10 – Boards/panels/consoles for electric control, for a voltage ≤ 1,000 V |
| Power Requirements | Supplied via the FBM baseplate (24 VDC nominal; redundant power buses) |
| Signal Input/Output Types | 24 VDC-level discrete inputs and outputs; dry-contact inputs typically supported with external wetting |
| Communication Interfaces | Redundant Module Fieldbus to the I/A Series controller (e.g., FCP family) |
| Installation Method | Plugs into 200 Series baseplate; field wiring via Termination Assembly (TA) |
| Dimensions & Weight | Standard single-wide 200 Series FBM housing (compact footprint) |
| Operating Temperature | Typically 0 to 50 °C (per common FBM200 environmental range) |
| Isolation | System-to-field galvanic isolation (typical for FBM200 series) |
From my experience, the FBM219 fits best where you have a mix of discrete signals clustered in the same junction boxes:
Refining & petrochemicals: motor start/stop commands, pump run feedback, valve limit switches
Power generation & utilities: breaker status, permissives, interlocks, solenoid actuation
Water & wastewater: level switch inputs, blower control signals, local panel pushbuttons
Pulp & paper / food & beverage: conveyor interlocks, jam sensors, bin level contacts
You might notice that combining DI/DO in one module often cleans up the BOM and shortens commissioning—fewer carrier slots and fewer TA variations to manage.
Reliability: Works within the proven I/A Series redundant bus. Field isolation and status LEDs help with uptime.
Compatibility: Native to Foxboro 200 Series baseplates and TAs; easy drop-in for brownfield upgrades.
Cost control: Fewer module types to stock, simpler wiring, and less panel space usually means lower lifecycle costs.
Supportability: Diagnostics at the module face and within the DCS reduce time to fault-find.
What customers say: “Swapping an FBM219 took minutes—hot swap, verify LEDs, and we were back. No surprises,” noted a maintenance lead at a Midwest chemicals plant.
Installation & MaintenanceCabinet & environment: Install on the 200 Series baseplate in a ventilated industrial cabinet (NEMA 12 / IP54 or better is typical). Keep within the module’s temperature range and avoid direct moisture.
Wiring: Route field wiring to the appropriate Termination Assembly (TA). Separate high-voltage and low-level signal wiring. Use fused 24 VDC field power for DO loads and verify polarity.
Grounding & shielding: Maintain a clean instrument ground. Shielded cable for long field runs can help in noisy areas.
Redundancy: Where required, pair modules and follow the DCS redundancy guidelines to minimize single points of failure.
Hot swap procedure: Place the channel in a safe state, confirm interlocks, then replace the module. Watch faceplate LEDs for healthy status before returning to service.
Routine care: Periodic terminal checks for tightness, clean dust with dry air, and review system diagnostics. Firmware management is done through the I/A Series system, typically during scheduled outages.
CE marked; UL/cUL compliance is common for this series
RoHS compliant electronics (typical for modern Foxboro modules)
Manufactured under ISO 9001 quality systems (industry standard practice)
Manufacturer’s standard warranty applies; our supply warranty is 365 days as stated above
To make the most of FBM219, we typically ship with:
200 Series Baseplate/Carrier – for mounting and power/bus connectivity
Termination Assembly (TA) – DIN-rail or panel TA options for field wiring, with fuse/relay accessories as needed
Module Fieldbus Cables – for controller connectivity within the I/A Series rack
Interposing Relays – when driving higher loads from discrete outputs
Model: FBM219 (P0916RH)
If you’re standardizing on mixed DI/DO points in distributed cabinets, this module usually hits the sweet spot—simple, compact, and friendly to existing Foxboro infrastructure.
