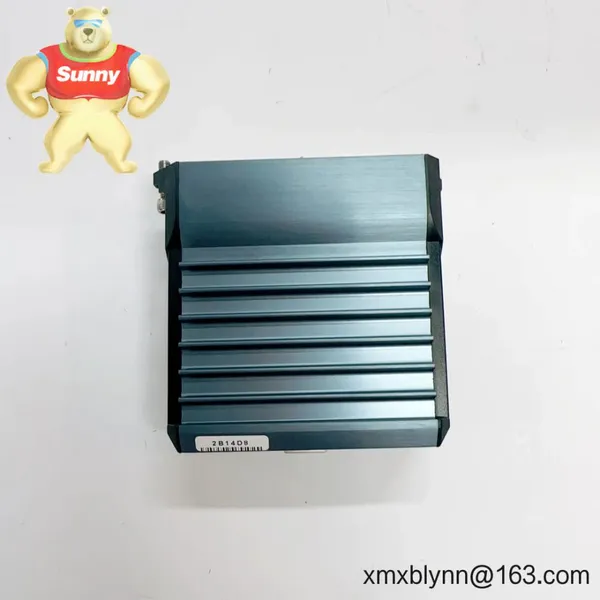

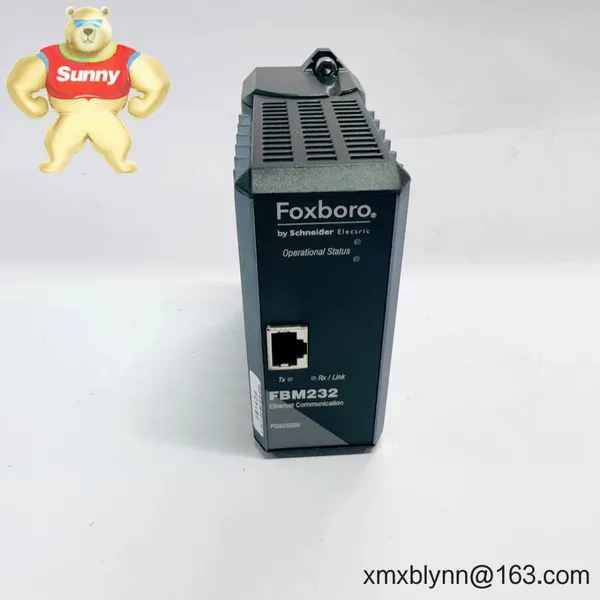

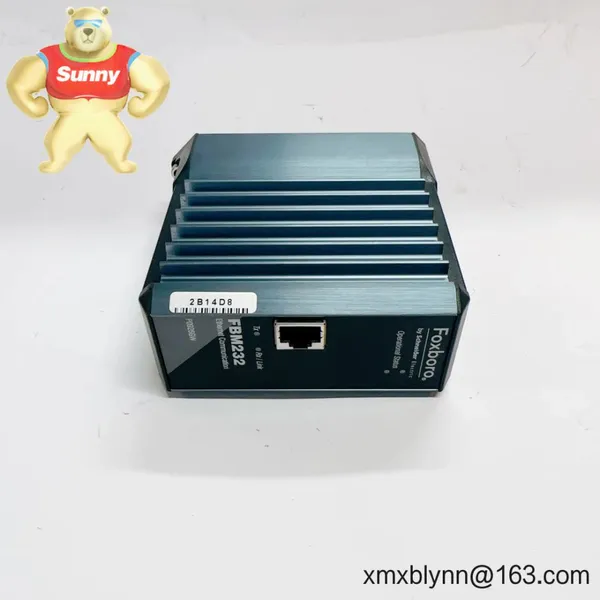

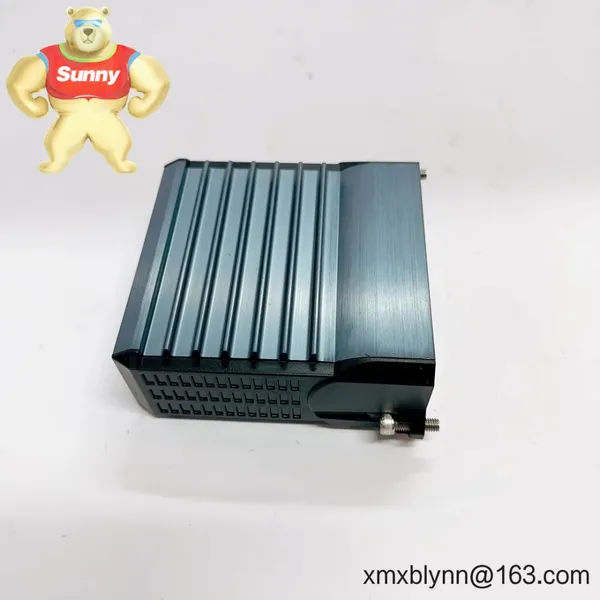

Help CenterFoxboro FBM232 (P0926GW) Ethernet Communication Module – Reliable Dual-port Ethernet Interface for Foxboro 200 Series I/O
Related Products
-
Foxboro FBM241 P0914TG – 8‑Channel Voltage Monitoring Module for I/A Series SystemsUS$ 2560.00MOQ: 1 Blade -
Foxboro FBM240 P0917GZ Fieldbus Module – Reliable FOUNDATION Fieldbus H1 Integration for I/A Series SystemsUS$ 2560.00MOQ: 1 Blade
-
Foxboro FBM242 P0916NG Switch Terminal Block – Clean, Reliable Field Termination for Discrete InputsUS$ 2560.00MOQ: 1 Blade
-
Foxboro FBM242 P0916TA Discrete Output Interface Module – Dependable Digital Actuation for I/A Series ControlUS$ 2660MOQ: 1 Blade
-
Foxboro FBM242 RH916YY Discrete Output Interface Module – Reliable On/Off Control for the Foxboro I/A Series (200 Series)US$ 2560.00MOQ: 1 Blade
Warranty: 365 days
Delivery: 1 week if in stock; no more than one month at the latest
Payment: 50% advance payment; full payment before delivery
Express options: FedEx, UPS, DHL
Dual 10/100BASE‑TX Ethernet – Two RJ‑45 ports for plant network connectivity; typically used for redundant links or segmented access.
Seamless 200 Series integration – Plugs into the standard FBM baseplate; power and diagnostics are handled by the base.
Industrial-grade design – Robust construction for control cabinets; status LEDs help technicians verify link/activity at a glance.
Low overhead for engineering – From my experience, commissioning is straightforward when aligned with Foxboro configuration standards.
Protocol flexibility – Ethernet TCP/IP connectivity; Modbus/TCP is commonly applied in Foxboro environments, depending on project configuration.
Hot-swap serviceability – Typical FBM workflow allows fast replacement to minimize downtime.
| Brand / Model | Foxboro FBM232 (Order Code: P0926GW) |
| HS Code | 8517.62 (Data communication equipment – Ethernet communication module) |
| Function | Dual-port Ethernet communications for Foxboro 200 Series systems |
| Power Requirements | Supplied via FBM baseplate (nominal 24 VDC bus); no external power |
| Communication Interfaces | 2 × RJ‑45, 10/100BASE‑TX; link/activity LEDs |
| Signal I/O Types | Ethernet only (no discrete or analog I/O channels) |
| Operating Temperature | 0 to 55°C (typical for the FBM family) |
| Installation Method | Plugs into Foxboro 200 Series baseplate; cabinet/DIN-rail baseplate assembly |
| Dimensions & Weight | Standard FBM form factor; compact plug‑in module (approx. handheld size) |
You might notice that the FBM232 fits best where a Foxboro I/A or 200 Series I/O rack needs stable Ethernet connectivity—either to controllers, HMI/SCADA, or upper‑level networks. Typical use cases:
Modbus/TCP data exchange between Foxboro systems and third‑party PLCs, drives, and analyzers (project‑dependent).
Segmented or redundant network links for process units with high availability requirements.
Brownfield upgrades where legacy serial links are being consolidated onto Ethernet.
Bridging controller networks to plant historians and MES layers through standard TCP/IP.
One maintenance manager told us the module “dropped straight into the baseplate, and we were passing data to our historian the same shift,” which seems to be fairly typical when the network is pre‑provisioned.
Reliability – Industrial Ethernet hardware with clear diagnostics; designed for continuous operation.
Compatibility – Aligns with Foxboro 200 Series baseplates and engineering tools; avoids custom mounting or power kits.
Cost control – Reuses existing cabinet infrastructure; reduces integration time and spare holding.
Lifecycle support – From my experience, FBM family spares are widely supported and easy to swap under maintenance windows.
Cabinet & baseplate – Install on the approved Foxboro 200 Series baseplate; mount baseplate on DIN rail or panel per cabinet standards.
Power & grounding – Use the baseplate 24 VDC bus; ensure protective earth bonding and proper shield termination.
Networking – Use Cat5e/Cat6 industrial cables; keep separation from high‑voltage runs to limit EMI; label redundant paths clearly.
Environment – Provide ventilation with ambient typically within 0–55°C and non‑condensing humidity; avoid corrosive atmospheres without enclosure protection.
Commissioning – Verify IP scheme and redundancy behavior; confirm link/activity LEDs and controller diagnostics before handover.
Routine maintenance – Periodically inspect connectors, clean dust, back up configuration, and apply approved firmware updates during planned outages.
Manufacturer certifications typically include CE and UL; RoHS compliance applies to most modern Foxboro modules.
Our warranty coverage: 365 days.
Each unit is function-checked prior to shipment when possible, with anti‑static packaging and shock‑resistant packing for express delivery.
