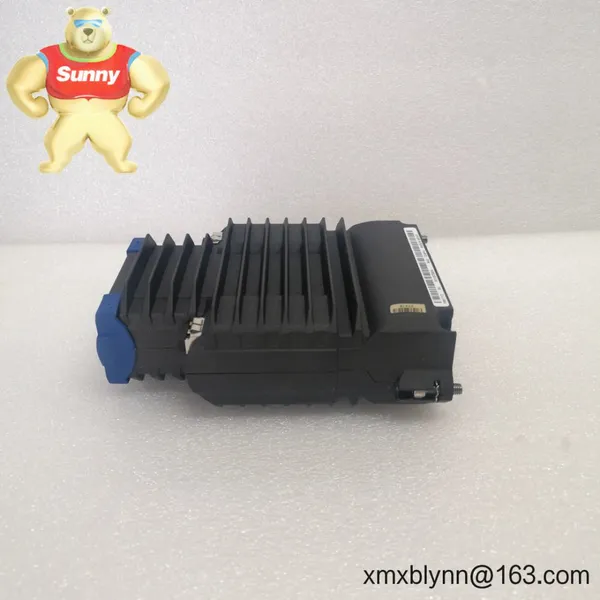

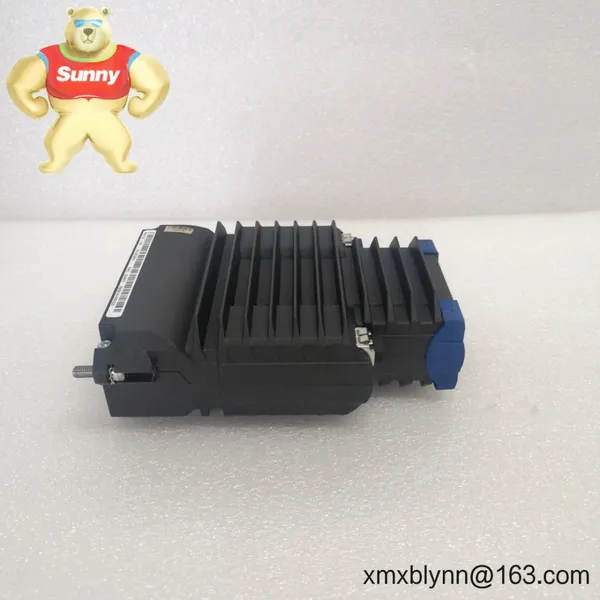

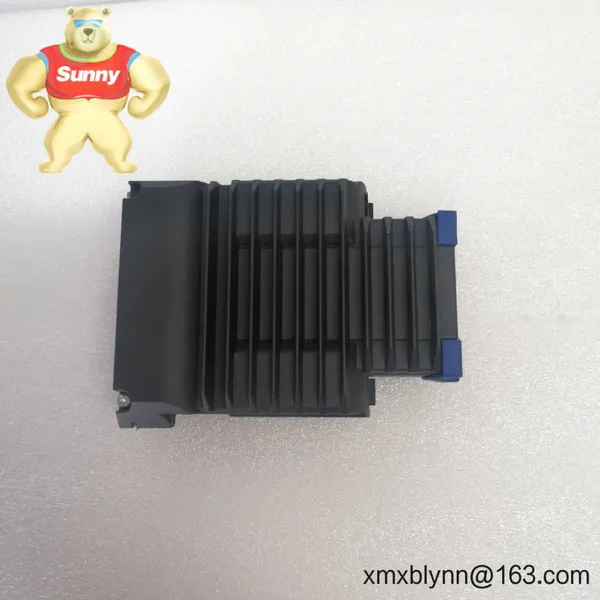

Help CenterFoxboro FCM2F2 P0914YZ Optical Fiber Communication Extender – Extend I/A Series Links With Noise Immunity and Distance
Related Products
-
FOXBORO FDC280 RH101FQ Field Device Controller – High-availability Control for Smart Field DevicesUS$ 2560.00MOQ: 1 Blade -
Foxboro FEM100 P0973CA Fieldbus Expansion Module – Extend I/A Series Fieldbus Capacity With Clean, Reliable Backplane ExpansionUS$ 2560.00MOQ: 1 Blade
-
Foxboro H92 H92A049E0700 Analog Input Module – Stable 4–20 mA Acquisition for I/A Series ExpansionsUS$ 2560.00MOQ: 1 Blade
-
Foxboro IPM2-P0904HA Series Industrial Power Module – Stable, Cabinet-grade Power for I/A Series BaseplatesUS$ 2560.00MOQ: 1 Blade
-
Foxboro P0904AK GCIO Tabletop Module – Compact Bench I/O and Analyzer Interface for Fast DCS IntegrationUS$ 2560.00MOQ: 1 Blade
Warranty: 365 days
Lead time: 1 week if in stock; no more than one month at the latest
Payment: 50% advance payment; full payment prior to delivery
Express delivery: FedEx, UPS, DHL
Order flow: You send the model and quantity → we confirm availability and test reports → proforma invoice → prepayment → final functional check and packing → balance and shipment.
Fiber-based distance extension: Typically used to bridge long runs between I/A Series nodes where copper isn’t practical.
High immunity to electrical noise: Optical isolation helps in MCC rooms, high-power areas, and sites with frequent switching transients.
Seamless I/A Series integration: Designed to mount and interface within Foxboro I/A Series control infrastructure.
Supports redundant paths: In many cases, installed as part of redundant communication links for higher availability.
Compact, cabinet-friendly: Module form factor fits neatly in existing baseplate layouts to keep panel space under control.
Reduced ground loop risk: Fiber breaks galvanic paths between buildings or long-distance runs.
| Brand / Model | Foxboro FCM2F2 (Part No. P0914YZ) |
| HS Code | 8517.62 (Data transmission apparatus) |
| Power Requirements | 24 VDC nominal via I/A Series baseplate (typical), low power draw |
| Operating Temperature | Typically 0 to 60 °C (cabinet environment) |
| Signal I/O Types | Optical fiber link (Tx/Rx) and I/A Series backplane interface |
| Communication Interfaces | Fiber optic transport for controller/FBM communications; supports single or redundant paths depending on configuration |
| Installation Method | Mounts on I/A Series baseplate in a control cabinet; panel wiring and fiber patching |
| Dimensions & Weight | Compact module form factor; approx. 0.3 kg (typical) |
This module is typically deployed in:
Oil & gas facilities where controller rooms sit far from process units
Petrochemicals and chemicals needing EMC-resistant links between buildings
Power generation plants running redundant control networks across long corridors
Water & wastewater sites with remote pumping stations and lift stations
Pharmaceutical manufacturing where validated control cabinets must remain isolated
Reliability: Fiber-based transport reduces susceptibility to electrical noise and lightning-induced surges.
Compatibility: Made for I/A Series environments; it seems to be a smooth drop-in when expanding existing cabinets.
Cost control: Reuse existing fiber runs and avoid copper repeaters; fewer field issues usually mean fewer callouts.
Support and lifecycle: Commonly stocked, with straightforward sparing and replacement procedures.
Cabinet & environment: Install in a clean, ventilated control cabinet; maintain ambient typically 0–60 °C and non-condensing humidity.
Power & grounding: Feed regulated 24 VDC via the baseplate; keep a solid earth reference and segregate signal and power wiring.
Fiber practices: Respect bend radius, label both ends, and clean ferrules before mating; using multimode or single-mode should match site standards.
Redundancy: Where possible, route redundant fibers via diverse paths to reduce common-cause failures.
Routine checks: Periodically verify link status LEDs, inspect fiber patch cords, and document any topology changes.
Foxboro FCP270 Controller: Often the host controller on one end of the extended link in I/A Series systems.
Foxboro FBM2xx I/O Modules: Remote I/O points that benefit from fiber-based backbone links for distance and EMI immunity.
I/A Series Baseplates: Provides mechanical mounting, power distribution, and backplane connection for the FCM2F2.
Industrial Fiber Patch Cords & Panel Hardware: LC/ST/SC (as per site standard), splice trays, and labeled patch panels for clean routing.
CE compliant
UL/CSA industrial control equipment (typical for I/A Series modules)
RoHS compliant
Manufacturer’s warranty: 12 months (backed by our 365-day warranty policy)
