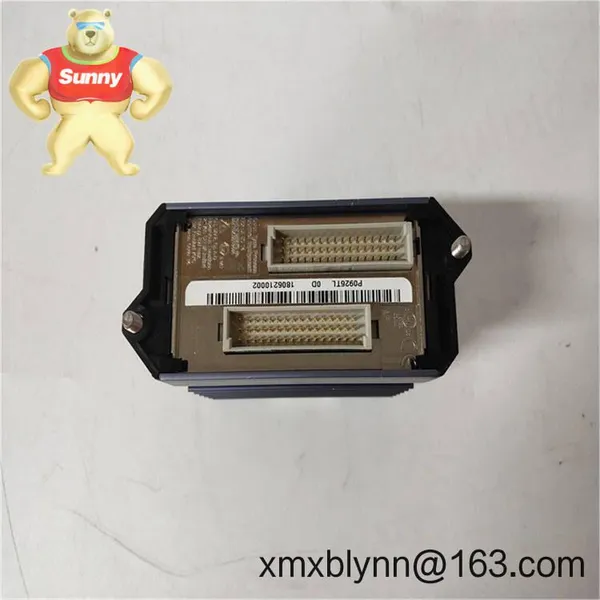

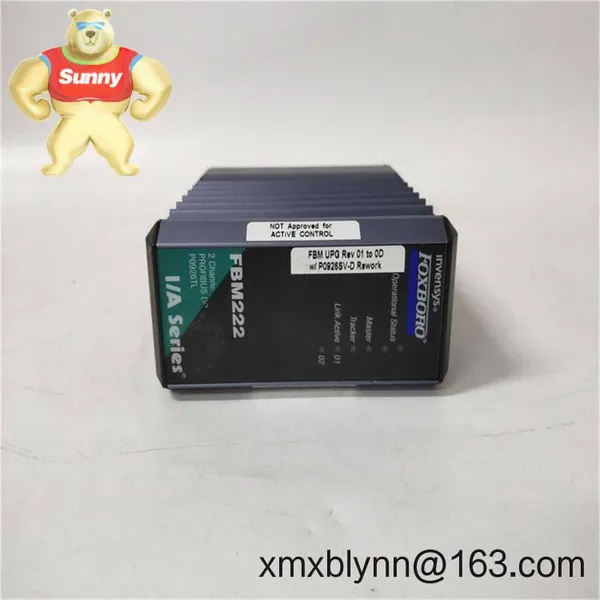

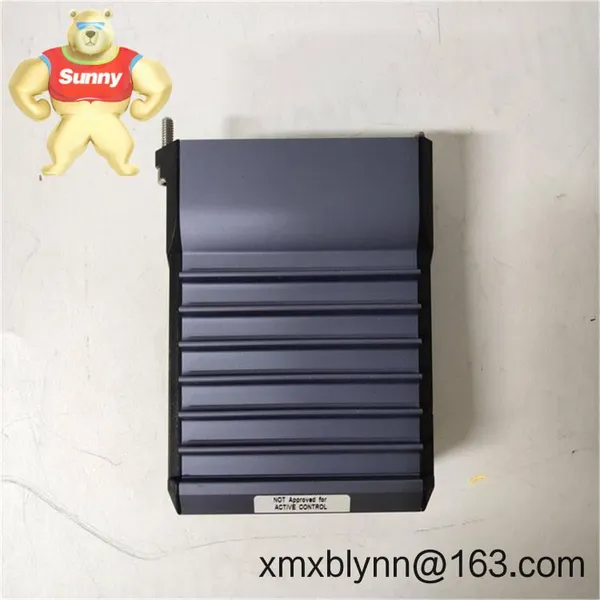

Help CenterFoxboro FBM222 P0926TL Fieldbus Module – Robust I/A Series I/O for Reliable Plant Control
Related Products
-
Foxboro FBM219 (P0916RH) Discrete Input/Output Interface Module – Compact Digital I/O for I/A Series DCSUS$ 2216.00MOQ: 1 Blade -
Foxboro FBM223 P0917HD Digital I/O Module – Reliable 24 VDC Discrete Signal Interface for I/A Series SystemsUS$ 2216.00MOQ: 1 Blade
-
FOXBORO FBM227 (P0927AC) Control System Module – 200 Series I/A Field I/O for Demanding PlantsUS$ 2560.00MOQ: 1 Blade
-
Foxboro FBM232 (P0926GW) Ethernet Communication Module – Reliable Dual-port Ethernet Interface for Foxboro 200 Series I/OUS$ 2560.00MOQ: 1 Blade
-
Foxboro FBM241 P0914TG – 8‑Channel Voltage Monitoring Module for I/A Series SystemsUS$ 2560.00MOQ: 1 Blade
Warranty: 365 days
Delivery: 1 week for in‑stock items; no more than one month at the latest
Payment: 50% advance; full payment prior to delivery
Express options: FedEx, UPS, DHL
Native I/A Series integration – Fits the Foxboro baseplate and communicates over the Module Fieldbus to Foxboro controllers, keeping configuration consistent.
Hot‑swappable serviceability – Typically removable and insertable under power, reducing downtime during maintenance windows.
Ruggedized design – Built for industrial environments when installed in a compliant enclosure; stable operation across a broad ambient range.
Clear status diagnostics – Front‑panel indicators help technicians quickly verify module health and field status.
Flexible field termination – Uses a dedicated Terminal Assembly (TA) so field wiring remains orderly and service-friendly.
Scalable I/O expansion – Add points as required without redesigning the control architecture.
| Brand / Model | Foxboro FBM222 (P0926TL) |
| HS Code | 8537.10 (Industrial control equipment; final classification may vary by region) |
| Power Requirements | 24 VDC nominal supplied via Foxboro baseplate (redundant fieldbus power supply in typical systems) |
| Dimensions & Weight | Single‑wide FBM form factor; approx. 0.3–0.5 kg (fits standard Foxboro 200‑Series baseplate slot) |
| Operating Temperature | Typically 0 to 60°C when installed per manufacturer guidelines |
| Signal Input/Output Types | Field I/O via removable Terminal Assembly (TA); channel type/count per FBM222 functional variant and TA selection |
| Communication Interfaces | Foxboro Module Fieldbus (2 Mbps class) via baseplate; field wiring via TA |
| Installation Method | Mounts to Foxboro baseplate on DIN rail or panel; field cables to dedicated TA |
Note: Specific channel functions and TA part numbers should be confirmed against the installed I/A Series hardware list. The P0926TL code denotes a defined hardware variant of the FBM222.
Oil & Gas and Petrochemicals – unit expansions, brownfield I/O replacements, turnaround spares.
Chemicals & Pharmaceuticals – clean cabinet installs where hot‑swap capability helps limit production stops.
Power Generation – balance of plant I/O additions, turbine auxiliaries, water/steam treatment subsystems.
Water & Wastewater – filter trains, pumping stations, and SCADA-connected process skids.
Pulp & Paper and Mining – rugged cabinet deployments with routine maintenance access.
Compatibility you can trust – Works within Foxboro I/A Series and EcoStruxure Foxboro DCS architectures, minimizing engineering rework.
Lower downtime risk – Hot‑swap service, clear diagnostics, and a proven baseplate ecosystem typically shorten fault-to-repair cycles.
Lifecycle support – Common spare across many sites; easy to stock and replace during shutdowns or online maintenance.
Total cost balance – Faster commissioning and fewer wiring changes translate into practical savings in many cases.
“We phased in a set of FBM modules over two weekends and never had to rework the cabinets,” a maintenance engineer at a petrochemical site told me. You might notice that once the baseplate and TA are in good shape, module swaps become routine jobs for the team.
Installation & MaintenanceCabinet and mounting – Install on the standard Foxboro baseplate (DIN rail or panel). Keep the enclosure clean, dry, and ventilated; allow space for air flow and cable bend radius.
Power and grounding – Use the designated redundant fieldbus power supply. Maintain low‑impedance grounding and follow Foxboro bonding practices to limit noise.
Wiring – Route field I/O to the matching Terminal Assembly. Verify terminal torque and labeling; avoid mixing signal types on the wrong TA.
Hot swap – Modules are typically hot‑swappable; confirm controller state and follow site MOC procedures before removal/insertion.
Routine checks – Inspect connectors, clean dust with dry air, review diagnostics in the engineering workstation, and confirm firmware/strategy alignment after changes.
CE marking; UL/CSA approvals common for FBM series modules; RoHS compliance depending on production lot
Manufacturer quality system typically ISO 9001
Warranty: 365 days
Foxboro baseplate (8‑ or 16‑slot) for FBM modules
Matching Terminal Assembly (TA) for FBM222 field wiring
Redundant fieldbus power supply and appropriate system cabling
If you’d like, share your installed TA part number or current I/O mix, and I can confirm the FBM222 P0926TL fit and channel mapping before you place the order.
