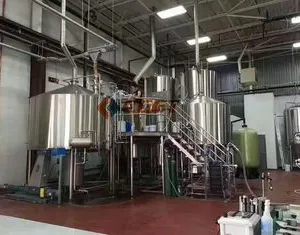

Large Scale Industrial Beer Brewing Equipment 3000l 5000l Adjustable Voltage

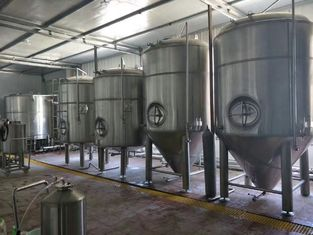

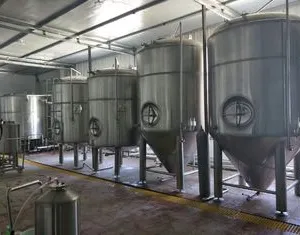

Large Scale Industrial Beer Brewing Equipment 3000l 5000l Adjustable Voltage photo-1

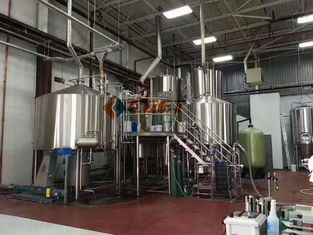

Large Scale Industrial Beer Brewing Equipment 3000l 5000l Adjustable Voltage photo-2

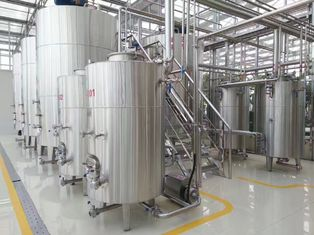

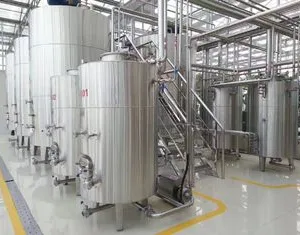

Large Scale Industrial Beer Brewing Equipment 3000l 5000l Adjustable Voltage photo-3

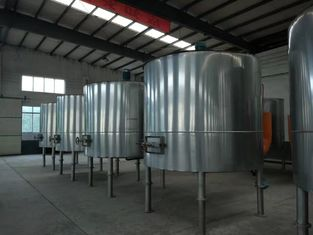

Large Scale Industrial Beer Brewing Equipment 3000l 5000l Adjustable Voltage photo-4
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Certification:
Other, CE UL ISO
Warranty:
12 Months
Application:
Other, Beer Production Plant
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Certification Other, CE UL ISO
Warranty 12 Months
Application Other, Beer Production Plant
Customized Customized
Model Number fermentation tank
Delivery Time: 40Work Days
Supply Ability 300Set Per Years
Transport Package steel frame for container loading
Trademark CGET
Origin Shandong, China (Mainland)

Processing:

Fermenting Equipment

Condition:

New

Processing Types:

Beer

Dimension(L*W*H:

Capacity Request

Weight:

Depnds On Capacity

Voltage:

3phase/380(220,400,415,440)v/50 (60)Hz

Dimension(L*W*H):

Customized

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Name:

Beer Factory Fermenter



Large Scale Industrial Beer Brewing Equipment 3000l 5000l Adjustable Voltage

Mashing system:

Structure

3-Vessel:Plan A: Mash tun-Lauter tank-Kettle/whirlpool

Plan B: Mash/lauter tank-Kettle-Whirlpool

4-Vessel:Mash tun-Lauter tank-Kettle-Whirlpool

Extra hot liquor tank

Extra cooker at customer's chois

Malt grinder

SUS304/COPPER

Double roller miller

Interior

SUS304

Thickness:3.0mm

Exterior

SUS304/COPPER

Thickness:2.0mm

Agitator

SUS304

Optional

Mayway

SUS304

Top glass manway

Spent grain door

SUS304

Side spent grain manway

Wort pump

SUS304

High efficiency sanitary pump

Heating

Steam

Stainless steel dimple jacket

Temperature control

PT100/


Sparging ring

SUS304

Optional

False bottom

SUS304

Milled sieve plate

Cleaning

SU304

360° spary cleaning ball

Cooling

Heat exchanger

double stage/single stage

Sight glass

Inline type

Optional

Hot liquor tank

SUS304/COPPER

Capacity assort

Wort collection pipe

SUS 304


Wort grant

SUS304

Capacity assort

Hopback tank

SUS304/

Capacity assort

Steam condensing

SUS304

Optional

Screw conveyor

SUS304

Optional

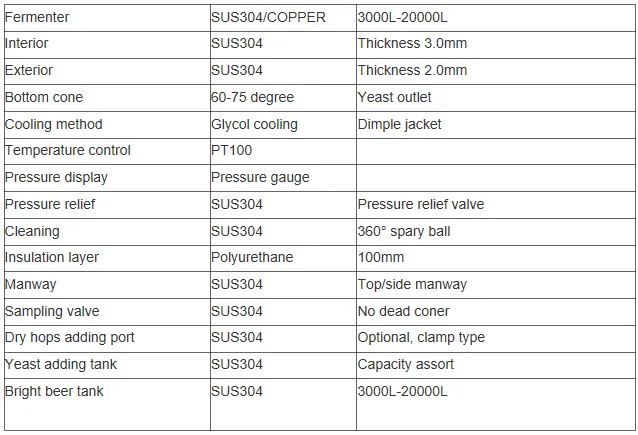

Fermentation system:

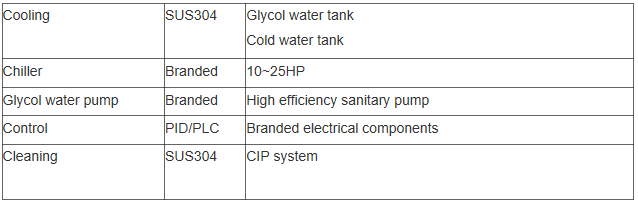

Necessary auxiliary system:


Beer filling/packaging System:

- Automatic beer bottling line

- Automatic beer canning line

- Automatic beer kegging line



Company Information



Kelang company ,founded in 1997,is a service-outsourcing and new high-tech enterprise in fermentation engineering industry,Provide the customers with systemic solution of non-standard technical renewal on the fermentation field,is committed to the first person on the fermentation service outsourcing field.

Company provides fermentation project technology service to enterprises in the area of Alcohol, condiment, biopharmacy and any other bio-fermenting lines.Service is including technology proposal design,a complete set of equipment,application project installation,training technicians,financing service etc five system links.

Our products have been exported to many countries in the world,and our company has established long-term and friendly cooperative relations with Russia, the United States, Canada, Britain, Australia, New Zealand, Kenya, Moldova, Israel, Singapore, Philippines, India, Holland and many other countries and regions,awarding high praise from our customers.
