Processing:: |
Fermenting Equipment |
Condition:: |
New |
Brand Name: |
CGET |
Model Number:: |
CG-3000 |
Name:: |
Beer Brewing Equipment |
Application:: |
Factory,Brewpub,Restaurant,hotel,home,club,bar.etc |
Keywords:: |
Brewhouse System |
Heating Way:: |
Steam Heating Or Electrical Heating |
3000l Malt Brewery Production Line Large Scale Craft Kettle Brewing Equipment
1. Capacity:3000L
2. Usage:for brewery pub hotel or restaurant
3. Control:PLC
4: Materials:Red copper,s304
Features ang advantages:
- Inner surface:stainless steel sheets, thickness 3mm,polished to sanitary standard.
- Exterior surface:stainless steel sheets, thickness 2mm,
- Steam Heating method:gas,steam generator,directly fire,electricity.
- Mechanical agitator
- Equipped with fittings and pipelines.
our survice:
1) we will supply you with drawing before manufacturing.
2) we will firmly manufacture according to the drawing.
3) Training how to instal the machine, training how to use the machine.
4) Engineers available to service machinery overseas.
5) we will send you our fittings for free if it is broken bt accident during 1 years,the main tanks within 5 years.
1. Milling System
1. Roller mill |
1 set;500kg/h |
2. Optional |
Auger Machine |
Grist Cabin | |
Feed Water Mixer |
2. Brewhouse
1. Mash tank |
1 set; 3000L;SUS304 |
2. Lauter tank |
1 set; 3000L;SUS304 |
3. Boiling tank |
1 set; 3000L;SUS304 |
4. Whirlpool tank |
1 set; 3000L;SUS304 |
5. Hot water tank |
1 set; 4500L;SUS304 |
6. Inner container thickness |
3mm |
7. Outer container thickness |
2mm |
8. Insulation layer |
polyurethane |
9. Insulation thickness |
80mm |
10. Manhole |
top manhole or side manhole |
11. Wort pump |
4 sets; Stainless steel food grade pump,flow rate:10T/h,lift:16m |
12. Pipeline and Valves |
1 set; Stainless steel 304; Food grade SUS304 |
13. Plate heat exchanger |
1 set; two stages cooling, exchanging area: 20 square meter |
14. Wort measuring meter |
1 set; Stainless steel 304 |
15. Rake knife |
assort,SUS304 |
16. Sieve plate |
assort,SUS304 |
17. Operation Platform |
assort, Stainless steel |
18. Yeast adding tank |
1 set; 50L;SUS304 |

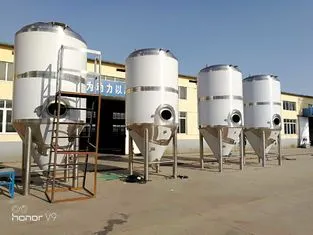

3. Fermentation System
1. Fermentation tank |
8 SETS;3000L;can be made according to clients’ requests |
2. Jacket |
assort |
3. Mechanical pressure regulating valve |
assort |
4. Pressure gauges |
assort |
4. Cooling System
1. Ice water tank |
1 set;5000L;Stainless steel 304 |
2.Cooling water tank |
1 set;4500L;Stainless steel 304 |
2. Refrigerator |
1 set; 15p |
3. Ice water pump |
2 sets |
5. Controlling System
1. Brewhouse control |
1set Digital displayer control or PLC control |
2. Fermenting control | |
3. Cooling control | |
4. Cleaning control |
6. CIP System
1. Washing pump |
1 set; 1T/h; |
2. Alkaline liquid tank |
1 set; 200L |
3. Sterilization tank |
1 set; 200L |
Optional equipment: |
more vessles brewhouses,heating method,hot liquor tank,coldwater tank,bright beer tank,bottle canning,cleaning and capper machine etc. |
FAQ
1. Q: Are you a manufacture?
A: Yes, we’ve been in producing, exporting and installing brewery equipment for 22 years.
2. Q: Have you sold equipment to our country before? Which brewery is it?
A: We have 2000+ world-wide customers, covering every continent. With your detailed request of brewery, we’ll provide you contacts for calling and visiting our successful brewery projects.
3. Q: What kind of equipment should I choose?
A: With knowing your expected beer output & brewery area dimension, we will choose the most appropriate equipment for you.
4. Q: Is customize available?
A: Sure, and that’s the spirit of craft beer brewing: multy-possibilities & being unique.
5. Q: Will I get design or solutions for my brewery?
A: Definitely, we design brewery layout for every client. Further more, beer recipes and brewing tutoring if needed.
6. Q: How should I install the brewery?
A: You will get our full and accurate online guidance, including video, picture instruction, our experienced technicians will handle the whole process as a turnkey project.
7. Q: Is your system manual or automatic?
A: All the electric devices are controlled by PLC system. It’s semi-auto on brewhouse and full-automatic on fermentation. You can read all status of brewing on the screen/gauges.
8. Q: How should I pay?
A: After signing contract, 30% by T/T in advance and balance before shipment.
9. Q: How long does the production take?
A: Generally 30 working days since receipt of down-payment.
10. Q: What about quality warranty?
A: We provide 3 years warranty for main equipment, and 2 years for electric devices.
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
1. Sound production management and Reliable sea forwarder for many years guarantee the timely delivery.
2. Experienced package guarantee the quality of equipment and ensure customers' satisfying.
Port
Qingdao Port
Lead Time :
40 Working Days
