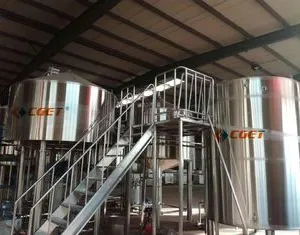

High Efficiency Craft Beer Large Scale Brewing Equipment Siemens Control System
Supply Ability:
30 Set/Sets per Month Needed Bew Design Large Scale Beer Brewing Equipment With
Packaging & Delivery
Packaging Details
1. Ship stainless steel mash tun by LCL or FCL
2. Packed false bottom mash tun with plastic film or bubble film
3. Fix with iron frame for big tank, lay down in the container
4. Fumigation free wooden case for small capacity by LCL
Port
Qingdao
Lead Time :
within30working days
Product Description
Main Product Description | ||
1 |
Malt milling system |
Malt mill machine,grist case,malt elevator |
2 |
Mashing system |
Type1: Mash/Lauter tun;Boiling kettle/Whirlpool Type2: Mash/Boiling kettle;Lauter/Whirlpool Type3: Mash tank; Lauter tun; Boiling/whirlpool Type4: Mash/Lauter tun; Boiling kettle;whirlpool |
3 |
Fermentation system |
a. Conical Fermenter(CCT) b. Brite beer tank(BBT) c. Yeast addition tank d. Related parts:PRV,Bunging device,Solenoid valves,Butterfly valves and other parts |
4 |
Cooling system |
Glycol tank; glycol pump;chillers |
5 |
Cleaning in place |
Disinfection tank, Alkali tank, CIP pump |
6 |
Control system |
PLC or Instruments control system With Siemens VFD |
7 |
Assistant system |
Keg filler, keg washer;Beer filter system;Bottle line; Water treatment system;Keg and other related parts |
Brewery Description
Mash system Details:
1. Inner-jacket is 3.0MM, external-jacket is 2.0MM.
2. Brew water inlet, SS304, Connection type: fast connection
3. CIP washing equipment, SS304, comprehensive cleaning
4. Mixer motor:motorpower: 1.5 KW The infinite gear motor
5. Spot lamp,used for tank lighting
6. With manway, material is SS304, circular manhole thickness 2.0mm, diameter 400mm, normal pressure manhole design.
7. With liquidmeter, observe the liquild level in the tank samples can be taken from the level base
8. Thermometer: the iron shell metal thermometer, temperature of the tank used for observation, accuracy of plus or minus 0.1 degrees.
9. Vinasse outlet, stainless steel 304, size is 430x330mm
10. Filter plate (Activity false bottom)
11. Wort collecting pipe
12. Insulation: PU heat preservation, thermal insulation layer thickness of 100 mm
13. Supporting leg: four stainless steel legs
14. Supporting studdle, Strengthen the legs supporting strength, Material quality: stainless steel 304
15. Foot bolts,those what can adjust the height of the equipment and easy to be installed
Mash system is the most important part in the whole beer brewery. The configuration is according to client's needs.
Fermentation Details:
Cooling way: Glycol water belt or miller plate;
Cooling media: glycol water or alcohol water.
Material: Inner (SUS304)thickness: 3.0mm;
External-Jacket(SUS304) thickness: 2.0mm;
Top seal head, thickness: 3.0mm.
Insulation: Polyurethane-thickness: 80mm.
The inner surface polished to Ra0.6um.
Equipped with: Cone 60° resist compression design, Side manhole: 430*330mm.
With sampling valve, vent valve, safety valve, pressure gauge, solenoid valve and etc.
Fermentation tank pressure: Design pressure 0.3MPa; Working pressure 0.15Mpa.
Cleaning System: CIP washing unit: Comprehensive cleaning.
Foot bolt: Adjust the height of the equipment, easy to install.
The Fermentation tanks number is according to the beer brewing daily output.
Glycol cooling details:
It used to cooling the fermenter and water to keep the beer fresh. This part play important roles in the whole set beer brewing equipment.
Our chiller use high quality Australia Coolsoon brand. The important advantage of the chiller we provide for the clients as follows:
1. safety refinements: Compressor overheating protection, Overcurrent protection, High and low pressure protection, Over-temperature protection,
Flow protection,Phase sequence/phase protection, Exhaust overheating protection.
2.Word famous chiller, quality is excellent. If there is something wrong in future,
it is easy to find spare part.
This high qulaity chiller will make sure the cooling system in the commercial brewery works very well, durable, high efficiency.
Company Introduction
Kelang company ,founded in 1997,is a service-outsourcing and new high-tech enterprise in fermentation engineering industry,Provide the customers with systemic solution of non-standard technical renewal on the fermentation field,is committed to the first person on the fermentation service outsourcing field.
Company provides fermentation project technology service to enterprises in the area of Alcohol, condiment, biopharmacy and any other bio-fermenting lines.Service is including technology proposal design,a complete set of equipment,application project installation,training technicians,financing service etc five system links.
Our products have been exported to many countries in the world,and our company has established long-term and friendly cooperative relations with Russia, the United States, Canada, Britain, Australia, New Zealand, Kenya, Moldova, Israel, Singapore, Philippines, India, Holland and many other countries and regions,awarding high praise from our customers.
