Processing: |
Fermenting Equipment |
Voltage: |
220V Or 380V Or Customized |
Weight: |
245KGS |
Fermenter Volume: |
50L-10000L |
Fermenter Warranty: |
1 Year(Main Body For 3 Year) |
Condition: |
New |
Material: |
SUS304 |
|

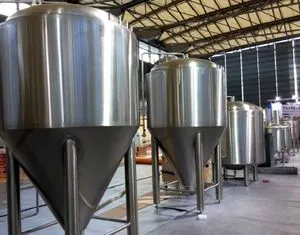

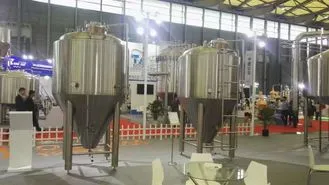

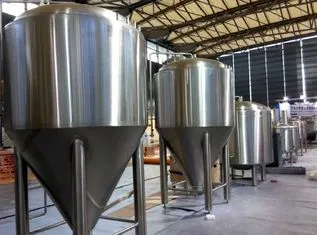

Refrigerated Stainless Steel Conical Fermenter 1000L Large Brewing Equipment
Beer Brewery Machine system Overview(Can be customized )ArchitectureMain ComponentsMilling SystemMalt MillBrwehouseMash Tun, lauter tun, boiling, whirlpoolFermentation unitFermentation tank Bright beer tank(optional)Cooling unitIce water tank ChillerCleaning unitPump Alkaline liquid tank Sterilization tankControl unitTouch screen Control cabinet CE certified electric fittings Speed control Temp display and control Product Description CGET offer brewers a simple and cost effective brewing solution. By combining the Mash Tun & Lauter Tun, and the Kettle & Whirlpool into our typical 2-Vessel solution, we provide space and cost savings without compromising brewing quality and control. CGET Microbrewery Equipment systems are available with several options to help deliver brewing efficiency, control & automation, and overall flexibility. Typical size range: 100L~8000L,1 BBL,2 BBL, 3 BBL, 5 BBL, 7 BBL, 10 BBL, 15 BBL,30BBL (custom sizing & configuration available). Standard Brewhouse configuration: 1. Mash / Lauter Tun with side grain out access 2. Brew Kettle / Whirlpool Vessel with integrated steam jacket and temperature control 3. Semi-Automated Controls with PLC & Remote Access Support 4. 304 Sanitary Pumps with VFD Controls 5. 304 Stainless Steel Plate Heat Exchanger with integrated temperature controls 6. Manual Sanitary Butterfly Valves 7. Ergonomic and efficient 304 stainless steel Brew Deck with easy access to all vessels and brewing functions Options: · Integrated CIP On-Demand System · Full-Automation PLC Control System · Hot Liquor Tank –Designed and Sized for Double Brew efficiency · Cold Liquor Tank –Fully insulated and integrated · Mash / Lauter Tun Rakers · Air Actuated Automatic Butterfly Valves . All brewhouse pipelines are used automatic argon protect welding. Brewhouse Details: . 2,3,4 and 5 vessels can be avaiable . All the tanks materials are made by 304 Stainless steel . 304 stainless steel operate platform and stairs . Glass manways . 1~80bbl volume system can be available . Grain mill and screw conveyer (optional) . Plate heat exchanger . Stainless steel 304 pump with ABB or Siemens motors . Automatic and Semi-automatic control for choice,PLC or mobile control can be available 1. Stainless steel 304；Dished head; 2. Dimension :φ1500×2900(According to the drawing dimension ); 3. Effective capacity 1500L; 4. Heat transfer area 4 m2; 5. Design pressure:3Bar; Working pressure:2Bar; 6.Double-stage cooling jacket, stainless steel solenoid valve, mechanical pressure regulating valve; 7. Dimple cooling jacket: 1.5mm; 8. Insulation thickness: 80mm; Inner tank thickness: 2.5mm,outer thickness:2mm 9. Conical base 60° 10.Beer racking arm on cone section, bottom drain port, associated valves and fittings; 11. Beer outlet and drain port 12. Top hops add port； 13. Top manhole; 14. Pressure gauge, respiration valve, sample valve; 15. PT100 temperature probe. 16. Four stainless steel legs, with screw assembly to adjust leg height, |
