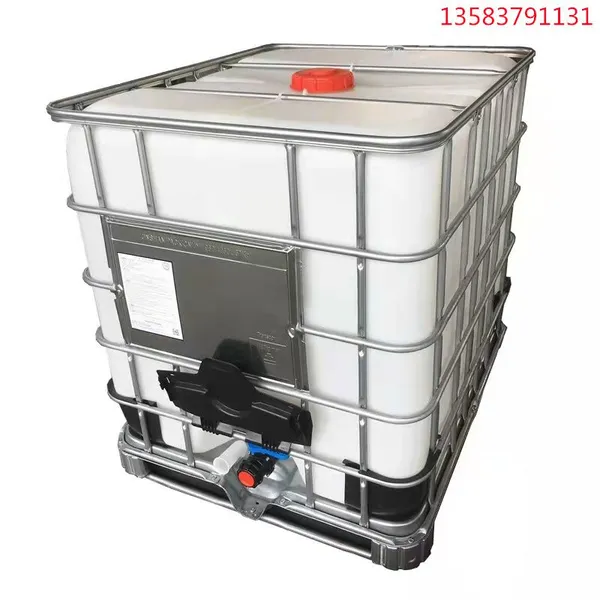

Product features
1. The steel rod fixed by special screws can easily and quickly replace the inner container.
2. The inner container is made of HDPE (model: 4570UV) produced by Korea Dalin Company, which is anti-ultraviolet, anti-aging, easy to clean and non-toxic.

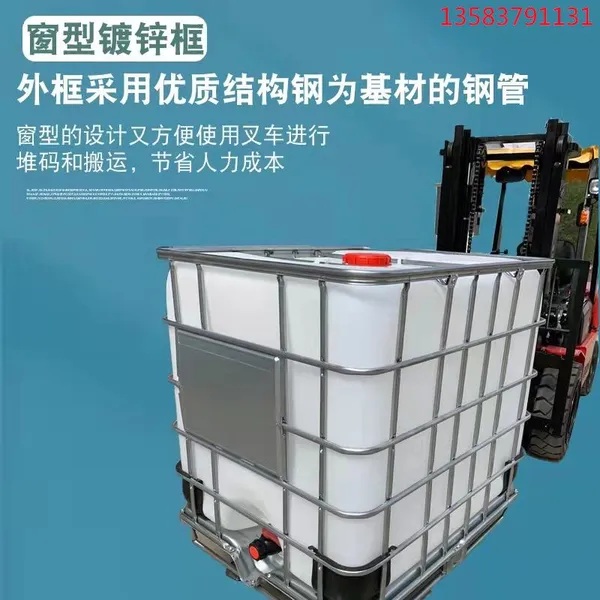

3. The outer frame is welded with hot-dip galvanized steel pipes (all made of Angang 51D+Z and 53D+Z steel), and the bottom tray is fixed by anti-slip screws (grade 8.8), which is firm, durable and corrosion-resistant.
4. The product marking board outside the framework can mark the enterprise name, products and other instructions that need to be marked, so that customers can fully understand your company's information.
5. The bottom tray is made of high-quality steel plate and has a four-way fork type. It has optimal stability and is convenient for loading, unloading and stacking.
6. The scale of volume is cast on the inner container, so the user can clearly see the full height of the liquid in the container by using the transparent characteristics of the container.
7. The upper filling port is equipped with blind cover or threaded cover of DN150 breathing valve, and the lower discharging port is equipped with DN50 ball valve (the sealing element is imported rubber), which can discharge the material safely, quickly and thoroughly.
8. Technical parameters:
*. Overall dimensions: 1200*1000*1150mm
*. Volume: 1050L, and the maximum filling density is 1.9.
*. Minimum wall thickness: ≥ 1.5mm.
*. Net weight: 59KG±1KG
