Help CenterBently Nevada 3500/92-03-01-00 Communications Gateway Module – Reliable Modbus Bridge for 3500 Machinery Protection Racks
Related Products
-
Bently Nevada 3500/44-01 – Aeroderivative Gas Turbine Vibration Monitor for the 3500 Series RackNegotiableMOQ: 1 Combo -
Bently Nevada 330180-50-05 Proximitor Pre-amplifier for Critical Machinery MonitoringNegotiableMOQ: 1 Combo
-
Bently Nevada 3500/15-04-04-01 Power Supply Module – Stable DC Power for 3500 Machinery Protection RacksNegotiableMOQ: 1 Combo
-
Bently Nevada 3500/25-01 Keyphasor Module – Stable Phase Reference for Rotating Machinery Diagnostics and BalancingNegotiableMOQ: 1 Combo
-
Bently Nevada 330101-00-58-10-02-05 – Proximity Sensor for Vibration and Shaft Displacement MonitoringNegotiableMOQ: 1 Combo

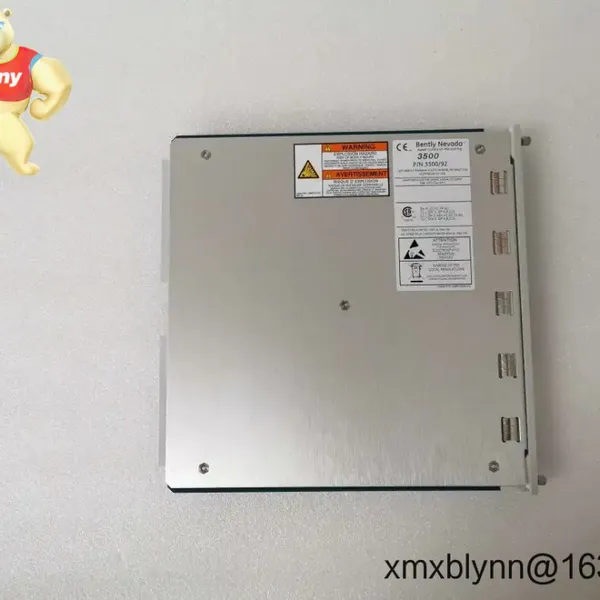

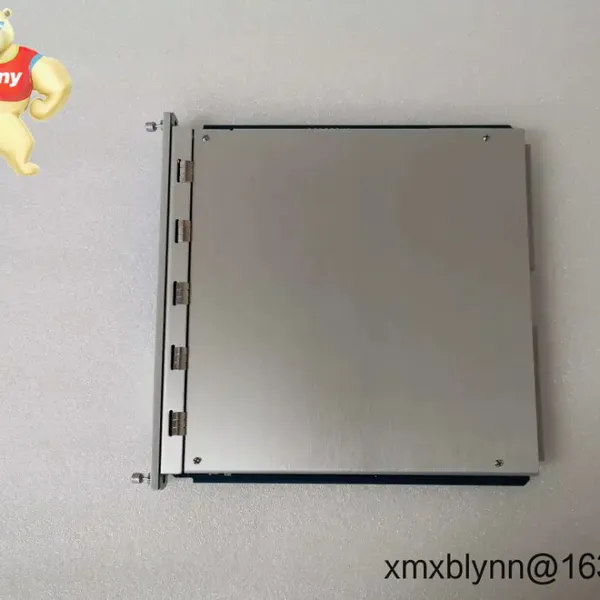

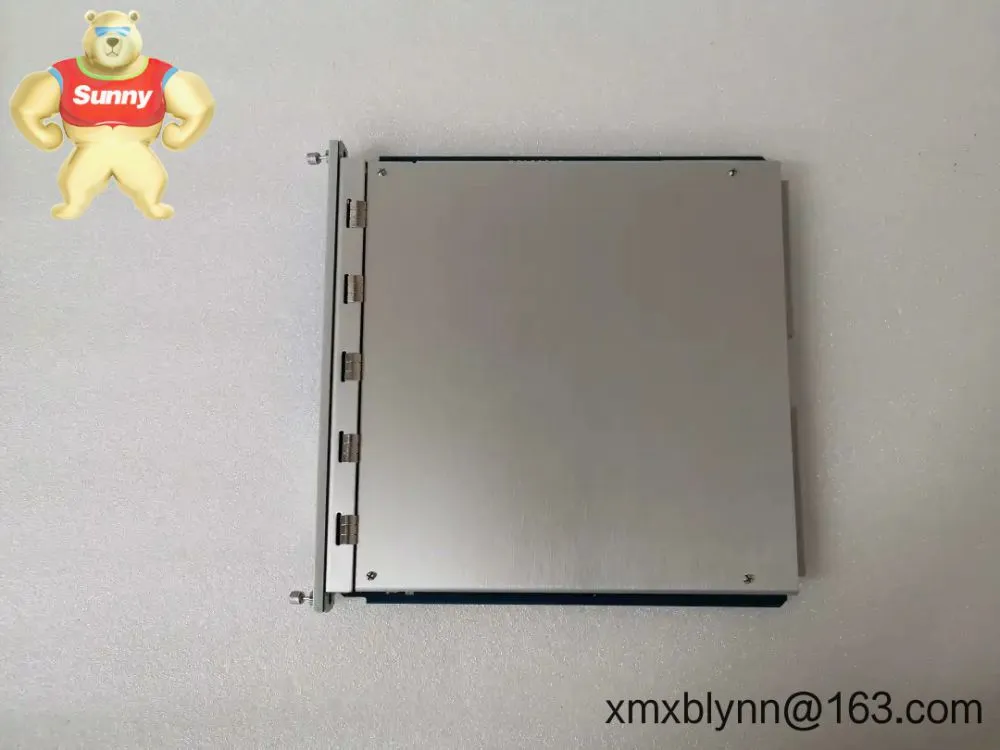

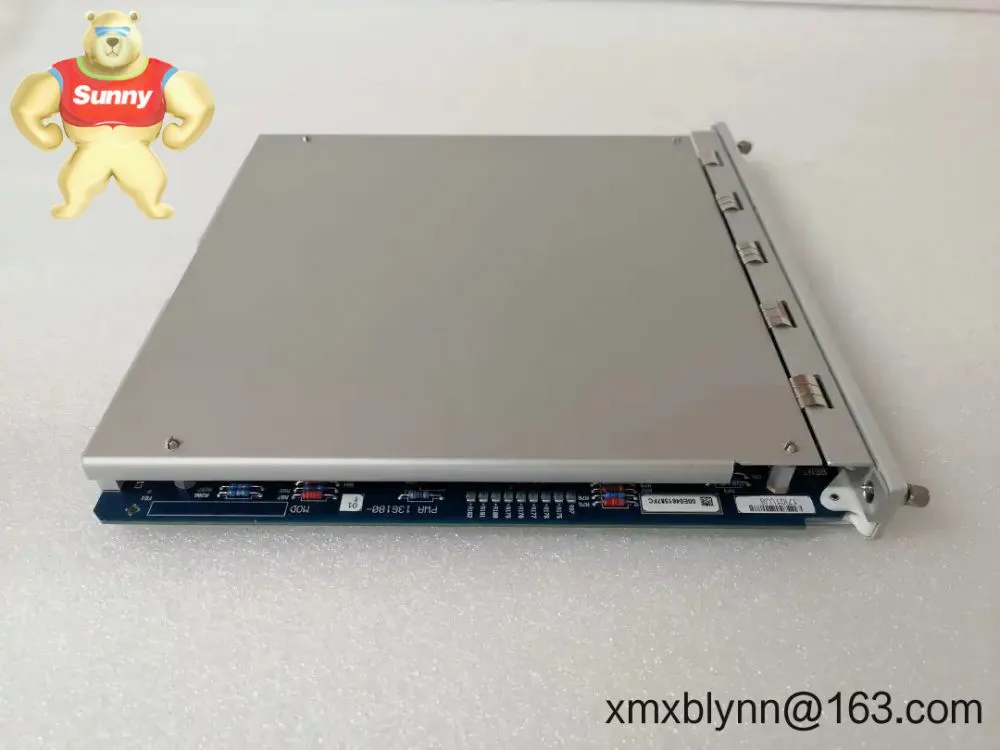

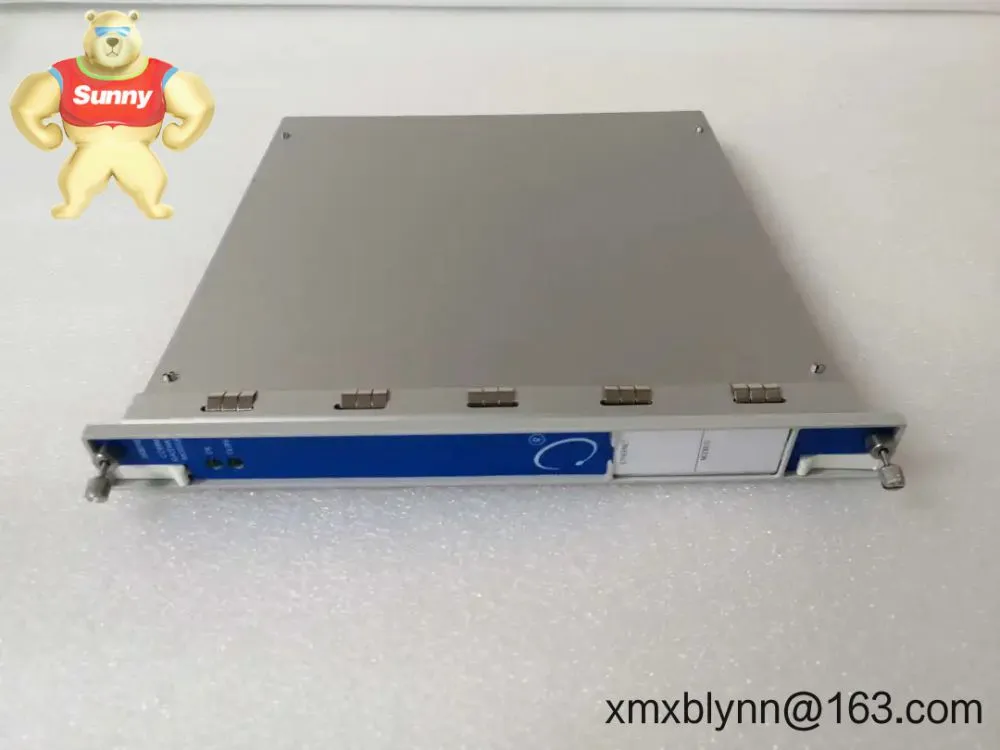

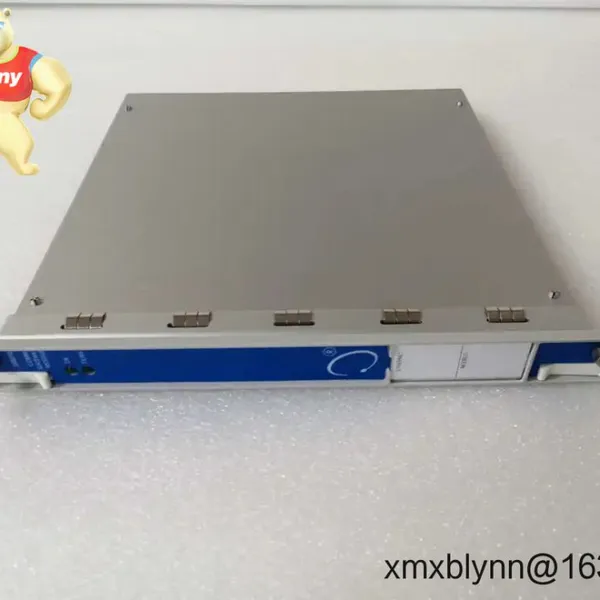

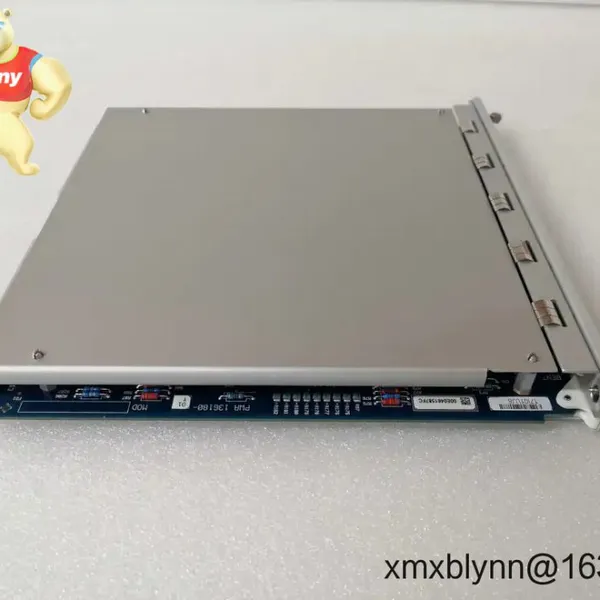

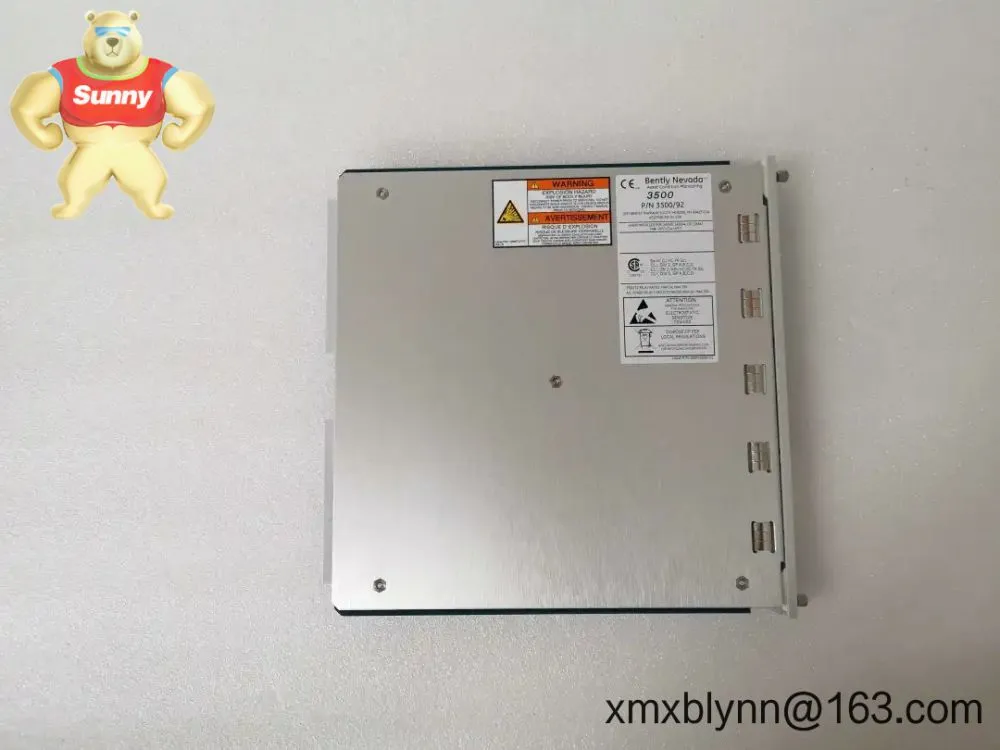

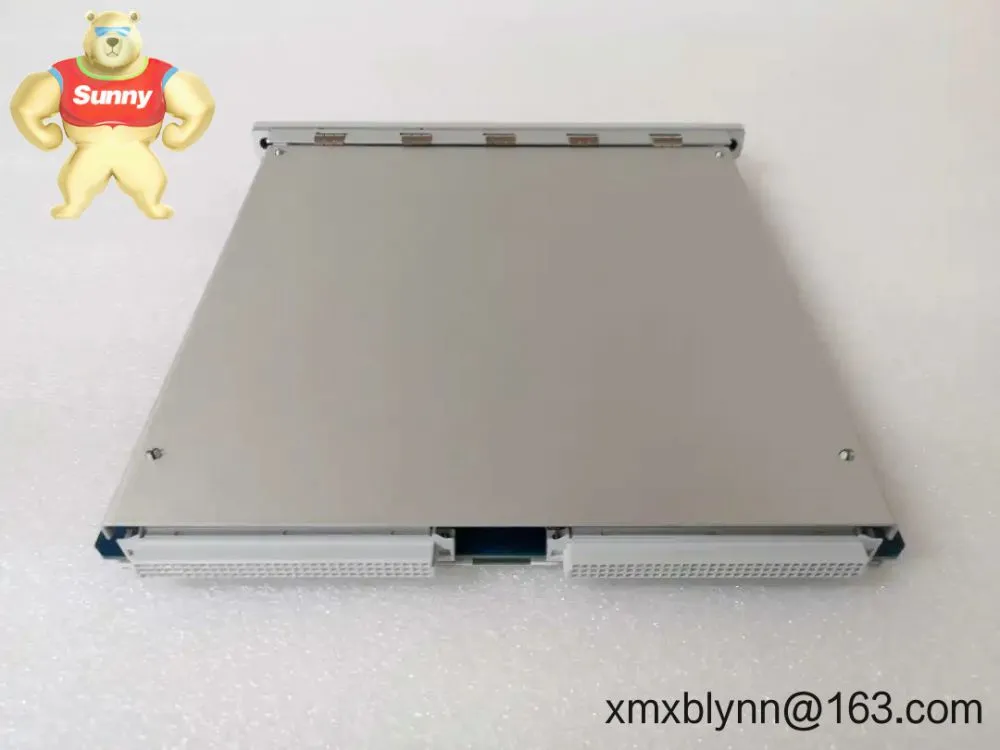

The Bently Nevada 3500/92-03-01-00 Communications Gateway Module is designed to move key 3500 rack data into your DCS/PLC/SCADA using industry-standard Modbus. Plants typically use it to publish overall vibration, keyphasor speed, alarm status, and channel health so operators see the right information without opening analysis software.
From my experience, the 3500/92 is the low-effort, high-reliability way to tie a 3500 rack into control systems—especially when you just need steady, deterministic “process-like” measurements and discrete alarms. It seems to be the most common path for sending equipment health to systems like DCS trends and historian tags.
Key FeaturesModbus data publishing (Modbus TCP; Modbus RTU option dependent) – Shares rack measurements, statuses, and alarms with DCS/PLC in a format controls engineers expect.
Ethernet interface on this variant – The 03-01-00 option is commonly the Ethernet Modbus TCP build with RJ‑45 10/100Base‑T, simplifying network integration.
One-slot 3500 form factor – Plugs into the rack like any 3500 module; powered by the rack backplane, so no separate PSU wiring.
Deterministic “process-grade” data – Typically publishes static values, statuses, and alarms for trending and interlocks; waveform streaming isn’t the intent here.
Easy mapping – Predefined Modbus registers shorten tag engineering; most sites are trending within hours rather than days.
Built for industrial environments – Matches the 3500 rack’s environmental and EMC performance for continuous service.
Seamless with 3500/22M TDI – Configuration is handled through the 3500 rack configuration tool via the TDI, keeping commissioning straightforward.
| Brand / Model | Bently Nevada 3500/92-03-01-00 Communications Gateway Module |
| Power Requirements | Supplied by 3500 rack backplane (no external power supply required) |
| Communication Interfaces | Ethernet 10/100Base‑T (RJ‑45) for Modbus TCP on this option; some 3500/92 variants also support serial Modbus RTU (RS‑232/RS‑485) |
| Signal I/O Types | Digital communications only (no analog inputs/outputs) |
| Installation Method | 1-slot module with associated I/O mounted on the rack backplane; configured via the 3500/22M TDI using Bently Nevada configuration software |
| Dimensions & Weight | Standard 3500 module form factor (1 rack slot); typical module mass under 0.5 kg |
| Operating Temperature | Per 3500 rack rating; typically 0 to +65 °C in most installations |
| Supported Protocols | Modbus TCP (this variant); many 3500/92 builds also support Modbus RTU |
Where this module typically fits well:
Oil & Gas and Petrochemicals – Publish compressor and pump protection values to DCS for interlocks and operator awareness.
Power Generation – Send turbine and generator bearing overall vibration, speed, and alarm states to plant controls and historian.
Metals, Mining, Pulp & Paper – Feed balanced, low-bandwidth condition data into PLC logic and SCADA dashboards.
Water/Wastewater and Pipelines – Lightweight Modbus integration where reliability and simplicity matter more than waveform detail.
Fast integration with existing controls – Standard Modbus mapping means minimal PLC/DCS programming effort and quicker commissioning.
Cost-conscious way to share critical data – Uses your current 3500 rack; no extra signal conditioners or analog wiring runs.
High reliability in continuous service – Same industrial build quality as the rest of the 3500 platform, which is known for 24/7 availability.
Compatible by design – Works alongside 3500/22M TDI and 3500 monitors; supports typical plant network practices (IPv4, switched Ethernet).
Lifecycle support – Widely deployed; spares availability and firmware support are typically straightforward through standard channels.
One thing I appreciate is how predictable the commissioning is. A maintenance lead told us their team replaced a failed gateway with a 3500/92, reloaded the mapping, and had DCS trends alive in under an hour—no surprises.
Cabinet & environment – Install in a standard 3500 rack within a clean, ventilated enclosure. Avoid heat sources; keep airflow unobstructed to meet rack temperature limits.
Networking – For Modbus TCP, use industrial switches and segregated VLANs when practical. Fixed IP addressing with documented register maps tends to keep life simple.
Serial wiring (if used on other 3500/92 variants) – Follow RS‑485 biasing/termination practices; use shielded twisted pair and single-point grounding to reduce noise.
Grounding & EMC – Maintain the 3500 rack grounding scheme; avoid shared shields that can introduce ground loops.
Configuration – Create/tag your Modbus map in the 3500 configuration tool via the 3500/22M TDI. Keep a copy of the map and firmware notes in your change log.
Routine maintenance – Periodically verify register values against known references, review alarm/status bits, back up configurations, and apply approved firmware updates during planned outages.
Spares – It's practical to hold one spare gateway per critical area; swapping a 3500/92 is usually a plug-in operation followed by config restore.
CE marking for EMC and safety (aligns with the 3500 system’s approvals).
UL/cUL recognition is common for 3500 modules used in North America.
RoHS-compliant manufacturing in most shipments.
Manufacturer’s limited warranty, typically 1 year; extended coverage available in many regions.
3500/22M Transient Data Interface (TDI) – Required for rack configuration and high-fidelity data to System 1 software.
3500/15 Power Supply – Rack power; the 3500/92 draws from the backplane.
3500/XX Monitors (e.g., 3500/42M, 3500/45) – Provide the measurements the gateway publishes to Modbus.
Note: The “03-01-00” option code indicates an Ethernet-oriented build in many cases. If you require serial Modbus RTU, redundant Ethernet, or a specific register set, please confirm the exact option matrix for your site standard.
