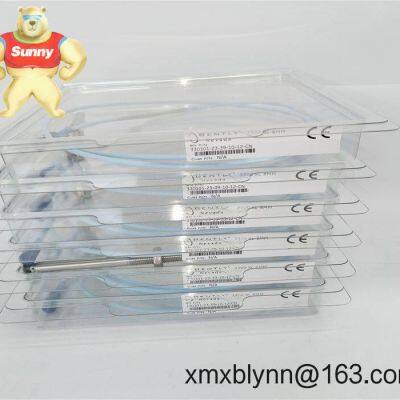

Bently Nevada 330101-00-66-10-02-05 – Non‑contact Vibration And Displacement Sensing for Rotating Machinery

The Bently Nevada 330101-00-66-10-02-05 is a proximity vibration/displacement sensor from the 3300 series, typically used with a matching Proximitor sensor and extension cable to monitor shaft vibration, radial position, and thrust movement. In many cases it’s chosen for critical assets—compressors, turbines, large pumps—where stable, non-contact measurement and long-term reliability matter more than anything else.

From my experience, this configuration code points to a specific probe build (length/thread/armor options) that integrates cleanly into existing 3300/3500 protection and condition monitoring systems. You might notice that maintenance teams favor it because it’s a straightforward drop‑in for API 670‑style installations.

• Eddy‑current, non‑contact measurement – Measures shaft vibration and position without mechanical wear or contact.

• Stable sensitivity – Typically 200 mV/mil (≈7.87 mV/μm) when paired with the matching 3300‑series Proximitor, giving predictable scaling across channels.

• Broad linear range – Suitable for common API 670 radial and axial measurement ranges on steel targets.

• Robust construction – Stainless-steel probe body and rugged cable design for high vibration and industrial environments.

• System compatibility – Works with 3300/3500 monitoring racks and many OEM protection systems that accept standard Bently Nevada transducer outputs.

• Gap and polarity conventions you already know – Simplifies field replacement, trending continuity, and alarm rationalization.

• Configured variant – The -00-66-10-02-05 options indicate a specific mechanical/cable setup, typically chosen to match cabinet distance and mounting threads.

• Steam and gas turbines – radial vibration and thrust position for trip/alarm logic.

• Process compressors (centrifugal/reciprocating) – continuous condition monitoring and surge protection inputs.

• Pumps and fans – bearing health and shaft movement trending to cut unplanned stops.

• Gearboxes – detect mesh-related vibration and shaft runout changes over load.

• Large electric motors and generators – monitor sleeve-bearing machines in API 541/546 environments.

• Compatibility – Fits established 3300/3500 architectures, typically avoiding re‑engineering or re‑calibration headaches.

• Proven reliability – A go‑to choice on critical rotating assets; field teams often report consistent gap stability over long intervals.

• Lifecycle savings – Non‑contact sensing reduces mechanical wear and lowers spare parts turnover.

• Data continuity – Standard scaling and phase behavior help preserve historical trend baselines after replacements.

• Support ecosystem – Widely supported in API‑style protection systems, with abundant documentation and field tooling.

• Mounting – Install in a rigid bracket or bearing housing; avoid thin or resonant structures. Use the jam nut to lock position after gap set.

• Gap setting – Set nominal gap (often ~1.0 mm / 40 mil) using a feeler gauge on the shaft. Verify linear response using a micrometer spindle if available.

• Wiring – Route probe/extension cable away from high‑voltage lines. Maintain minimum bend radius and ensure proper shielding/grounding at the Proximitor end.

• Cabinet & environment – Proximitor modules typically mount in a ventilated control cabinet; keep ambient within spec and avoid moisture ingress.

• Routine checks – Inspect probe tip for debris buildup, confirm tight mounting hardware, and recheck gap after major outages or bearing work.

• Calibration – Channel verification with a calibrated target (Bently‑style probe micrometer) is recommended during commissioning and periodic PMs.

• CE marking (typical for the 3300‑series transducer system components).

• RoHS compliance on most current builds; specific option codes may vary.

• Manufacturing under ISO 9001 quality systems.

• Commonly used in API 670‑compliant protection systems.

• Standard manufacturer’s warranty (typically 1 year); extended coverage available in many regions.

• 3300‑series Proximitor sensor – Provides excitation and linearization for the probe, with DC gap and AC vibration outputs.

• Extension cable (e.g., 330130 series) – Matches the system length (commonly 5 m, 7 m, or 9 m system lengths) and environmental rating.

• Mounting accessories – Brackets, adaptors, and jam nuts tailored to bearing housings or OEM ports.
