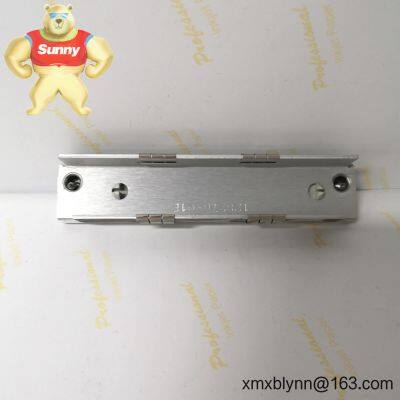

Bently Nevada 86517-01-01-01-02 Preamplifier – Reliable Front-end Conditioning for Industrial Vibration And Proximity Signals

The Bently Nevada 86517-01-01-01-02 is a rugged preamplifier designed to stabilize and boost low-level sensor signals before they reach your monitoring system. From my experience, it’s typically used between velocity pickups or eddy-current proximity probes and Bently Nevada monitoring platforms to preserve signal integrity over long cable runs and noisy environments. If you’re maintaining high-value rotating assets, it seems to be a dependable way to get consistent, low-noise measurements into your 3300/3500-series racks or similar condition monitoring setups.

• Low-noise front-end amplification – Helps maintain waveform fidelity from proximity or velocity sensors, especially where runs exceed typical lengths.

• Stable, industrial-grade design – Built for continuous use near turbines, compressors, pumps, and fans where EMI and vibration are common.

• Clean signal conditioning – Filters and impedance matching that, in many cases, reduce spurious noise and improve repeatability.

• Seamless ecosystem fit – Commonly integrated with Bently Nevada 3300/3500 monitoring systems and associated accessories.

• Flexible installation – Typically mounted in a protected cabinet or junction box close to the sensor to improve SNR and reduce pickup.

• Practical power requirements – Designed for standard DC control power used in industrial panels (often 24 Vdc in many plants).

You’ll typically see the 86517-01-01-01-02 used on rotating assets where reliable vibration and position feedback are non-negotiable:

• Power generation – steam/gas turbines, generators, and balance-of-plant fans

• Oil & gas – compressors, pumps, and critical API machinery in upstream and downstream facilities

• Petrochemical & chemical – mixers, extruders, and process compressors

• Mining & metals – mills, crushers, and large induction motors

• Pulp & paper / water treatment – high-duty pumps and blowers

• Signal integrity over distance – One thing I appreciate is how a proper preamp cuts down on noise pickup, which often means fewer false trips and cleaner trending.

• Ecosystem compatibility – Stays aligned with Bently Nevada practices, so you typically reuse existing probes, cables, and rack hardware.

• Lower lifecycle cost – Better signal quality usually reduces troubleshooting hours and unplanned shutdown investigations.

• Procurement confidence – Proven industrial design and broad install base; spares and support are straightforward in most regions.

A maintenance supervisor at a combined-cycle plant mentioned to us that adding preamps near the probe locations “cut the random spikes we fought for months,” and commissioning got noticeably smoother after that change.

• Panel/cabinet guidelines – Mount in a clean, dry enclosure with adequate ventilation; avoid high-heat zones and strong magnetic fields. Keep it close to the sensor where practical.

• Wiring practices – Use shielded, twisted pairs; ground shields at one end only; route away from VFD/motor power. Maintain proper polarity and sensor lead integrity.

• Sensor pairing – Match the preamp with the correct probe/velocity sensor type and range. You might notice better results when the cabling length is within the recommended limits.

• Routine checks – Periodically verify tight terminals, inspect for moisture/contamination, and validate readings against baseline values during outages.

• Commissioning tips – From my experience, documenting baseline spectra and gaps right after installation saves time later when diagnosing drift.

• CE compliance and RoHS alignment for industrial environments

• UL recognition/listing on many Bently Nevada signal-conditioning modules

• Manufactured under ISO 9001 quality systems

• Manufacturer warranty: typically 1-year limited coverage

• Bently Nevada 3300/3500 series monitoring systems

• Bently Nevada proximity probe systems (e.g., 3300 XL) and velocity sensors

• Shielded sensor cabling and junction boxes sized for field mounting

•
