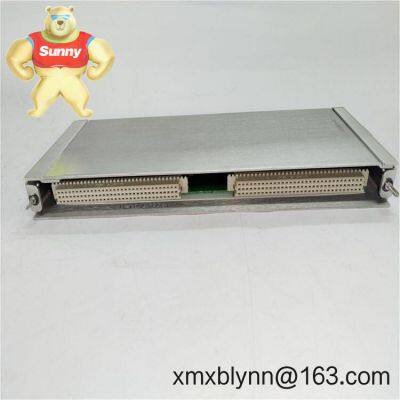

Bently Nevada 3500/92 133323-01 – Communications Gateway for the 3500 Machinery Protection Rack

The Bently Nevada 3500/92 133323-01 is the communications gateway module for the 3500 rack, designed to publish machinery protection and condition data to plant control and monitoring systems over Ethernet. It typically serves Modbus TCP data—values, status, and alarms—so DCS/PLC teams can pull trustworthy turbomachinery signals without custom gateways. You’ll see it most in critical assets like compressors, steam/gas turbines, and large pumps where stable, low-latency data sharing really matters.

• Native 3500 rack integration – Reads measured values, status, and alarm information directly from the 3500 backplane for consistent data.

• Ethernet/Modbus TCP output – Provides a straightforward Modbus TCP server interface so control systems can map points quickly.

• Single-slot footprint – Saves space in the rack while adding connectivity; no external power supply is needed.

• Configurable mapping – Point assignment is set using the standard 3500 configuration tools, which in many cases cuts commissioning time.

• Status LEDs – Clear indicators for module health and communications, making first-line diagnostics easier.

• Field-proven reliability – From my experience, the 3500/92 runs for years with minimal fuss when the network is set up cleanly.

• Firmware upgradable – Supports updates during planned outages to keep features and compatibility current.

The 3500/92 is usually specified where plants want a clean, documented path from a protection rack to their control layer—without add-on protocol converters. It fits nicely in:

• Oil & Gas – Tie compressors and gas turbines into the DCS via Modbus TCP for permissives and alarms.

• Power Generation – Publish bearing vibration, speed, and alarm states to plant historians and HMI clients.

• Petrochemical & Refining – Consolidate condition data from multiple trains into a central control room.

• Pulp & Paper / Mining – Feed protection states to PLCs for interlocks and automated shutdown logic.

• Marine & Pipeline – Remote supervisory visibility where bandwidth is limited but reliability matters.

“We mapped the entire compressor train into the DCS in one shift. It seems simple once the tag list is sorted.” — Maintenance Supervisor, midstream site

• Reliability – Built for continuous operation in critical service; fewer single‑purpose gateway boxes to fail.

• Compatibility – Standard Modbus TCP works with most DCS/PLC platforms out of the box.

• Lower engineering hours – From my experience, point mapping through the 3500 tools typically shortens FAT/SAT.

• Lifecycle support – Firmware and configuration tool updates help keep systems current without re-architecting.

• Simplified wiring – One Ethernet drop instead of multiple analog/relay marshalling, which often reduces cabinet clutter.

• Cabinet & environment – Install the 3500 rack in a clean, ventilated enclosure; maintain ambient within the rack’s specified range.

• Slotting – Fit the 3500/92 into an available single slot; ensure the rack interface module (TDI/RIM) is present and healthy.

• Networking – Use industrial‑grade, shielded Ethernet cables; connect to a managed switch and lock port speed/duplex if needed to stabilize links.

• Grounding – Follow plant grounding practices to minimize noise; keep Ethernet and power routes separated where practical.

• Configuration – Define Modbus registers using the 3500 configuration software; validate mapping with a test client before handover.

• Safety – Observe ESD precautions; make changes during planned windows; verify alarm logic in bypass before placing into service.

• Routine care – Backup configuration files, inspect connectors annually, clean dust filters in the rack area, and apply firmware updates during scheduled outages.

• CE compliant; typical listings include UL/cUL and CSA for relevant rack assemblies.

• RoHS conformity for later revisions, as commonly seen across the 3500 platform.

• Manufactured under ISO 9001 quality systems.

• Standard manufacturer’s warranty is typically 1 year (site policies may extend with service agreements).

One thing I appreciate is how straightforward it is to justify: fewer converters, cleaner data paths, and a support model the maintenance team actually understands. If you’re standardizing on Modbus TCP across units, this module tends to pay back quickly in commissioning time alone.
