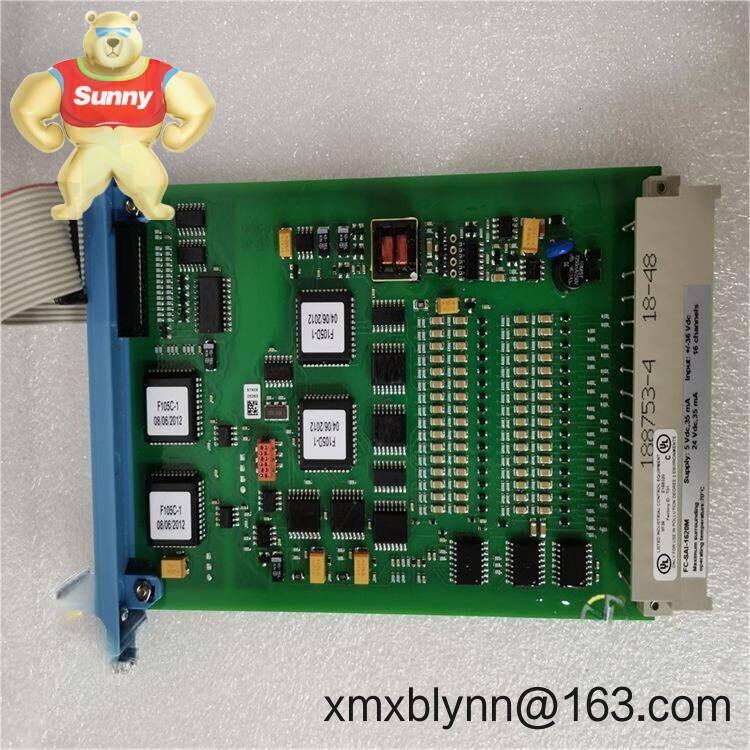

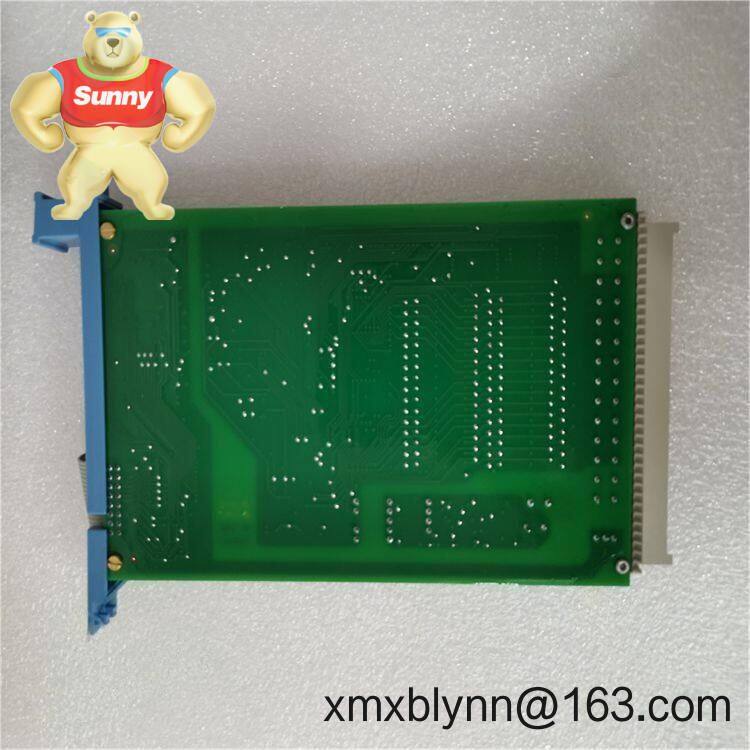

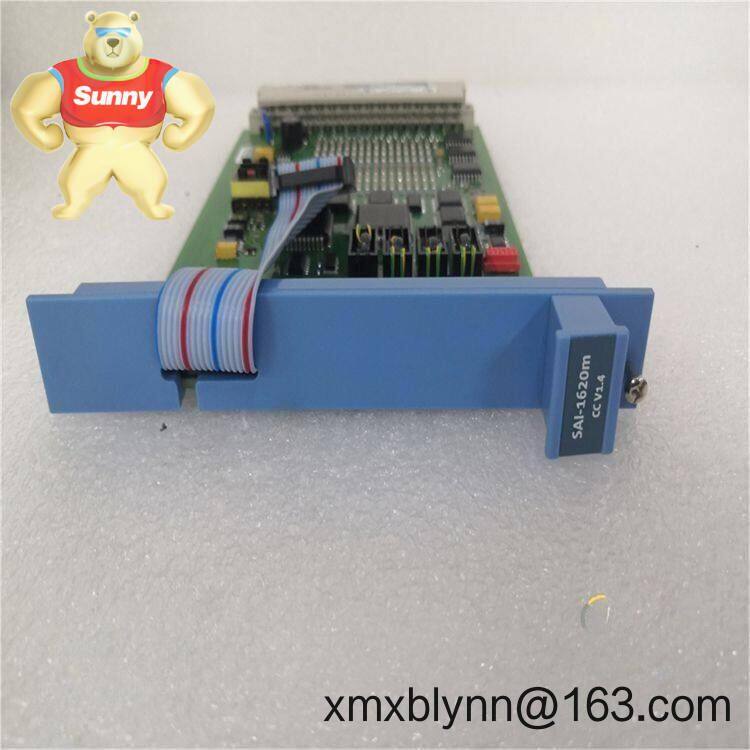

HONEYWELL FC-SAI-1620m – Safety-Grade 16-Channel Analog Input for Process Control

The Honeywell FC-SAI-1620m is a 16-channel analog input module designed for Honeywell field control platforms in demanding process environments. It’s typically used to bring 4–20 mA or voltage signals from transmitters into the controller, with built-in diagnostics that help you spot wiring issues early. From my experience, it fits well where high channel density, robust fault monitoring, and long lifecycle support matter—think ESD, process safeguarding, and critical utilities.

• 16 analog input channels – Efficiently consolidates multiple field signals into a single module, reducing cabinet footprint.

• Current and voltage input support – Typically configurable per channel for 4–20 mA and common voltage ranges (e.g., 0–10 V), helping standardize spares.

• Safety-oriented design – Suited for safety-related applications when used within Honeywell-certified architectures; seems to be a common pick for ESD and critical controls.

• Line fault detection – Monitors for open circuit, short, and out-of-range conditions so operators can troubleshoot faster.

• Backplane communication – No external network wiring to the module; it exchanges data via the Honeywell system backplane for high reliability.

• Hot-swap serviceability – In many cases, the module can be replaced without powering down the entire rack, minimizing downtime.

• Per-channel status indication – You might notice clear diagnostics via the controller and on-module indicators to simplify maintenance rounds.

Plants that rely on robust, safety-aware signal acquisition benefit most. I typically see the FC-SAI-1620m in:

• Oil & Gas and Petrochemicals – ESD inputs, pressure and level transmitters on critical lines, flare systems.

• Power Generation & Utilities – Boiler protection, feedwater systems, and balance-of-plant instrumentation.

• Chemicals & Pharmaceuticals – Environmental monitoring, critical dosing and reactor safeguards.

• Metals & Mining – Mill interlocks, tailings safety control loops, and process stability monitoring.

• Lifecycle alignment – Honeywell maintains long-term system support, which in many cases reduces obsolescence risk and spare part headaches.

• High channel density – 16 inputs per module can lower cabinet count, wiring runs, and total installed cost.

• Compatibility – Designed for Honeywell field control racks, avoiding odd gateways or custom interfacing.

• Built-in diagnostics – Faster turnaround during commissioning and routine maintenance; technicians usually appreciate clear fault feedback.

• Serviceability – Hot-swap capability and standardized terminals can shorten MTTR and keep startups on schedule.

• Cabinet environment – Install in a clean, ventilated control cabinet; follow spacing guidelines for heat dissipation and keep ambient within specified range.

• Wiring practices – Use shielded twisted pairs for analog signals, ground shields at one end, and route away from high-voltage cabling to minimize noise.

• Loop power – Provide stable 24 VDC for 2‑wire transmitters; group your loop returns neatly to simplify troubleshooting.

• Safety precautions – De-energize associated loops before servicing; confirm the system’s hot-swap rules for your specific rack revision.

• Routine checks – Periodically verify input scaling and ranges, review diagnostics, and document any channel bypasses or overrides.

• Firmware/configuration – Keep controller and I/O firmware at recommended levels; back up configuration prior to changes in live systems.

• CE and RoHS compliance are typical for this class of Honeywell I/O; documentation for your exact module revision should be checked.

• Safety use is generally aligned with IEC 61508/IEC 61511 when integrated within Honeywell-certified architectures (SIL capability depends on system design).

• Manufacturer’s warranty: commonly 12 months from shipment for new units; extended service options may be available by agreement.

Quick customer note I’ve heard more than once: swapping from mixed-vendor AI cards to the FC-SAI-1620m reduced nuisance trips because of cleaner fault detection and consistent scaling across loops. It’s a small change that, in many cases, pays back quickly in fewer call-outs.
