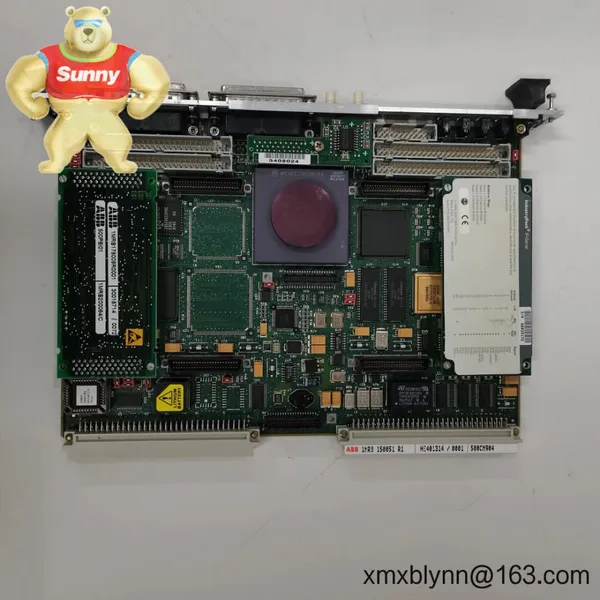

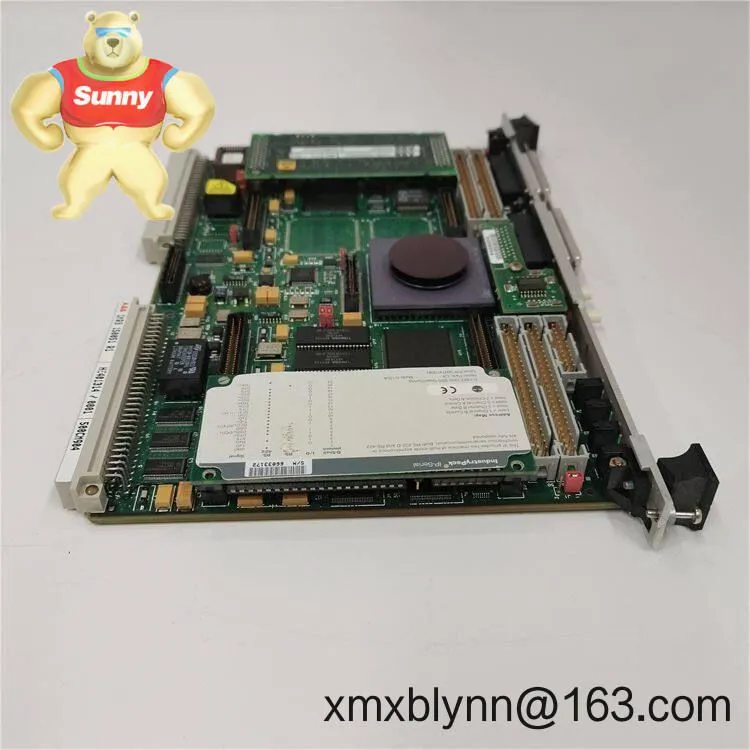

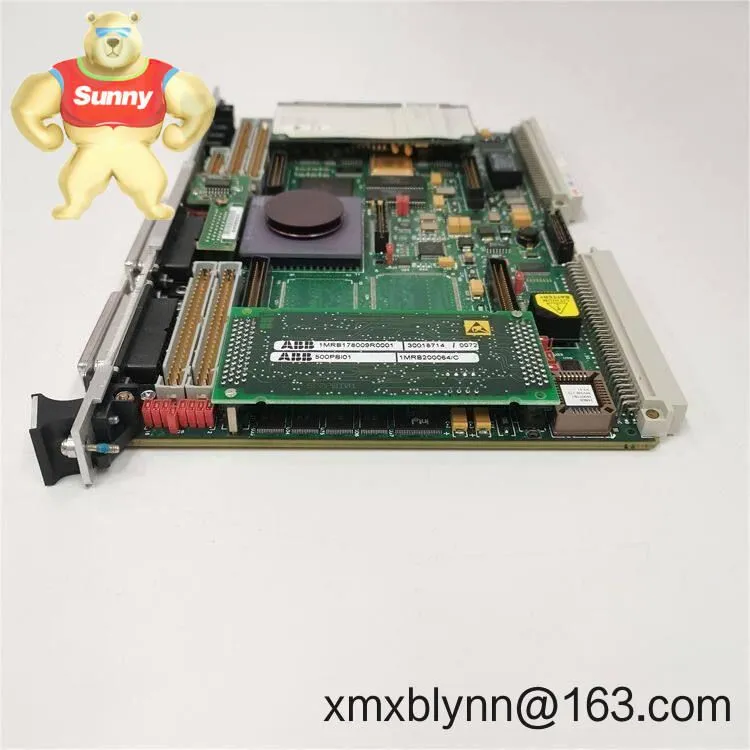

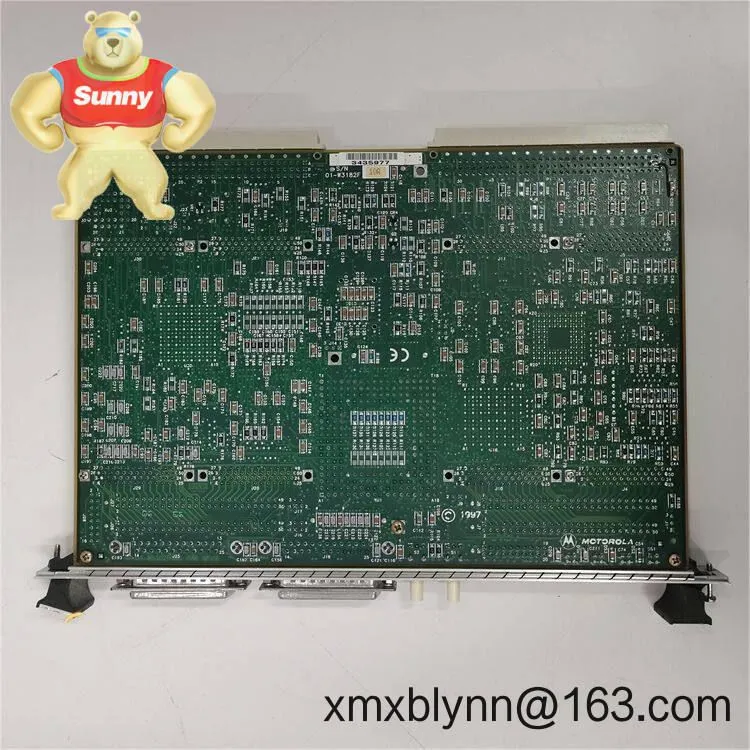

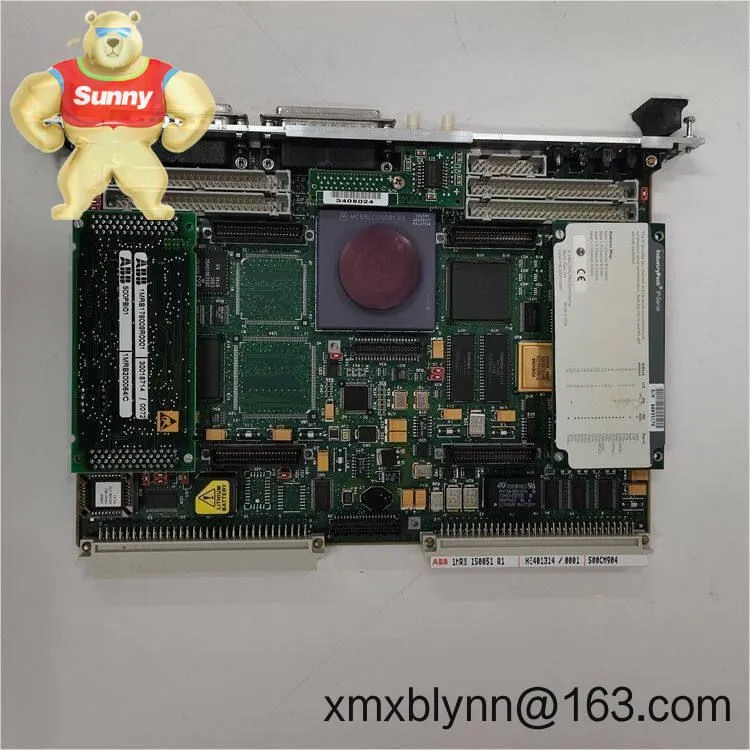

The ABB 500CMP04 (board ID HE401314/0001) is a control processor board commonly used in ABB DCS-class DC drives, typically seen in DCS500/DCS600 installations. From my experience, it serves as the central control logic for closed-loop speed and torque regulation, coordinating I/O and communications across the drive. If you’re maintaining an installed base of ABB DC drives, this board is often the drop-in part that gets a line back into production quickly.
Centralized control processing – Coordinates speed/torque loops and interlocks; typically the “brain” of the drive controller.
Backplane integration – Plugs into the drive’s control rack and interfaces with analog/digital I/O and communication daughterboards.
Real-time performance – Designed for fast, deterministic updates required in DC motor regulation and process line control.
Compatible with established ABB DC platforms – Commonly used in legacy DCS-class DC drive systems, which helps with lifecycle support.
Service-friendly design – Field-replaceable card with onboard firmware storage; typically supports parameter backup/restore via the drive.
Optional communications – Often used alongside DDCS fiber or RS‑485/Modbus options via companion boards for plant integration.
| Brand / Model | ABB 500CMP04 (HE401314/0001) |
| Function | Control processor board for ABB DCS-class DC drives (commonly DCS500/DCS600) |
| Power Requirements | Supplied via drive backplane; typically 24 VDC logic, low power ( |
| Dimensions & Weight | Board-level module; roughly card-format size; weight typically under 0.5 kg |
| Operating Temperature | 0 to +50 °C cabinet ambient (non‑condensing), typical for drive control racks |
| Signal Input/Output | Backplane links to ±10 V analog loops and 24 VDC digital I/O via companion boards |
| Communication Interfaces | Typically DDCS fiber; RS‑485/Modbus or similar via optional interface modules |
| Installation Method | Plug-in card; front insertion into the drive’s control rack with keyed edge connectors |
You’ll typically find 500CMP04 boards in brownfield upgrades and routine maintenance of ABB DC drive cabinets. They’re common in:
Metals and steel processing lines (coilers, levelers, pay‑off reels)
Paper machines and converting lines with multi-drive sections
Mining and material handling conveyors using high‑torque DC motors
Test benches and retrofits where DC torque responsiveness is preferred
“Swapping the 500CMP04 brought our paper line back within the hour. No re‑engineering—just parameter check and we were running.” — Maintenance lead, paper converting site
Advantages & ValueFast recovery of legacy assets – In many cases it’s a direct replacement, minimizing downtime and engineering effort.
Platform continuity – Keeps established ABB DC installations supported without forcing a full drive migration.
Proven reliability – These boards are built for 24/7 duty inside industrial cabinets; spares strategy is straightforward.
Integration flexibility – Works with common plant comms (often DDCS; RS‑485/Modbus via options) to fit existing control schemes.
Predictable cost of ownership – Simple plug-in architecture reduces service time and helps keep maintenance budgets steady.
Cabinet environment – Install in a clean, ventilated control cabinet that meets the drive’s enclosure rating; maintain ambient typically 0–50 °C.
ESD and safety – Isolate power, wait for DC bus discharge, and use ESD protection when handling the board; avoid touching component pins.
Backplane seating – Ensure the edge connector is fully engaged and retention screws (if present) are snug; check the slot position matches the original card.
Wiring and fibers – Respect fiber bend radius for DDCS links; verify shield/grounding for serial lines to avoid noise issues.
Commissioning – Restore or confirm drive parameters, run a low‑speed function test, and verify interlocks before production load.
Routine care – Quarterly dust cleaning with dry air, visual inspection of connectors, backup parameter set; firmware updates if specified by the drive release notes.
Typically compliant with CE and UL/cUL requirements for industrial control equipment
RoHS conformity for board-level components, where applicable
Manufactured under ISO 9001 quality systems (typical for ABB drive electronics)
Standard manufacturer warranty is commonly 12 months; extended coverage available in many cases
The 500CMP04 is often paired with companion cards in the same family—such as I/O interface boards and DDCS communication modules—to complete the drive control stack. If you’re planning a preventive maintenance kit, it usually makes sense to stock one 500CMP04 plus the relevant comms interface used on your line.
