Metso Valmet A413125 AIU-8 Analog Input Module

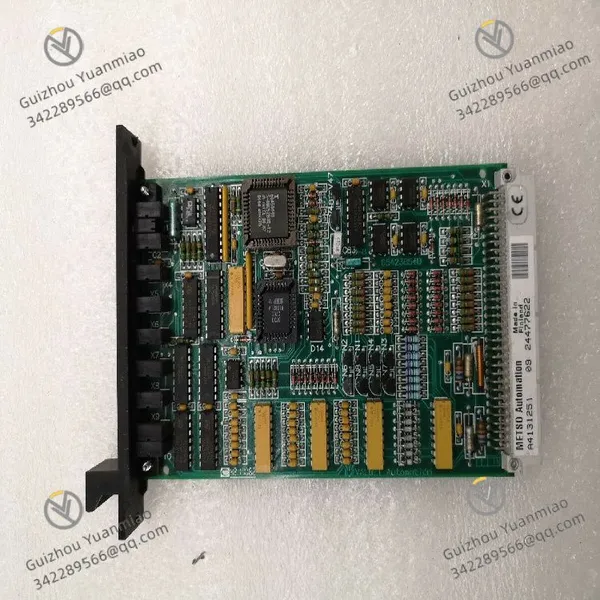

Metso Valmet A413125 AIU-8 Analog Input Module photo-1

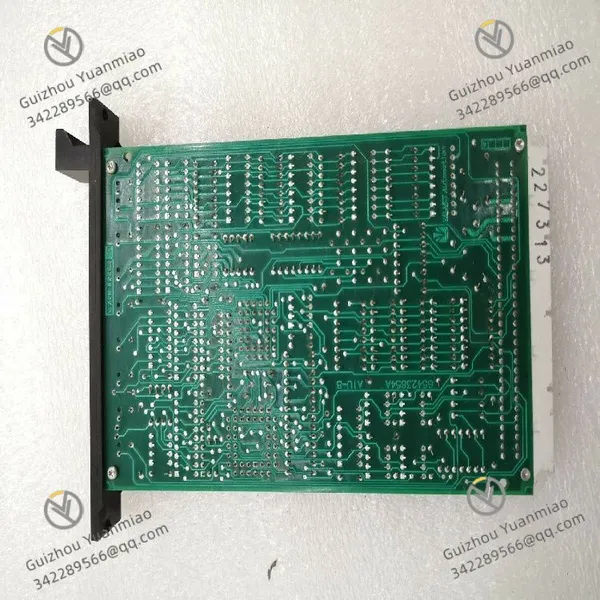

Metso Valmet A413125 AIU-8 Analog Input Module photo-2
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Global universal model
Condition:
Other, Global universal model
Task:
Other, Global universal model
Payment & Shipping
Payment Methods:
Port of Shipment:
guizhou
Delivery Detail:
Delivery time depends on order quantity.
Material Other, Global universal model
Condition Other, Global universal model
Task Other, Global universal model
Mathematical Model Other, Global universal model
Signal Other, Global universal model
Customized Non-Customized
Structure Other, Global universal model
Operating Temperature -35℃~+80℃
Relative Humidity 5%~95% (non-condensing)
Operating Voltage 24V DC±15%
Dimensions 180mm×120mm×70mm

I. Overview


Metso A413125 is a remote I/O module developed to meet the needs of "distributed signal acquisition and control". It belongs to the Metso Automation Control System 800 series and is manufactured at Metso's Tampere factory in Finland. The core function of this module is to realize efficient data interaction between decentralized sensors, actuators in industrial sites and central control systems (such as DCS, PLC), and it undertakes the dual role of "local signal preprocessing + remote data transmission". It is widely used in heavy industrial scenarios with high requirements for signal transmission distance and dispersion, such as mining conveyor systems, cement rotary kiln control, metallurgical continuous casting production lines, paper mill drying sections, and chemical reactor auxiliary control.


The module adopts a composite structure of "high-strength engineering plastic shell + metal shielding layer", with an IP66 protection rating, enabling stable operation in a wide temperature range from -35°C to +80°C. Meanwhile, it has passed the IEC 61010-1 electrical safety certification, IEC 61326-1 electromagnetic compatibility certification, and ATEX Zone 2 explosion-proof certification. It can effectively resist dust accumulation, high-pressure spraying, mechanical vibration, and strong electromagnetic interference (such as frequency converter harmonics, high-power motor start-stop impact) in industrial sites, providing "high reliability + long-distance transmission" guarantee for signal acquisition and control in distributed industrial scenarios. In addition, this module is compatible with Metso DNA control systems and mainstream third-party industrial control systems (such as Siemens S7-1500, Rockwell Allen-Bradley ControlLogix), and supports seamless integration with the central system via industrial Ethernet or bus, significantly reducing the wiring cost and system complexity in distributed control scenarios.


A413125 (2)


II. Technical Parameters


Parameter CategorySpecific SpecificationsRemarks
Electrical ParametersOperating Voltage: 24V DC±15%Wide-voltage design, suitable for fluctuating power supply environments in industrial sites, preventing module offline due to voltage dips

Rated Power Consumption: ≤12WLow-power operation, supporting centralized power supply when multiple modules are cascaded, reducing power configuration costs

Analog Input: 16 channels (4-20mA DC/0-10V DC optional)Input impedance ≥1MΩ, high acquisition accuracy, supporting signal access from various types of sensors such as pressure, temperature, and flow sensors

Analog Output: 8 channels (4-20mA DC)Output load capacity 0-750Ω, linear error ≤±0.1% FS, suitable for actuators such as control valves and frequency converters

Digital Input: 24 channels (dry contact/wet contact optional)Wet contact voltage range 18-30V DC, response time ≤0.3ms, supporting high-speed switching signal (e.g., proximity switch) detection

Digital Output: 12 channels (relay output, 250V AC/30V DC, 5A)

Can directly drive medium-sized actuators (e.g., contactors, solenoid valves) without additional intermediate relays





Physical Characteristics


Shell Material: PA66 + glass fiber engineering plastic (main body) + galvanized steel sheet (shielding layer)

Impact strength up to 10kJ/m², acid and alkali corrosion resistance, the shielding layer can reduce electromagnetic interference by more than 30dB

Dimensions: 180mm×120mm×70mm (Length × Width × Height)Compact design, suitable for standard 35mm DIN rail installation, supporting close cascading of multiple modules

Weight: Approximately 680gModerate weight, easy to install and maintain in high-altitude and narrow spaces

Protection Rating: IP66

Fully dust-proof and high-pressure spray-proof (no damage when sprayed at a distance of 3m with 100kPa water pressure), suitable for humid and dusty scenarios




Performance ParametersSignal Acquisition Accuracy: Analog input error ≤±0.05% FSEquipped with a 24-bit high-precision ADC, ensuring parameter detection accuracy in distributed scenarios

Signal Transmission Distance: Ethernet ≤100m, RS485 bus ≤1200mSupports long-distance wiring, meeting the distributed control needs of large industrial plants

Communication Interfaces: 1 Gigabit Ethernet port (supports PoE+), 2 RS485 serial portsEthernet supports Profinet IRT and EtherNet/IP protocols, RS485 supports Modbus-RTU protocol, and PoE+ enables "data + power supply" over a single cable

Data Storage: 4GB Flash memoryCan locally store 1 year of historical data (sampling period 1s), fault logs, and configuration parameters, ensuring no data loss when the network is disconnected

Sampling Period: Configurable (0.5ms-10s)

Flexibly adapts to the acquisition frequency requirements of different signals (e.g., 0.5ms sampling for high-speed pressure signals, 10s sampling for temperature and humidity signals)




Safety ParametersOvervoltage Protection: Automatically cuts off when input voltage ≥36V DCPrevents damage to internal circuits caused by excessive voltage due to power module failure

Overcurrent Protection: Triggers protection when output current ≥6AAvoids burnout of the module's output circuit caused by actuator short circuit

Surge Immunity: ±6kV (line-to-ground), ±4kV (line-to-line)Complies with the IEC 61000-4-5 standard, resisting surge impacts caused by power grid lightning strikes and equipment start-stop

Vibration Level: IEC 60068-2-6, 10-500Hz, 8g accelerationAdapts to high-vibration scenarios such as mining conveyors and rotary kilns, preventing wire loosening or component damage caused by vibration


III. Functional Features


1. Long-Distance and High-Precision Signal Acquisition and Transmission

The module has a built-in "signal preprocessing + anti-interference amplification" circuit. Combined with a 24-bit high-precision ADC, it can accurately acquire and amplify weak signals (such as 4-20mA current signals) from decentralized sensors. At the same time, it realizes long-distance data transmission via RS485 bus (supporting differential transmission) or Ethernet (supporting Profinet IRT real-time protocol), and can maintain a signal transmission accuracy of ±0.1% even at a bus transmission distance of 1200m. For example, in a 1km-long mining conveyor control system, it can accurately collect the tension and speed signals of each section of the conveyor belt and transmit them to the central control system via the bus, avoiding control delays or misjudgments caused by signal attenuation, and ensuring the conveyor belt operates at a constant and stable speed.


2. Distributed Deployment and Flexible Cascading

It supports cascading of up to 32 modules via RS485 bus, or unlimited expansion via an Ethernet switch. The number of modules and installation positions can be flexibly configured according to the dispersion degree of sensors/actuators in the industrial site, without the need to centrally wire all signals to the central control room, significantly reducing wiring costs and construction difficulty. For example, in cement rotary kiln control, one module can be installed in each decentralized area such as the kiln head, kiln tail, and preheater. After locally collecting temperature and pressure signals, the signals are summarized to the central DCS via Ethernet, reducing the wiring length by more than 80%.


3. Comprehensive Fault Diagnosis and Safety Redundancy

It has a built-in "three-level fault diagnosis mechanism": the first level diagnoses the module's own power supply and communication status; the second level diagnoses input and output channels (such as disconnection, short circuit, and over-range); the third level diagnoses externally connected equipment (such as sensor open circuit and actuator jamming). When an abnormality is detected, it immediately triggers a local sound and light alarm (red fault light flashing + buzzer intermittent alarm), and sends detailed information including "fault type + fault location + fault time" to the upper computer via the communication interface. At the same time, it automatically switches the output channel to the preset safe state (such as turning off the solenoid valve and cutting off the motor control signal). In addition, it supports communication link redundancy (Ethernet dual-link backup, RS485 bus master-slave backup). When the main communication link fails, it can switch to the backup link within ≤50ms to ensure uninterrupted data transmission.


4. Strong Environmental Adaptability and Explosion-Proof Design

The IP66 protection rating can resist high-pressure spraying (such as equipment cleaning in paper mills) and dust accumulation (such as in mining crushing workshops) in industrial sites. The wide temperature range from -35°C to +80°C can adapt to outdoor installation in northern winters or high-temperature workshop scenarios in metallurgical plants, without the need for additional insulation boxes or protective covers. At the same time, the module adopts an "explosion-proof component layout + flame-retardant shell" inside, and has passed the ATEX Zone 2 explosion-proof certification. It can be safely used in scenarios with flammable and explosive gases such as chemical and oil-gas industries, avoiding safety accidents caused by electrical sparks.


5. Convenient Configuration and Remote Operation & Maintenance

It is equipped with Metso Control Tool Pro, a dedicated configuration software for Metso, which supports "graphical configuration + batch parameter setting". Users can customize the input and output channel types, sampling periods, and fault thresholds via the software, and can also perform linear calibration of analog signals (such as converting 4-20mA current signals into actual pressure values). In addition, it supports remote operation and maintenance functions: maintenance personnel can remotely view the module's operating status (such as data of each channel, temperature, and voltage), download historical fault logs via Ethernet, and can also remotely upgrade the module's firmware and modify configuration parameters without going to decentralized on-site installation points, significantly reducing operation and maintenance costs and downtime.


A413125 (1)


IV. Common Faults and Solutions


Fault PhenomenonPossible CausesSolutions
1. No indicator light on and no communication signal when the module is powered on1. Power supply line open circuit or poor contact; 2. Insufficient power of the power adapter; 3. Damage to the module's internal power circuit; 4. Static damage caused by poor grounding of the metal shielding layer
  1. Use a multimeter to measure the on-off status of the 24V DC power supply line, check if the terminal blocks are loose, re-tighten them, and repair the open circuit point; 2. Replace with a spare power adapter with power ≥15W (which must comply with the 24V DC±15% specification) to prevent the module from failing to start due to insufficient power; 3. If there is still no response after replacing the power adapter, contact Metso-authorized maintenance personnel to check if the internal power chip (such as LM1117) is burned out and replace the damaged component; 4. Check the grounding condition of the metal shielding layer to ensure the grounding resistance ≤4Ω, avoiding static accumulation that damages the internal circuit



2. Large deviation or no analog input data1. Excessive length of the signal line between the sensor and the module leading to signal attenuation; 2. The signal line not using a shielded cable, resulting in electromagnetic interference; 3. Sensor failure or uncalibrated sensor; 4. Damage to the module's analog input channel
  1. If the length of the signal line exceeds 100m, install a signal amplifier (such as Metso A413001 signal amplifier) on the signal line, or switch to RS485 bus transmission; 2. Replace with a twisted pair with a shielding layer, and ground the shielding layer at one end (near the module end) to reduce electromagnetic interference; 3. Calibrate the sensor with a standard signal generator (such as FLUKE 744), or replace it with a spare sensor, and observe whether the data returns to normal; 4. Connect a normal sensor to another spare input channel; if the data is normal, it indicates that the original channel is damaged, and the module needs to be repaired or replaced



3. No action or incorrect action of digital output1. Output channel not enabled or incorrect control logic configuration; 2. Relay contact oxidation or burnout; 3. Output circuit load exceeding the rated current; 4. Damage to the module's output control circuit (such as driver chip ULN2803)
  1. Check the output channel enable status and control logic via Metso Control Tool Pro software, and correct incorrect configurations (such as changing "passive output" to "active output"); 2. Turn off the module's power, use a multimeter to measure the on-off status of the relay contacts (under normal conditions, the on-resistance ≤1Ω, and the off-resistance is infinite); if the contacts are oxidized, polish them with fine sandpaper; if burned out, replace with a relay of the same model (such as Omron G5LE); 3. Check the output load current to ensure it does not exceed the rated value of 5A; if the load is too large, add an intermediate relay to expand the load capacity; 4. If the above inspections are normal, the driver chip may be damaged, and the module needs to be returned to the factory for chip replacement



4. Communication interruption (failure to communicate with the central control system)1. Ethernet/RS485 bus line open circuit or short circuit; 2. Inconsistent configuration of communication protocol parameters (such as IP address, baud rate, slave address); 3. Damage to the communication interface; 4. Failure of the network switch or bus repeater
  1. Use a network cable tester to detect the Ethernet line, or use a multimeter to measure whether the RS485 bus A/B lines are short-circuited, and repair the faulty line; 2. Verify the communication parameters between the module and the central control system to ensure the IP address is in the same network segment (e.g., 192.168.1.XXX), and the baud rate (e.g., 9600bps) and parity bit (e.g., no parity) are consistent; 3. Connect the communication cable to a spare communication interface (such as switching from Ethernet to RS485); if communication is normal, it indicates that the original interface is damaged, and the module needs to be repaired; 4. Restart the network switch or bus repeater, check the device power supply and indicator status, and replace the faulty device



5. Frequent module offline or crash1. Industrial on-site temperature exceeding the operating range (>80°C or <-35°C); 2. Excessive fluctuation of the power supply voltage (such as below 18V DC or above 36V DC); 3. Severe signal attenuation of the communication link; 4. Module internal program crash or outdated firmware version
  1. If the ambient temperature is too high, install cooling fans or heat sinks around the module; if the temperature is too low, install thermal insulation sleeves to ensure the ambient temperature is within the range of -35°C to +80°C; 2. Add a regulated power supply (such as Mean Well MW-20-24) to the power supply line to stabilize the input voltage; 3. Shorten the length of the communication line, or add a repeater (such as Metso A413002 repeater) to the bus to enhance the signal strength; 4. Upgrade the module's firmware to the latest version via Metso Control Tool Pro software; if the module still crashes after the upgrade, contact maintenance personnel to re-burn the program



6. Local stored data loss or inability to read1. Damage to the Flash memory; 2. Incorrect configuration of data storage parameters (such as excessive capacity overflow caused by too short a storage period); 3. Data not saved due to unexpected module power failure; 4. Automatic overwriting of old data when the local storage is full during communication interruption1. Detect the status of the Flash memory via software; if damaged, replace with a memory chip of the same model (such as Winbond W25Q32JV); 2. Adjust the data storage parameters, set the storage period to 1-60s (according to actual needs) to avoid capacity overflow; 3. Add a UPS (Uninterruptible Power Supply) to the module's power supply system to prevent data loss due to unexpected power failure; 4. Enable the "cyclic data storage + important data marking" function to avoid overwriting of important data, and regularly export and back up historical data via software
