Metso Valmet A413345 Thermocouple Card

Metso Valmet A413345 Thermocouple Card photo-1
Metso Valmet A413345 Thermocouple Card photo-2
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Global universal model
Condition:
Other, Global universal model
Task:
Other, Global universal model
Payment & Shipping
Payment Methods:
Port of Shipment:
guizhou
Delivery Detail:
Delivery time depends on order quantity.
Material Other, Global universal model
Condition Other, Global universal model
Task Other, Global universal model
Mathematical Model Other, Global universal model
Signal Other, Global universal model
Customized Non-Customized
Structure Other, Global universal model
Operating Temperature -30°C ~ 75°C
Relative Humidity 5%~95% (non-condensing)
Supply Voltage 24V DC ±20%
Dimensions 150mm × 100mm × 60mm

I. Overview


The Metso A413345 is an industrial-grade high-density digital I/O module, mainly designed to be compatible with the control systems of Metso crushing and screening equipment (such as jaw crushers, impact crushers, vibrating feeders, etc.). It undertakes the core functions of "on-site switch signal acquisition - control command output - equipment status feedback". Its design focuses on "high reliability" and "ability to resist harsh environments" for heavy-duty industrial scenarios. It adopts a reinforced electrical isolation architecture and a dust-proof and vibration-resistant housing, which can effectively withstand high-frequency vibrations, dust erosion, and electromagnetic interference in crushing workshops. It is widely used in industries that rely on large-scale crushing equipment, such as mining, building materials, and metallurgy.


Compared with general-purpose digital I/O modules, this module features "in-depth compatibility with Metso equipment protocols", "multi-channel high-density integration", and "rapid fault location". It can be directly integrated into Metso C100/C200 series control cabinets, enabling seamless connection with the crusher's main controller, on-site sensors (such as limit switches, proximity switches), and actuators (such as contactors, solenoid valves). This ensures the accurate execution of critical operations such as equipment start-stop and safety interlocking.

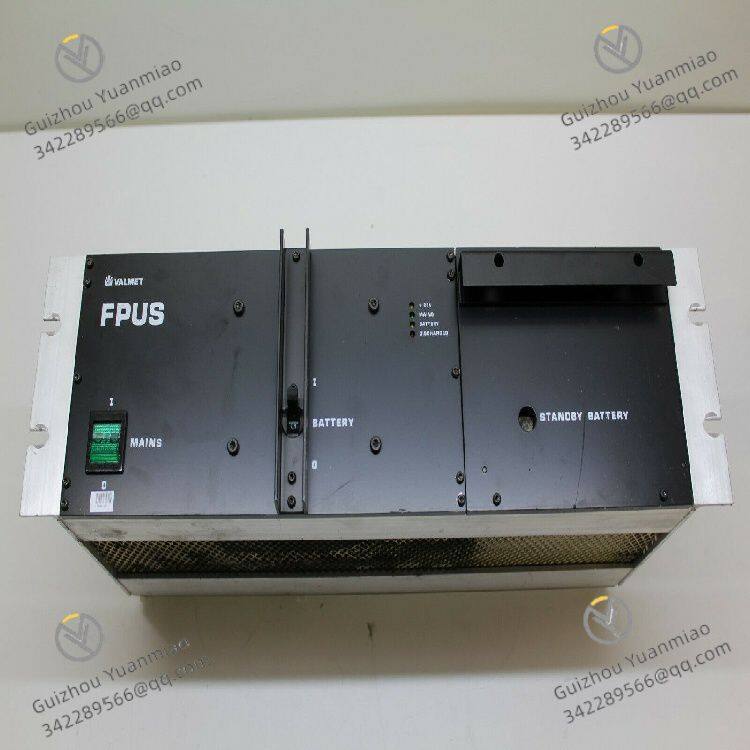

A413345 (2)


II. Technical Parameters


  1. Basic Specifications


ItemParameter Details
Overall Dimensions150mm (Length) × 100mm (Width) × 60mm (Height) (DIN rail-compatible design)
Weight


Approximately 0.4kg

Operating Temperature Range


-30°C ~ 75°C (operation); -40°C ~ 85°C (storage)

Protection Level


IP20 (installed inside the cabinet, protected against solid foreign objects and dust)

Installation Method35mm standard DIN rail mounting


2. Electrical Performance

Power Supply Parameters:

  • Supply Voltage: 24V DC ±20% (compatible with wide-range DC power supplies for industrial equipment);

  • Rated Power Consumption: ≤8W (no-load); ≤18W (full-load I/O operation);

  • Power Isolation: Triple isolation (input - output - ground) with an isolation voltage of 2500V AC (for 1 minute, preventing power crosstalk and signal interference).


Digital Input Characteristics:

  • Input Channels: 16 channels (high-density design to save space inside the cabinet);

  • Input Type: PNP/NPN bipolar adaptive (no hardware jumper required, compatible with different types of sensors);

  • Input Voltage Range: 18V DC ~ 30V DC (compatible with power supplies for industrial standard sensors);

  • Input Current: ≤10mA (per channel, low-power design);

  • Response Time: ≤1ms (quickly captures changes in sensor status, such as limit switch triggering).


Digital Output Characteristics:

  • Output Channels: 8 channels (relay output, supporting high-voltage load driving);

  • Contact Rating: 3A/250V AC or 5A/30V DC (per channel, can directly drive contactors and solenoid valves);

  • Output Protection: Each channel has built-in overcurrent protection (fusing current 6A) and surge suppression diode (preventing damage from switching arcs);

  • Operation Time: Pull-in ≤10ms, release ≤5ms (ensuring rapid execution of control commands).


Communication Interface:

  • Interface Type: RS485 (half-duplex, supporting bus-type topology);

  • Supported Protocols: Modbus RTU (compatible with Metso equipment-specific sub-protocols, such as Metso Crusher Control Protocol);

  • Communication Baud Rate: 4800bps ~ 115200bps (configurable via DIP switches or software);

  • Address Range: 1-247 (slave address set via DIP switches, supporting multi-module bus mounting).


3. Environmental Adaptability Parameters


ItemParameter Requirements
Vibration ResistanceComplies with IEC 60068-2-6 standard, 10-500Hz with 3g acceleration (10min/axis, compatible with high-frequency vibration of vibrating screens)
Shock Resistance


Complies with IEC 60068-2-27 standard, 15g acceleration (11ms duration, 5 times per axis for 3 axes, resisting shocks from equipment start-stop)

Humidity Tolerance


5%-95% RH (no condensation, at 25°C ambient temperature, suitable for humid mining environments)

Electromagnetic Compatibility (EMC)


Radiated Emission: EN 61000-6-4 Class A; Immunity: EN 61000-6-2 (Electrostatic Discharge ±8kV contact / ±15kV air, Electrical Fast Transient ±2kV)


III. Functional Features


1. High-Density I/O and Flexible Adaptation

  • Multi-Channel Integration: The high-density design with 16 input channels + 8 output channels enables one-stop connection to the crusher's "safety interlock sensors" (such as emergency stop buttons, overload protection switches), "status detection sensors" (such as bearing temperature switches, belt deviation switches), and "actuator control signals" (such as feeder contactors, hydraulic valve solenoid valves). No additional module stacking is required, which greatly simplifies the wiring inside the cabinet;

  • Bipolar Input Adaptation: The digital input supports PNP/NPN bipolarity, eliminating the need for manual hardware jumper switching. It is compatible with sensors from mainstream brands such as Omron, Schneider, and Pepperl+Fuchs, reducing the difficulty of on-site selection and replacement, and lowering the pressure of spare parts inventory.


2. Heavy-Duty Industrial-Grade Protection Design

  • Triple Electrical Isolation: The power supply, input, and output circuits are isolated from each other (isolation voltage 2500V AC), which can effectively block the interference of surge voltage and electromagnetic radiation generated by the start-stop of the crusher motor on signals. This avoids false triggering of input signals (such as false alarms of "emergency stop activation") or adhesion of output contacts (such as failure to disconnect contactors);

  • Reinforced Housing and Vibration-Resistant Structure: The housing is made of flame-retardant ABS material (UL94 V-0 grade). Internal components adopt anti-loosening fixing buckles and buffer rubber pads, which can withstand 3g high-frequency vibration (such as vibration during the operation of vibrating screens) and 15g shock (such as collision during equipment maintenance), making it suitable for harsh working conditions in the mining industry.


3. Convenient Operation & Maintenance and Fault Diagnosis

  • Full-Channel Status Indication: 26 LED indicators are installed on the front - power indicator (green, constant on indicates normal power supply), input signal indicators (16 channels, lit indicates signal input in the corresponding channel), output signal indicators (8 channels, lit indicates output activation in the corresponding channel), and communication indicator (red, flashing indicates normal communication). The signal status of each channel can be quickly judged without an oscilloscope or multimeter;

  • Fault Self-Diagnosis and Alarm: Equipped with a built-in fault detection circuit. When "power overvoltage/undervoltage", "output short circuit", or "communication interruption" occurs, it will send fault codes to the main controller via RS485 (e.g., E02 indicates power undervoltage, E12 indicates output channel short circuit). At the same time, it triggers the red alarm light to stay on. When used with the Metso TP150 operation panel, the fault location can be directly displayed, shortening the fault location time to the minute level.


4. Exclusive Collaboration with Metso Equipment

  • In-Depth Protocol Compatibility: Supports Metso's exclusive control protocol for crushing equipment, and can directly communicate with the Metso C100 main controller and TP150 human-machine interface (HMI). No additional communication driver programming is required, enabling real-time data interaction among "sensor status - main controller - operation panel" (e.g., displaying the status of each limit switch, remotely controlling the start-stop of feeders);

  • Safety Interlock Adaptation: Built-in safety signal processing logic, supporting rapid response to safety interlock signals such as emergency stop and overload (input response time ≤1ms). It complies with the EN ISO 13849-1 safety standard, ensuring the reliability of emergency shutdown of crushing equipment under abnormal working conditions;

  • In-Cabinet Integration Optimization: Its size is adapted to the layout of Metso standard control cabinets. The DIN rail mounting method is compatible with Metso power modules (such as Metso A413200) and analog modules (such as Metso A413215), enabling modular stacked installation. This reduces space occupation inside the cabinet and lowers the complexity of integration.

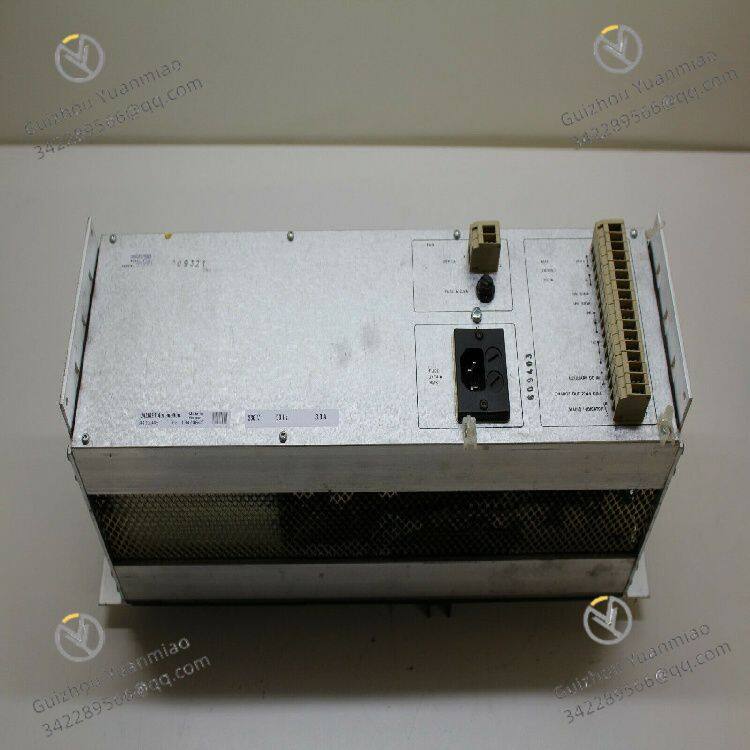

A413345 (1)


IV. Common Faults and Troubleshooting Methods


Fault PhenomenonPossible CausesTroubleshooting Measures
Power indicator not on, no signal response1. 24V DC power not connected / abnormal voltage (<19.2V or >28.8V); 2. Loose wiring at power terminals / broken cable; 3. Burnt internal power circuit of the module
  1. Use a multimeter to detect the supply voltage and confirm it is within the range of 24V DC ±20%; 2. Check the wiring of power terminals (+V/-V), re-tighten the screws, and replace the broken cable (it is recommended to use copper core wire of 1.5mm² or larger); 3. If there is still no response when the power supply is normal, replace the module with the same model (burnt internal power circuit is mostly irreversible)



No signal in input channel (corresponding input indicator not on)1. Sensor not powered / faulty sensor; 2. Broken input cable / reversed positive and negative poles; 3. Sensor signal out of range (e.g., NPN sensor connected to PNP power supply); 4. Burnt input channel
  1. Detect the sensor power supply (e.g., 24V DC), and test whether the sensor is normal using the substitution method (e.g., replace with a new proximity switch); 2. Use the continuity function of a multimeter to detect the input cable, and re-wire (ensure the sensor signal wire is connected to the module's INPUT terminal, and the negative pole is connected to GND); 3. Confirm that the sensor type (PNP/NPN) matches the module's input polarity (the module supports adaptation without switching, but the sensor power supply must be correct); 4. Replace with a spare input channel (e.g., switch the signal of Channel 1 to Channel 2). If all channels have no response, return the module to the factory for repair



No action in output channel (corresponding output indicator not on)1. Main controller not sending output commands (e.g., Modbus command not issued); 2. Loose wiring at output terminals / broken cable; 3. Output channel short circuit triggering overcurrent protection; 4. Burnt relay contacts
  1. Check whether the output command is issued via the Metso TP150 operation panel, or use a serial port debugging tool to read the module's output register (confirm the command bit of the corresponding channel is "1"); 2. Re-tighten the wiring of output terminals, and use the continuity function of a multimeter to detect the output cable (it is recommended to use copper core wire of 2.5mm² or larger to drive contactors); 3. Disconnect the load at the output end, restart the module to release the protection, and use the resistance function of a multimeter to detect whether the load is short-circuited (e.g., check if the solenoid valve coil resistance is <10Ω; it should normally be >50Ω); 4. Measure the relay contacts with a multimeter (they should be open when not activated and short-circuited when activated). If the contacts are always open, replace the module



Communication interruption (communication indicator not flashing)1. RS485 cable not properly connected / reversed positive and negative poles (A/B wires reversed); 2. Mismatched communication baud rate / slave address with the main controller; 3. Communication cable affected by electromagnetic interference (unshielded cable used); 4. Burnt communication port of the module
  1. Check the RS485 cable (A connected to A, B connected to B), and ensure the bus terminal resistor (120Ω) is correctly installed (only required for modules at the start and end of the bus); 2. Adjust the communication baud rate (e.g., 9600bps) and slave address (e.g., 08) via the module's DIP switches to ensure consistency with the main controller parameters; 3. Replace the RS485 cable with a shielded layer, ground one end of the shielded layer (connect to the control cabinet ground bar, with a ground resistance ≤4Ω), and keep it away from high-power motor cables (distance ≥1.5m); 4. Replace with a spare communication module (if available), or return the module to the factory for communication port repair



Red alarm light stays on (accompanied by fault code)1. Power overvoltage/undervoltage (triggering code E02); 2. Output channel short circuit (triggering code E12); 3. Communication timeout (triggering code E20)
  1. Detect the supply voltage. If the voltage fluctuates significantly (e.g., unstable mining power grid), install a 24V DC regulated power supply (such as Mean Well RS-50-24); 2. Disconnect the load of the faulty output channel, locate the short-circuit point (e.g., check if the contactor coil is burnt), replace the faulty load, and restart the module; 3. Check the RS485 bus connection, confirm the main controller's communication port is normal, and re-issue the communication command



False triggering of input signal (corresponding input indicator flashing frequently)1. Excessive on-site electromagnetic interference (e.g., close to crusher motors, frequency converters); 2. Unshielded cable used for input; 3. Poor grounding of the module1. Keep the input cable away from high-power equipment (e.g., motor cables, frequency converter output cables). If it cannot be kept away, use a metal bridge for isolation; 2. Replace the input cable with a shielded layer, and ground both ends of the shielded layer (common grounding of module GND and sensor GND); 3. Check whether the module's grounding terminal (GND) is reliably grounded. If the ground resistance is too high, add a grounding electrode (e.g., use a 2.5m-long galvanized steel pipe for grounding)
