medical centrifuge calibration device
Product Introduction
medical centrifuge is mainly used for purification, concentration and separation of body fluid solution. It is a kind of regular
equipment for separating serum, plasma and precipitated protein in clinical examination. It is widely used in clinical and
laboratory. In 2022, the State Administration of Market Supervision approved the issuance of the JJF2004-2022 "Medical
Centrifuge Calibration Specification", which stipulates the need to measure and calibrate the speed accuracy, speed relative
error, speed stability, speed rise and fall rate, timing accuracy, temperature, temperature deviation, temperature rise and fall
rate and other parameters of medical centrifuges.
The medical centrifuge calibration device independently developed conforms to the JJF2004-2022 "Medical Centrifuge
Calibration Specification". The product is small in size and easy to use. It can meet the internal space limitation of instruments
from different manufacturers. It adopts non-contact measurement and supports laser optical vibration measurement and
photoelectric method. It can test and calibrate parameters such as temperature and rotation speed of centrifuges (including
ultra-high speed centrifuges) with and without observation windows.
Product Features (Temperature)
test range, high precision, small size, powerful;
probe is small in size and suitable for (1.5~300)mL rotor;
Widely adapt to different brands and models of centrifuge rotor internal space;
data real-time wireless transmission, real-time wireless view of temperature changes;
The product works independently and is not restricted by observation windows, etc;
Dual-probe operation and automatic weight trim balance;
Meet the requirements of medical centrifuge calibration specification.
Product features (speed)
product is small and portable, safe and convenient on-site operation;
non-contact measurement, while supporting laser optical vibration measurement and photoelectric method;
support the whole installation-free, free wiring, free reflective strip;
Solve the detection pain points in scenarios such as no observation window and ultra-high speed;
support Bluetooth, WiFi, 4G networking;
support online upgrade and remote assistance;
Meet the requirements of medical centrifuge calibration specification.
medical centrifuge calibration device
Product Picture
product specifications (temperature)
Product Model : MED2004TS MED2004TL
Description: short head long head
Calibration Object: centrifuge rotor (1.5-7.0ml) temperature Centrifuge rotor (10-300ml) temperature
probes 1 temperature measurement +1 counterweight 1 temperature measurement +1 counterweight
probe length: 9mm 48mm
probe diameter: 2.5mm 2.5mm
Temperature Range -40~85 ℃ -40~85 ℃
temperature accuracy ± 0.10 ℃ ± 0.10 ℃
Temperature Resolution 0.01 ℃ 0.01 ℃
sampling interval 0.2s~24h 0.2s~24h
Offline Record support support
Record Length 100000 group 100000 group
waterproof and dustproof support support
transmission mode wireless real-time wireless real-time
Power supply mode battery, rechargeable battery, rechargeable
dimensions (diameter x height) D16mm x L45mm D16mm x L84mm
product specifications (speed)
Product Model MED2004RS
Name intelligent vibration (speed) meter (host) photoelectric module
Calibration Object Centrifuge speed Centrifuge (with observation window) speed
Test Method non-contact optical vibration measurement non-contact photoelectric method
optical aiming support support
resolution frequency: 0.001Hz; speed: 0.01 r/min 0.01 r/min
Measurement range 100-100000 r/min 1-99999 r/min
measurement accuracy (
Test Distance 400-1000mm 50-200mm
real-time curve support (time domain, frequency domain) support (speed-time)
Power supply mode rechargeable lithium battery AAA battery (1.5V) x 3
dimensions (length x width x height) 169mm x90mm x45mm 185mm x56mm x34mm
Weight 520g 100g
synchronous timing support
Timing Accuracy better than ± 0.05s
operating system Android
System Storage 3GB (system memory) +32GB (internal storage)
wireless communication WiFi/4G Cellular
Display 5.5-inch LCD(720 × 1440)

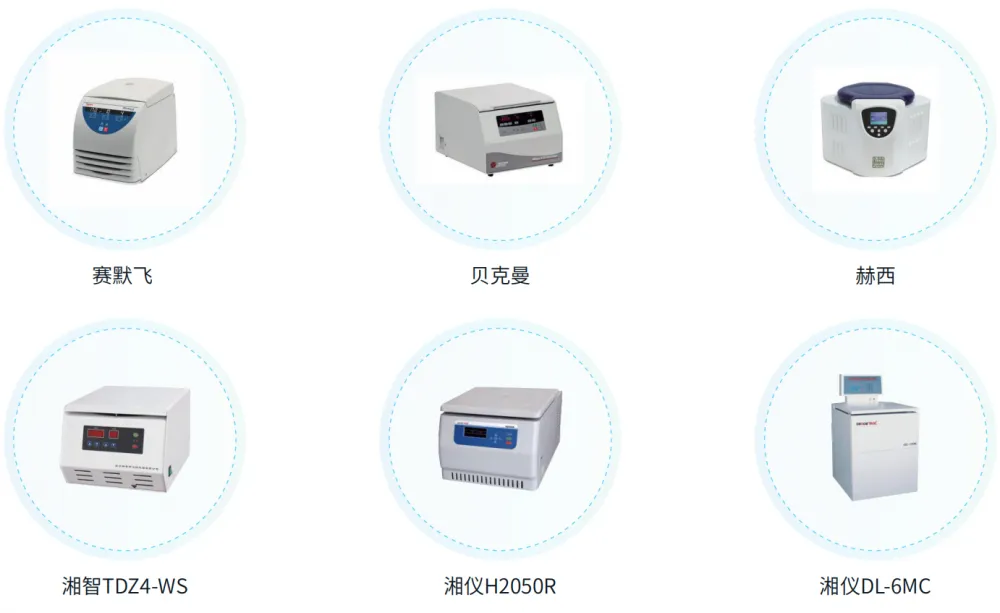

Adapted instrument
