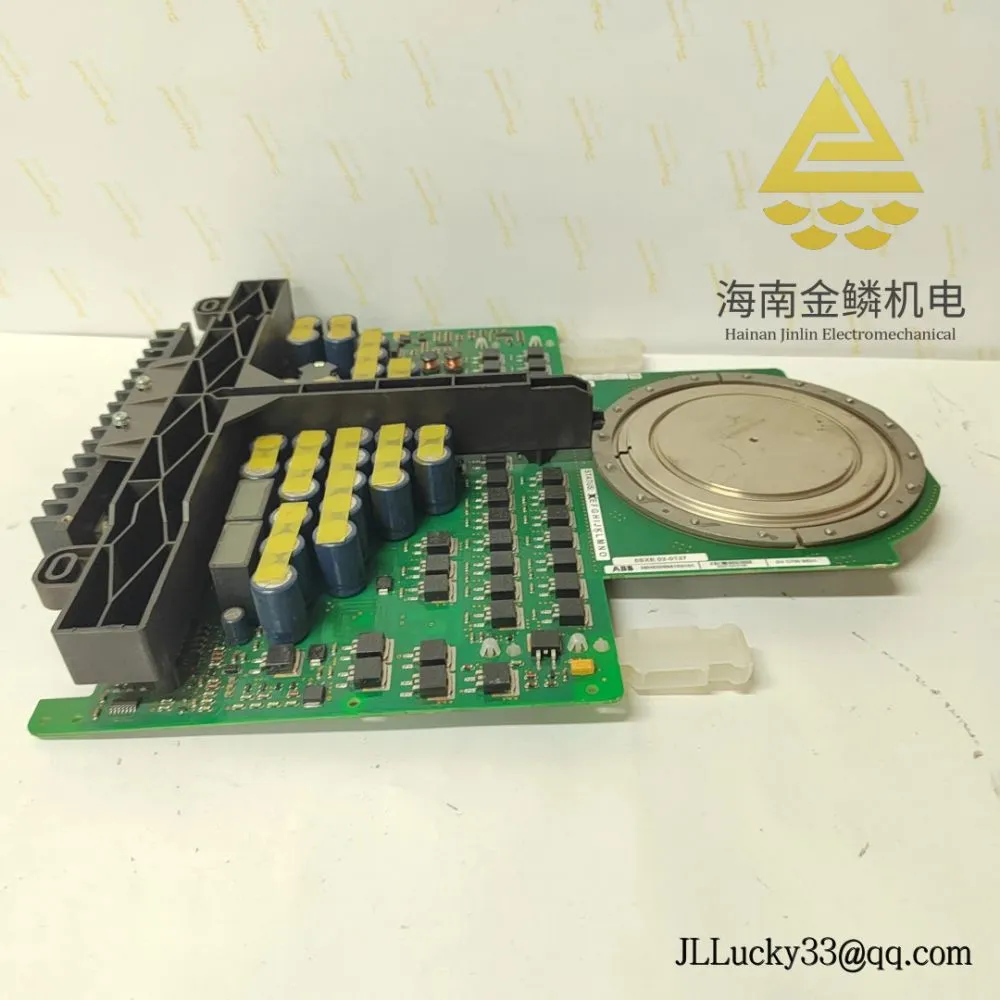

The ABB 3BHB012873R0004 is an OEM power/IGBT interface board used in ABB industrial AC drive systems (commonly seen in the ACS800/ACS880 family). From my experience, it’s the kind of spare that gets you out of a shutdown quickly—drop-in replacement, no re-engineering. It typically handles gate/control interfacing and protection feedback between the control unit and the IGBT power stage.
You might notice that teams keep a unit like this on the shelf because it shortens unplanned downtime in metals, paper, marine, or heavy manufacturing lines. In many cases, installation is straightforward: ESD-safe handling, swap, reseat fiber/control connectors, and you’re back online after a quick function test.
OEM spare for ABB drives – Designed to fit ABB low-voltage drives; maintains original performance and diagnostics.
IGBT/gate interface and protection – Typically supports gate drive enable/disable, interlock, and protection feedback (fault/desaturation signals).
Fiber-optic and low-voltage links – Commonly uses ABB’s drive-internal fiber channels and ribbon/plug connectors for clean, noise-immune control.
Conformal-coated PCB – Better resilience against dust and humidity inside cabinets; useful for continuous-duty plants.
Status indication – Onboard LEDs and test points (where present) help with quicker troubleshooting.
Drop-in replacement – Minimizes engineering changes and keeps the original drive topology intact.
| Brand / Model | ABB 3BHB012873R0004 |
| Product Type | Drive power/IGBT interface board (for selected ABB ACS-series drives) |
| Power Requirements | Supplied internally by the drive control supply; typically 24 VDC control-level consumption |
| Operating Temperature | Typically 0 to +55 °C inside a ventilated control cabinet (non-condensing) |
| Signal I/O Types | Fiber-optic control links; low-voltage board-to-board connectors; status LEDs (where applicable) |
| Communication Interfaces | Drive-internal fiber channels (ABB), backplane/ribbon connectors |
| Installation Method | Chassis-mount within the drive; screw-fixed with keyed connectors for service replacement |
Typically deployed wherever ABB ACS-series drives run critical motors: pulp & paper lines, extruders, cranes, rolling mills, marine propulsion/auxiliaries, mining conveyors, test benches, and high-power HVAC/process fans. One thing I appreciate is how predictable the behavior is once installed—commissioning teams don’t have to relearn the system because it’s still the ABB topology they know.
Advantages & ValueReliability – OEM-grade layout and coating suited for industrial cabinets and long duty cycles.
Compatibility – Works within ABB’s original drive architecture; no third-party adapters or firmware hacks.
Cost & Downtime – Fast swap minimizes production loss compared to full drive replacement.
Lifecycle Support – Aligns with ABB service documentation and test procedures; easier for maintenance teams.
Cabinet environment – Install in a clean, ventilated IEC/NEMA-rated cabinet. Keep ambient within the drive’s specified range.
Safety first – Isolate mains, lock-out/tag-out, and wait for DC bus capacitors to discharge to safe levels before touching the power section.
ESD handling – Use a grounded wrist strap and ESD mat. Avoid touching component leads or fiber ends.
Wiring & connectors – Reseat fiber-optic leads gently; inspect ferrules for dust. Verify keyed ribbon connectors are fully engaged. Torque mounting screws evenly.
Commissioning – Power up, check status LEDs, run a low-speed test, and review drive diagnostics for any interlock trips.
Routine care – Quarterly cabinet cleaning, check airflow/filters, inspect connectors for oxidation, and keep drive firmware at a supported revision (no firmware resides on this board in most cases).
Manufacturing quality – Produced under ABB’s quality system, typically aligned with ISO 9001 practices.
Compliance – RoHS-compliant assemblies in most regions; CE/UL conformity applies at the complete drive level.
Warranty – Standard manufacturer warranty terms usually apply (commonly 12 months from shipment for new parts). Extended coverage may be available via service contracts.
This board is used within selected ABB ACS-series inverter modules. Exact fit depends on the drive type code and frame size, so it’s best to match against your drive’s nameplate and parts list. In many cases it operates with ABB control units and fiber channels supplied in the same cabinet, alongside items like control boards and gate driver modules. If you share your drive type code, I can confirm slotting and any required harnesses.
