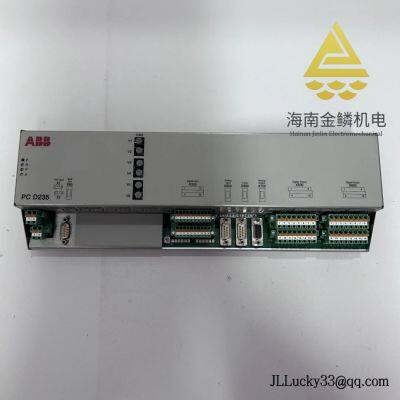

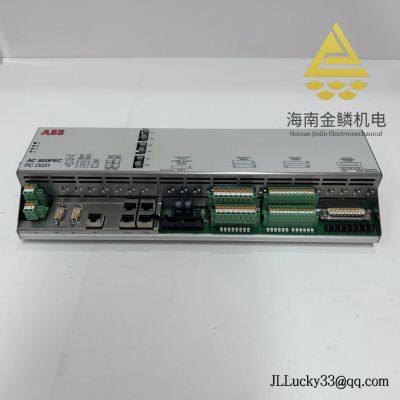

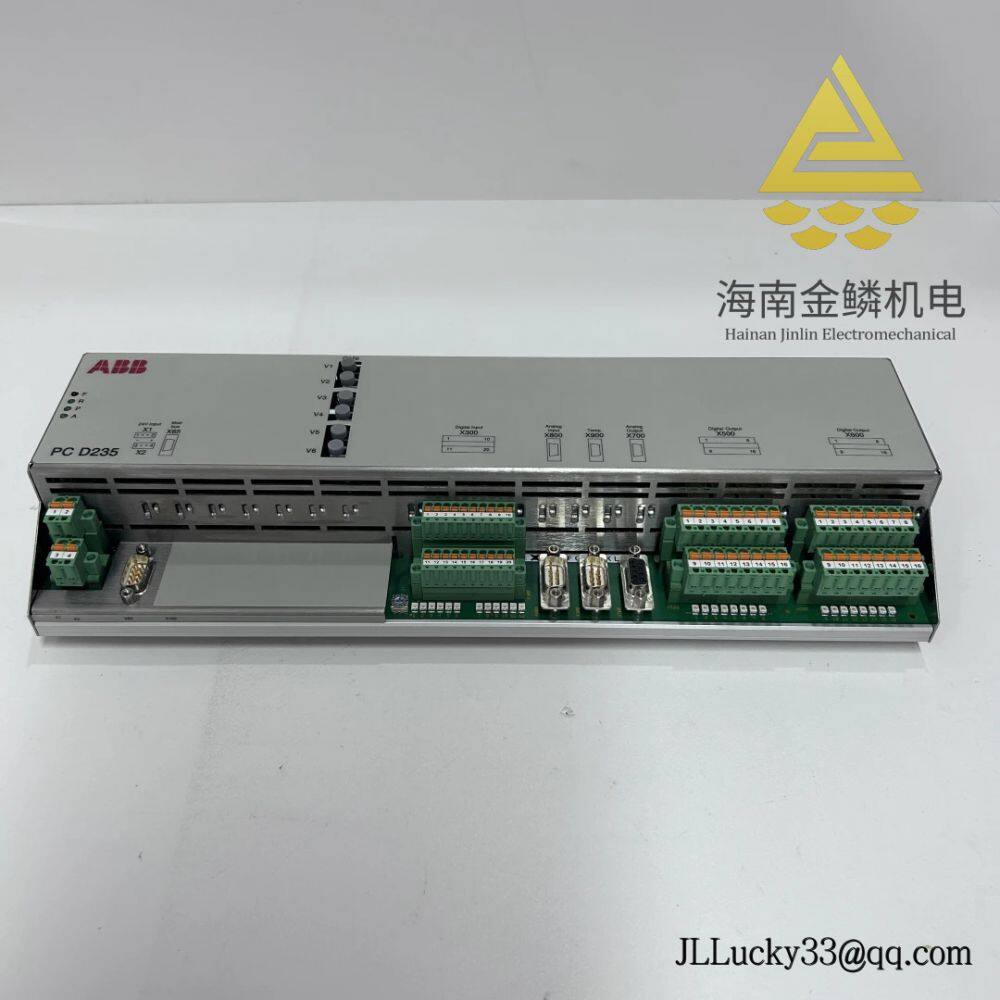

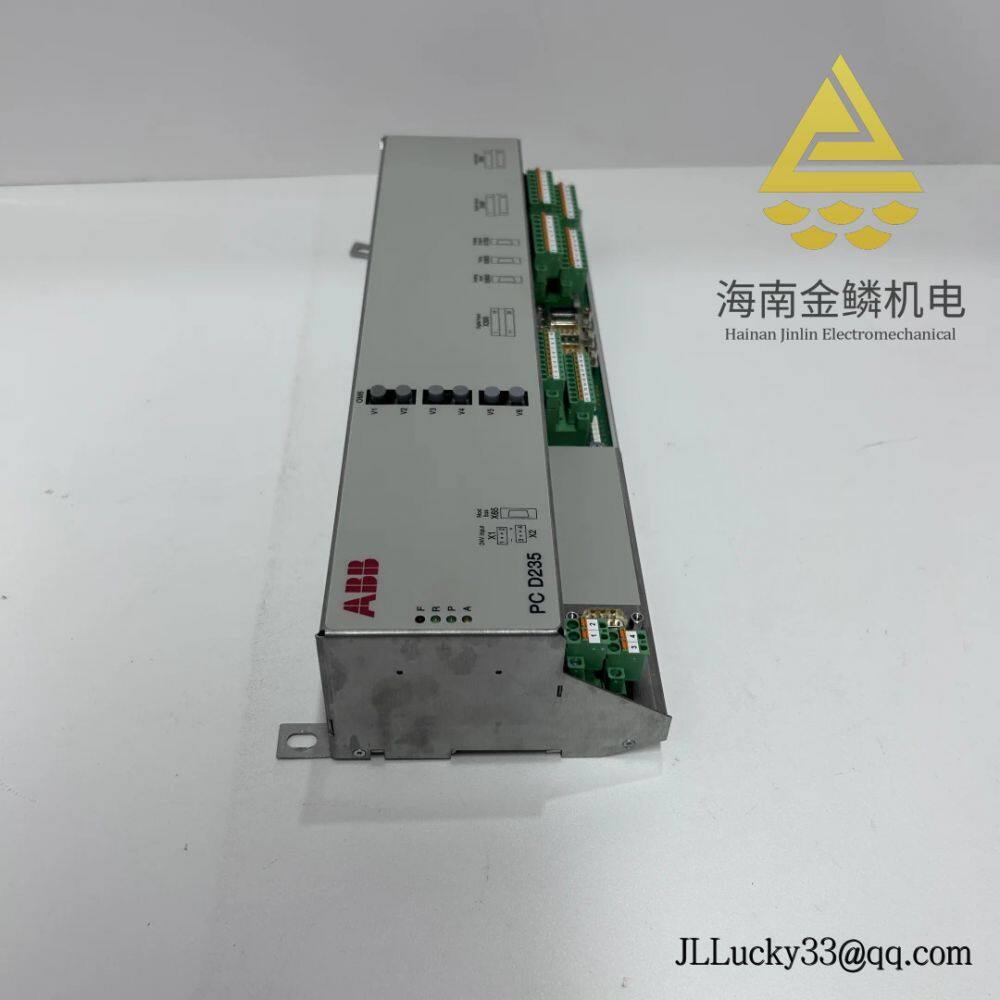

The ABB PCD235A101, part number 3BHE032025R0101, is a processor/control board used in AC 800PEC platforms for fast, deterministic control of power converters and medium-voltage drives. It’s typically selected when you need sub-millisecond response, robust fiber-optic communication to gate units, and reliable 24 VDC-powered operation inside an industrial cabinet. In many cases, you’ll see it as the central controller in systems like high-power drives, grid converters, and excitation systems.
AC 800PEC processor module – Designed for high-speed, cycle-accurate control in demanding power electronics applications.
24 VDC cabinet power – Runs off standard industrial 24 VDC, simplifying panel integration and redundancy schemes.
Fiber-optic links to gate units – Noise-immune communication that helps maintain signal integrity near high dv/dt switching environments.
Industrial Ethernet access – Typically includes 10/100 Ethernet for engineering access, diagnostics, and controller integration.
Backplane and expansion ecosystem – Interfaces with the AC 800PEC subrack and associated I/O, making it straightforward to scale analog/digital channels.
Deterministic control loops – From my experience, it’s chosen when stable, repeatable cycle times are more important than generic PLC versatility.
Proven in MV drives and converters – Commonly used in ABB medium-voltage drives and grid-tied converter solutions where uptime is non-negotiable.
| Brand / Model | ABB PCD235A101 – Part No. 3BHE032025R0101 |
| Platform | AC 800PEC processor/control board (plug-in module) |
| Power Requirements | 24 VDC nominal (internal logic power via cabinet supply; consumption depends on configuration) |
| Operating Temperature | Typically 0…+55 °C when installed in a ventilated control cabinet |
| Signal I/O Types | Backplane I/O via AC 800PEC subrack; fiber-optic channels to gate units; expansion to external I/O modules |
| Communication Interfaces | Ethernet (10/100) for engineering/diagnostics; fiber-optic control links; service/maintenance port (as provided) |
| Installation Method | Plug-in board for AC 800PEC subrack; secured with front panel fixings; cabinet-mounted system |
| Form Factor | Board-level module (rack/subrack-based), serviceable from front |
Medium-voltage drives (e.g., high-power pump/fan/compressor duty) needing precise torque and speed control.
Grid-connected converters, SVC/STATCOM-type control, and power quality systems where fast regulation is key.
Large excitation systems and test benches that benefit from deterministic, low-jitter control loops.
Process industries (cement, metals, mining, oil & gas) with high uptime expectations and structured maintenance routines.
Reliability in harsh cabinets – Fiber links and robust layout reduce susceptibility to electrical noise, which in many cases cuts nuisance trips.
Lifecycle continuity – ABB’s long product support windows typically make spares planning easier for multi-plant fleets.
Compatibility with existing PEC racks – Keeps retrofit costs down when replacing older processor cards within the same platform.
Serviceability – Front-access plug-in design means quicker swap times during scheduled maintenance.
One thing I appreciate is how predictable the control timing feels once the loops are tuned. A maintenance lead at a cement plant mentioned they swapped a legacy CPU for the PCD235A101 and saw fewer communication alarms on their gate units, especially during heavy load swings.
Cabinet environment – Use a clean, ventilated enclosure; follow ABB guidelines for clearances and EMC grounding. Keep ambient within the stated operating range.
Power & grounding – Provide stable 24 VDC with adequate filtering; earth the rack and shields consistently to minimize EMI.
Wiring – Route fiber-optic and low-level signal cables away from high-current busbars. Maintain bend radii for fibers.
Commissioning – Load the approved firmware build, verify communication to I/O and gate units, and back up the configuration after tuning.
Routine maintenance – Quarterly inspection of connectors, fibers, and ventilation; periodic cleaning with ESD-safe methods; firmware updates during planned outages.
Spare strategy – Keeping at least one tested spare on-site usually shortens recovery time in critical production lines.
Manufactured under ISO 9001 quality systems.
CE compliant; RoHS-conform construction for the electronics content (typical for this platform).
UL/CSA applicability depends on cabinet/system certification rather than the board alone.
Warranty: typically 12 months from shipment; extended coverage may be available through service agreements.
AC 800PEC subrack and power distribution modules (for housing the PCD235A101 and companion boards).
Fiber-optic gate-unit interfaces for medium-voltage inverter stacks.
External I/O modules (e.g., ABB S800 I/O via compatible communication bridges) when additional field I/O density is required.
Engineering workstation tools for parameterization, firmware loading, and diagnostics.
