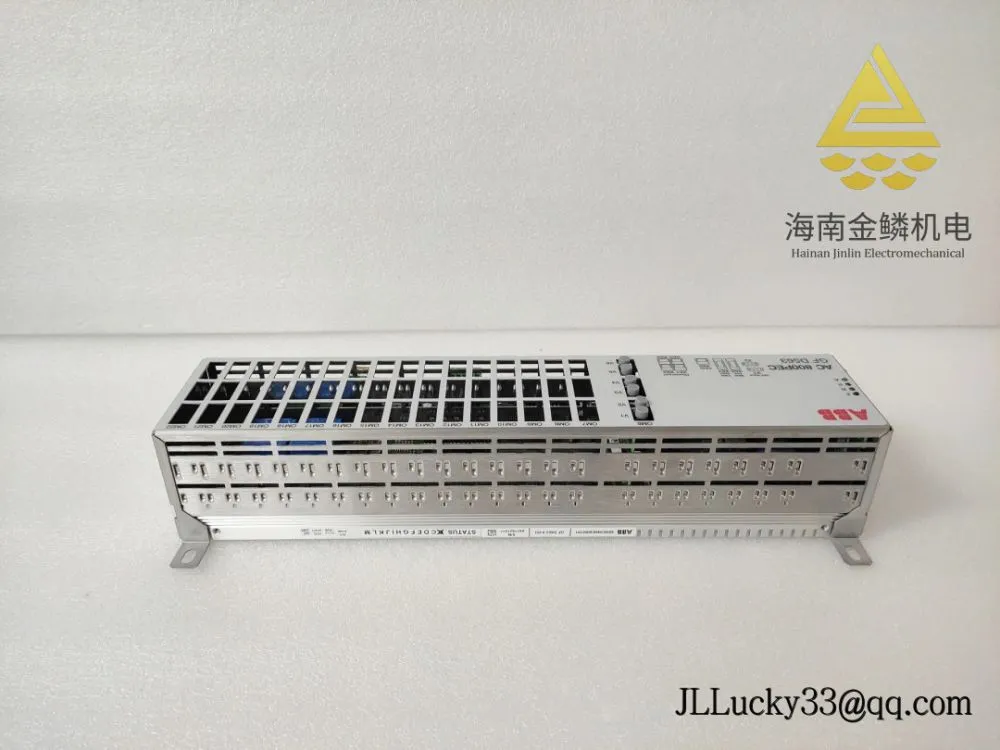

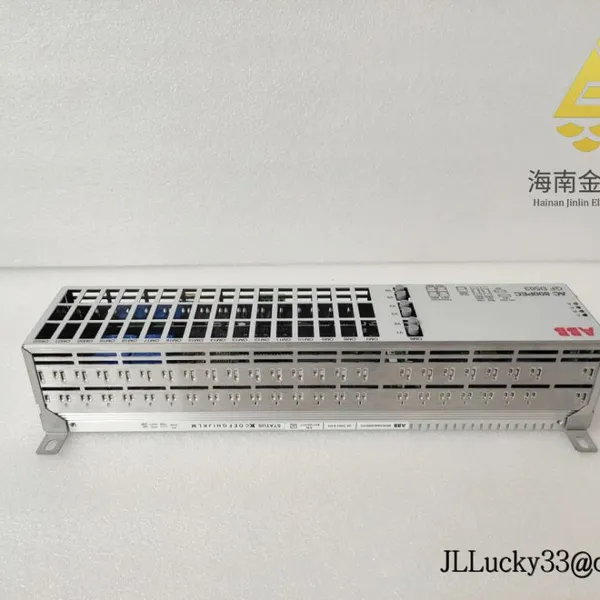

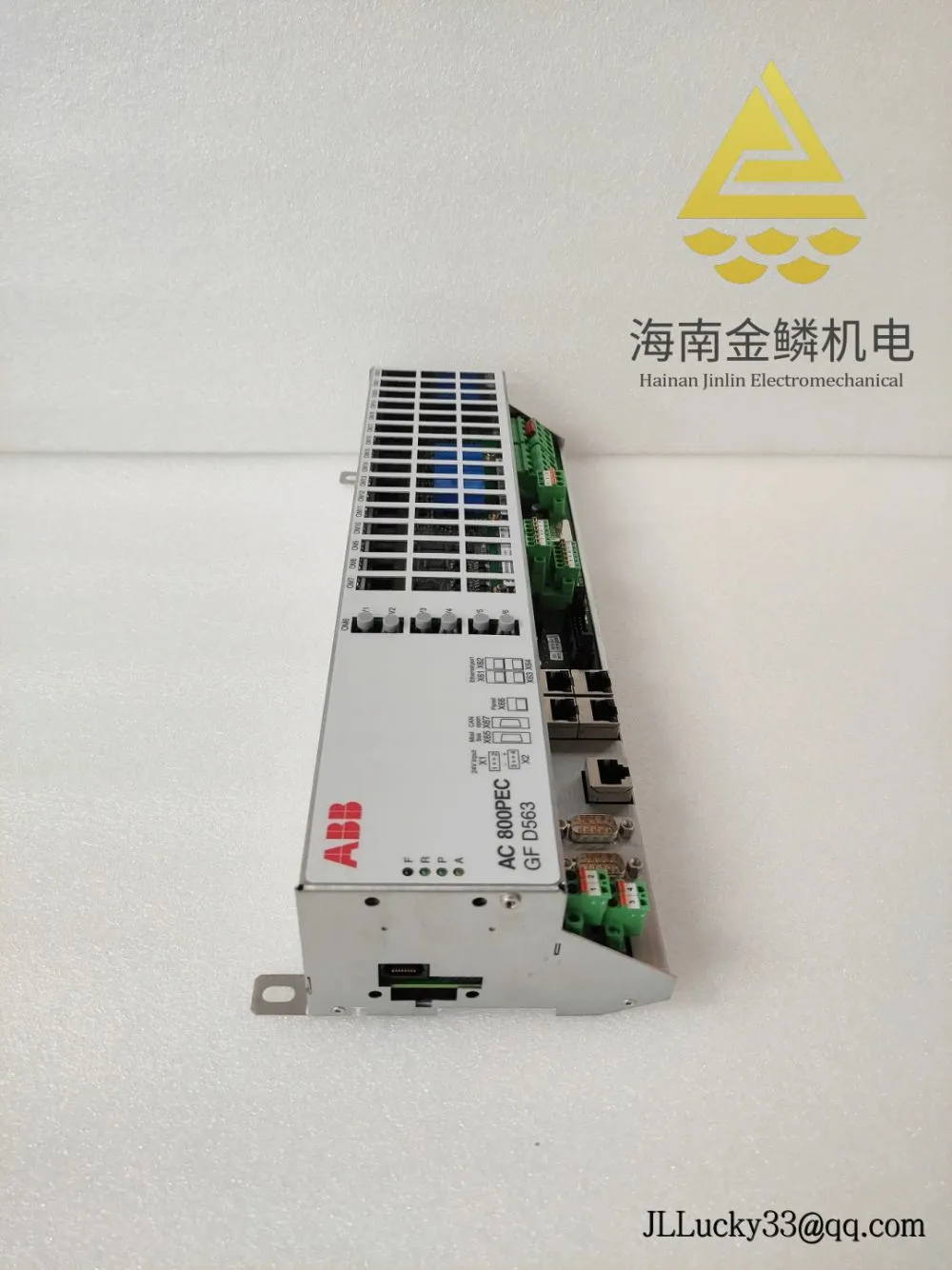

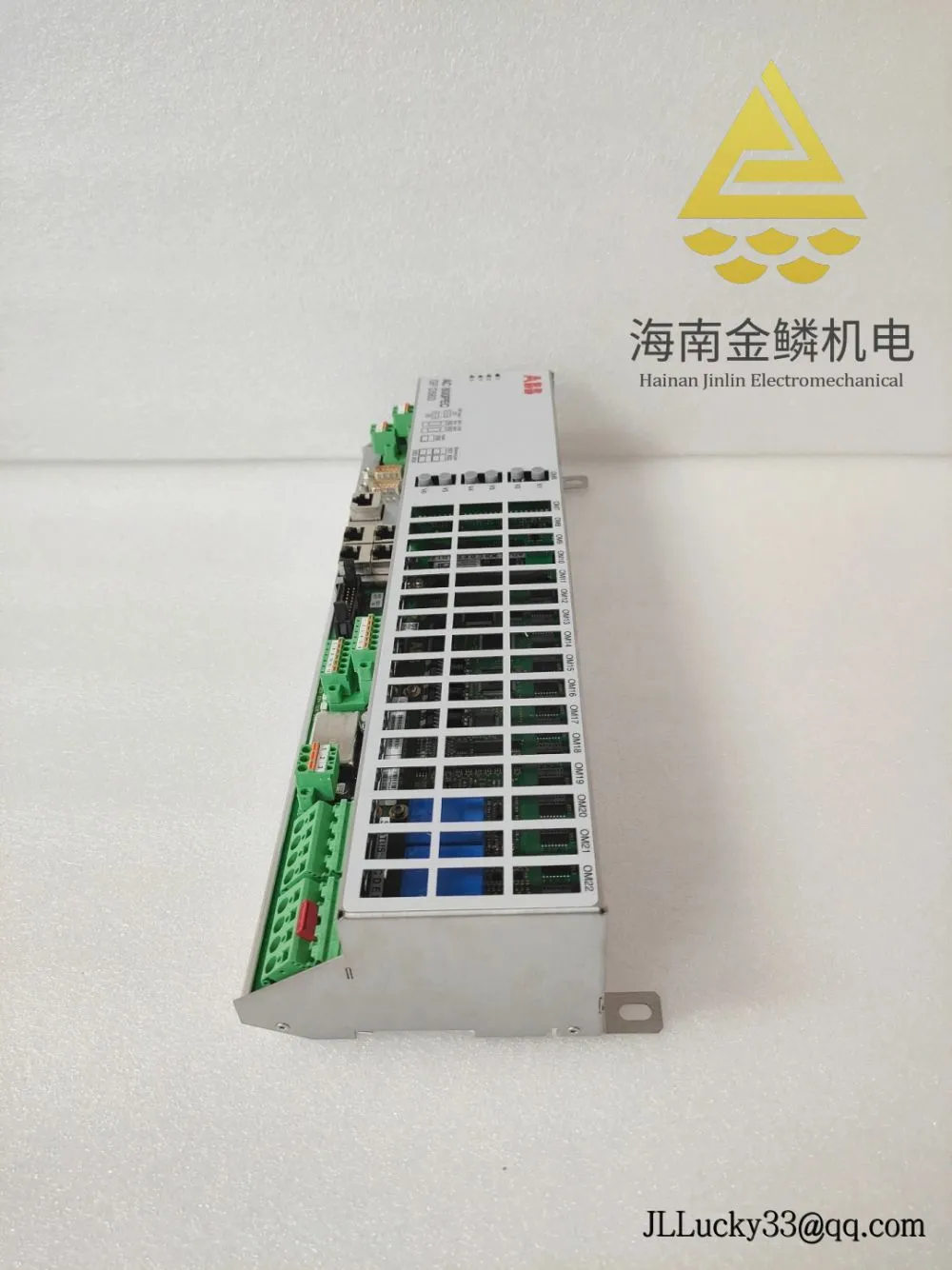

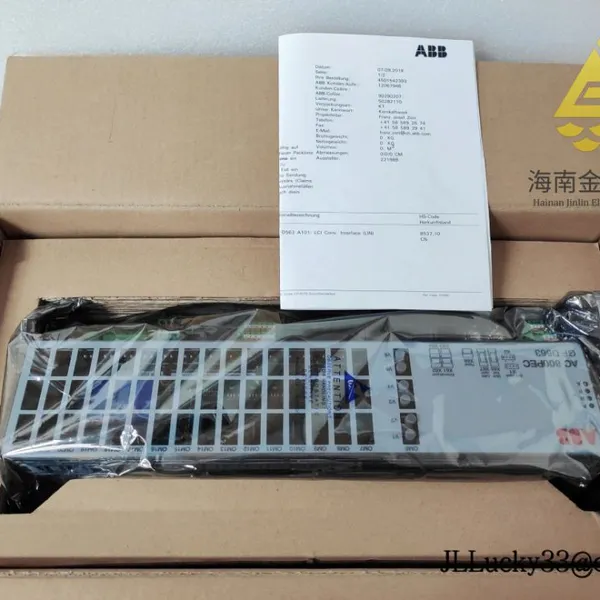

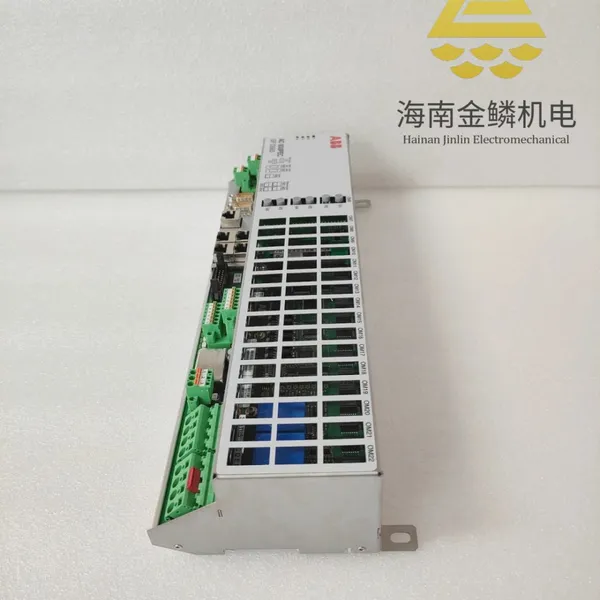

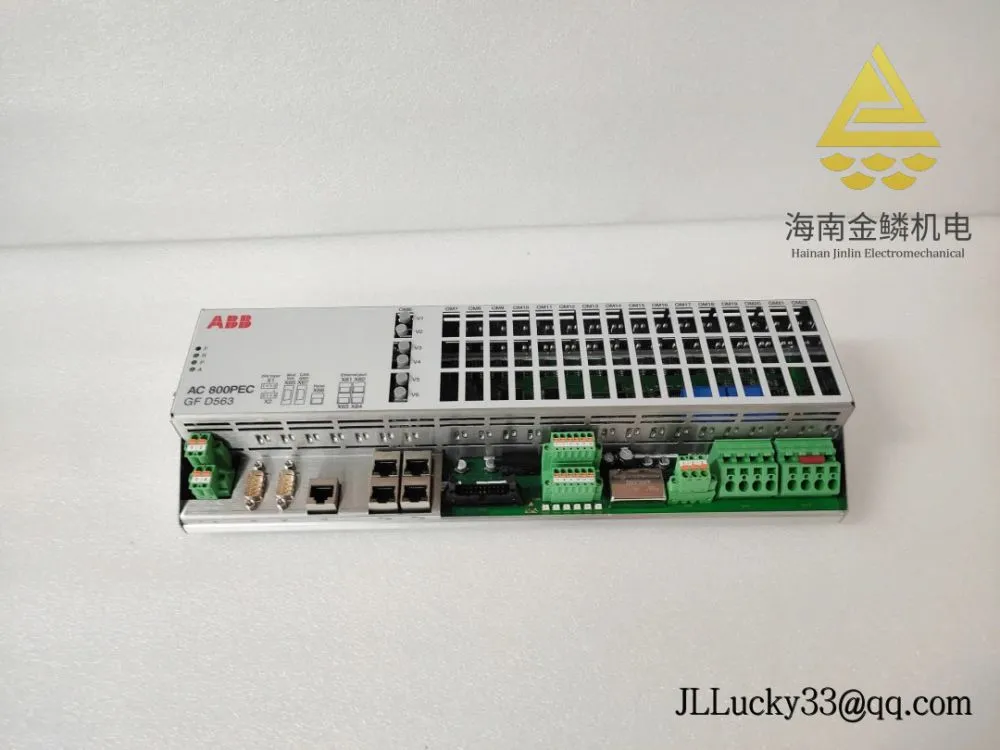

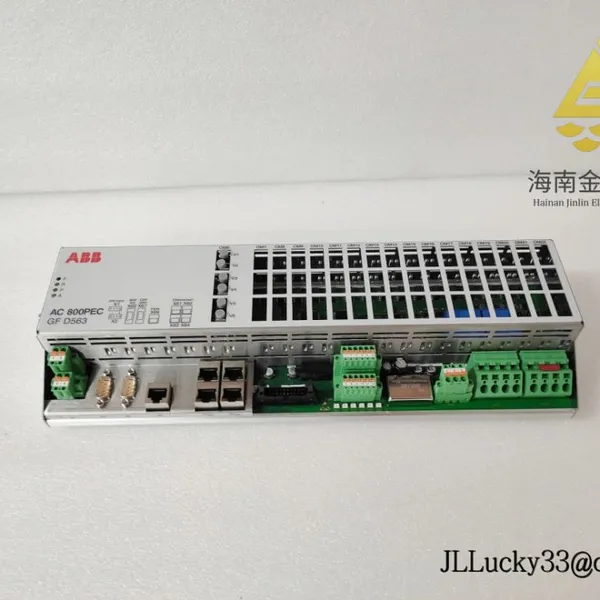

The ABB GF D563 A101 is a gate-firing control board used in ABB medium-voltage converter systems, typically within the PCS6000 platform. It manages precise, isolated firing signals to the power semiconductor gate units (IGCT or IGBT depending on the converter build), helping the stack switch cleanly under heavy load and high EMI conditions.
From my experience, this module is chosen as a like-for-like spare to reduce downtime—fit, connect the fiber links, verify status LEDs, and the converter is usually back on-line quickly. It’s designed to work quietly in the background, keeping timing tight and diagnostics clear for service crews.
Precise gate timing – Synchronized firing with low jitter, which in many cases reduces stress on the power stack during transients.
Fiber‑optic isolation – Optical outputs to the gate units improve noise immunity in MV cabinets and help maintain galvanic isolation.
Integrated supervision – Status LEDs and onboard diagnostics typically make it straightforward to verify channel health during commissioning or fault finding.
PCS6000 platform fit – Mechanical and electrical interfaces align with ABB PCS6000 converter architecture, easing replacement without re-engineering.
Industrial-grade build – Conformal coating and robust layout for harsh environments with high dv/dt and conducted emissions.
Service-friendly design – Clearly marked fiber ports and keyed connectors reduce handling errors during on-site swaps.
| Brand / Model | ABB GF D563 A101 (Part No. 3BHE046836R0101) |
| Product Type | Gate firing control board for MV converters |
| Compatible Platform | ABB PCS6000 family (and related ABB MV converter variants where specified) |
| Power Requirements | Supplied by converter’s internal low-voltage bus (typically 24 VDC via backplane) |
| Signal I/O | Fiber‑optic gate trigger outputs to gate units; internal sync/monitoring signals |
| Communication Interfaces | Internal to converter control; no external fieldbus on the board itself |
| Installation Method | Mounted inside converter cabinet; plugs into designated rack/backplane with fiber links to gate units |
| Operating Conditions | Follows PCS6000 cabinet environmental specifications; typically installed in a closed, ventilated MV enclosure |
Note: Exact values (e.g., temperature range, power draw) depend on converter version; refer to the PCS6000 service documentation for your unit.
Application FieldsMedium‑voltage drives and static frequency converters in process industries
Grid‑tied converter systems for power quality, energy storage, or renewables (where PCS6000 is deployed)
Heavy‑duty test benches and utility applications requiring precise semiconductor switching
Form‑fit‑function replacement – Seems to be the most reliable way to restore a downed converter without control redesign.
High EMC robustness – Fiber isolation and careful board design typically reduce nuisance trips in noisy MV rooms.
Compatibility assurance – Designed for the PCS6000 architecture, keeping integration time and risk low.
Service efficiency – Clear diagnostics make it easier for technicians to validate operation post-install, saving hours on site.
Small anecdote from a site engineer: swapping a GF D563 A101 and reseating two fiber pairs brought a paper mill drive back in under an hour—no parameter changes, just a quick functional test.
Installation & MaintenanceCabinet & environment – Install in the designated PCS6000 rack within a clean, ventilated cabinet meeting MV converter clearances. Avoid conductive dust; keep cable ducts closed.
Wiring & fibers – Observe bend radius on fiber‑optic leads; clean ends with approved swabs. Route fibers away from high-current busbars where possible.
ESD & safety – Power down, lockout/tagout, and discharge stored energy before handling. Use ESD strap and handle by board edges only.
Commissioning checks – Verify correct slotting, connector seating, fiber polarity, and status LEDs. Run the converter’s built-in diagnostics prior to load.
Routine care – In most cases, a quarterly visual check for contamination and loose fibers is enough. Follow PCS6000 practices: weekly visual inspection of the converter and periodic battery capacity tests to EN 50272‑1 where applicable to the system.
Manufactured under ABB quality systems (ISO 9001); RoHS-compliant components typically used for control electronics
CE conformity as part of the complete PCS6000 converter system; safety approvals apply at system level
Standard manufacturer warranty terms; many sites run these boards for years without intervention
PCS6000 Gate Units (IGCT/IGBT) connected via fiber‑optic links
Converter central control/processing boards that supervise firing logic
Fiber‑optic patch leads and dust caps for maintenance spares
