Help CenterABB PC D232 A PEC80-CIO (3BHE022293R0101) – Controller I/O Board for PEC80 / AC 800PEC-based Drive and Converter Systems
Related Products
-
ABB 3BHE041576R3011 (PP D517 A3011) – Converter Controller Board for High‑Reliability Drive SystemsNegotiableMOQ: 1 Piece -
ABB PP D539 A102 (3BHE039770R0102) – Control Processor Board for Medium-Voltage Drive/Converter PlatformsNegotiableMOQ: 1 Combo
-
ABB GF D563 A101 (3BHE046836R0101) – Gate Firing Board for PCS6000/Medium-Voltage ConvertersNegotiableMOQ: 1 Combo
-
ABB S-093M 3BHB009885R0013 Phase Module – High-precision Power Stage for Demanding Drive SystemsNegotiableMOQ: 1 Combo
-
ABB S-093M 3BHB009885R0063 Phase Module – Precision Power Stage for ABB Medium-voltage DrivesNegotiableMOQ: 1 Piece

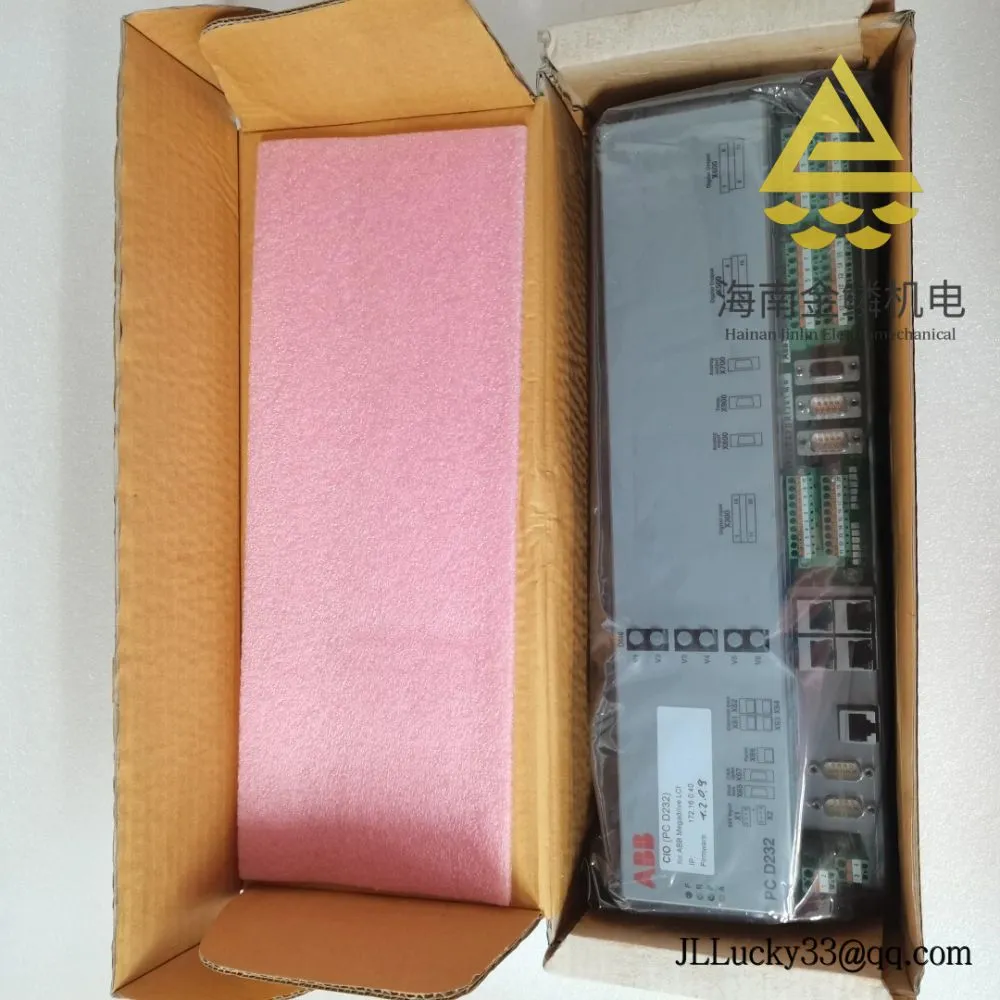

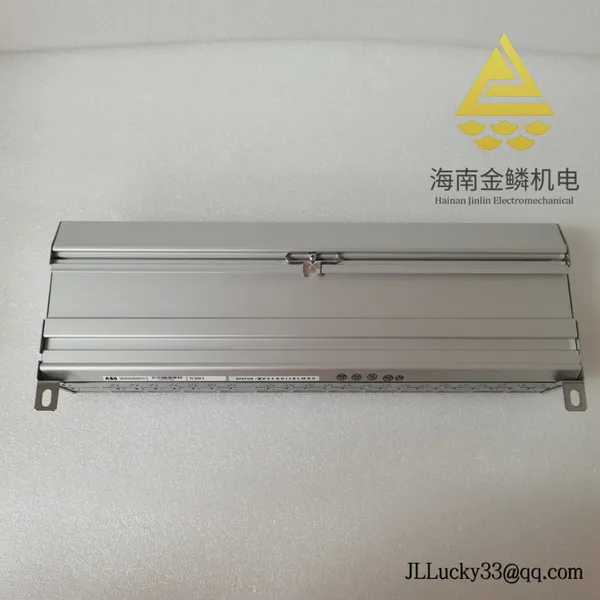

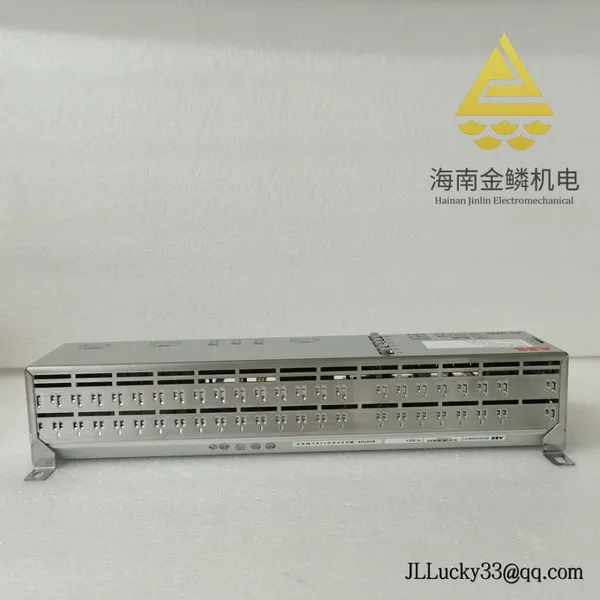

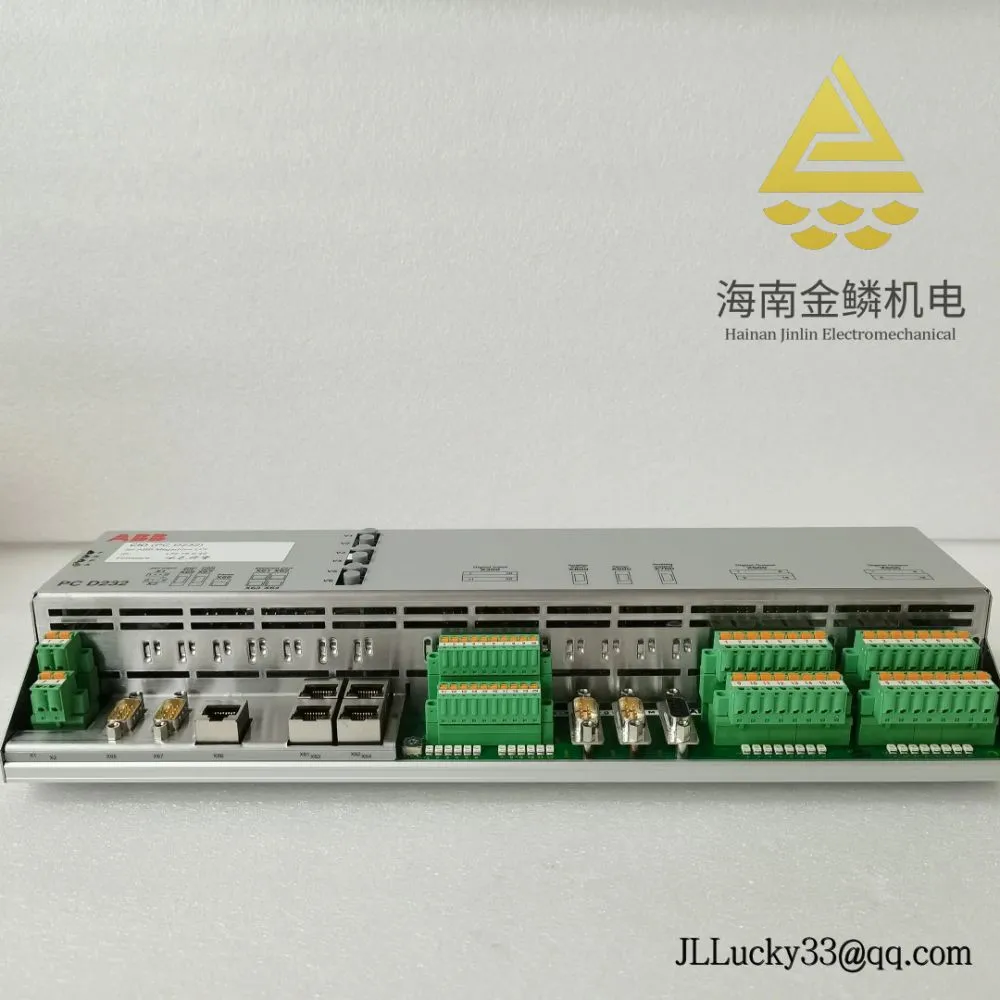

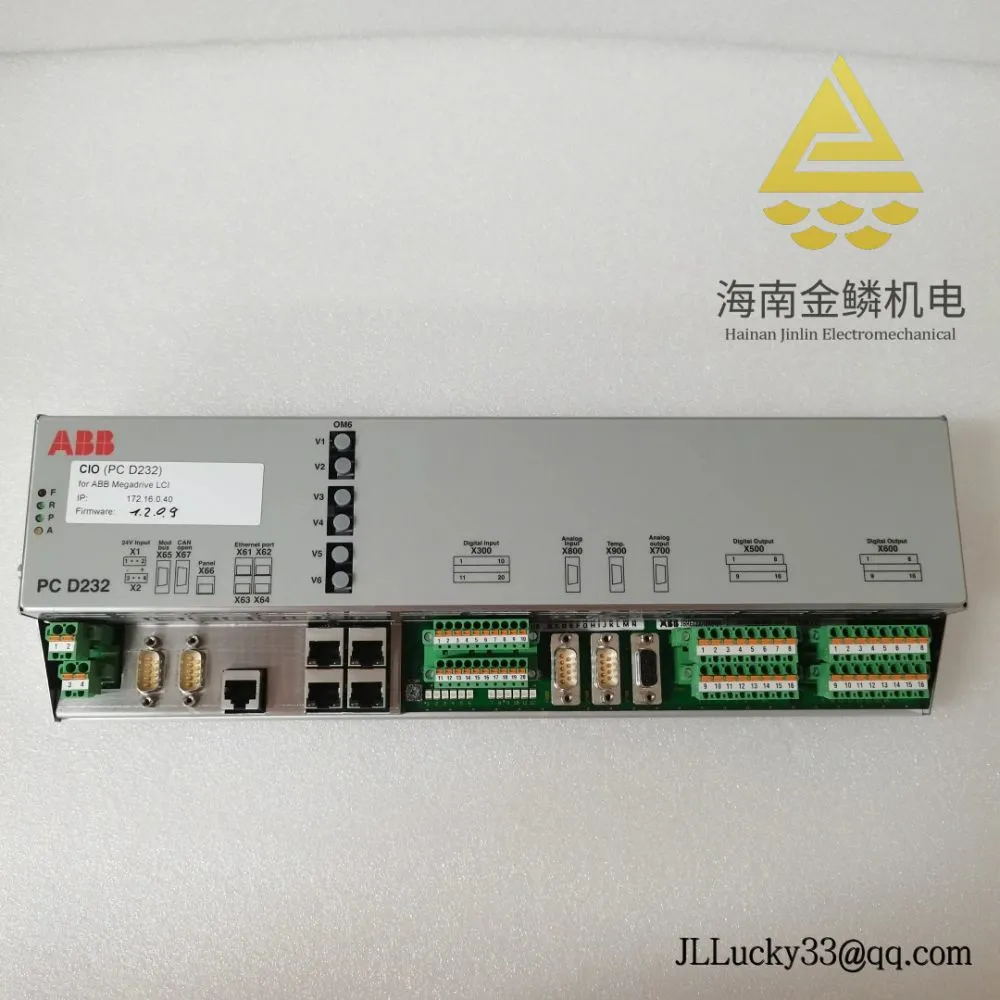

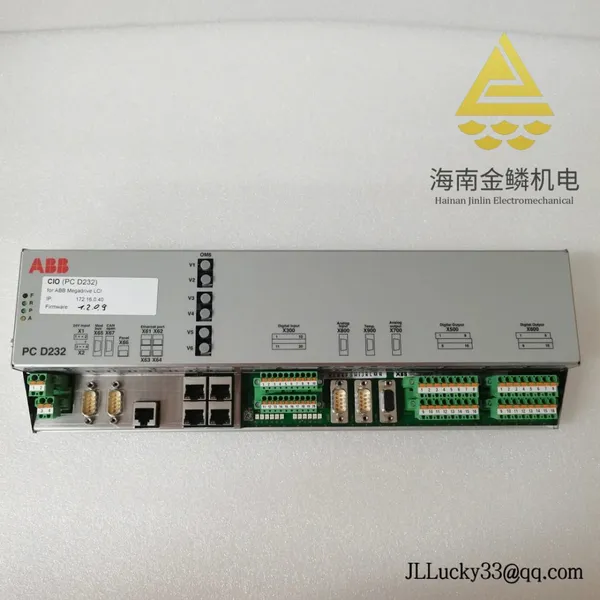

The ABB PC D232 A PEC80-CIO (code: 3BHE022293R0101) is a controller I/O interface board used within the PEC80 / AC 800PEC platform, commonly found in high-power drives and power converter systems. It handles mixed-signal field connections and ties process signals into the high-speed control core. From my experience, it’s typically used in applications like ABB medium-voltage drives and converter cabinets where deterministic I/O and robust isolation really matter.
The module integrates with the controller backplane, making it a drop-in service replacement when modernizing cabinets or maintaining systems such as PCS6000 or AC 800PEC-based solutions. You might notice that it’s favored by maintenance teams because it keeps wiring layouts intact and minimizes downtime.
Native PEC80 / AC 800PEC integration – Plugs into the controller backplane and follows the established ABB signal map for fast commissioning.
Mixed-signal I/O – Designed to handle typical combinations of isolated digital and analog channels used for interlocks, feedback, and references.
Industrial-grade isolation – Board-level isolation that helps protect the controller core from field transients and cabinet noise.
Deterministic response – Tight coupling to the controller task cycle for stable control loops in fast converter applications.
Service-friendly design – Maintains original wiring topology; in most cases a direct swap with minimal parameter changes.
Stable lifecycle support – Aligns with ABB’s long-term service programs for drive and converter platforms, which tends to reduce total lifecycle cost.
| Brand / Model | ABB PC D232 A PEC80-CIO – 3BHE022293R0101 |
| Function | Controller I/O interface board for PEC80 / AC 800PEC platforms |
| Power Requirements | Backplane-powered via PEC80 controller (nominal 24 VDC distribution, typical) |
| Signal I/O Types | Mixed digital/analog field I/O; isolation and conditioning per ABB controller standard (channel counts depend on revision) |
| Communication Interfaces | Interfaces through PEC80 backplane; field connections via front connectors (as per cabinet wiring) |
| Operating Temperature | Controller-cabinet environment, typically 0…55 °C, non-condensing (follow system datasheet) |
| Installation Method | Card-level module; installs into PEC80/AC 800PEC rack with securing hardware |
Application FieldsThis board is typically applied in PEC80 / AC 800PEC-based converter cabinets where fast, resilient I/O is needed. You’ll see it in:
Medium-voltage drives and large industrial motor control systems
Power converters such as PCS6000 for grid-facing or high-power applications
Test benches, marine and mining drives, and heavy-duty process lines
Retrofit/maintenance scenarios where keeping the original wiring harness is crucial
A maintenance engineer told us it “saved a weekend shutdown” because it slotted straight into an existing PEC80 rack and the interlock I/O came up first try. That seems to be the common experience when the cabinet wiring has been preserved.
Reliability under load – Built for electrically noisy environments; consistent operation in converter cabinets.
Compatibility – Matches the PEC80 / AC 800PEC platform, reducing engineering time during swap or expansion.
Downtime reduction – Direct replacement in many cases; keeps existing cabinet wiring and terminal maps.
Cost control – Extends system life without a full controller replacement; aligns with ABB’s long-term service model.
Technical support path – Supported by established ABB service documentation and field experience.
Cabinet environment – Install in a clean, ventilated control cabinet; follow IEC cabinet practices and maintain adequate airflow around the rack.
ESD handling – Treat as a sensitive electronic assembly; use wrist straps, ESD mats, and store in anti-static packaging.
Wiring – De-energize the cabinet before handling. Label and verify I/O terminals; maintain wire bend radius and torque per ABB guidelines.
Grounding – Ensure protective earth and shield terminations are intact to minimize noise and ground loops.
Commissioning – After insertion, check controller diagnostics, verify I/O mapping, and perform loop checks on critical interlocks.
Routine maintenance – Quarterly visual inspection, connector re-seat if necessary, dust removal with dry air, and backup of application/parameters. Firmware alignment should match the host controller’s recommended revision.
Certifications – Conforms to ABB industrial control standards; CE and RoHS compliance are typical for this class. UL/CSA applicability depends on system-level certification.
Manufacturing & Test – Factory-tested to ABB procedures for controller modules; designed for high-availability drive/converter duty.
Warranty – Manufacturer’s standard warranty policy applies (commonly 12 months from commissioning or shipment, depending on supply terms).
PEC80 Controller CPU module – Hosts the control application and task cycle to which the CIO board is mapped.
PEC80 Power Supply module – Provides regulated backplane power; verify load headroom when adding/replacing boards.
Backplane / Rack hardware – Mechanical slot and connector interface for PEC80 boards; check slot allocation before installation.
Field cable sets / terminal adapters – Maintain original harnessing to shorten commissioning and avoid rewiring errors.
If you’re matching an existing installation, share the controller rack layout and current firmware snapshot—we can cross-check compatibility and suggest the safest swap procedure for ABB PC D232 A PEC80-CIO (3BHE022293R0101).
