Help CenterABB PP D539 A102 (3BHE039770R0102) – Control Processor Board for Medium-Voltage Drive/Converter Platforms
Related Products
-
ABB GF D563 A101 (3BHE046836R0101) – Gate Firing Board for PCS6000/Medium-Voltage ConvertersNegotiableMOQ: 1 Combo -
ABB S-093M 3BHB009885R0013 Phase Module – High-precision Power Stage for Demanding Drive SystemsNegotiableMOQ: 1 Combo
-
ABB S-093M 3BHB009885R0063 Phase Module – Precision Power Stage for ABB Medium-voltage DrivesNegotiableMOQ: 1 Piece
-
ABB S-093H (3BHB009885R0005) – Gate/Interface Board for High-Power Converter StacksNegotiableMOQ: 1 Combo
-
ABB S-097H 3BHB009885R0052 Phase Module – High‑accuracy Power Stage for ABB MV Drive SystemsNegotiableMOQ: 1 Combo

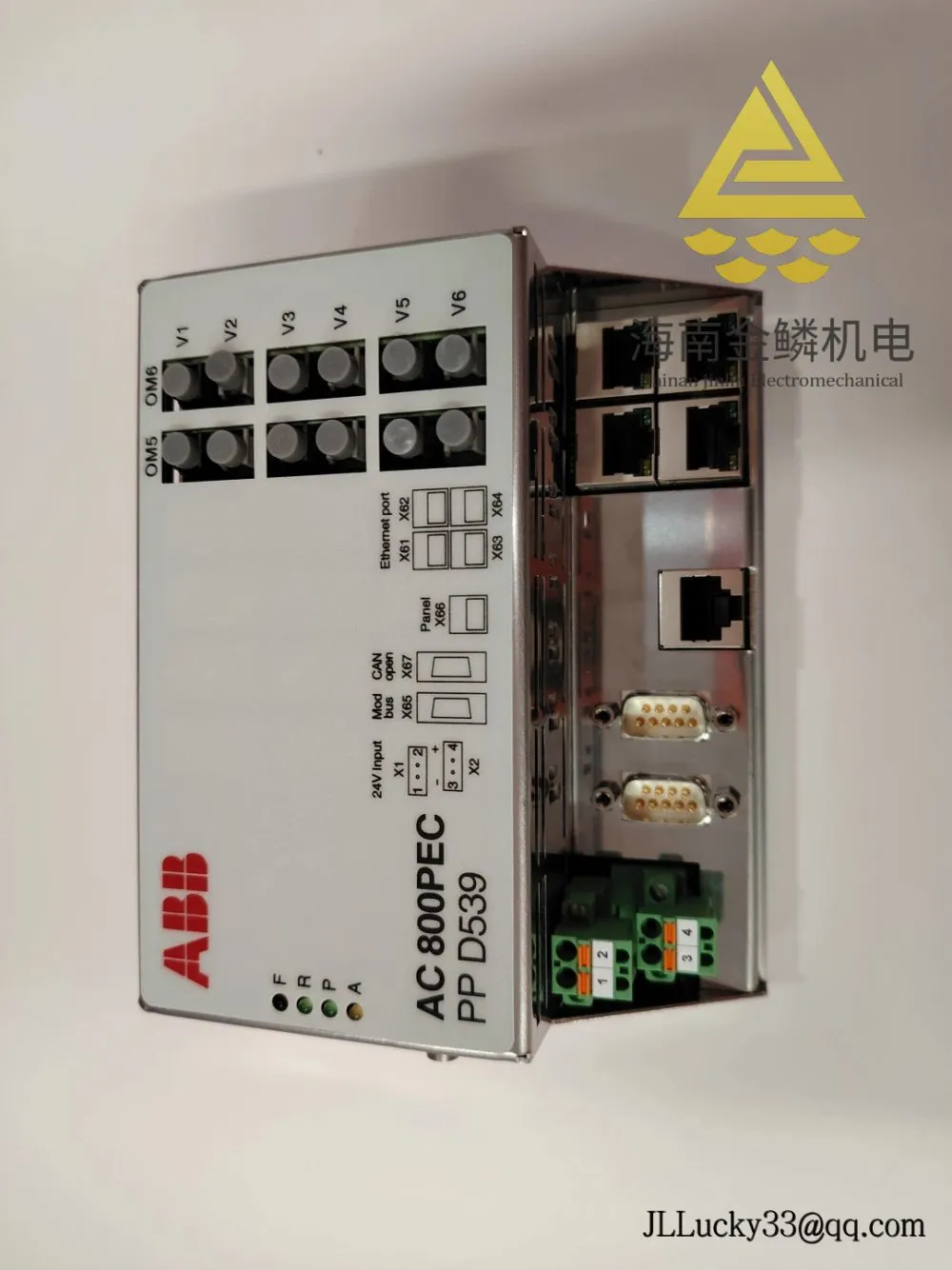

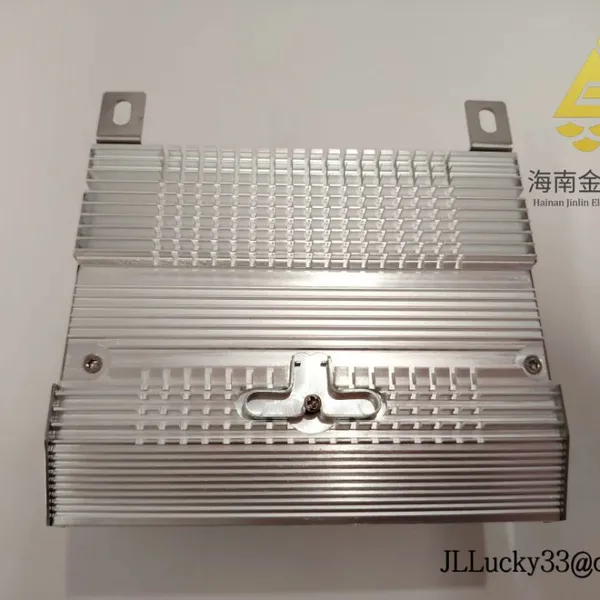

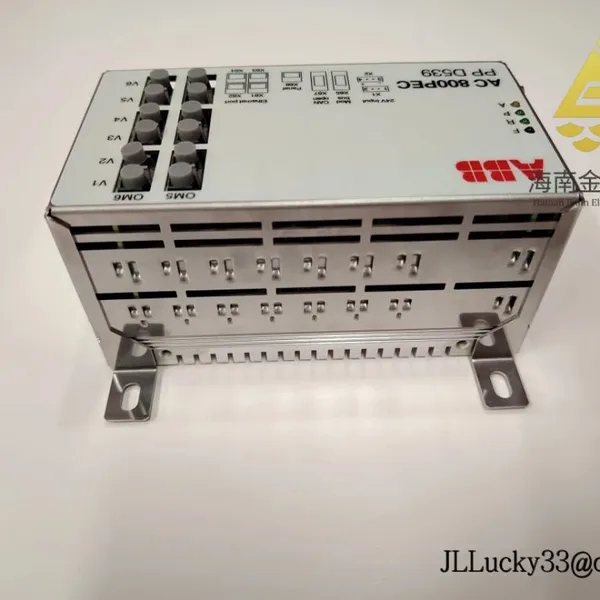

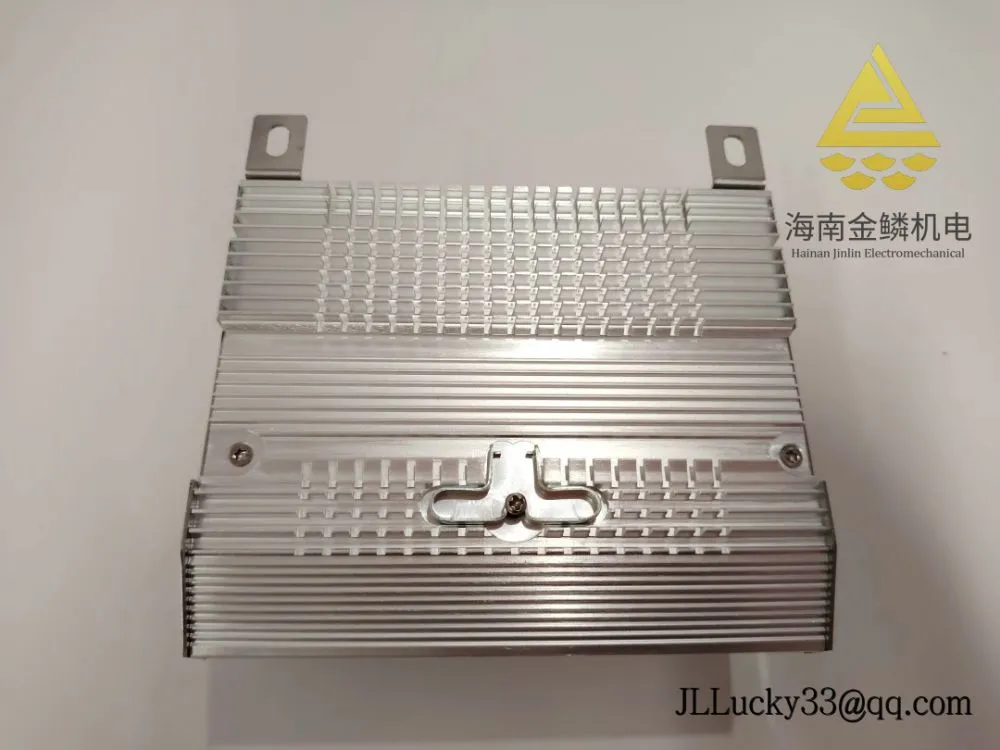

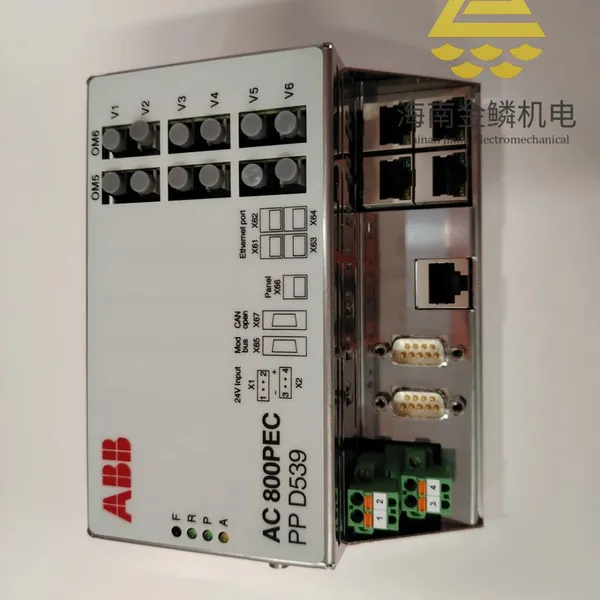

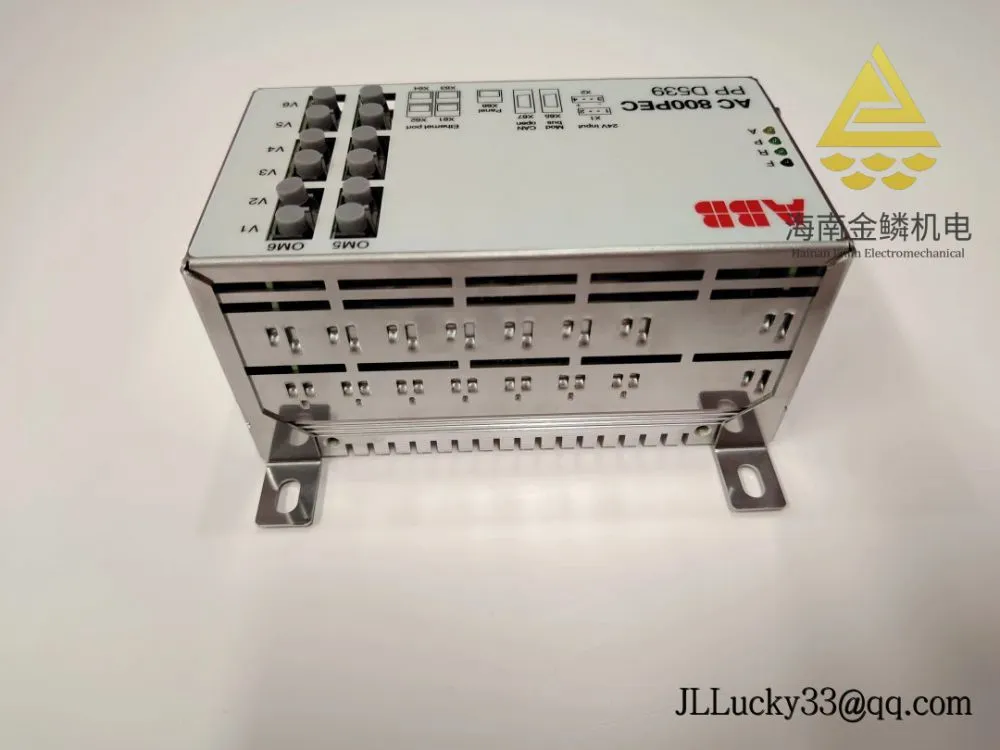

The ABB PP D539 A102 is a control/processor plug‑in board from the PP D5xx family, commonly deployed in ABB medium‑voltage converter and drive platforms such as PCS/ACS 6000 series. It handles real‑time control tasks, fast internal communications, and integration with system I/O. From my experience, it’s chosen as a direct maintenance replacement when uptime is critical and firmware alignment needs to be straightforward.
Typical applications include MV drives for compressors, pumps, and fans, as well as grid-support converters (e.g., STATCOM). You might notice that service teams value this board for its dependable cycle times and stable interoperability with ABB control racks and S800 I/O environments.
Real‑time control core – Optimized for deterministic control loops typically used in MV drive/converter regulation.
High‑speed internal links – Fiber‑optic channels are commonly used to interface to power units/gate drivers with excellent EMC immunity.
Backplane powered – Receives 24 VDC nominal from the system backplane, simplifying wiring inside the control cabinet.
Diagnostics and serviceability – Front indicators and a service/diagnostic connector (where present) help with quick fault tracing in most cases.
Compatible control stack – Designed to work within ABB PP D5xx architectures, coordinating with S800 I/O and fieldbus handled at system level.
Revision A102 – The A102 hardware/firmware pairing aims to maintain platform compatibility; technicians typically confirm firmware before swap to reduce re-tuning.
Industrial robustness – Built for cabinet environments with proper grounding and shielding; appears to handle electrical noise well when wiring practices are observed.
| Brand / Model | ABB PP D539 A102 |
| Ordering Code | 3BHE039770R0102 |
| Function | Control/processor board for ABB MV converter and drive platforms (PP D5xx family) |
| Power Requirements | Supplied via system backplane; 24 VDC nominal (typical for ABB control racks) |
| Operating Temperature | Typically 0…+55 °C when installed in a ventilated control cabinet |
| Signal I/O Types | High‑speed fiber‑optic internal links; service/diagnostic connector (platform-dependent) |
| Communication Interfaces | System fieldbus typically via S800 I/O and platform modules; board communicates over backplane |
| Installation Method | Plug‑in module for ABB control rack; ESD‑safe handling; power‑down required for replacement |
| Form Factor | Rack‑mounted plug‑in PCB (consult platform manual for exact dimensions) |
Medium‑voltage drives (e.g., compressors, pumps, fans) where deterministic control and reliable fiber links are needed.
Grid-support and power quality converters (such as STATCOM) in substations or industrial plants.
Renewable and test-bench converter systems that rely on ABB control racks and S800 I/O modules.
Process industries like mining, steel, pulp & paper, and oil & gas, typically in MCCs or IP54+ control rooms.
Drop‑in serviceability – Minimizes downtime by fitting directly into existing ABB control racks with familiar connectors.
Control stability – In many cases, the A102 revision aligns cleanly with installed firmware baselines, reducing re‑commissioning effort.
EMC‑resilient architecture – Fiber‑optic internal links help avoid noise issues common in MV rooms.
Lifecycle flexibility – Suitable for corrective maintenance, strategic spares, or planned upgrade paths within PP D5xx platforms.
One thing I appreciate is how predictable the swap process is when basic controls housekeeping is followed. A few practical notes that typically save time:
Cabinet environment – Use a ventilated, dust‑controlled cabinet (IP54 or better when near MV gear). Keep control 24 VDC within tolerance and well‑filtered.

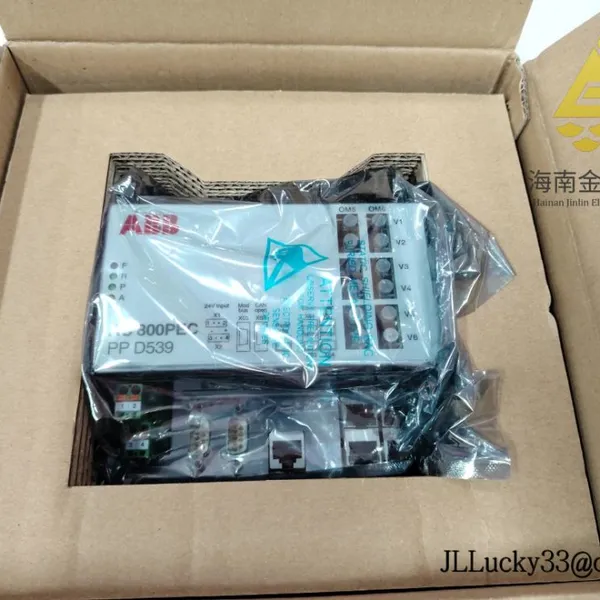

ESD handling – Wear a grounded wrist strap; keep the board in ESD packaging until insertion. Power down and lock‑out/tag‑out before removal/installation; this board is not hot‑swappable.
Backplane & wiring – Inspect connectors for bent pins; verify ground bonding and shielding. Maintain fiber‑optic bend radius and clean ferrules if fiber is used.
Firmware alignment – Match the firmware to site revision where applicable. Back up parameters from the existing controller before the swap; restore and verify interlocks.
Commissioning checks – After power‑up, confirm status LEDs, communications to S800 I/O, and fieldbus integration at the system level. Run a low‑risk functional test first.
Routine care – Periodic visual inspection (weekly checks in some plants) and light dust cleaning with dry, oil‑free air. If the board version includes a battery for RTC/NVRAM, perform capacity checks on the recommended interval.
Field feedback: A maintenance lead at a metals plant mentioned that keeping spare fiber patch cords and verifying the control 24 V supply ripple were the two simplest ways to avoid nuisance trips after a controller swap.
Quality & CertificationsManufactured under ABB quality systems (commonly ISO 9001).
RoHS compliance depends on regional variant; confirm against 3BHE039770R0102 documentation.
CE/UL assessments apply at the complete converter/drive system level; the board is a component within that system.
Warranty: ABB spare parts are typically covered for 12 months from shipment, though this can vary by region and contract.
