300J/500J/800J Charpy Pendulum Impact Tester Machine 220V 1-Year Warranty

300J/500J/800J Charpy Pendulum Impact Tester Machine 220V 1-Year Warranty photo-1
300J/500J/800J Charpy Pendulum Impact Tester Machine 220V 1-Year Warranty photo-2
300J/500J/800J Charpy Pendulum Impact Tester Machine 220V 1-Year Warranty photo-3
300J/500J/800J Charpy Pendulum Impact Tester Machine 220V 1-Year Warranty photo-4
300J/500J/800J Charpy Pendulum Impact Tester Machine 220V 1-Year Warranty photo-5
US$ 6000 ≥1 Set
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2010
Factory Size:
1,000-3,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao,shanghai,tianjin
Delivery Detail:
15 days

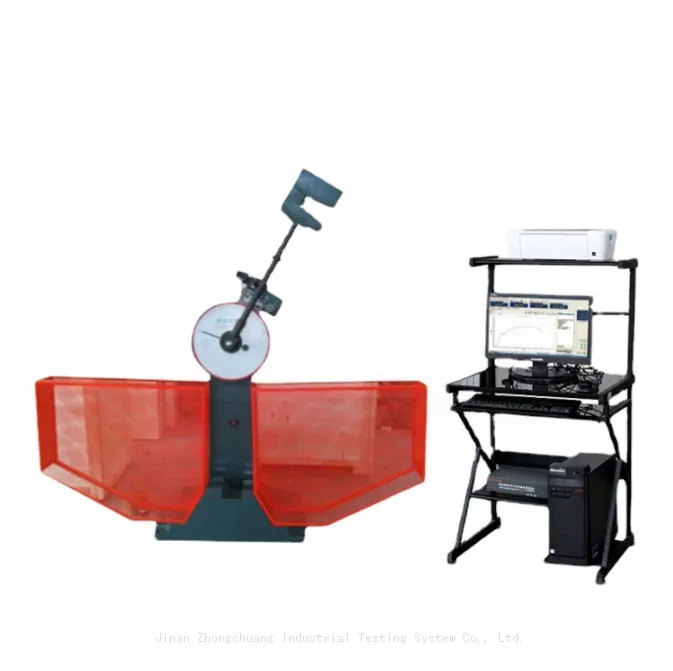

Impact Testing Machine

   This machine is used for measuring the metal material resistance performance under dynamic load, in order to determine the material properties under dynamic load. This machine is a semi-automatic control testing machine. It is easy to operate and has high work efficiency. The swing, impact and swing are all electrical control, and the remaining energy after the sample is broken can be automatically lifted to prepare for the next test. It is suitable for laboratories that continuously perform impact tests and metallurgical and mechanical manufacturing industries that do a lot of impact tests.


Specification

Impact energy

300J (big hammer) 150J (small hammer)

Impact velocity

5.2m/s

Pendulum angle

150°

Span of specimen base

40mm

End face radius of specimen seat

 1~1.5mm

Radius of impact knife

2~2.5mm

Distance from the center of pendulum bob to the impact point

750mm

Size of standard specimen

10*10(7.5 or 5) *55mm

Moment of pendulum bob

M=160.7695N. m 80.3848N. m

Voltage & power

Three-phase four- line 50Hz 380V 180W

Accuracy of angle

0.1°

Weight

About 500kg

Size of machine

2100*650*1340mm
