UTM Universal Tensile Testing Machines

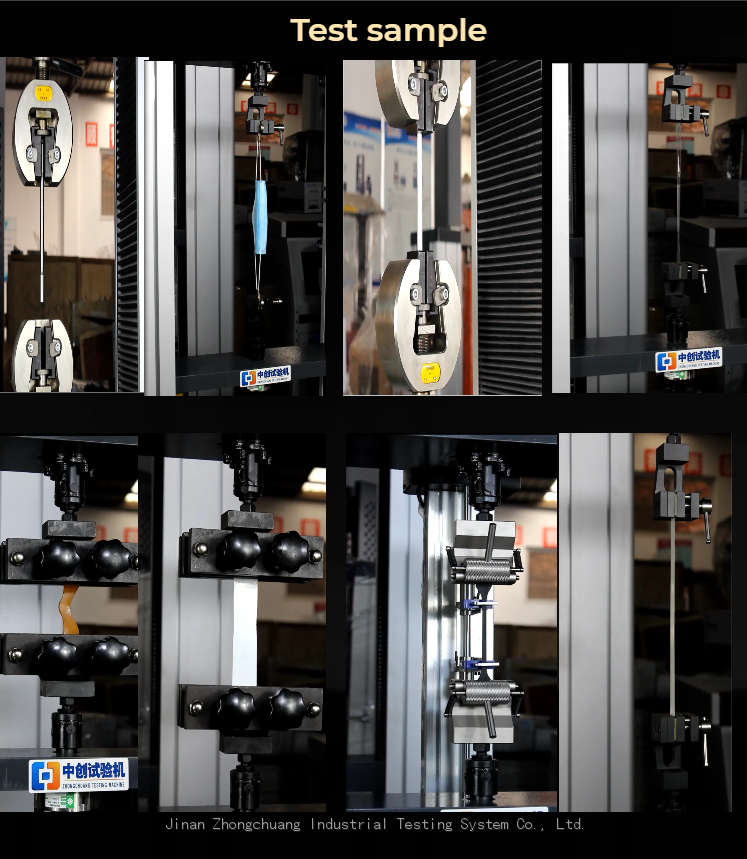

This machine is mainly suitable for the testing of mechanical properties such as tension, compression, bending, shearing, tearing,peeling, compressive and bending of metal, nonmetal and composite materials. Different test fixtures can be used for different tests, and the test fixtures are optional.631

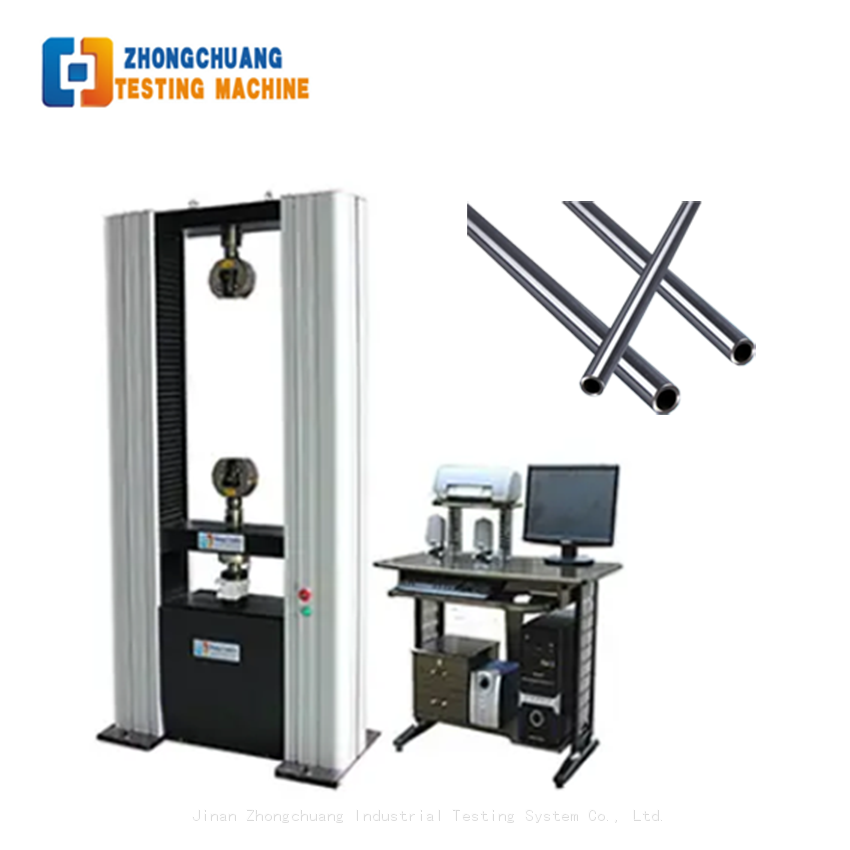

The machine adopts a double-space door structure, the upper space is stretched, and the lower space is compressed and bent. The beam is stepless lifting. The transmission part adopts circular arc synchronous toothed belt, screw pair transmission, stable transmission and low noise. The specially designed synchronous toothed belt deceleration system and precision ball screw pair drive the moving beam of the testing machine to realize a backlash-free transmission.


Model

WDW-100KN

Testing machine type

Computer control and dual-column type

Capacity

100kN(10T)

Measuring range

2%—100%FS

Resolution of displacement

0.1 mm

Range of displacement speed control

0.1-500mm/min

Test space width

≥380mm(Can be customized)

Distance between beam and workbench

650mm(Can be customized)

Dimensions

760*420*1850 mm

Power supply

220V,50Hz(Can be customized)

Total weight

About 450 kg
