LCD Touch Screen Series Spring Load Testing Equipment / Spring Tension and Compression Testing Machine

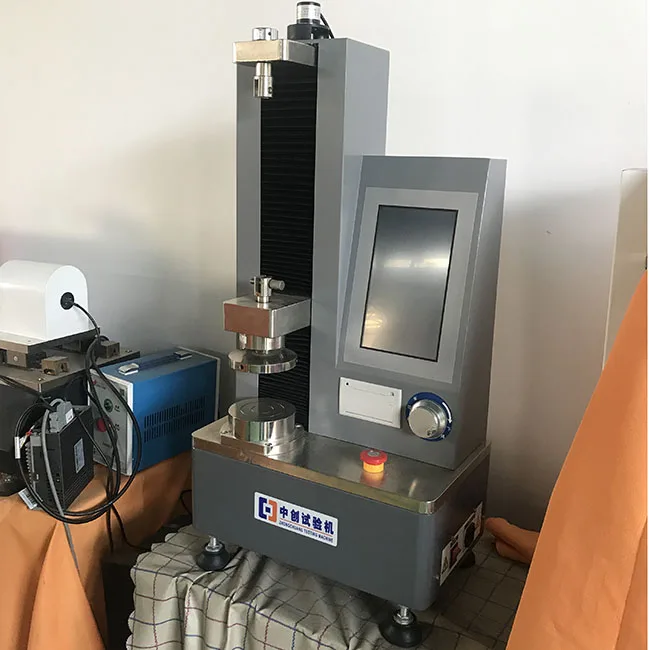

LCD Touch Screen Series Spring Load Testing Equipment / Spring Tension and Compression Testing Machine photo-1

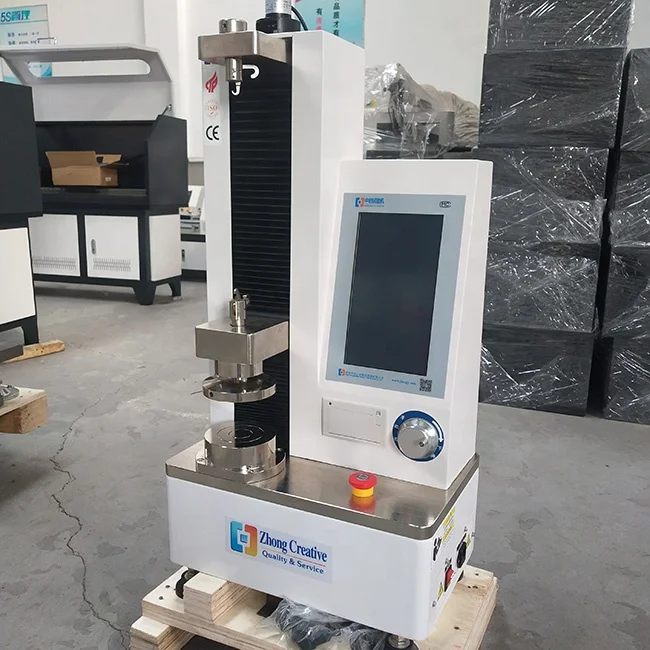

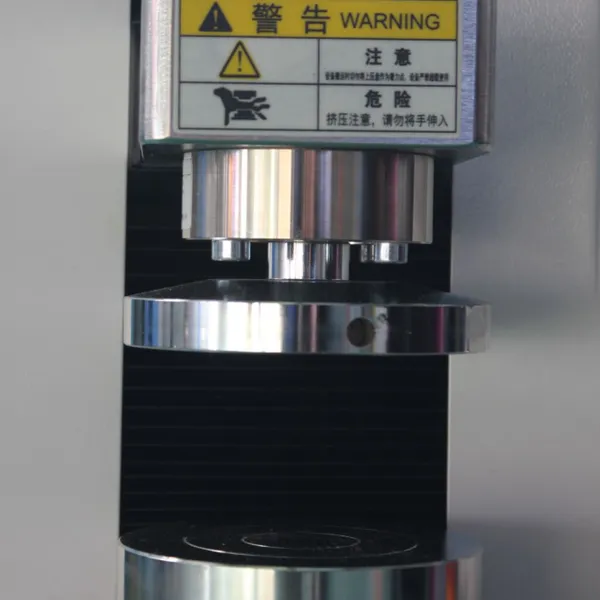

LCD Touch Screen Series Spring Load Testing Equipment / Spring Tension and Compression Testing Machine photo-2

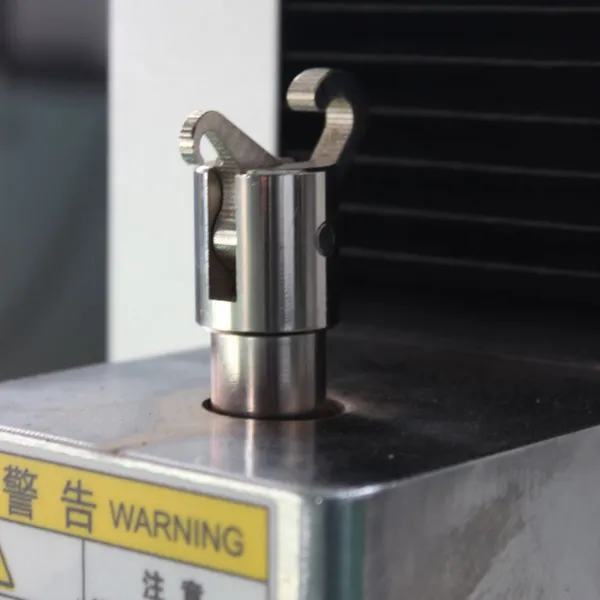

LCD Touch Screen Series Spring Load Testing Equipment / Spring Tension and Compression Testing Machine photo-3

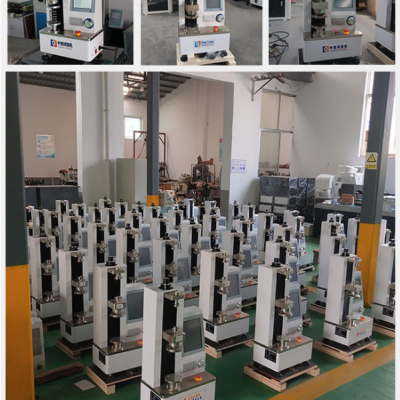

LCD Touch Screen Series Spring Load Testing Equipment / Spring Tension and Compression Testing Machine photo-4
LCD Touch Screen Series Spring Load Testing Equipment / Spring Tension and Compression Testing Machine photo-5
US$ 2500 ≥1 Set
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2010
Factory Size:
1,000-3,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao,shanghai,tianjin
Delivery Detail:
15 days

Spring Tension and Compression Testing Machine

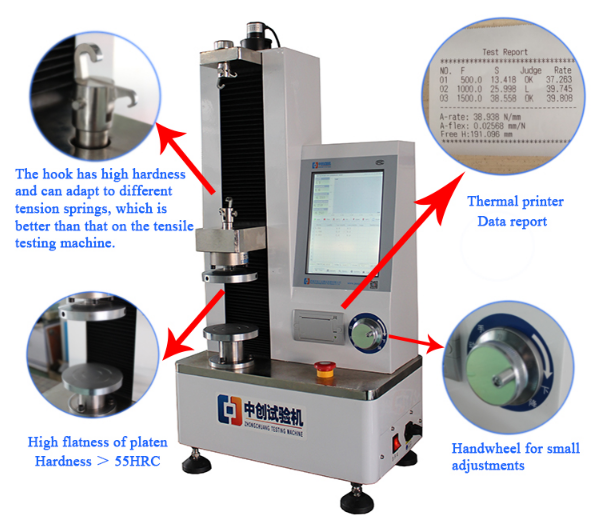

1690265193357

This testing machine is mainly used to measure the tensile test and compression test of various coil springs. It can test both the spring load under a certain deformation and the spring deformation under a certain load. Mainly used in spring manufacturers, low-voltage electrical appliances, machinery, universities and research laboratories.
Two colors are shipped randomly
Can be customized to your needs
Specification
Capacity
500N
Display type
7 inch LCD display with touch screen
Measuring range
1%-100%
Load resolution
0.01N
Relative error of zero point
±0.1%
Relative error of test force indicating value
±1.0%
Resolution of displacement
0.001mm
Test space
300mm
Plate OD
100mm
Test speed range
0.01mm/min-500mm/min
Dimensions
About 435*275*850mm
Weight
About 90kg
Power supply
AC 220V±10% 50-60Hz
★ The whole process of the test runs at a constant speed to avoid the interference of the machine acceleration and deceleration on the test force, and the true reduction test process; ★The system comes with a sample library, preset 20 kinds of samples, the user can set the corresponding parameters according to the requirements, can be directly transferred during the test, improve the test efficiency and reduce the operation difficulty; ★Automatic storage of test data, can store 100 sets of data, can be viewed, printed, exported, etc.; ★ Motion control sampling full digital sine wave control, smooth operation, no impact, faster response; ★Based on fast sensor data conversion, high-speed parallel disk can be set, and the compression height zero point can be set with one button; ★ Load units include Newton (N), kilonewton (kN), gram force (gf), kilogram force (kgf), pound force (lbf), kilogram force (kip) 6 international units;


Product Tags: Spring Load Testing Equipment , Spring Tension and Compression Testing Machine , Spring loading testing machine
