Bolt Torsion Tester Hot Sale Bolt Torsion Tester Price

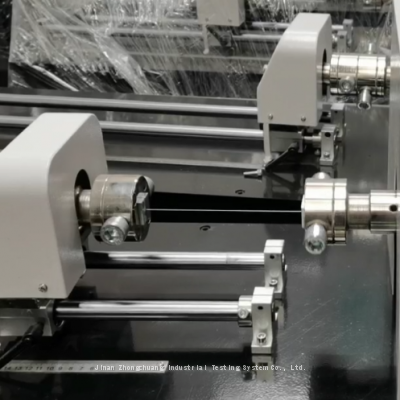

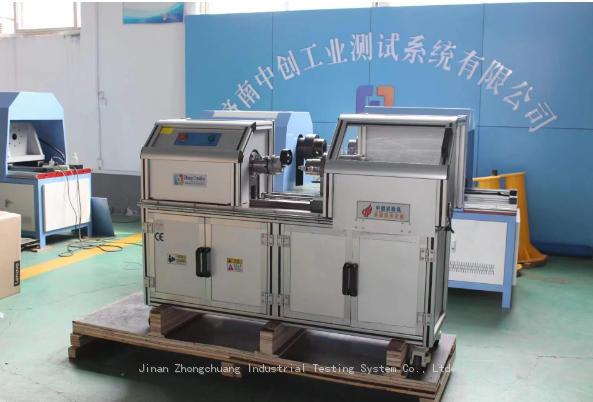

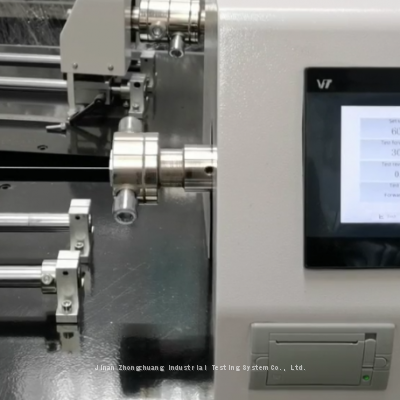

The Bolt Torsion Testing Machine is mainly used to do torsion test, and torque test of screw bolt, threaded bolt, connecting bolt and foundation bolt etc.The measured specimen is installed between the fixtures which can be adjusted the space, the testing machine can be used for the different measured specimens to do the torsion mechanics performance test.The testing machine uses the computer control operation,the software synchronous displays the measured specimen’s curve, such as torque-time, torsional angle-time and torque-angle curves etc,at the real time display the angle, torque and torque peak value etc, the test result can be save and printed etc.
The Bolt Torsion Testing Machine is applied in such industries:measuring quality inspection,metallurgical steel,mechanical manufacturing,civil aviation, colleges and universities, scientific research lab, the commodity inspection arbitration, technical supervision departments,petroleum chemical industry, and other industries.
Main specification(N.m) | 5000N.m |
Torque test range | 1%-100%FS |
Min reading value of torque(N.m) | 0.01 |
Test resolution of torque | 1/±300000 |
Relative error of torque indicating value | ≤±1.0% (both forward and inversion directions) |
Relative error of torque repeatability | ≤1.0%(both forward inversion directions) |
Angle test range | 0-10000° |
Relative error of angle indicating value | ≤±1% (both forward inversion directions) |
Min reading value of angle | 0.01° |
Test speed | 0.5-720°/min |
Power supply | AC 220V±10%,50Hz |
The main product series of Zhongchuang Testing Machine as follows:
Material universal testing machine, material tensile testing machine, cement concrete pressure testing machine, spring tension & compression testing machine, spring stiffness testing machine, spring torsion testing machine, spring fatigue testing machine, material torsion testing machine, auto parts testing equipment, material parts and axis torsion testing equipment, track locomotive testing equipment, dynamic and static universal testing machine, metallographic tissue analysis equipment, hardness tester and spectrometer etc.
