Help CenterABB UFC921A101 (3BHE024855R0101) – High‑speed Control/interface Board for Medium-voltage Drive Systems
Related Products
-
ABB UFC789 (3BHE014022P102) – Control Board for Medium-Voltage Converters and DrivesNegotiableMOQ: 1 Combo -
ABB XVC770BE101 (3BHE021083R0101) – Control Board for PCS/ACS Medium-Voltage Drive PlatformsNegotiableMOQ: 1 Combo
-
ABB KUC755AE105 (3BHB005243R0105) – Control/Gate Interface Board for PCS/ACS 6000 ConvertersNegotiableMOQ: 1 Combo
-
ABB ACS6000 3BHB011219R0001 – Spare Module for Medium-Voltage Drive ReliabilityNegotiableMOQ: 1 Combo
-
ABB S-093H (3BHB009885R0004) – Driver/Interface Board for PCS/ACS6000 Power Converter StacksNegotiableMOQ: 1 Combo

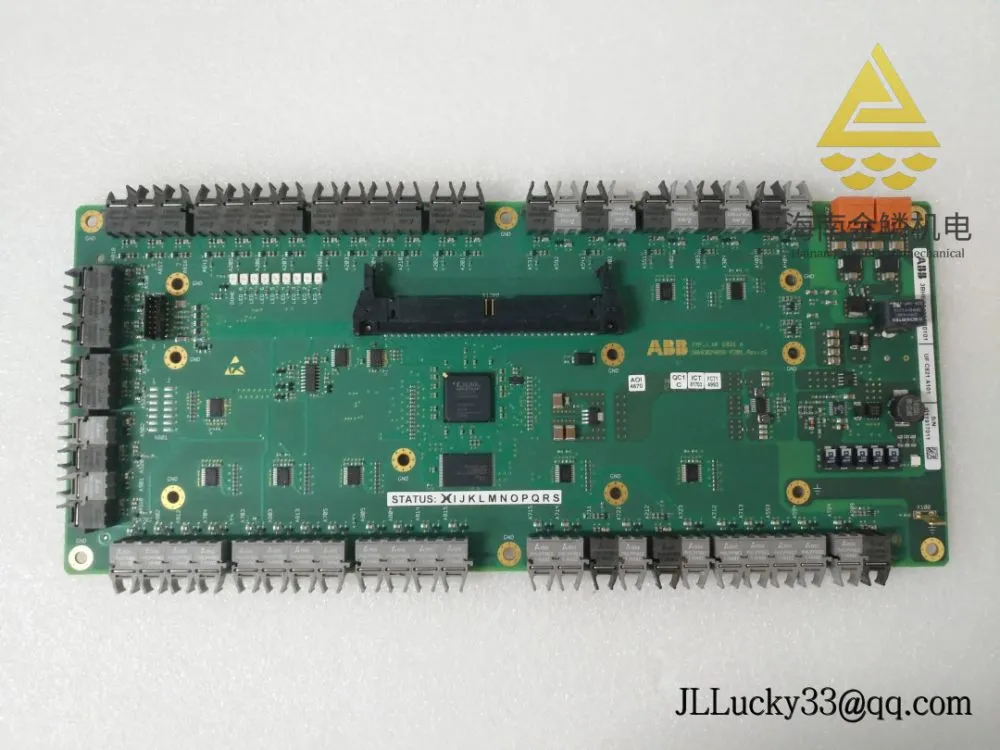

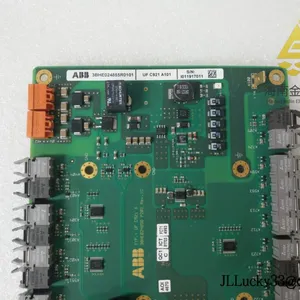

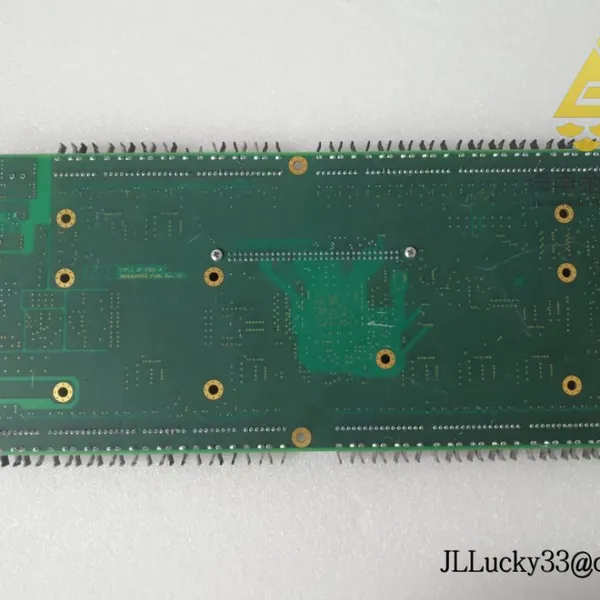

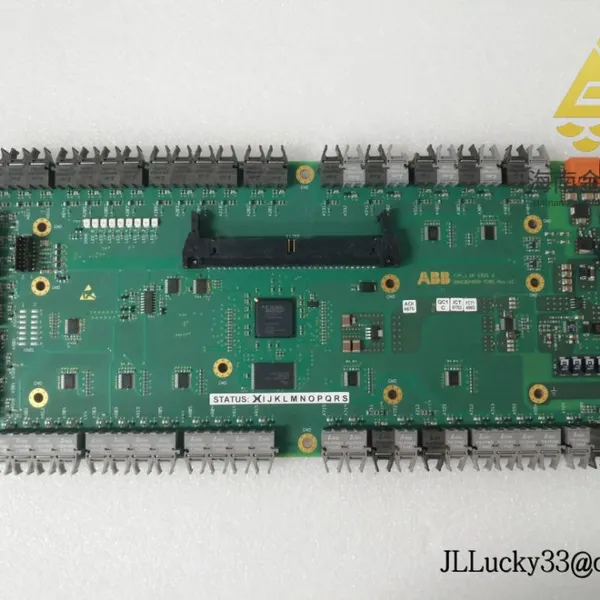

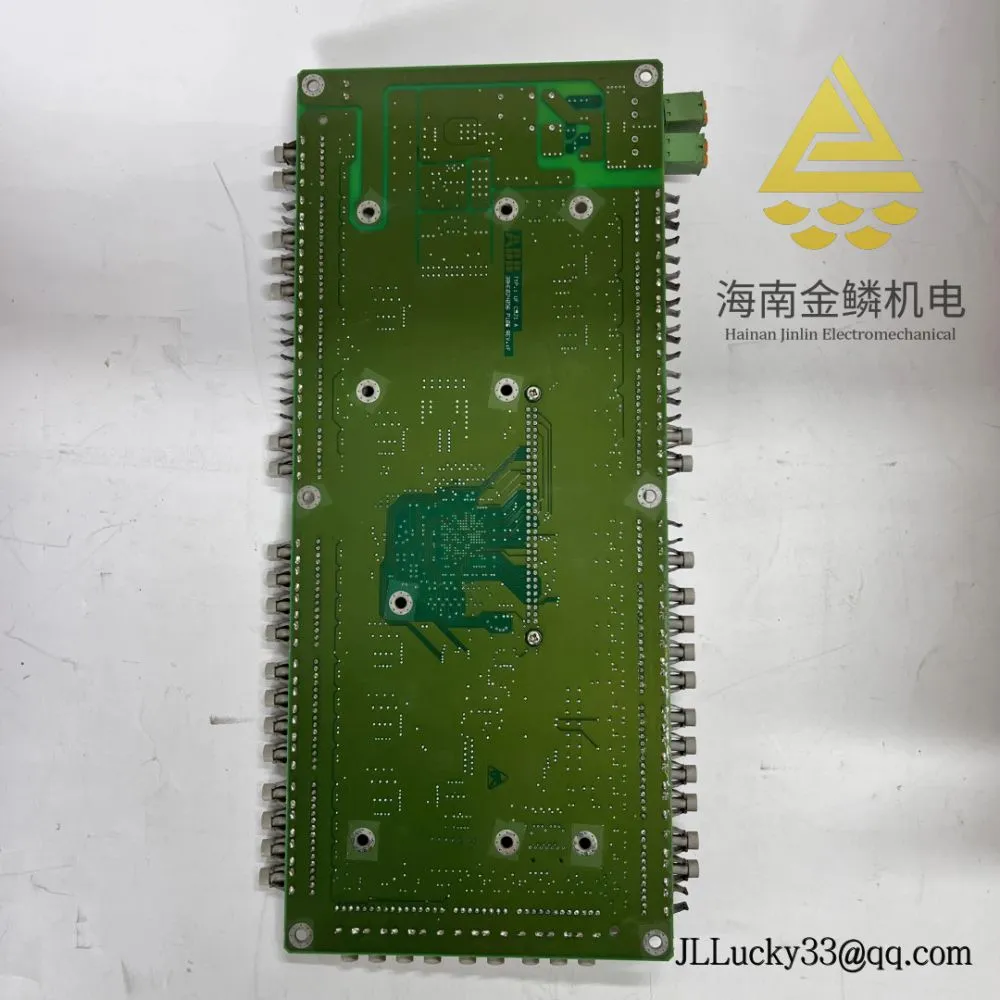

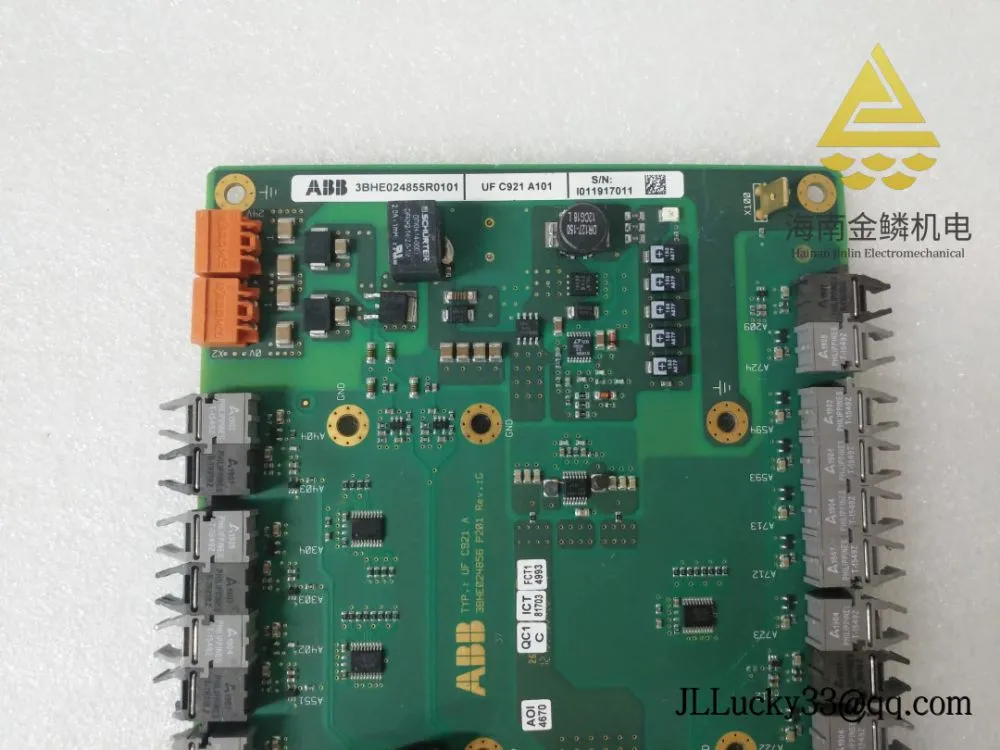

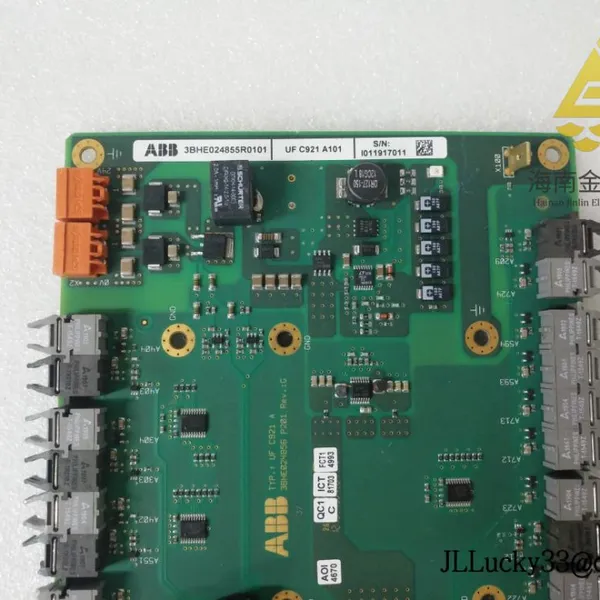

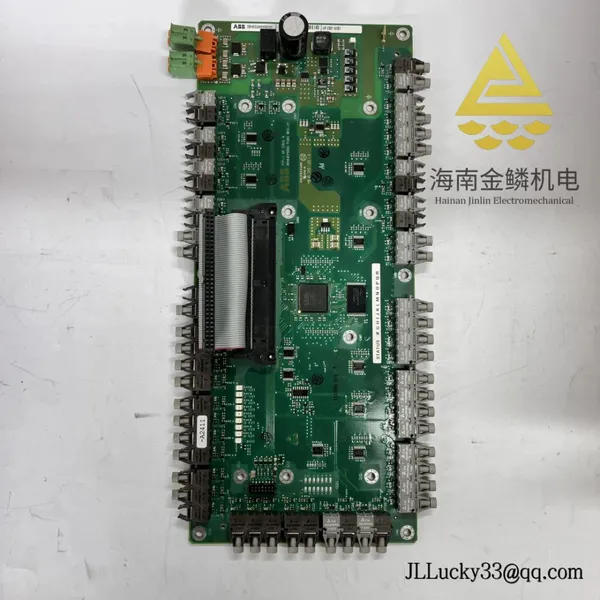

The ABB UFC921A101, part number 3BHE024855R0101, is a control/interface board commonly used in ABB medium‑voltage converter platforms such as PCS/ACS 6000 that are built around the AC 800PEC controller. It typically bridges high‑speed signals between the controller and the power converter sections, handling time‑critical I/O and fiber‑optic links in a cabinet environment. If you maintain MV drives in metals, marine, mining, or oil & gas, this is one of those boards that keeps the control stack responsive and synchronized.
High‑speed converter interface – Typically provides fiber‑optic or opto‑isolated channels to the power unit for firing, feedback, and protection handshakes.
Tight integration with AC 800PEC – Designed to operate within ABB’s PEC control rack, minimizing latency for closed‑loop control in MV drives.
Robust industrial design – Engineered for cabinet installation with stable operation across typical plant temperature and vibration ranges.
Fieldbus‑ready architecture – Commands and diagnostics are usually managed by the host controller via the plant fieldbus, keeping on‑board operation simple and reliable.
Service-friendly replacement – Plug‑in board form factor; from my experience, swap time is short if the firmware/config set is prepared in advance.
Proven in PCS/ACS 6000 fleets – Deployed in many cabinets for metals mills, test benches, and compressors where cycle‑to‑cycle determinism matters.
| Brand / Model | ABB UFC921A101 |
| Part Number | 3BHE024855R0101 |
| Power Requirements | Typically 24 VDC supplied via controller backplane (consumption low, board‑level) |
| Operating Temperature | 0 to +55 °C (typical cabinet environment) |
| Signal I/O Types | High‑speed converter interfaces; fiber‑optic and isolated digital channels (exact mix depends on A101 variant and firmware) |
| Communication Interfaces | Integrated via AC 800PEC; plant fieldbus handled by the host controller (e.g., Profibus/Profinet/Modbus—system dependent) |
| Installation Method | Plug‑in board for PEC control rack inside a protected cabinet; ESD‑safe handling required |
| Dimensions & Weight | Board‑level module (standard ABB PEC form factor); contact for drawing if needed |
| Typical System Compatibility | PCS 6000 / ACS 6000 converter cabinets with AC 800PEC, S800 I/O (per project BOM) |
You’ll typically see UFC‑series boards in high‑power variable‑speed drive cabinets where the converter is operated from an external station via fieldbus. The UFC921A101 fits into that stack to move time‑critical signals reliably between control and power.
Metals rolling mills and continuous processing lines
Oil & gas compressors and large pump trains
Marine propulsion and thruster systems
Mining hoists, conveyors, and grinding mills
High‑power test benches and research rigs
“After swapping the UFC board, our PCS6000 cabinet came back with stable firing sync—no more intermittent trips. It was a straight plug‑in once the parameters were restored.” — Maintenance Supervisor, steel plant
Reliability in critical loops – Stable timing and isolation help reduce nuisance trips and downtime in MV drives.
Native compatibility – Being the specified ABB part (3BHE024855R0101) avoids integration surprises and keeps firmware alignment straightforward.
Service efficiency – Board‑level replacement typically shortens outage windows compared to cabinet‑wide interventions.
Lifecycle support – Widely deployed in existing fleets, with documented procedures and field experience available.
Cabinet environment – Mount within a sealed, ventilated control cabinet (IEC/UL compliant). Keep ambient within 0…55 °C and avoid condensation.
Power & grounding – Ensure stable 24 VDC backplane supply and proper protective earth. Verify no backfeed before insertion/removal.
ESD & handling – Use ESD wrist strap and antistatic packaging. Inspect connectors and fiber ends for dust or scratches before mating.
Wiring & optics – Route fiber‑optic links with correct bend radius; clean with approved tools only. Keep digital I/O wiring segregated from power cabling.
Commissioning – Match firmware/parameter sets to the cabinet’s AC 800PEC project. From my experience, a quick backup/restore saves most of the time.
Routine care – Quarterly visual checks; annual battery/capacity checks for the cabinet per EN 50272‑1 where applicable; log any fieldbus or sync alarms.
CE compliant industrial electronics (typical for ABB PEC boards)
RoHS conformity (region dependent)
Manufactured under ISO 9001 quality systems
Standard manufacturer warranty; extended service options available by agreement
If you’d like, share your cabinet BOM or a photo of the PEC rack label—I can double‑check the UFC921A101 (3BHE024855R0101) against your firmware level and advise on drop‑in compatibility.
