SC-939H+ New Type Multifunctional Intelligent Toe Lasting Machine
（Product brief introduction）： |

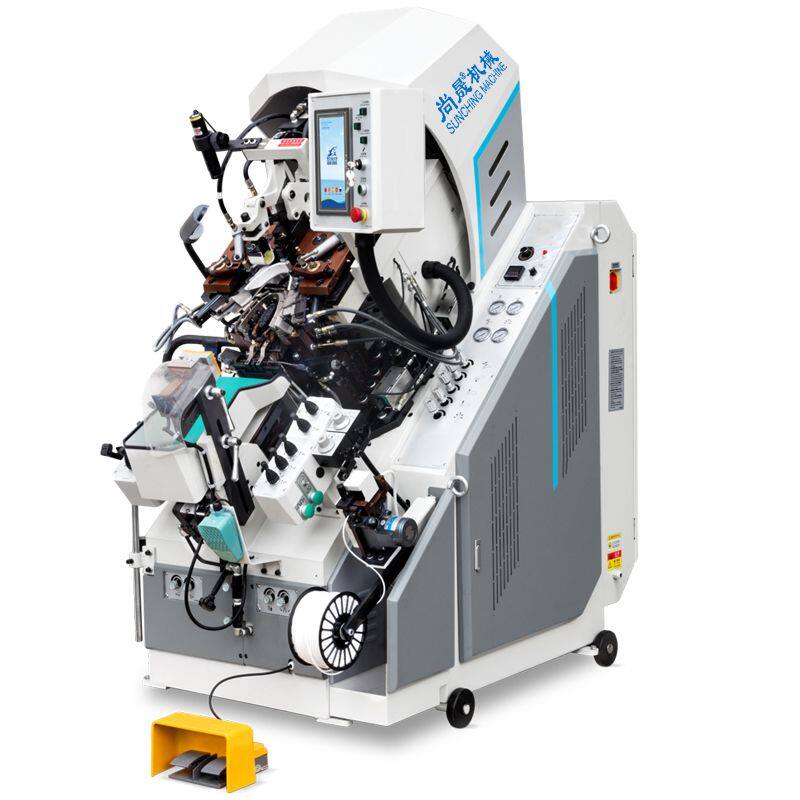

SC-939H+ New Type Multifunctional Intelligent Toe Lasting Machine
It incorporates all the advantages of the SC-939H model, and also adds a servo glue feeding system. Based on excellent lasting quality, it integrates the SC3.0 operating system carefully developed by Shangsheng (Note: "SUNSHING" is a proper noun, and the translation is for reference only; the official English name shall prevail if available). It has advanced functions such as remote data transmission, data storage, shoe style memory and automatic machine adjustment. These features greatly improve the efficiency of shoe style conversion for off-site development and gain more valuable production time for the production line. Whether it is used to produce high-end men's and women's leather shoes, sports shoes, casual shoes, or roller skates, work shoes and other types of footwear, the SC-939H+ demonstrates significant advantages and can be called a powerful assistant for footwear manufacturing enterprises.
1.Servo Glue Feeding System
2.Quick Replacement of Sweeping Knife
3.The supporting platform of the SC-939H+ Toe Lasting Machine has the function of electric forward and backward movement
4.The angle of the first and second claws of the SC-939H+ Toe Lasting Machine is controlled by linear resistance ruler memory. The swing angle is adjusted according to the shape of the shoe toe, and it also has a position memory function.

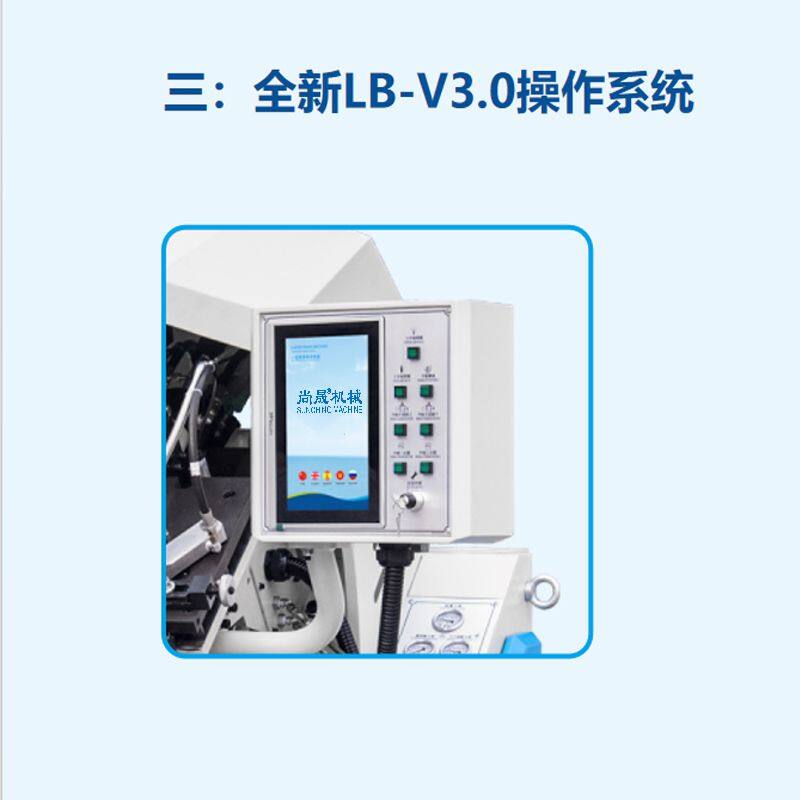

5.Color touch screen operation display; all items that need adjustment are displayed on the screen
6.Simple to understand and convenient to operate

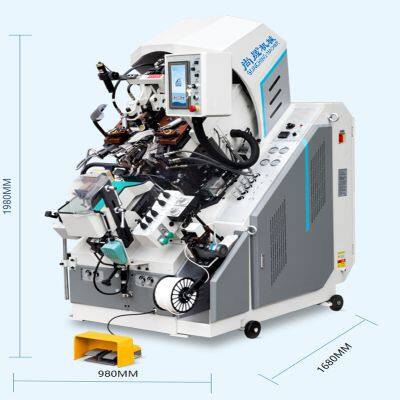

SC - 9 3 9 H+ Machine parameters | ||
Model |
SC-939H+ |
|
Dimension(LxWxH) |
1660 x 980 x 1980mm |
|
Packing size(LxWxH) |
1780x 1150x 2200mm |
|
N.W |
1120kgs |
|
G.W |
Will be provided when delivery. |
|
Capacity |
1500(Pairs)/8 Hr |
|
Heating |
1600W |
|
Power |
2HP |
|
Voltage |
380V/50HZ |
|
Oil Pressure |
30-50KG/CM2 |
|
Hydraulic oil |
120 litres |
|
| ||
