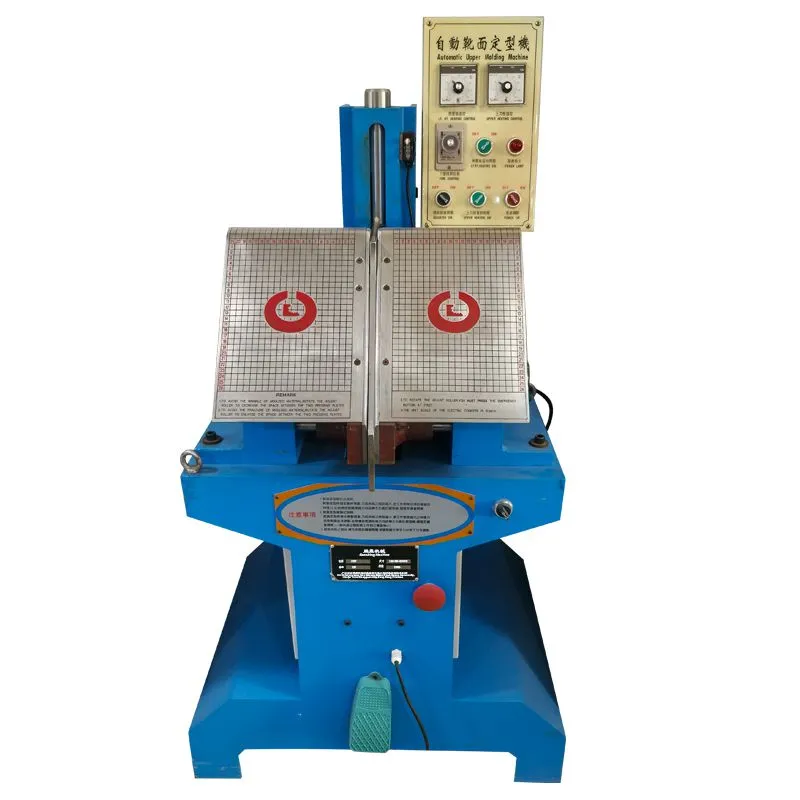

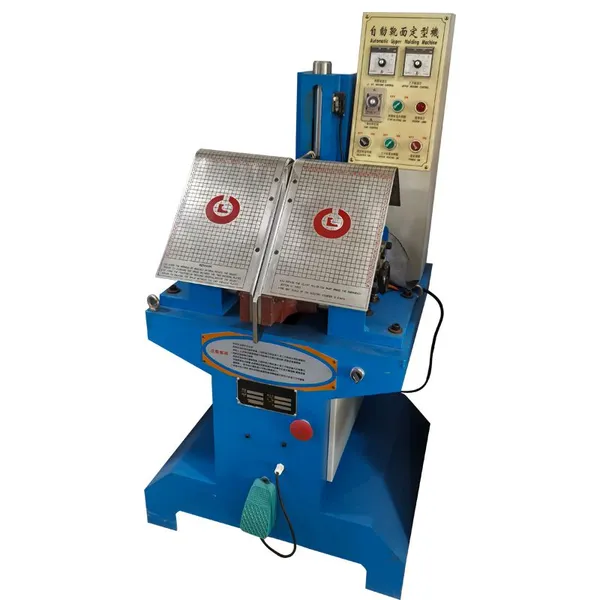

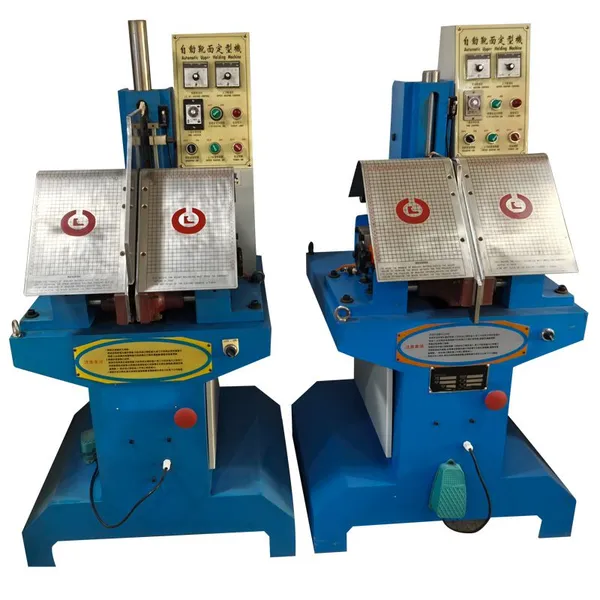

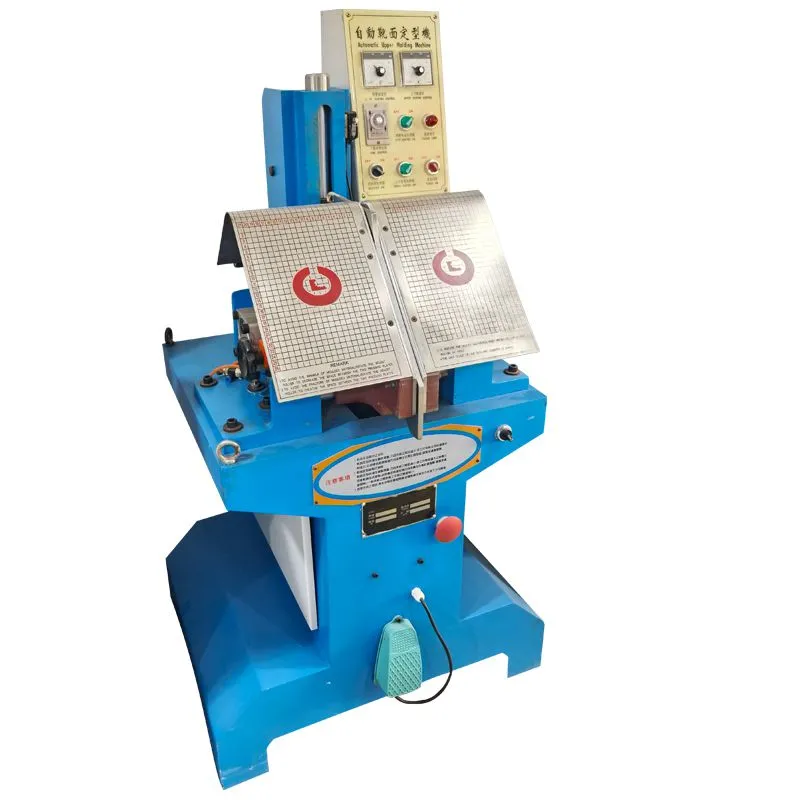

SC-317 Pneumatic Boot Shaping Machine
（Product brief introduction）： |
SC-317 Pneumatic Boot Shaping Machine is specially designed for shaping leather and synthetic leather boot uppers, serving as an efficient processing tool in the footwear industry. The equipment is equipped with cylindrical sliding rails to ensure the upper knife moves smoothly and with high precision. The shaping upper pressing knife adopts a two-stage design: it first gently prepositions the upper, then performs strong shaping. This not only ensures safe operation but also accurately locks the center of the boot upper. One operation can complete the shaping of joint points and the arch of the instep. Even for large-area and ultra-thick boot uppers, it can easily handle the task, stably and efficiently completing the shaping process to help enterprises improve production quality and efficiency.
Technical Specifications: |
Model |
Voltage |
Power |
Capacity |
NW |
Machine Size |
SC-317 |
220V |
1KW |
1500-2000pairs/8th |
350KG |
500*600*1800MM |
