SC-528Glue Activation Machine - Button Control Model
（Product brief introduction）： |

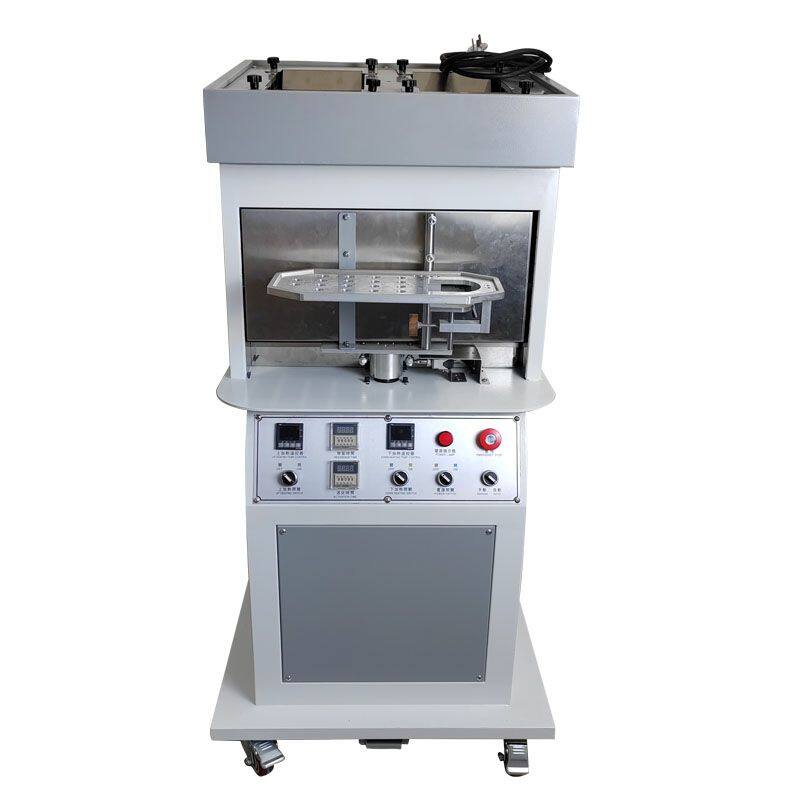

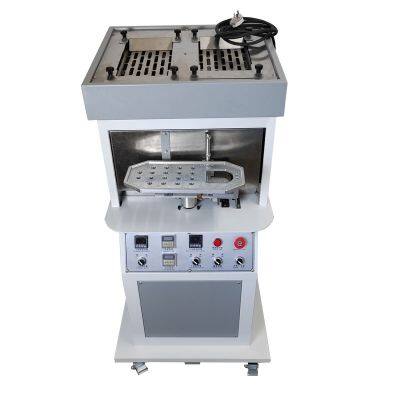

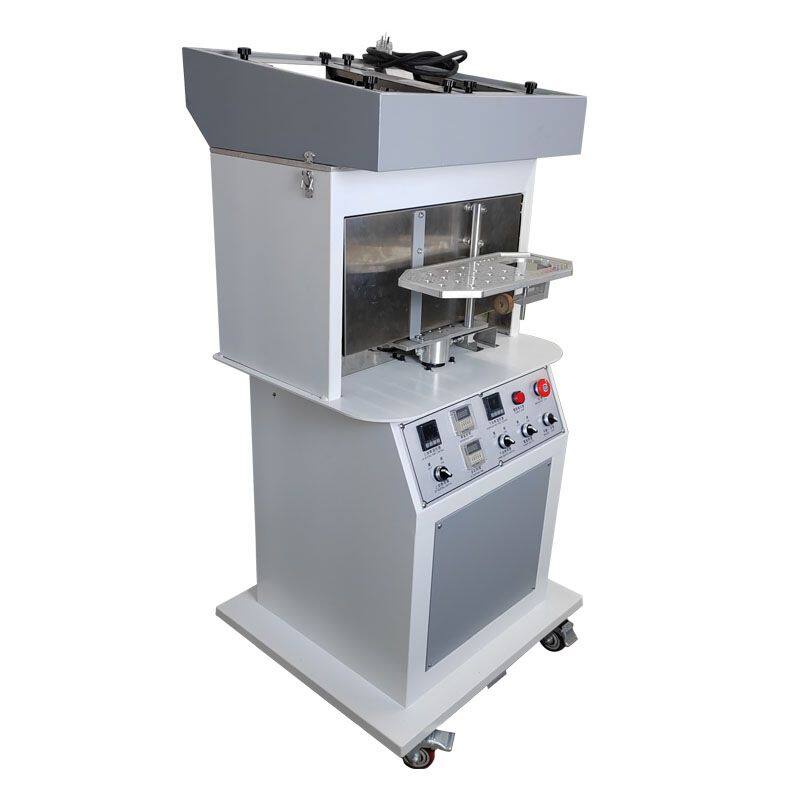

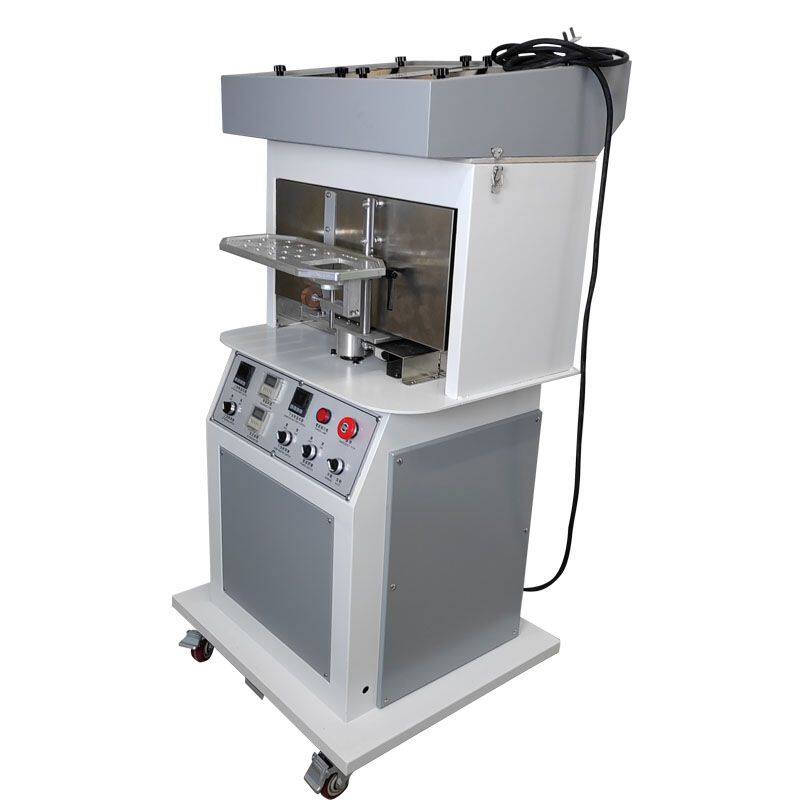

Glue Activation Machine - Button Control Model
The button control glue activation machine is primarily used in shoe manufacturing for sole bonding. It is suitable for men’s and women’s sports shoes, vulcanized shoes, casual shoes, children’s shoes, and all types of footwear.
•The machine features a dual-layer design, with the upper section for heating the shoe upper and the lower section for heating the outsole.

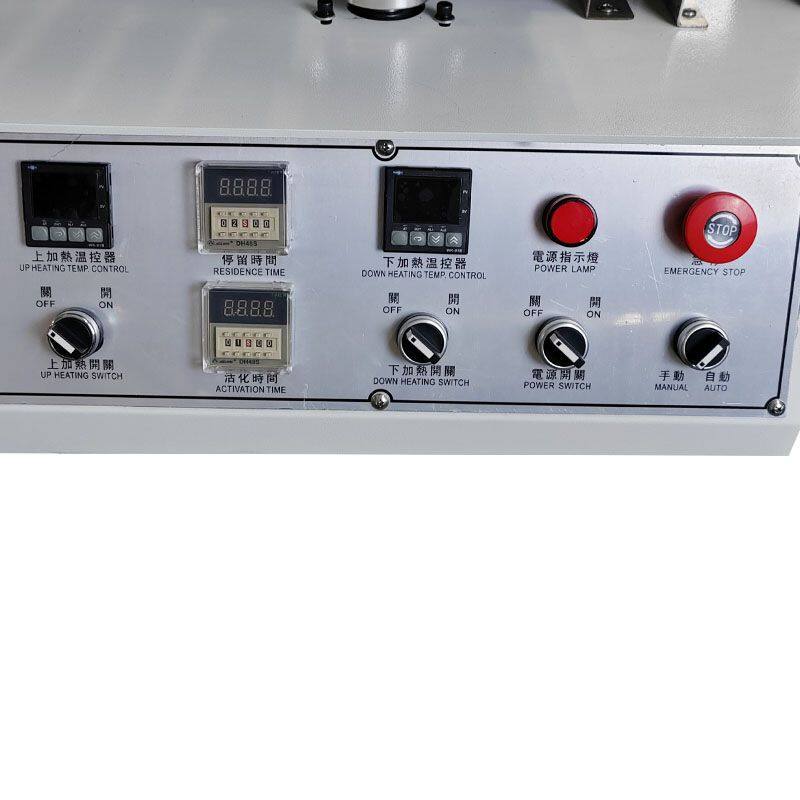

•Once the baking time and required temperature are set, simply place the outsole into the tray, and the machine will automatically start.
•The shoe upper heating chamber utilizes quartz heating tubes for fast heating, precise temperature control, and low energy consumption.
•The outsole activation chamber uses a combination of heating tubes and activation lamps, ensuring shorter glue activation time and improved activation results.
•The rotary tray offers both automatic and manual operation modes for flexible switching.
•Compact in size, space-saving, stable in performance, and easy to operate, this machine features a sleek and simple design.
Compared to traditional conveyor belt systems with horizontal ovens, this machine significantly reduces space requirements and lowers energy consumption by over 60%.
Technical Specifications: |
Model |
Voltage |
Power |
NW |
Machine Size |
SC-528 |
220V |
5KW |
90KG |
630*600*1300MM |
