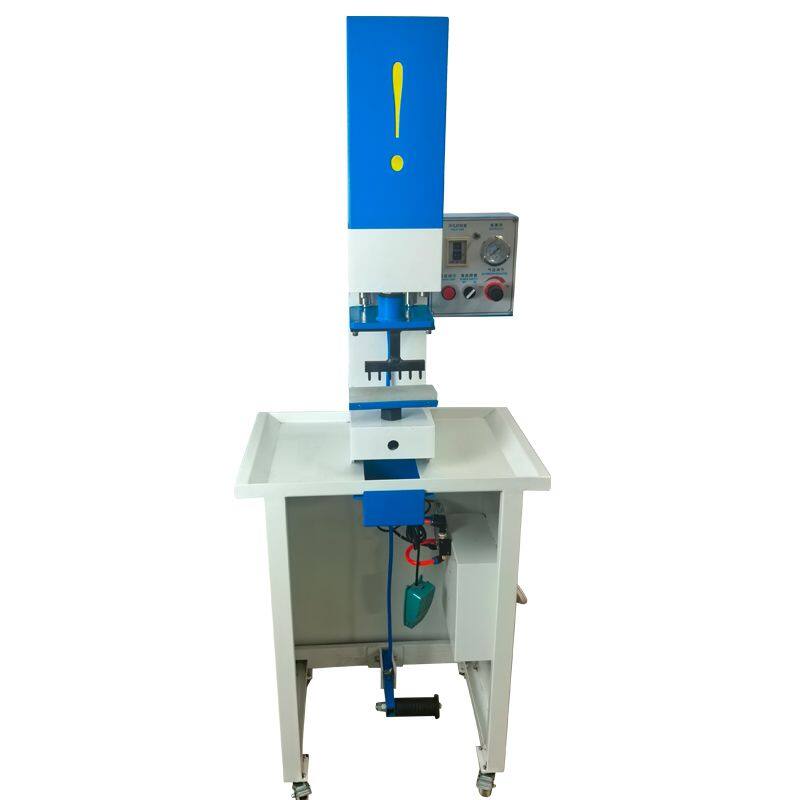

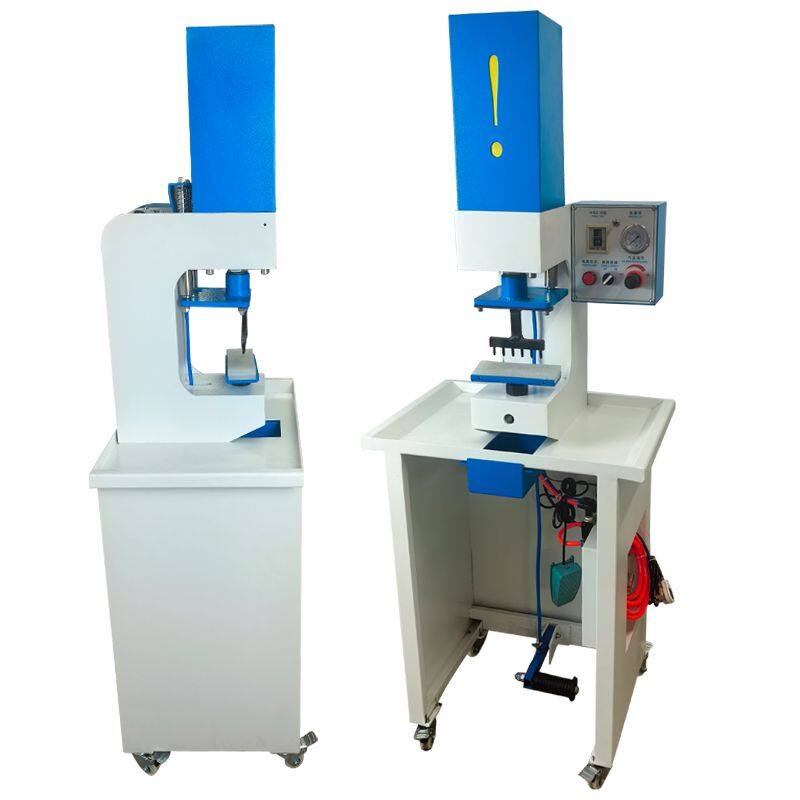

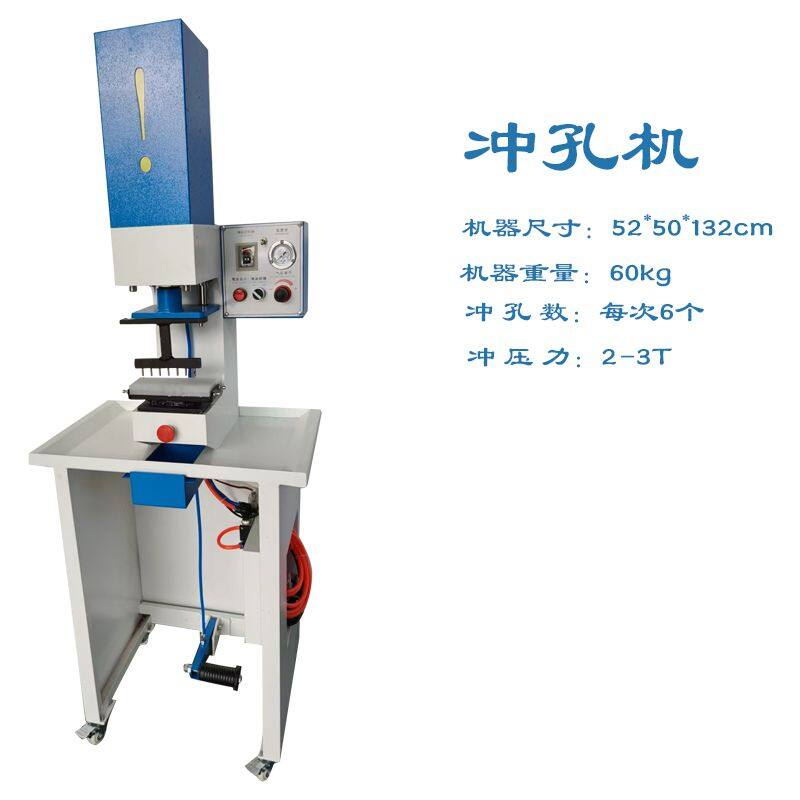

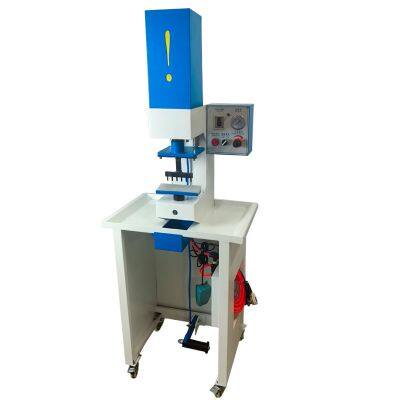

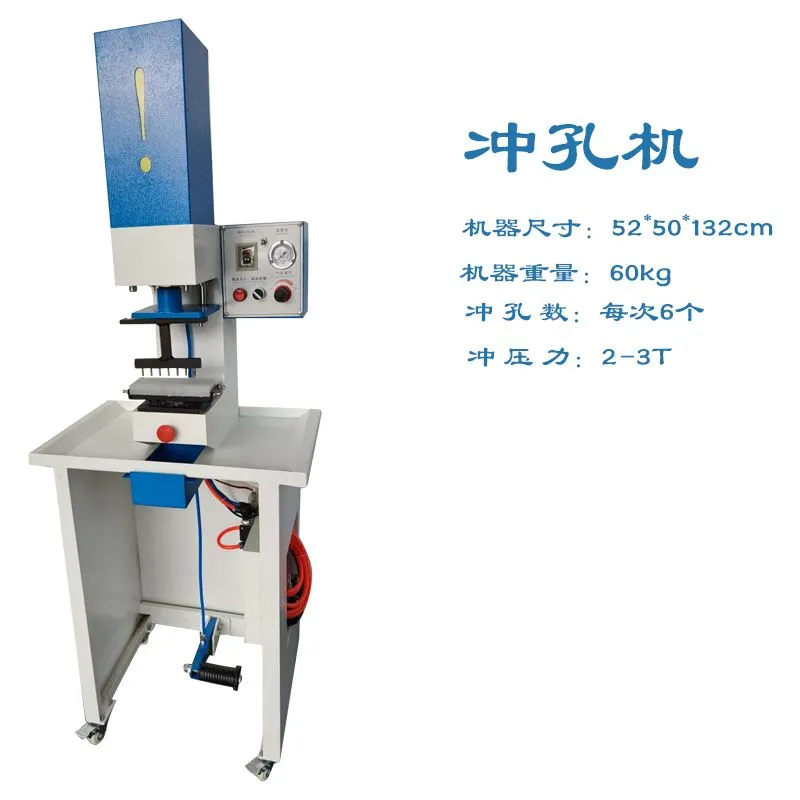

SC-166Punching machine
（Product brief introduction）： |
SC-166 punching machine can punch various required holes on materials such as leather, paper, cut pieces, thin metal sheets,etc. through mechanical pneumatic stamping. The stamping forceof the machine is up to 2 tons, and it is often used for stampingvarious materials such as shoe materials, belts, pet leashes, etc. It can punch 6 holes at a time. According to the production needsof products, the mold can be replaced to meet different production requirements.
1 Quick punching and good punching effect.
2 Using a pneumatic system, the pressure and speed can be adjusted according to the thickness of the material.
3 This machine has a single operation, which saves energy and is environmentally friendly.
4 Desktop 60cm, with drawers for storing waste, easy to clean.
5 Foot press, saving manpower and material resources, and reducing costs
Technical Specifications: |
Model | Voltage | Stamping hoe | Atmospheric pressure |
SC-166 | 220V | 04.mm | 0.6mpa |
Ram pressure | Production | Product Specifications | NWGW |
2-3T | 2000pcs/8H | 520x 500 x 1320mm | 60/90KG |
