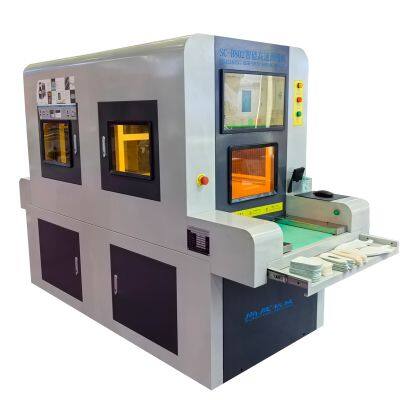

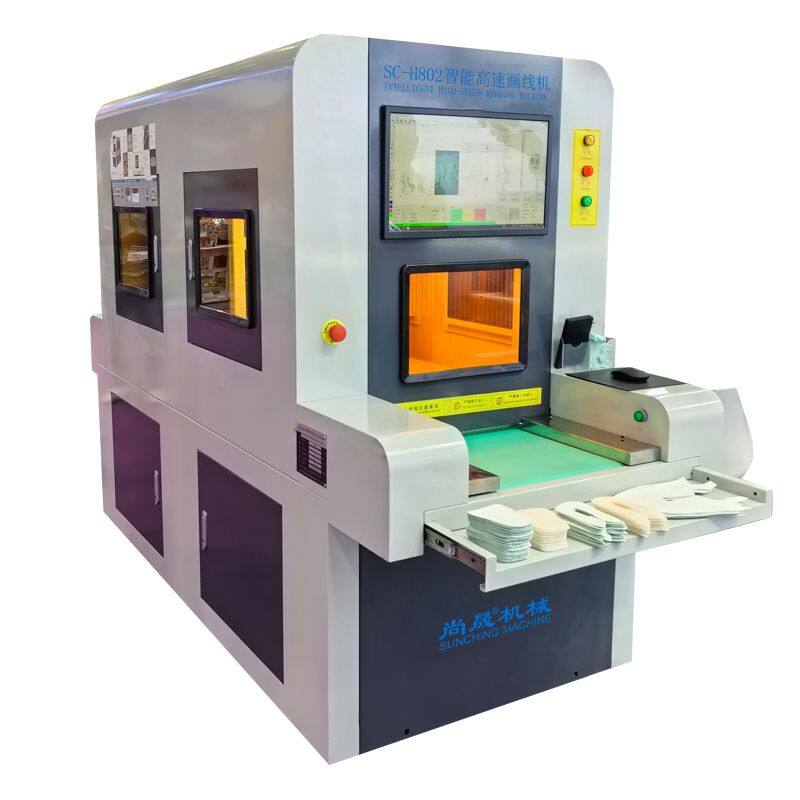

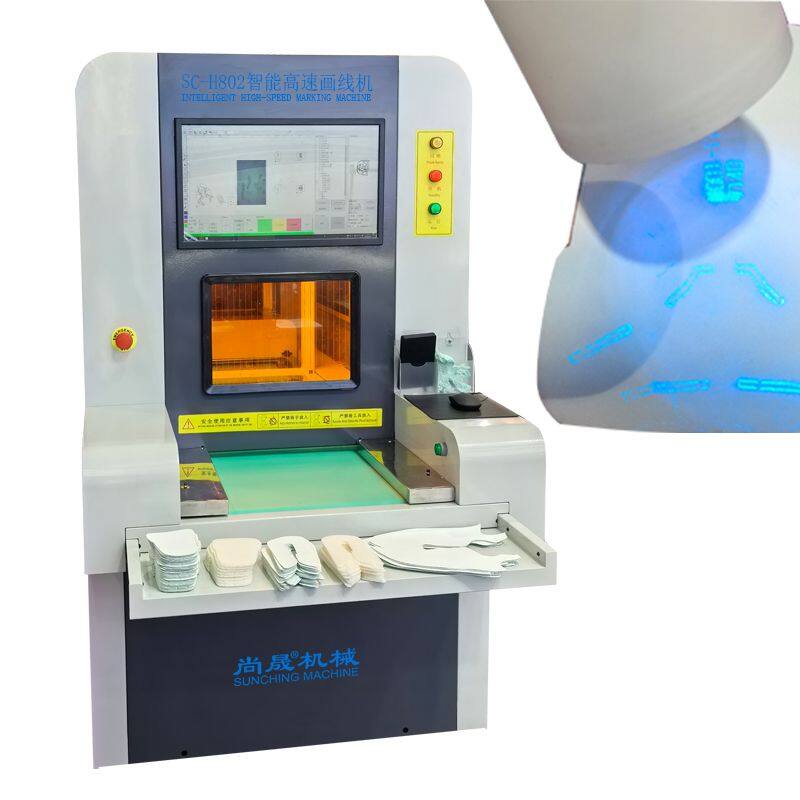

SC-802INTELLIGENT HIGH-SPEED MARKING MACHINE
（Product brief introduction）： |

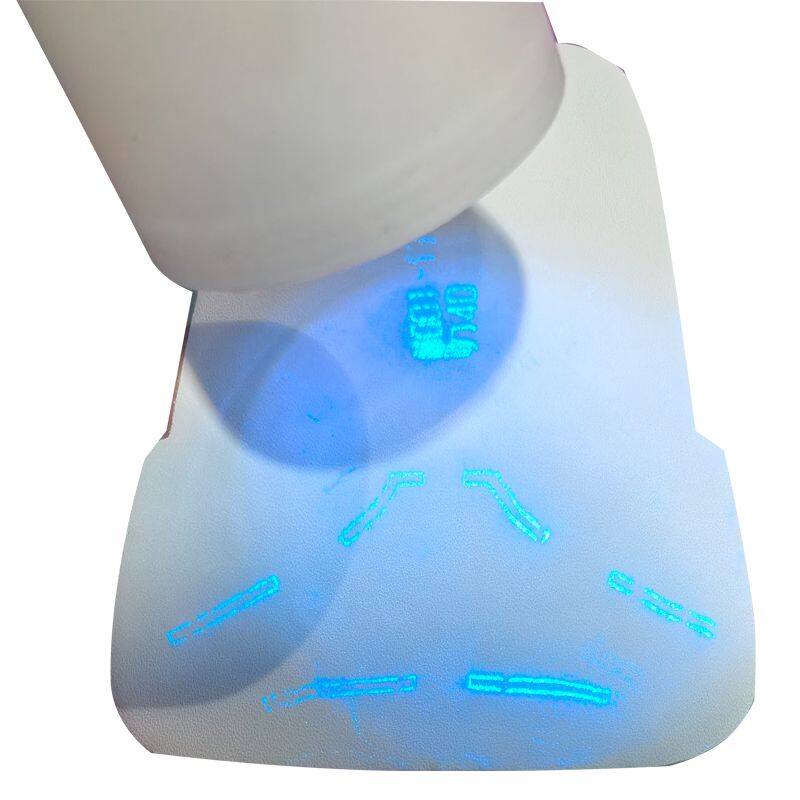

The SC-H802 upper marking machine is used for automatically drawing precise sewing marking lines on uppers made of materials such as leather, synthetic leather, or fabrics. By importing templates, it replaces traditional manual marking, can efficiently complete the
positioning of complex patterns, ensures accurate alignment in the sewing process, and improves product consistency.
CHARACTERS
.Vision Positioning System: Equipped with high-speed industrial cameras and utilizing dynamic vision algorithms.
it achieves high-precision and efficient performance.
.Mechanical Structure Optimization: Featuring a narrow-width conveyor belt design, the footprint is reduced by
60% compared to traditional equipment. The material feeding process is seamless without waiting, and the drawing efficiency is increased by three times.
. Intelligent Inkjet System: 16 ink cartridges are arranged in a horizontal array, equipped with an ink cartridge maintenance system to extend the service life of the cartridges.
.Intelligent Control System: 24 inch industrial display screen, PLC central control system, graphical operation interface in both Chinese and English, with self diagnostic fault prompts.
Technical Specifications: |
Model | Voltage | Power | Pressure | Work Speed | NW | Machine Size |
SC-H802 | 220V/50HZ | 1.1KW | 0.4pa | 30/min | 500KG | 270*985*178CM |
