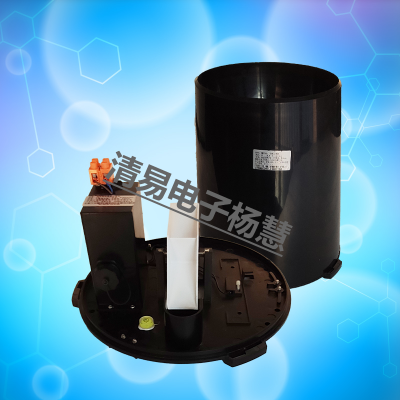

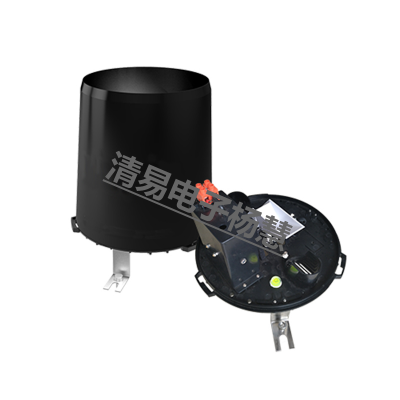

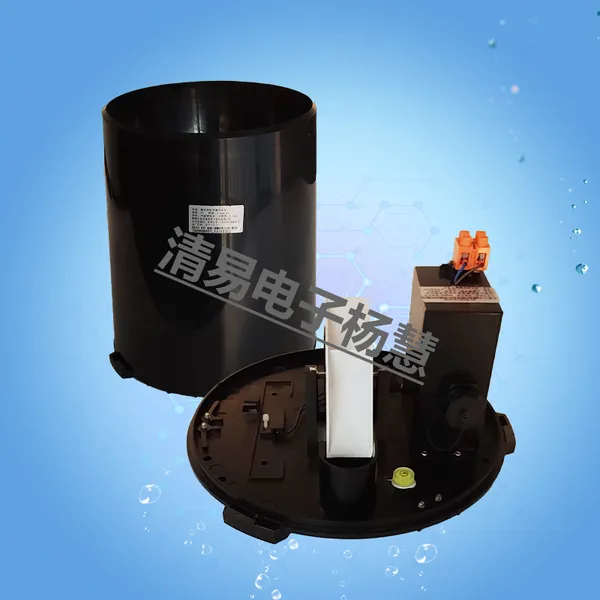

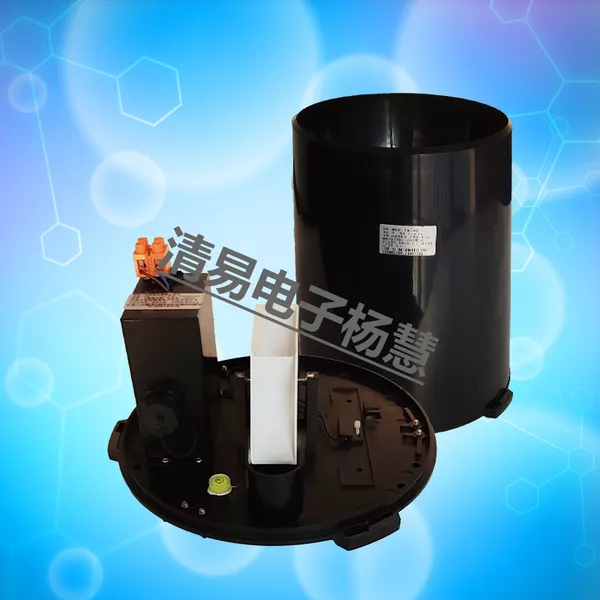

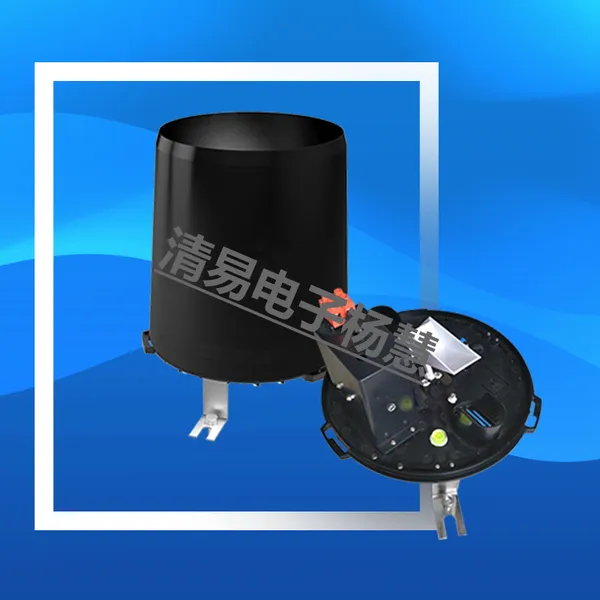

Tipping Bucket Rainfall Sensor Long Standby Timerainfall Recorder Low Power Rainfall Recorder
US$ 703
1 - 9 Unit
US$ 500
≥10 Unit
Key Specifications
Get Latest Price
Warranty:
1
Trademark:
qingyi
Origin:
china
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
Integrated Meteorological Station Ultrasonic Integrated Weather Station, c, Automatic Weather StationUS$ 2813MOQ: 1 Combo -
Soil Temperature and Humidity Speed Measuring Instrument ,Soil Moisture AnalyzerUS$ 300 - 700MOQ: 1 Combo
-
QS-Fs Wind Speed SensorUS$ 60MOQ: 1 Unit
-
Wind Direction Sensor for Weather StationUS$ 55 - 70MOQ: 1 Unit
-
Fdr Frequency Domain Method Agriculture Soil Moisture Sensor, Meter for Greenhouse UsingUS$ 50 - 100MOQ: 1 Unit
Warranty
1
Trademark
qingyi
Origin
china
Product Description
As every update to rainfall recorder, rainfall recorder of each generation is the progress of science and technology.From the metal to the ABS material, from split to one, the update of the whole product after the upgrade has a built-in battery can be used for five years, without external power supply.
A built-in filter circuit is adopted to eliminate peak interference by resistance capacitance,can effectively solve the problem of turning once, output multiple rainfall signals.
Features:
1.Small volume,simple operation, reliable performance, recording interval can be set arbitrarily between 1 minutes and 24 hours according to the requirement.
2.It is made of ABS engineering plastics without rust and good appearance quality.
3.The rainwater inlet is made of ABS engineering plastics, with high smoothness and low error caused by stagnant water.
4.The supporting system of the tipping bucket component is well made and the friction torque is small, so the tilting parts are sensitive to rotation, stable in performance and reliable in operation.
5.The interior of the chassis is equipped with a horizontal adjusting bubble, which can assist the bottom angle to adjust the equipment to the optimum level.
Powerful software
Convenient check data
Powerful software, convenient check data
Handover of Chinese and English software
This software is for Chinese and English software, and supports the free switching of two languages in Chinese and English.
EXCEL table storage
Can not regularly export data recorder to the computer, stored as EXCEL table file.
Automatic statistics
The software can set up the interval of data acquisition, and can automatically gather statistics and automatically calculate the rainfall per minute, hour, day, month and year.
Application area
Rainfall recorder can be widely used in meteorology, agriculture, industrial automation, intelligent building system, workshop, warehouse, museum, laboratory, greenhouse and other occasions. Both for the meteorological station (station), hydrologic station, agriculture, national defense, field monitoring stations and other relevant departments to measure the amount of precipitation, precipitation intensity, precipitation time and other parameters to provide the original data; but also for the rainfall data of flood control, water supply dispatching, power plant, reservoir water management to provide a reference value.
Basic parameters
A built-in filter circuit is adopted to eliminate peak interference by resistance capacitance,can effectively solve the problem of turning once, output multiple rainfall signals.
Features:
1.Small volume,simple operation, reliable performance, recording interval can be set arbitrarily between 1 minutes and 24 hours according to the requirement.
2.It is made of ABS engineering plastics without rust and good appearance quality.
3.The rainwater inlet is made of ABS engineering plastics, with high smoothness and low error caused by stagnant water.
4.The supporting system of the tipping bucket component is well made and the friction torque is small, so the tilting parts are sensitive to rotation, stable in performance and reliable in operation.
5.The interior of the chassis is equipped with a horizontal adjusting bubble, which can assist the bottom angle to adjust the equipment to the optimum level.
Powerful software
Convenient check data
Powerful software, convenient check data
Handover of Chinese and English software
This software is for Chinese and English software, and supports the free switching of two languages in Chinese and English.
EXCEL table storage
Can not regularly export data recorder to the computer, stored as EXCEL table file.
Automatic statistics
The software can set up the interval of data acquisition, and can automatically gather statistics and automatically calculate the rainfall per minute, hour, day, month and year.
Application area
Rainfall recorder can be widely used in meteorology, agriculture, industrial automation, intelligent building system, workshop, warehouse, museum, laboratory, greenhouse and other occasions. Both for the meteorological station (station), hydrologic station, agriculture, national defense, field monitoring stations and other relevant departments to measure the amount of precipitation, precipitation intensity, precipitation time and other parameters to provide the original data; but also for the rainfall data of flood control, water supply dispatching, power plant, reservoir water management to provide a reference value.
Basic parameters
| Measurement range | 0 ~ 30mm/min |
| Measurement accuracy | ±0.2mm |
| Resolution | 0.1mm |
| Measurement error | ±2% |
| Record interval | 1 minutes to 24 hours (can be set) Storage capacity: 16MB (continuous storage of data for 10 years) |
| Data export | USB interface, convenient for data presentation |
| Water bearing diameter | φ200mm |
| Material | high quality ABS |
| Power supply | built in lithium battery (theoretical life 3 to 5 years) |
| Working temperature | -40 C --70 C (non ice state) |
| Matching products | 2.3 meters stainless steel bracket (need to buy separately |
