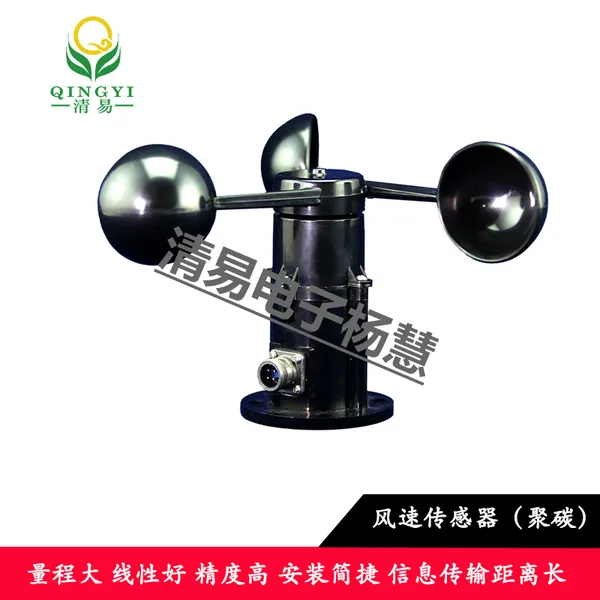

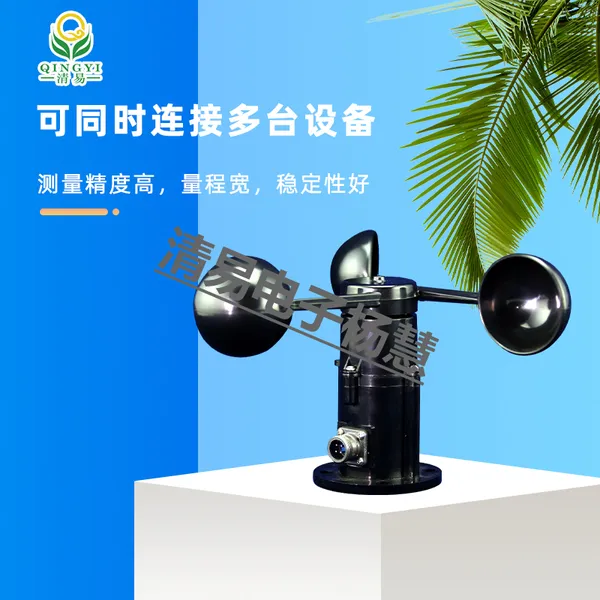

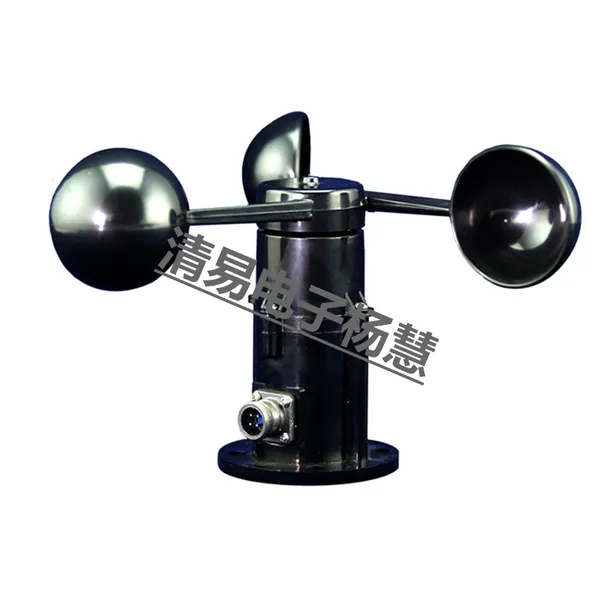

Help CenterQS-Fs Wind Speed Sensor
US$ 60
≥1 Unit
Key Specifications
Get Latest Price
Warranty:
1
Specification:
50-100g
Trademark:
qingyi
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
Wind Direction Sensor for Weather StationUS$ 55 - 70MOQ: 1 Unit -
Fdr Frequency Domain Method Agriculture Soil Moisture Sensor, Meter for Greenhouse UsingUS$ 50 - 100MOQ: 1 Unit
-
Ultrasonic Wind Speed and Direction Sensor, Anemometer, Wind Speed Transmitter, Signal: 4~20mA/RS485, Contains Computer SoftwareUS$ 655 - 703MOQ: 1 Unit
-
Qycg-R01 Economical ABS Plastic Tipping Bucket Rain Gauge SensorUS$ 80MOQ: 1 Unit
-
Qycg-L Illuminance SensorUS$ 150MOQ: 1 Unit
Warranty
1
Specification
50-100g
Trademark
qingyi
Origin
China
Product Description
FEATURES
* Low starting threshold
* Massive all-metal construction
* Strong corrosion resistant ability
* Wide range, good stability
* Various output signals optional
* Easy Installation
APPLICATIONS
* Weather monitoring stations
* Safety monitoring of high altitude equipment
* Ports
* Solar and wind power generation
* Mobile weather monitoring vehicles
* Marine vessels
* Remote airports & helipads
* Road & rail tunnels
SPECIFICATIONS
| Output | Pulses | 4-20mA | RS485 | 0-5V/0-10V/1-5V |
| Supply Voltage | 5-24VDC | 12-24VDC | 12-24VDC | 12-24VDC |
| Load Capacity | >2kΩ | >2kΩ | ||
| Range | 0-30m/s, 0-60m/s |
0-30m/s, 0-60m/s |
0-30m/s, 0-60m/s |
0-30m/s, 0-60m/s |
| Accuracy | ±0.5m/s(±3%FS(≥5m/s) | ±0.5m/s(±3%FS(≥5m/s) | ±0.5m/s(±2%FS(≥5m/s) | ±0.5m/s(±3%FS(≥5m/s) |
| Starting Threshold | ||||
| Limit Wind Speed | 70m/s | |||
| Ingress Protection | IP65 | |||
| Operating Temperature | -30ºC-+70ºC | |||
| Weight(unpacked) | 240g | |||
| Dimension | Cup rotor:ø200mm,Height:150mm | |||
| Main material | Cup:304stainless steel, Main Body:Aluminum alloy | |||
| Finish | Polyester powder electrostatic spraying(black) | |||
| Storage Condition | 10ºC-60ºC@20%-90%RH | |||
