Home > Electrical & Electronics > Electrical Control System > ProSoft PLX31-EIP-SIE Ethernet Communication

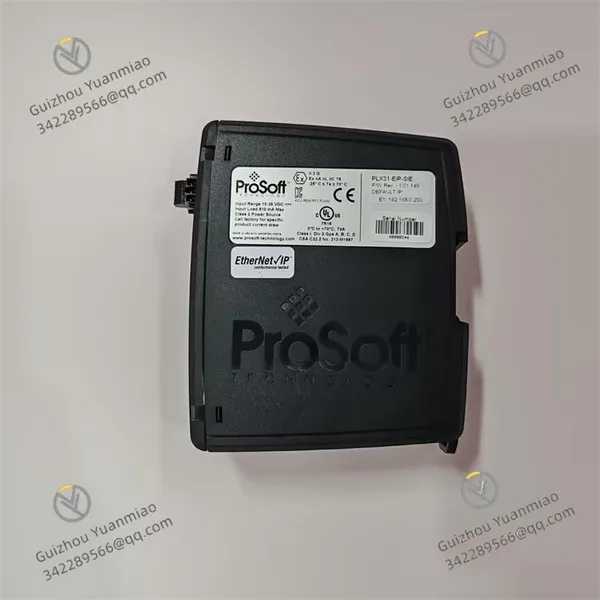

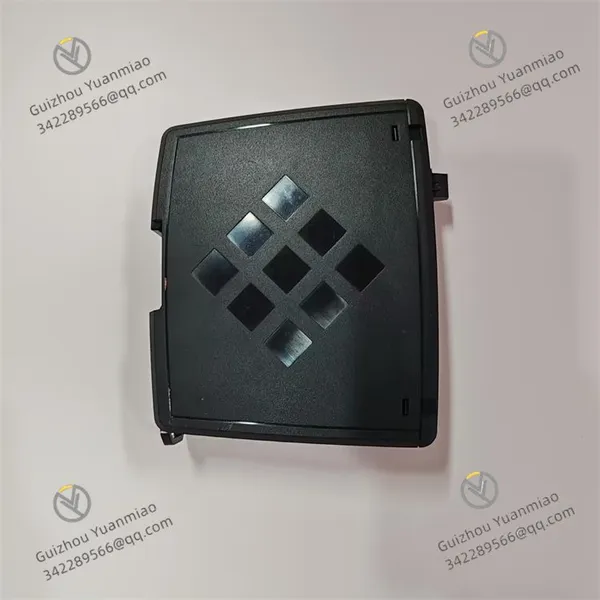

ProSoft PLX31-EIP-SIE Ethernet Communication

ProSoft PLX31-EIP-SIE Ethernet Communication thumbnail-3

ProSoft PLX31-EIP-SIE Ethernet Communication thumbnail-4

ProSoft PLX31-EIP-SIE Ethernet Communication photo-1

ProSoft PLX31-EIP-SIE Ethernet Communication photo-2

ProSoft PLX31-EIP-SIE Ethernet Communication photo-3

ProSoft PLX31-EIP-SIE Ethernet Communication photo-4

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Contact Supplier Request Quote Chat Now

Guizhou Yuanmiao Automation Equipment Co., Ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

guizhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

Operating Temperature -25°C to 70°C (-13°F to 158°F)

Storage Temperature -40°C to 80°C (-40°F to 176°F)

Relative Humidity 5% - 95% (non-condensing)

I. Core Functions

(1) Protocol Conversion to Break Communication Barriers

The core function of the PLX31-EIP-SIE is to realize bidirectional data conversion between EtherNet/IP and Siemens Industrial Ethernet protocols (compatible with mainstream Siemens PLCs such as S7-200, S7-300, S7-400, S7-1200, and S7-1500 PACs). In an automobile manufacturing plant, some equipment in the workshop adopts Rockwell Automation's EtherNet/IP-based control system, while the core monitoring and part of the executive mechanisms of the production line are dominated by Siemens S7 series PLCs. After introducing the PLX31-EIP-SIE gateway, data interaction between devices of different brands becomes smooth. For example, the Rockwell system can obtain real-time equipment operating status and fault information fed back by Siemens PLCs, and at the same time accurately issue production scheduling instructions. This eliminates the "information island" caused by protocol differences and ensures the coordinated operation of the production line.

(2) High-Speed Data Transmission to Meet Real-Time Control Requirements

This gateway features excellent high-speed data transmission capability and low-latency performance. In a high-speed packaging production line, the equipment operates at a speed of hundreds of packages per minute, which places strict requirements on the real-time performance of data transmission. Relying on its optimized hardware architecture and communication algorithms, the PLX31-EIP-SIE supports multiple I/O connections and allows users to flexibly set different Requested Packet Intervals (RPI) for status and control data to optimize Ethernet bandwidth. In practical applications, the entire process—from data collection by sensors, transmission through the gateway to the controller, and finally the response of the executive mechanism—can have a latency as low as the millisecond level. This ensures accurate packaging operations, significantly reduces the defective product rate, and greatly improves production efficiency.

(3) Convenient Configuration to Simplify System Integration Process

Through the ProSoft Configuration Builder software, users can easily configure and monitor the PLX31-EIP-SIE. The software provides an intuitive graphical interface, enabling even non-professional communication engineers to get started quickly. In a newly built food and beverage factory project, technicians used this software to complete gateway parameter settings, variable definitions, and data point mapping in a short period of time. Meanwhile, the gateway has a built-in embedded EDS (Electronic Data Sheet) additional configuration file, which further simplifies integration with the control system, significantly shortens the project commissioning cycle, and reduces engineering costs.

II. Technical Specifications

(1) Electrical and Environmental Adaptability

Power Supply Specifications: Adopts a wide-voltage input design with a nominal voltage of 24VDC and an allowable range of 10VDC to 36VDC. The positive, negative, and ground terminals are clearly marked. In industrial sites with complex power supply environments, such as remote mines or old factories, it can stably obtain power, ensure the continuous operation of equipment, and reduce the risk of shutdown caused by voltage fluctuations or unstable power supply.
Temperature and Humidity Resistance: The operating temperature range is -25°C to 70°C (-13°F to 158°F), and the storage temperature can reach -40°C to 80°C (-40°F to 176°F), with a relative humidity of 5% to 95% (non-condensing). Whether in high-temperature iron and steel smelting workshops, cold outdoor industrial facilities in northern winters, or humid textile factories, the PLX31-EIP-SIE can operate stably, demonstrating strong environmental adaptability.
Shock and Vibration Resistance: Complies with relevant IEC 60068 standards. During operation, it can withstand a shock of 15g acceleration with an 11ms pulse width (3 axes); when not in operation, its shock resistance is enhanced to 30g acceleration with an 18ms pulse width (3 axes). In terms of vibration resistance, it can operate stably at a frequency range of 10Hz to 150Hz with 5g acceleration. In scenarios with frequent vibrations and shocks, such as mining and heavy machinery manufacturing, the gateway can ensure that data transmission is not disturbed by the physical environment.

(2) Network Communication Parameters

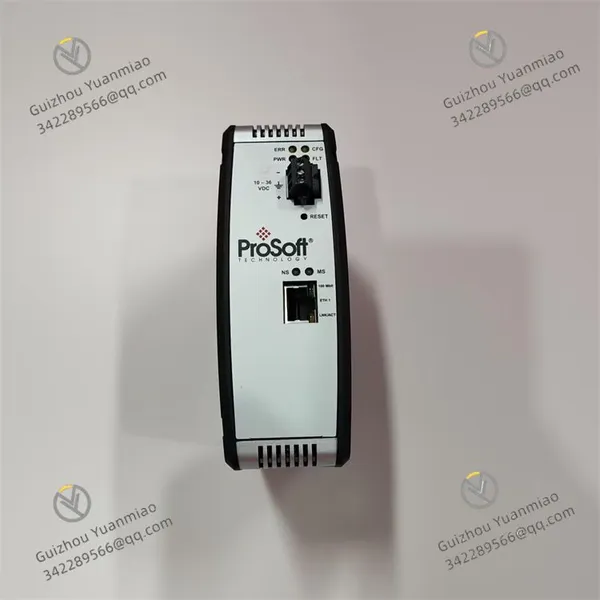

Network Interface: Equipped with one 10/100Mbps Ethernet port, using an RJ45 connector, supporting half-duplex mode, and featuring automatic cable crossover detection, which facilitates on-site wiring and equipment access. At the same time, the port supports 1500Vrms (50Hz to 60Hz, lasting 60 seconds) electrical isolation, effectively resisting common electrical interference in industrial sites, such as leakage from high-voltage equipment and induced electricity, thus ensuring the safety of data transmission.
Broadcast Storm Protection: Possesses excellent Ethernet broadcast storm resilience and can resist broadcast storms with no more than 5,000 (ARP) frames per second and a duration of no more than 5 minutes. In large-scale industrial networks, when a network fault causes a broadcast storm, the gateway can maintain the normal operation of itself and surrounding network devices, preventing network paralysis.

III. Application Scenarios

(1) Upgrade and Transformation of Manufacturing Production Lines

In the electronic manufacturing industry, as the product update cycle accelerates, production lines need to be frequently adjusted and optimized. Most old equipment is based on Siemens Industrial Ethernet, while newly introduced intelligent detection and automated assembly equipment often adopt the EtherNet/IP protocol. The PLX31-EIP-SIE can seamlessly integrate new and old equipment, realize real-time collection and analysis of production data, help enterprises quickly respond to market demands, and improve product quality and production flexibility.

(2) Remote Monitoring and Management in the Energy Industry

In the field of oil and natural gas extraction, production sites are widely distributed and the environment is complex. Through the PLX31-EIP-SIE gateway, data from on-site sensors and intelligent instruments based on EtherNet/IP can be transmitted to the Siemens central control system for centralized monitoring. Even in remote oil wells and gas fields, the gateway can work stably in harsh environments, ensuring that the remote monitoring system obtains real-time equipment operating parameters and alarm information, and providing support for safe production and efficient operation and maintenance.

(3) Intellectualization of Transportation Infrastructure

In urban rail transit systems, some signal control equipment adopts EtherNet/IP, while the integrated monitoring system is based on Siemens technology. The PLX31-EIP-SIE realizes the communication integration of the two, enabling efficient circulation of data such as train operation status and equipment fault information between different systems. This helps subway operation departments grasp the line status in a timely manner, optimize scheduling strategies, and improve operation safety and passenger travel experience.

With its comprehensive and powerful functions, excellent technical specifications, and wide application adaptability, the ProSoft PLX31-EIP-SIE Industrial Ethernet Gateway has become an indispensable key device in the field of industrial automation communication, continuously promoting various industries to move towards a new journey of intelligent and efficient production.

Product Tags: ProSoft , PLX31-EIP-SIE
