MVI56-MNETC PROSOFT Network Interface Module

MVI56-MNETC PROSOFT Network Interface Module thumbnail-1
MVI56-MNETC PROSOFT Network Interface Module thumbnail-2
MVI56-MNETC PROSOFT Network Interface Module thumbnail-3
MVI56-MNETC PROSOFT Network Interface Module thumbnail-4
MVI56-MNETC PROSOFT Network Interface Module thumbnail-5

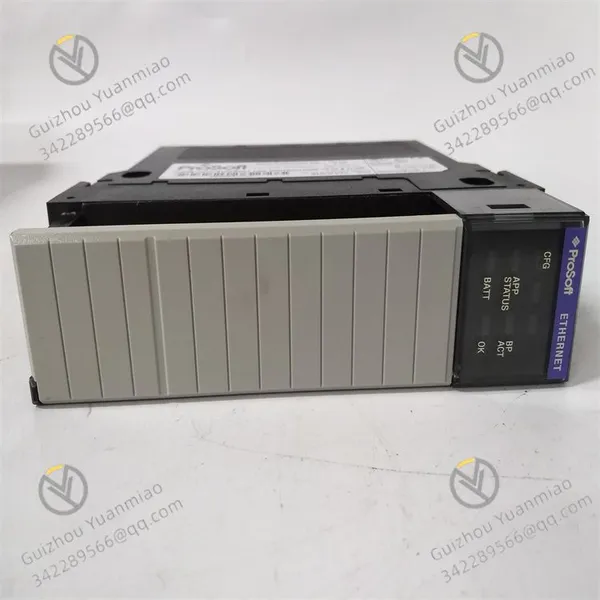

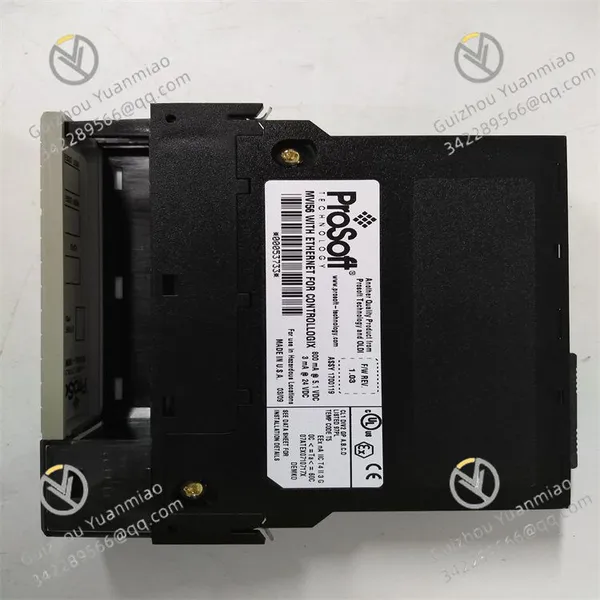

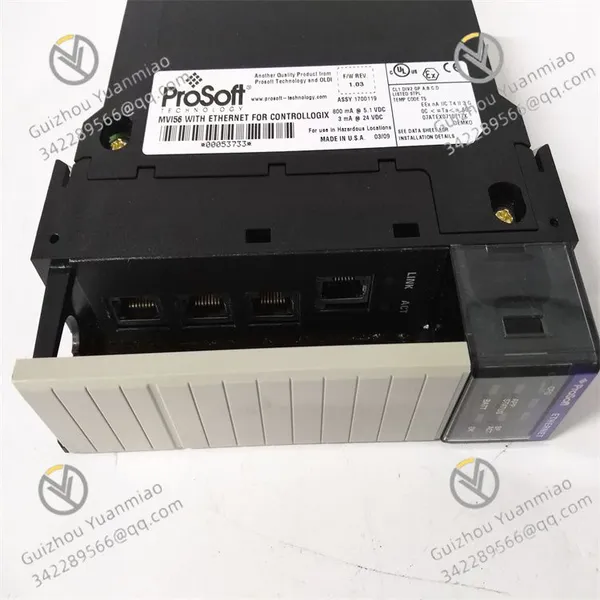

MVI56-MNETC PROSOFT Network Interface Module photo-1
MVI56-MNETC PROSOFT Network Interface Module photo-2
MVI56-MNETC PROSOFT Network Interface Module photo-3
MVI56-MNETC PROSOFT Network Interface Module photo-4
MVI56-MNETC PROSOFT Network Interface Module photo-5
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Global universal model
Condition:
Other, Global universal model
Task:
Other, Global universal model
Contact Supplier Request Quote Chat Now
Guizhou Yuanmiao Automation Equipment Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Other, Global universal model
Condition Other, Global universal model
Task Other, Global universal model
Mathematical Model Other, Global universal model
Signal Other, Global universal model
Customized Non-Customized
Structure Other, Global universal model
Operating temperature -40℃~+85℃
Humidity 5%~95% (non-condensing)




Many products are not on the shelves yet, please contact us for more models.




MVI56-MNETC is a network interface module based on the Modbus TCP/IP protocol launched by ProSoft Technology, mainly used for data communication in the field of industrial automation. Here are its detailed information:

  • Product Parameters:

    • Communication Protocols: Supports Modbus TCP/IP, UDP/IP, and ICMP.

    • Number of Ports: 1 Ethernet port.

    • Operating Temperature Range: -40°C ~ 85°C.

    • Power Supply Voltage: 24V DC.

    • Dimensions: 12.7 x 8.9 x 2.5 cm.

    • Weight: Approximately 100 grams.

    • Data Rate: 10/100 Mbps.

    • Maximum Number of Nodes: Supports up to 64 nodes.

    • Backplane Current Load: 800 mA at 5V DC, 3 mA at 24V DC.

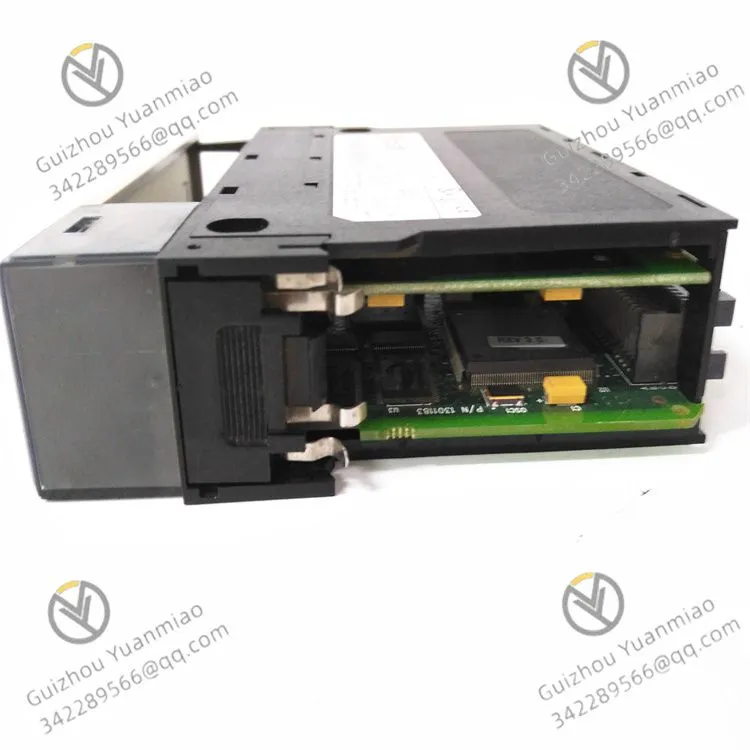

  • MVI56-MNETC (5)_1



  • Product Features:

    • Compatibility: Compatible with ControlLogix and CompactLogix platforms.

    • Remote Configuration and Diagnostics: Supports remote configuration and diagnostic functions, providing a user-friendly web interface to simplify installation and configuration. Built-in diagnostic tools facilitate troubleshooting.

    • Multi-Client and Server Architecture: Supports multi-client and server architecture, with a maximum of 30 Modbus clients and 20 Modbus servers.

    • High-Speed Communication: Supports high-speed data transmission to meet the real-time requirements in industrial automation.

    • Modular Design: Easy to install and maintain, supporting remote or local rack installation.

    • Status Display: There are LED indicators on the front for showing battery status (ERR), application status (APP), and module status (OK). Additionally, a 4-character screen can display module number, version, and other information.

  • Functions and Uses:

    • Realizing Device Connection: Achieves seamless connection between PLCs and Modbus devices.

    • Remote Monitoring and Control: Provides remote monitoring and control functions to optimize the production process.

    • Supporting Multi-Device Access: Supports access of multiple devices, improving the scalability and flexibility of the system.

    • Wide Application Fields: Widely used in industrial automation, energy management, building automation, process control, Internet of Things (IoT), and other fields.

    MVI56-MNETC (6)
