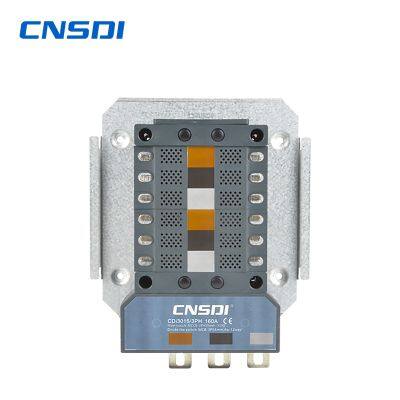

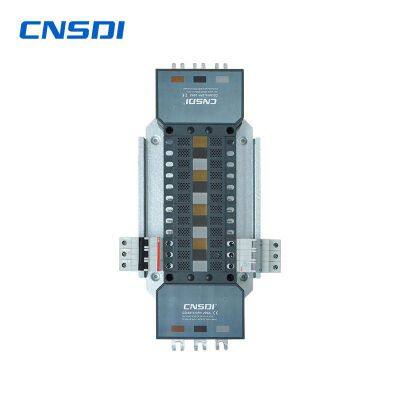

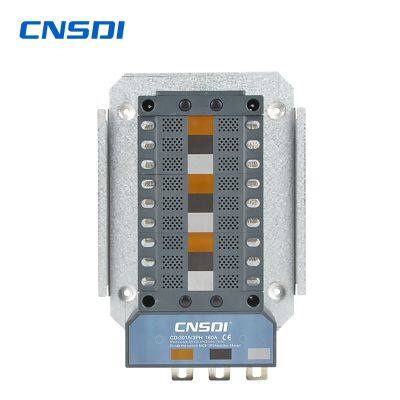

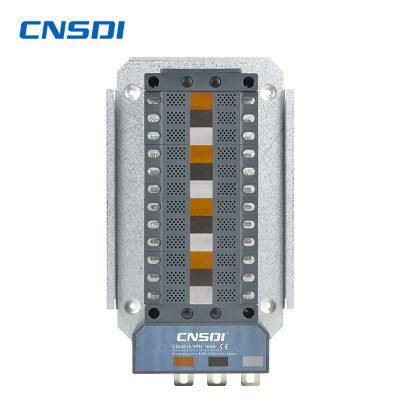

CDi3015-3PH 160A 24Ways MCB Pan Assembly Busbar Chassis, Top or Bottom
- Ningbo
- T/T L/C PayPal
- 15 days
You May Like
-
CDi3015-4PN 160A 24Ways MCB-2P Pan Assembly Busbar Chassis, Top or Bottom
-
CDi3015-4PN 160A 24Ways MCB-4P Pan Assembly Circuit Breaker Busbar System, Top or Bottom
-
CDi3015-4PN 160A 36Ways MCB-dpn Pan Assembly Circuit Breaker Busbar System, Top or Bottom
-
CDi3015-4PN 160A 24Ways MCB-idpnLE Pan Assembly Circuit Breaker Busbar System, Top or Bottom
-
CNSDI 250A MCB Pan Assembly Busbar Chassis With 6way 8way 10way for Distribution Board
-
CNSDI Pin Type 63A Copper Comb Busbar With PVC Enclosure for Circuit Breaker
Product Details
| Application | Integrated IC | Interface Type | AC/DC | |
| Brand | Other, CNSDI | Transport Package | Carton packaging | |
| Specification | 160A | Trademark | CNSDI | |
| Origin | ZHEJIANG |
Product Description
Product Parameter
Brand: cnsdi
Product or component type:Pan Assembly Busbar
Device application:Distribution board
Part code: CDi3015-3PH 160A/08W
Amperage Rating:160 A
Network type:AC
Rated voltage:415 V 50 Hz
Short-circuit withstand:25 kA 0.1 s
[Ui] rated insulation voltage:500 V
[Uimp] rated impulse withstand voltage:6 kV
Number of ways:1 way (incomer) - 3P
Number of poles:24 x 18 mm
Number of poles:24
Standards:IEC/EN 60947-7-1
CNSDI’s CDi3015-3PH MCB Busbar Pan Assembly is a high-performance electrical distribution solution. This isolation Busbar chassis provides a quick and easy method to connect MCBs.The Ie rated operational current 160A and Ue rated operational voltage of 415V at 50 Hz This chassis can have both top or bottom feeding This Chassis is compatibility with incomer 3Ph and ootgoer 1P or 3P devices The number of outgoing ways in Chassis is 24 with pitch of 18mm. It is suitable for standard, commercial and industrial applications. The Ui rated insulation voltage is 500VAC with Uimp rated impulse voltage of 6kV.This product complies with IEC/EN 60947-7-1 standard.
