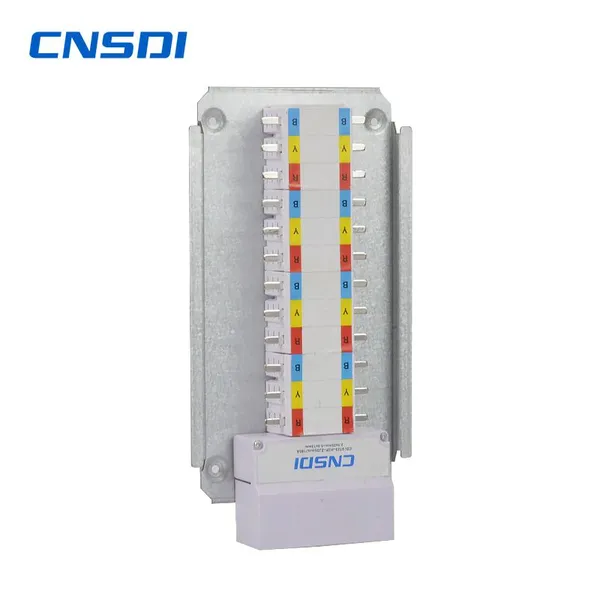

Help CenterCNSDI Compact Design 160A Din Rail Pan Assembly With 6way 8way 10way for Distribution Board
Related Products
-
CNSDI 125A Busbar Chassis With 6way 8way 10way for Distribution BoardNegotiableMOQ: 50 Sets -
CDi-PG22-3PH 225A 30Ways Pan Assembly Busbar Chassis,for Most MCB, Top or BottomNegotiableMOQ: 100 Sets
-
CNSDI 160A-200A Pan Assembly MCB Circuit Breaker Busbar System 3015 BusbarNegotiableMOQ: 10 Combos
-
CDi3015-3PH 160A 24Ways MCB Pan Assembly Busbar Chassis, Top or BottomNegotiableMOQ: 10 Sets
-
CDi3015-4PN 160A 24Ways MCB-2P Pan Assembly Busbar Chassis, Top or BottomNegotiableMOQ: 10 Sets
Product Parameter
Brand: cnsdi
Product or component type:pan assembly
Device application:Distribution board
Part code: CDi0723-3PH 160A/08W
Amperage Rating:160 A
Network type:AC
Rated voltage:415 V 50 Hz
Short-circuit withstand:25 kA 0.1 s
[Ui] rated insulation voltage:500 V
[Uimp] rated impulse withstand voltage:6 kV
Number of ways:1 way (incomer) - 3P
Number of poles:24 x 18 mm
Number of poles:24
Standards:IEC/EN 60947-7-1

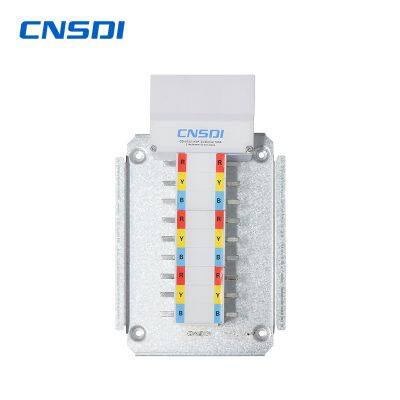

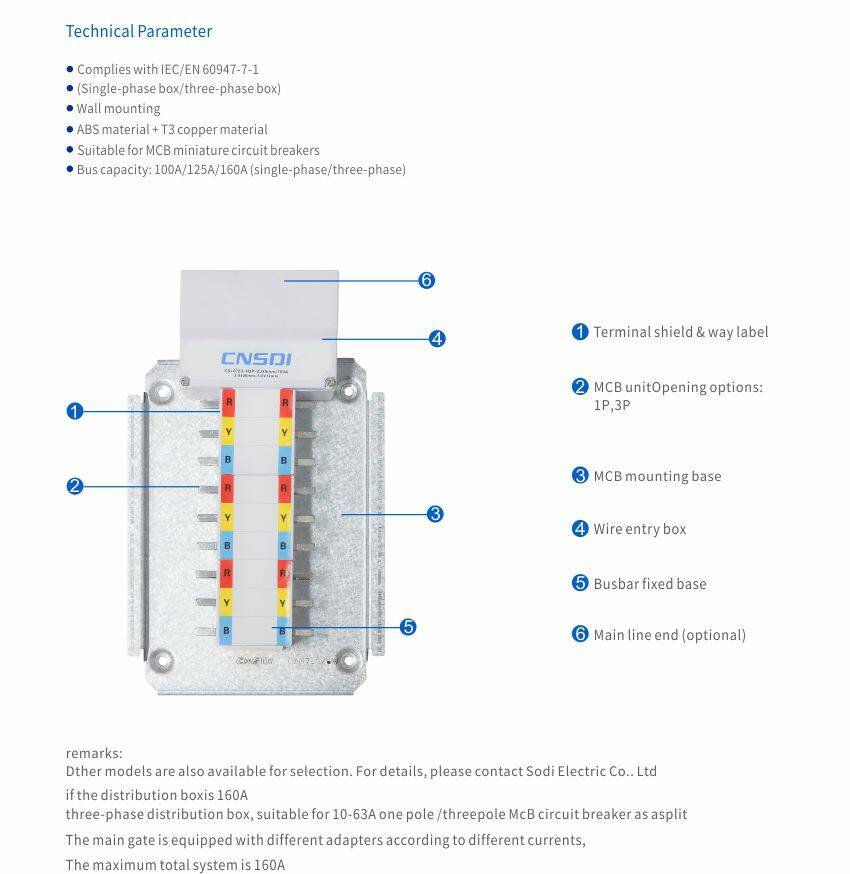

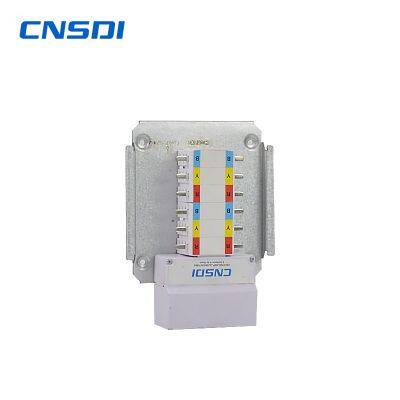

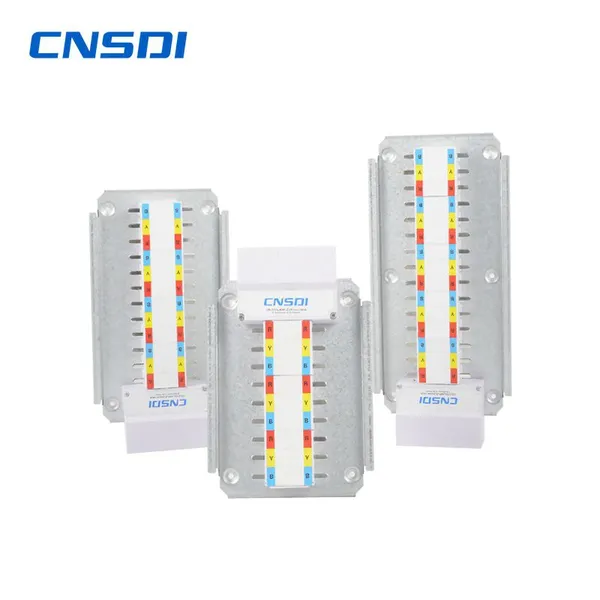

CNSDI’s CDi0723-3PH Busbar Pan Assembly is a high-performance electrical distribution solution. This isolation pan assembly provides a quick and easy method to connect MCBs.The Ie rated operational current 160A and Ue rated operational voltage of 415V at 50 Hz This pan assembly can have both top or bottom feeding This pan assembly is compatibility with incomer 3Ph and ootgoer 1Ph or 3P devices The number of outgoing ways in Pan assembly is 24 with pitch of 18mm. It is suitable for standard, commercial and industrial applications. The Ui rated insulation voltage is 500VAC with Uimp rated impulse voltage of 6kV.This pan assembly product complies with IEC/EN 60947-7-1 standard.
Send Inquiry to This Supplier
