Help CenterCDi3015-4PN 160A 36Ways MCB-dpn Pan Assembly Circuit Breaker Busbar System, Top or Bottom
Related Products
-
CDi3015-4PN 160A 24Ways MCB-idpnLE Pan Assembly Circuit Breaker Busbar System, Top or BottomNegotiableMOQ: 10 Sets -
CNSDI 250A MCB Pan Assembly Busbar Chassis With 6way 8way 10way for Distribution BoardNegotiableMOQ: 50 Sets
-
CNSDI Compact Design 160A Din Rail Pan Assembly With 6way 8way 10way for Distribution BoardNegotiableMOQ: 50 Sets
-
CNSDI 125A Busbar Chassis With 6way 8way 10way for Distribution BoardNegotiableMOQ: 50 Sets
-
CDi-PG22-3PH 225A 30Ways Pan Assembly Busbar Chassis,for Most MCB, Top or BottomNegotiableMOQ: 100 Sets
Product Parameter
Brand: cnsdi
Product or component type:Pan Assembly Busbar
Device application:Distribution board
Part code: CDi3015-4PN 160A/dpn18W
Amperage Rating:160 A
Network type:AC
Rated voltage:415 V 50 Hz
Short-circuit withstand:25 kA 0.1 s
[Ui] rated insulation voltage:500 V
[Uimp] rated impulse withstand voltage:6 kV
Number of poles:36 x 18 mm
Number of poles:36
Standards:IEC/EN 60947-7-1

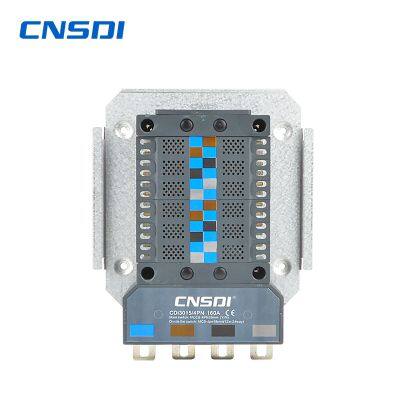

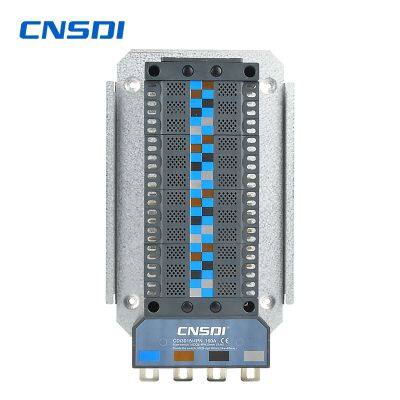

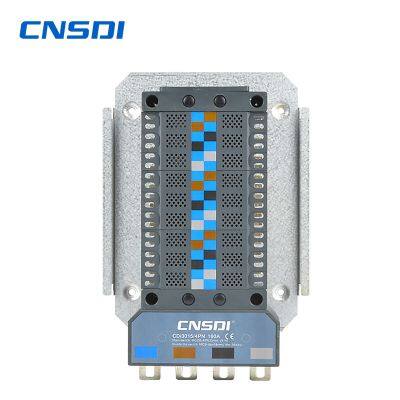

This CDi3015-4PN/160A product is a pan assembly which can be installed in distribution board Distribution board provides 36 outgoing ways. Incomer device options 4P switch disconnector,dpn terminal block, 1P+N RCCB contactor. The protection device options at outgoer is dpn miniature circuit breaker (MCB) is 63A maximum.This pan assembly is provided with a mounting plate. This product complies with IEC/EN 60947-7-1 standard.
