Honeywell LCNP4E 51405098-100 Interface Desktop Card

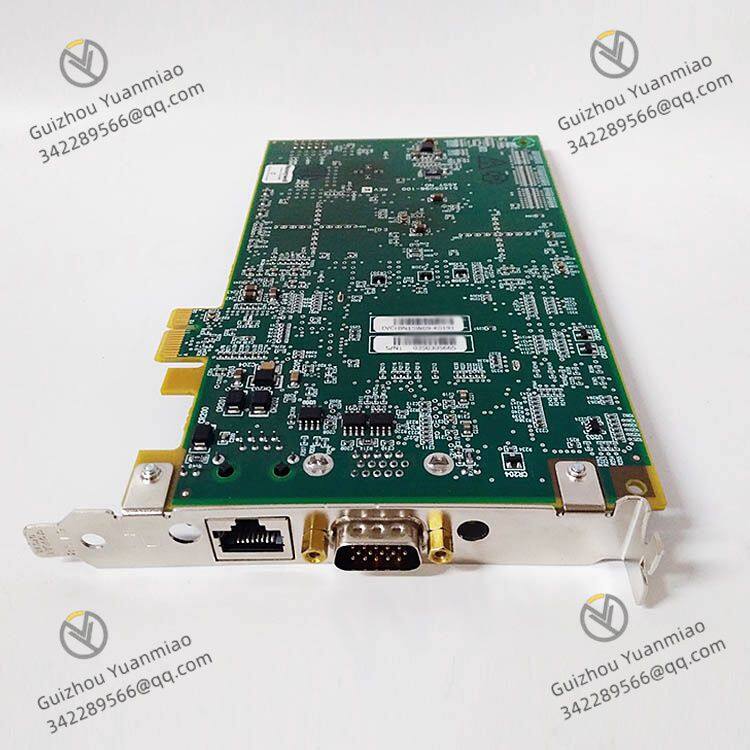

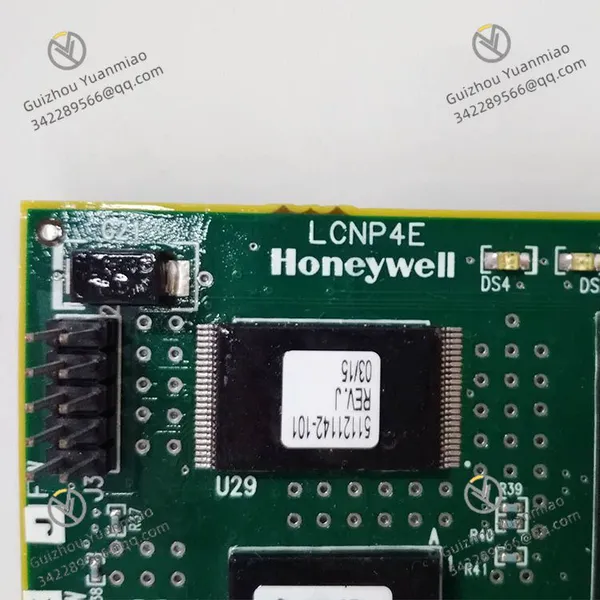

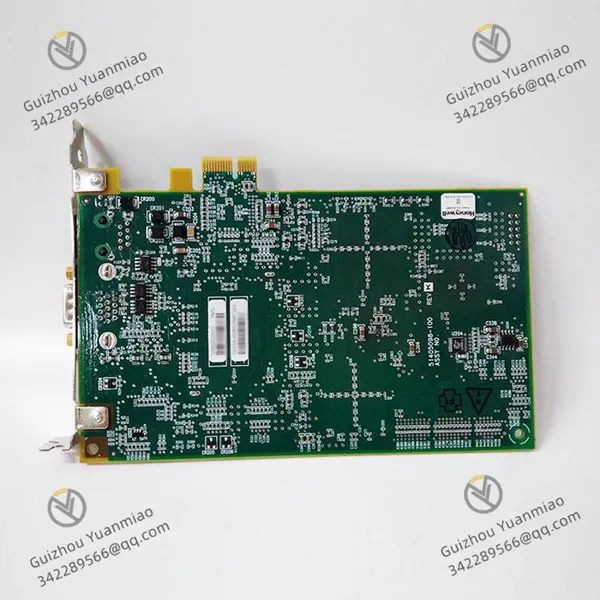

The Honeywell LCNP4E 51405098-100 Interface Desktop Card is a core communication interface component in Honeywell's industrial automation control systems. It is mainly used to solve the "data interconnection" problem between different devices and control systems in industrial scenarios, and is widely compatible with mainstream industrial control platforms such as Honeywell Experion PKS (Process Knowledge System). It is a key piece of hardware that ensures stable data transmission and compatibility in industrial production processes.

• Ethernet Interface: Equipped with one or more RJ45 Ethernet ports (the specific number is subject to the physical product), supporting 10/100Mbps adaptive transmission rate. It can be directly connected to industrial Ethernet switches, Experion hosts, or GUS (Global User Station), enabling high-speed data interaction.

• Serial Communication Ports: Integrated with dual serial ports (RS-232 and RS-485), among which:

• RS-232 Port: Suitable for short-distance (usually ≤15 meters) point-to-point device connection, such as connecting local debugging terminals, small sensors, or configuration interfaces of third-party devices;

• RS-485 Port: Supports multi-node (up to 32 nodes) half-duplex communication, with a transmission distance of up to 1200 meters. It is compatible with the network connection of distributed sensors, actuators, and other devices in industrial sites, and has the characteristic of strong anti-interference ability.

• Mainstream Industrial Ethernet Protocols: Supports Ether/IP (Ethernet Industrial Protocol, compatible with devices of brands such as Rockwell), PROFINET (an industrial Ethernet protocol led by Siemens, commonly used in smart manufacturing scenarios), and Modbus-TCP (a Modbus protocol based on TCP/IP, widely used in industrial controllers, instruments, and other devices);

• Serial Communication Protocols: Supports Modbus-RTU (a serial Modbus protocol based on RS-485/RS-232, commonly used in traditional industrial on-site devices) and ASCII protocol (a communication protocol for some old instruments or sensors);

• Honeywell Proprietary Protocol: Deeply compatible with the Honeywell LCN (Local Control Network) protocol, it can serve as a "communication bridge" between the LCN network and Experion hosts/GUS, realizing closed-loop data transmission within Honeywell's own control system.

• Temperature Adaptation Range: Operating temperature ranges from -40°C to +85°C (wide-temperature design, enabling stable operation in harsh industrial scenarios such as outdoor control cabinets in northern winter and high-temperature workshops in southern summer); the storage temperature also ranges from -40°C to +85°C (facilitating environmental adaptation during long-term inventory or transportation);

• Voltage Stability: Supports a voltage fluctuation range of 24V DC ±10% (power supplies on industrial sites often have slight fluctuations, and this design can prevent equipment downtime caused by unstable voltage);

• Anti-Interference Ability: Equipped with EMC (Electromagnetic Compatibility) protection performance, it can resist electromagnetic interference generated by devices such as motors and frequency converters on industrial sites, ensuring no packet loss or error codes in communication data;

• Reliability Index: Mean Time Between Failures (MTBF) ≥ 50,000 hours (meeting the high reliability requirements of industrial-grade equipment and reducing maintenance frequency).

• Cross-Network Data Interaction: Realizes bidirectional data transmission between Honeywell's LCN local control network and Experion hosts/GUS global user stations. For example, it uploads process data such as temperature and pressure collected by on-site controllers (such as Honeywell TDC series) in the LCN network to the Experion host, and simultaneously transmits control commands issued by the host (such as valve opening adjustment and pump start-stop signals) to the executive equipment in the LCN network;

• Multi-Protocol Conversion: Solves the problem of "protocol incompatibility" between different devices. For instance, it converts data transmitted by third-party sensors via the Modbus-RTU protocol into the Ether/IP protocol and then transmits it to the Experion PKS system, or conversely converts system commands into serial protocols and issues them to traditional devices;

• Data Caching and Diagnosis: Built-in data caching module, which can temporarily store key data when the network is temporarily interrupted to avoid data loss; at the same time, it supports real-time communication status diagnosis, and feeds back the equipment operation status through LED indicators (such as power light, communication status light, fault light) or software interfaces, facilitating maintenance personnel to quickly locate faults (such as communication interruption, protocol mismatch, etc.).

• Petrochemical and Chemical Processing: In oil refineries and chemical plants, it connects the on-site Distributed Control System (DCS) with the central monitoring host, transmits key process data such as reactor temperature, pipeline pressure, and flow rate, and ensures precise control and safety monitoring of the production process;

• Power Industry: In thermal power plants and substations, it is compatible with PLC (Programmable Logic Controller) and SCADA (Supervisory Control And Data Acquisition) systems, transmits generator set operation parameters, power grid voltage and current data, and supports remote monitoring and dispatching;

• Water Treatment and Environmental Protection: In sewage treatment plants and waterworks, it connects water quality sensors (such as pH sensors and turbidity sensors) with the central control system, realizes real-time upload and processing of water quality data, and issues control commands such as aeration and chemical dosing to ensure that the water treatment process meets standards;

• Smart Manufacturing and Discrete Manufacturing: In factories for auto parts production and electronic equipment assembly, it connects robots, conveyors, testing equipment on the production line with the MES (Manufacturing Execution System), transmits data such as production progress and equipment operation status, and supports flexible production and quality traceability;

• Building Automation: In large commercial complexes and smart parks, it connects the controllers of air conditioning systems, lighting systems, and security equipment with the Building Automation System (BAS), realizes equipment status monitoring and energy-saving control, such as automatically adjusting the air conditioning operation mode according to the indoor temperature.

• Installation Method: Adopts desktop installation or standard DIN rail installation (requires matching brackets). The installation environment must meet the following conditions: temperature ranging from -40°C to +85°C, relative humidity ranging from 10% to 90% (no condensation), and direct exposure to dust, corrosive gases, and strong magnetic fields should be avoided;

• Power Connection: A 24V DC power supply that meets specifications must be used. The positive and negative poles of the power supply must be connected strictly in accordance with the markings in the product manual to avoid equipment damage caused by reverse connection;

• Grounding Requirements: The equipment enclosure must be reliably grounded (grounding resistance ≤ 4Ω) to enhance anti-interference ability and ensure communication stability and operator safety.

• System Compatibility: Only compatible with Honeywell Experion PKS V3.0 and above systems, and GUS V8.0 and above user stations. When connecting to control systems of other brands, the protocol compatibility must be confirmed in advance;

• Module Matching: It can be used in conjunction with Honeywell LCN series control modules (such as IC697 series) and Ethernet switches (such as Honeywell HES series). When connecting to third-party devices, it is necessary to ensure that the communication protocols match (such as Modbus, PROFINET, etc.);

• Software Configuration: Parameter settings must be performed through Honeywell's dedicated configuration software (such as Experion Configuration Studio), including communication port rate, protocol type, IP address (Ethernet port), node address (RS-485 port), etc. After configuration, a communication test must be conducted to ensure normal data transmission.
