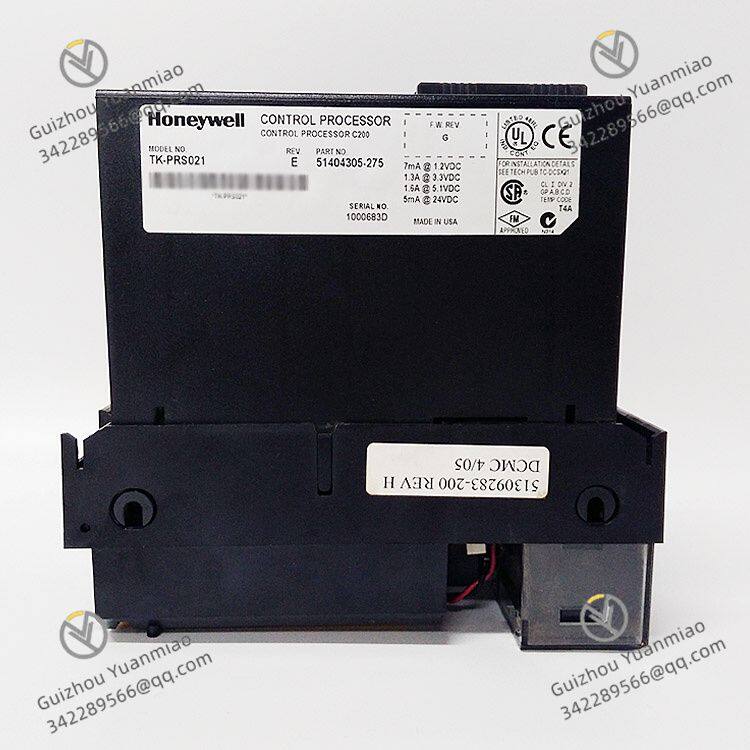

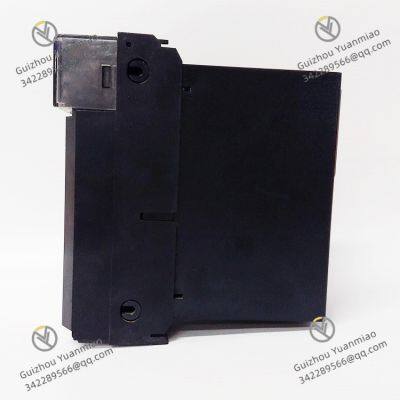

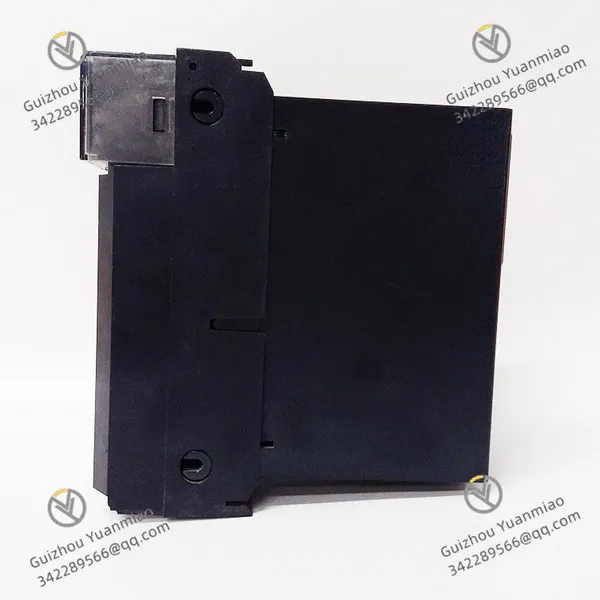

Honeywell TK-PRS021 51404305-275 Control Processor Module

The Honeywell TK-PRS021 (part number: 51404305-275) is the core computing unit of the C200/C200E controller under Honeywell’s Experion PKS (Process Knowledge System). Positioned as an "industrial-grade high-reliability real-time control processor," it is specifically designed for closed-loop control, logical interlocking, and data processing in critical process industries such as petrochemicals, electric power, and metallurgy. Its design integrates three core features: "high-performance computing," "redundancy compatibility," and "harsh environment adaptation," making it the key hardware carrier for Honeywell to achieve "integrated distributed control and centralized monitoring."

• TK-PRS021: Product model, specifying function and adaptability

• "TK": A general prefix for modules in the C200/C200E controller series of the Experion PKS system, distinguishing it from the Triconex safety system (prefix "TS");

• "PRS": Function code, where "P" = Process Control, "R" = Real-time, and "S" = Processor, directly indicating its core attribute as a "real-time process control processor";

• "021": Hardware version number, representing the second-generation design (the first generation is version 010). It optimizes CPU frequency, memory bandwidth, and communication interface speed, is compatible with Experion PKS V4.0 and above firmware versions, and supports more control algorithm libraries.

• 51404305-275: Globally unique part number, used for production traceability and spare parts management

• The first 8 digits "51404305": Basic module code, identifying the "C200/C200E controller main processor unit";

• The last 3 digits "275": Configuration suffix, representing "with built-in lithium battery backup + Profibus-DP communication interface," distinguishing it from "270" (without lithium battery) and "280" (explosion-proof certified version, adapted for hazardous areas).

• Real-Time Scheduling Mechanism: Adopts a "priority preemptive scheduling" algorithm, classifying tasks into 3 priority levels (high/medium/low):

• High priority: Emergency interlocking (e.g., emergency shutdown ESD signal processing), response time ≤ 1ms;

• Medium priority: Closed-loop control (e.g., PID regulation), configurable scan cycle of 1ms-100ms;

• Low priority: Data processing (e.g., historical data storage, alarm statistics), cycle of 100ms-1s;
  This ensures that critical control tasks are not blocked by low-priority tasks, avoiding process out-of-control caused by computing delays.

• Seamless Redundancy Compatibility: As the main processor of the C200/C200E controller, it can be paired with the redundancy module TK-PRR021 to form a "1+1 hot standby architecture":

• When the main processor (TK-PRS021) is running, it synchronizes control programs, I/O statuses, and PID parameters to the standby processor in real time (synchronization cycle ≤ 1ms);

• When the main processor fails, the standby processor takes over control within 10ms, and the switchover process is disturbance-free (control output remains continuous without jumps), meeting SIL 2 safety level requirements (requiring matching safety-certified components).

• Fault Self-Recovery: Built-in "software watchdog" and "hardware reset" mechanisms:

• If the program crashes or enters an infinite loop, the software watchdog (100ms timeout) triggers a "hot reset" (only restarts the program without interrupting power supply, recovery time <1s);

• If a hardware fault occurs (e.g., memory error), the hardware reset circuit triggers a "cold reset" and sends a fault code to the upper computer via the communication interface, facilitating quick fault location.

• Local Communication (with I/O Modules): Connects to C200 series I/O modules (e.g., AI module TK-AI161, DO module TK-DO161) via an internal backplane bus (Honeywell proprietary protocol) with a communication rate of 100Mbps. It can manage up to 64 I/O modules simultaneously, collect/output 1,024 I/O signals, and achieve a delay ≤ 1ms;

• Industrial Bus Communication:

• Profibus-DP interface (compatible with EN 50170 standard): Supports a maximum communication rate of 12Mbps, can connect Profibus slave devices such as inverters and intelligent meters (up to 32 slaves), and realizes device control (e.g., inverter speed regulation) through the "Profibus function block library";

• RS-485 interface (Modbus RTU protocol): Supports a rate of 9600-115200bps, used to connect local HMIs or data loggers, and supports both "master/slave" modes;

• Ethernet Communication: 10/100Mbps auto-negotiation Ethernet interface (RJ45), supporting:

• Modbus TCP protocol: Communicates with the Experion PKS Operator Station and Historian (historical database) to upload real-time data and alarm information;

• OPC UA protocol: Compatible with third-party systems (e.g., SCADA, MES) to realize cross-platform data sharing (e.g., transmitting production energy consumption data to the MES system);

• Time Synchronization: Supports NTP protocol (via Ethernet) or IRIG-B code (requiring an extended module) to achieve time synchronization with other devices in the system (error ≤ 1ms), ensuring consistent timestamps for event records.

• Hot Swapping & Quick Replacement: Supports "live module replacement." Maintenance personnel can remove the faulty module and install a new one without powering off the system (replacement time <5 minutes). After power-on, the new module automatically loads the backup program (no re-programming required), avoiding system downtime caused by maintenance;

• Easy Battery Replacement: The built-in lithium battery adopts a "snap-in drawer design." It can be replaced through the "battery drawer" on the rear panel without disassembling the module housing (time <1 minute). During replacement, the module is still powered by the main power supply, ensuring no data loss;

• Fault Diagnosis & Visualization:

• Local diagnosis: Intuitively displays fault types via the front-panel LED indicators (e.g., "red-red-green" indicates a memory error). Combined with the module’s built-in "fault code memory" (storing the latest 100 fault records), fault logs can be exported via the USB interface;

• Remote diagnosis: Through Experion PKS’s "Device Manager" software, remotely view parameters such as the module’s CPU load, memory usage, and communication status, and support operations such as "remote reset" and "firmware upgrade" to reduce on-site maintenance frequency;

• Online Firmware Upgrade: Supports online firmware upgrade of the module via Ethernet or USB interface (no module disassembly required). During the upgrade process, a "dual-zone storage" mechanism is adopted (firmware is stored in two independent partitions; the backup partition is upgraded first, and then switched after verification), avoiding module inoperability due to upgrade failure.

• Program Protection: User programs are stored in Flash memory (erase-write lifespan ≥ 100,000 cycles), supporting "password protection" (set via Control Builder software) to prevent unauthorized modification. At the same time, programs are automatically backed up to the redundancy module (if configured), and the standby module can directly call the backup program when the main
