ABB 500CSP04 1MRB150051R2 Communication Processor

ABB 500CSP04 1MRB150051R2 Communication Processor thumbnail-1
ABB 500CSP04 1MRB150051R2 Communication Processor thumbnail-2
ABB 500CSP04 1MRB150051R2 Communication Processor thumbnail-3
ABB 500CSP04 1MRB150051R2 Communication Processor photo-1
ABB 500CSP04 1MRB150051R2 Communication Processor photo-2

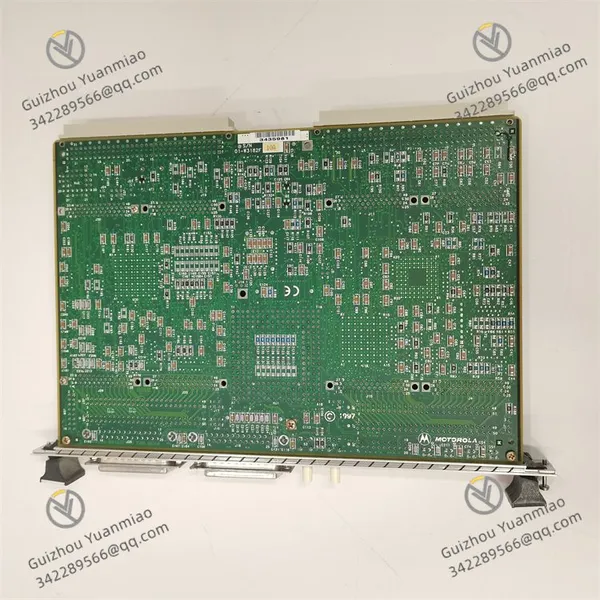

ABB 500CSP04 1MRB150051R2 Communication Processor photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Global universal model
Condition:
Other, Global universal model
Task:
Other, Global universal model
Contact Supplier Request Quote Chat Now
Guizhou Yuanmiao Automation Equipment Co., Ltd.
Gold Verified Supplier
1Yr
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Other, Global universal model
Condition Other, Global universal model
Task Other, Global universal model
Mathematical Model Other, Global universal model
Signal Other, Global universal model
Customized Non-Customized
Structure Other, Global universal model
Power Supply 24VDC (±20%)
Power Consumption ≤8W
Operating Temperature -25°C ~ +60°C

I. Positioning and Applications


  • Series Affiliation: Communication Processor module of ABB AC 500 series PLC, primarily used to expand the system's communication capabilities and enable data interaction and device interconnection between different network protocols.

  • Core Functions: Supports multiple communication protocols such as industrial Ethernet and fieldbus, connecting remote I/O, sensors, actuators, and upper-level systems as a master or slave station. Suitable for distributed automation systems and cross-protocol communication scenarios (e.g., data interaction between workshop and management layers).


II. Technical Parameters and Characteristics


Communication Interfaces and Protocols

  • Integrated Interfaces:

    • 2 RJ45 Ethernet interfaces (ETH1/ETH2), supporting 10/100Mbps auto-negotiation, configurable for different network segments or redundant connections.

    • 1 RS-485/RS-232 serial port (DB9 interface), natively supporting Modbus RTU and ASCII protocols, with custom communication protocol capabilities.

  • Protocol Support:

    • Industrial Ethernet: EtherNet/IP, Modbus TCP, Profinet (requires configuration), EtherCAT (requires expansion module).

    • Fieldbus: CANopen, DeviceNet (configurable via software), Modbus RTU (serial port).

    • Other Protocols: Supports communication with SCADA systems (e.g., WinCC, iFIX) and HMI devices (e.g., ABB Panel series).


Performance Parameters

  • Data Transmission Rate: Up to 100Mbps for Ethernet interfaces, up to 115.2kbps for serial ports.

  • Concurrent Communication Capability: Supports simultaneous processing of multiple communication tasks (e.g., Ethernet master and serial slave working in parallel).

  • Address Mapping: Enables mapping of remote I/O data to local PLC memory for real-time data exchange.

Electrical and Environmental Characteristics

  • Power Supply: 24VDC (±20%), power consumption ≤8W.

  • Isolation: Electrical isolation between power supply and communication interfaces (1500V AC/1min), with strong anti-interference capability.

  • Mounting Method: 35mm DIN rail mounting, supports vertical/horizontal installation.

  • Operating Temperature: -25°C ~ +60°C, humidity 5%~95% (non-condensing).

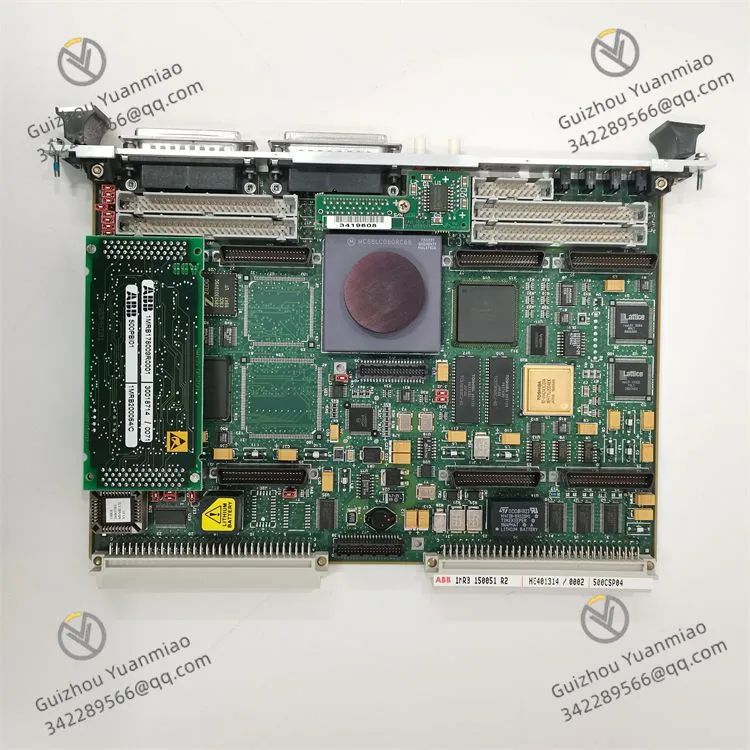

500CSP04 1MRB150051R2 (5)


III. Application Scenarios


Distributed System Interconnection

  • As an EtherNet/IP master station, connects remote I/O modules (e.g., ABB 500I/O series) to build distributed control systems.

  • Communicates with Siemens devices and third-party sensors via Profinet protocol to achieve cross-brand equipment integration.

Cross-Protocol Data Conversion

  • Converts data from Modbus RTU devices (e.g., instruments, frequency converters) to Ethernet protocols for upload to SCADA systems.

  • In automobile production lines, connects robot controllers via CANopen to enable collaborative control of multiple devices.

Remote Monitoring and Management

  • Utilizes Ethernet interfaces to communicate with cloud platforms (e.g., ABB Ability™), supporting remote program download and device status monitoring.

  • In water treatment systems, connects flowmeters and pH sensors via serial ports, and sends aggregated data to the central control room via Ethernet.

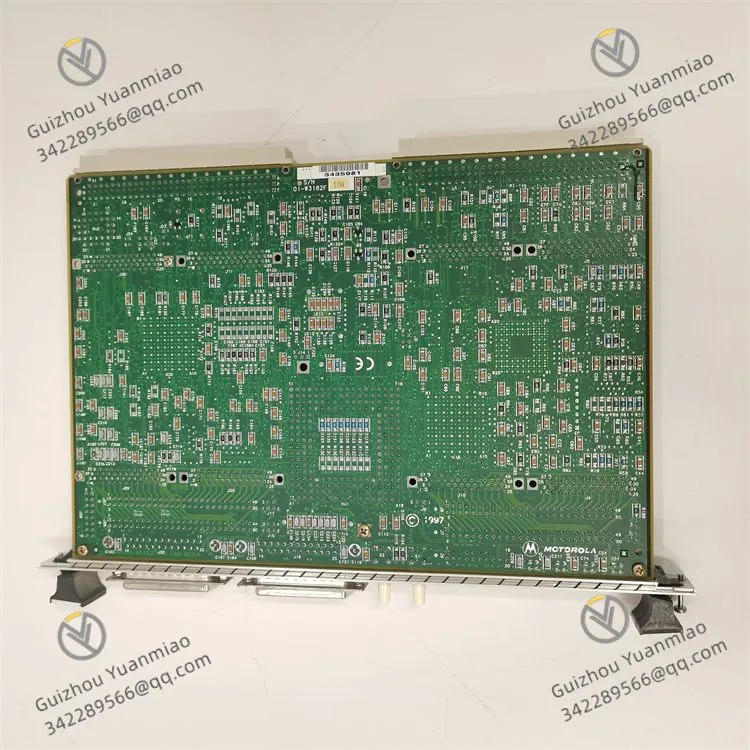

500CSP04 1MRB150051R2 (1)


IV. Interfaces and Wiring


Hardware Interface Layout

  • Ethernet Interfaces: ETH1 and ETH2 can be independently configured with IP addresses, supporting switch cascading or redundant links.

  • Serial Port: DB9 interface; in RS-485 mode, connect to bus terminals A/B; in RS-232 mode, connect to TX/RX/GND.

  • Expansion Interface: Backplane bus interface for inserting into the CPU rack of AC 500 series PLC to communicate with the main controller.

Typical Wiring Example (Profinet Master)

  • Ethernet interface connects to Profinet slave stations (e.g., Siemens ET200S) via network cables, requiring GSD file configuration.

  • When connecting third-party devices via serial port, install 120Ω terminal resistors at both ends of the RS-485 bus to avoid signal interference.

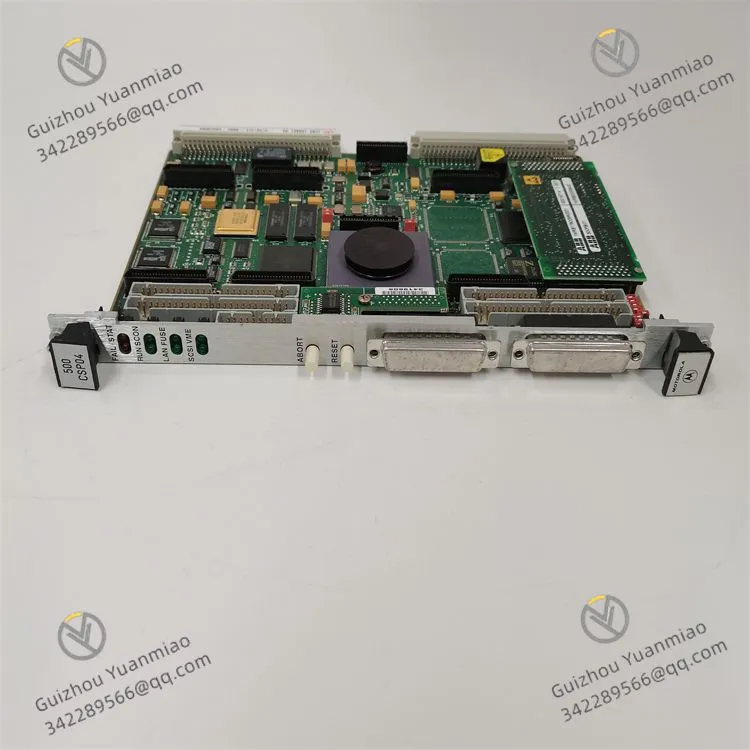

500CSP04 1MRB150051R2 (4)


VI. Comparison with Similar Modules (vs. 500CSP03, 500CSP05)


Comparison Dimension 500CSP04 500CSP03 500CSP05
Ethernet Interfaces 2 (supports redundancy) 1 2 (supports gigabit)
Protocol Support EtherNet/IP, Profinet EtherNet/IP, Modbus TCP EtherNet/IP, OPC UA
Maximum Slave Stations 64 (Profinet) 32 (EtherNet/IP) 128 (high-speed communication)
Applicable Scenarios Medium distributed systems, cross-protocol Small-scale communication expansion Large high-speed systems, cloud interconnection
Product Tags: 500CSP04 , HE401314/0002 , 1MRB150051R2
